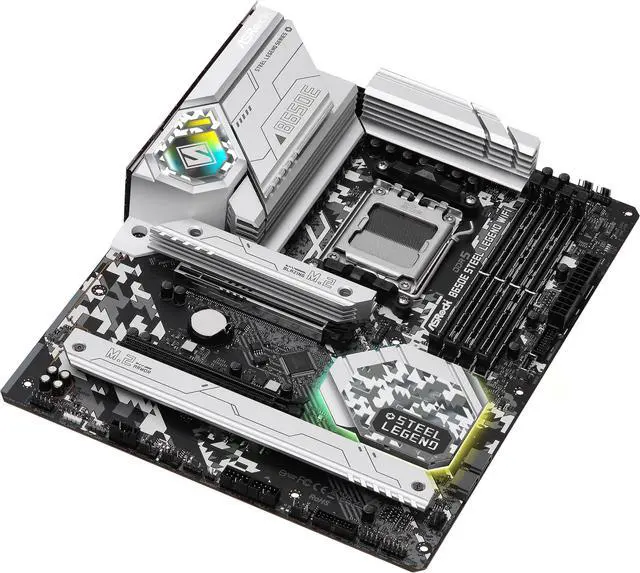

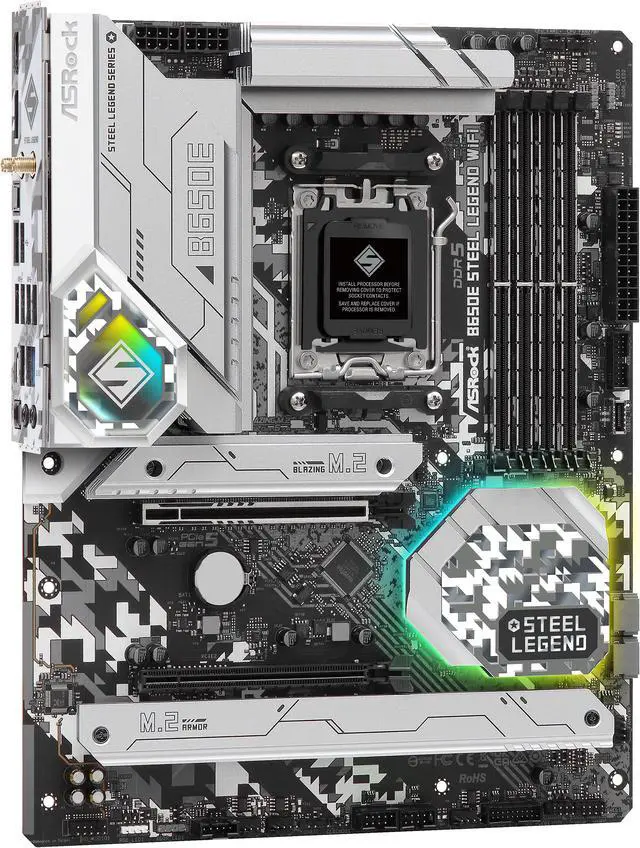

ASRock B650E STEEL LEGEND WIFI AM5 ATX Motherboard, 4 slots DDR5, PCIE 5.0 x16, Dual M.2 slots, 2.5Gb Lan,WI-FI 6E, 7.1 Nahimic Audio , Front USB3.2 Gen2X2 Type_C , 16+12+1 Power Phase

Supports AMD Ryzen 7000 Series and Ryzen 9000 Series processors
Bios update MAY required when used with 9000 Series processors
16+2+1 Power Phase + SPS for Vcore.
Supports DDR5 6400MHz (OC).
8 Layer Server-Grade Low-Loss PCB.
1 PCIe 5.0 x16, 1 PCIe 3.0 x16.
Graphics Output Options: HDMI, DisplayPort.
Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio.
2 SATA3, 1 Blazing M.2 (PCIe Gen5x4), 2 Hyper M.2 (PCIe Gen4x4).
1 USB 3.2 Gen2x2 Front Type-C:2 Rear USB 3.2 Gen2 (Type A + Type-C), 8 USB 3.2 Gen1 (4 Rear, 4 Front), 6 USB 2.0 (2 Rear, 4 Front).
Dragon 2.5G LAN, 802.11ax (WiFi 6E) + Bluetooth.
Supports ASRock Auto Driver Installer, BIOS Flashback.

Specs

Reviews (14)

Learn more about the ASRock B650E STEEL LEGEND WIFI

Model
Brand	ASRock
Model	B650E STEEL LEGEND WIFI

Supported CPU
CPU Socket Type	AM5
CPU Type	Supports AMD Ryzen 7000 Series Processors

Chipsets
Chipset	AMD B650E

Memory
Number of Memory Slots	4x288pin (DDR5)
Memory Standard	Supports DDR5 non-ECC, un-buffered memory up to 6400+(OC)
Maximum Memory Supported	128GB
Channel Supported	Dual Channel
Memory Performance Profile	Intel XMP 3.0 / AMD EXPO
ECC Supported	Yes
Buffer Supported	Un-buffered
Memory Feature	Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules * Please refer to Memory Support List on ASRock's website for more information. (http://www.asrock.com/)

Expansion Slots
PCI Express 5.0 x16	1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
PCI Express 3.0 x16	1 x PCIe 3.0 x16 Slot (PCIE2), supports x4 mode* * Supports NVMe SSD as boot disks

Storage Devices
Serial ATA (SATA)	2 x SATA 6Gb/s
M.2	1 x Blazing M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode* 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode* 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode* * Supports NVMe SSD as boot disks
SATA RAID	Supports RAID 0 and RAID 1 for SATA storage devices
Additional RAID Controller	Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices* * Requires additional M.2 NVMe expansion cards to support RAID 10

Onboard Audio
Audio Chipset	Realtek ALC897
Audio Channels	7.1 Channels

Rear Panel Ports

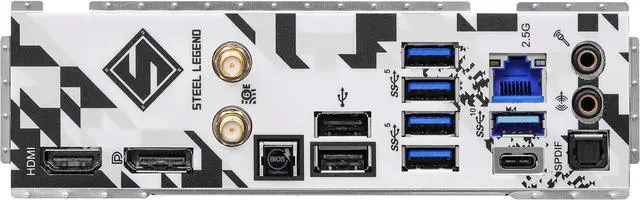

Back I/O Ports	2 x Antenna Ports 1 x HDMI Port 1 x DisplayPort 1.4 1 x Optical SPDIF Out Port 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver) 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver) 4 x USB 3.2 Gen1 Ports 2 x USB 2.0 Ports 1 x RJ-45 LAN Port 1 x BIOS Flashback Button 1 x Line Out Jack (Gold Audio Jack) 1 x Microphone Input Jack (Gold Audio Jack)

Internal I/O Connectors
Onboard USB	2 x USB 2.0 Headers (Support 4 USB 2.0 ports) 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) (ReDriver)
Other Connectors	1 x SPI TPM Header 1 x Power LED and Speaker Header 1 x RGB LED Header* 3 x Addressable LED Headers 1 x CPU Fan Connector (4-pin)* 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)** 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*** 1 x Front Panel Audio Connector 1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card) * Supports in total up to 12V/3A, 36W LED Strip Support in total up to 5V/3A, 15W LED Strip * CPU_FAN1 supports the fan power up to 1A (12W). ** CPU_FAN2/WP supports the fan power up to 2A (24W). * CHA_FAN1~4/WP support the fan power up to 2A (24W). *** CPU_FAN2/WP and CHA_FAN1~4/WP can auto detect if 3-pin or 4-pin fan is in use.

Physical Spec
Form Factor	ATX
Dimensions (W x L)	12.0" x 9.6"
Power Pin	1 x 24 pin ATX Power Connector (Hi-Density Power Connector) 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)

Software Feature
Windows 11	Supported

Packaging

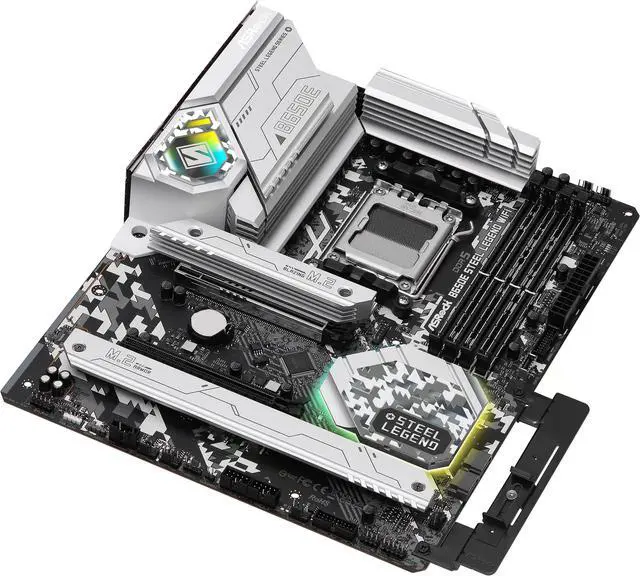

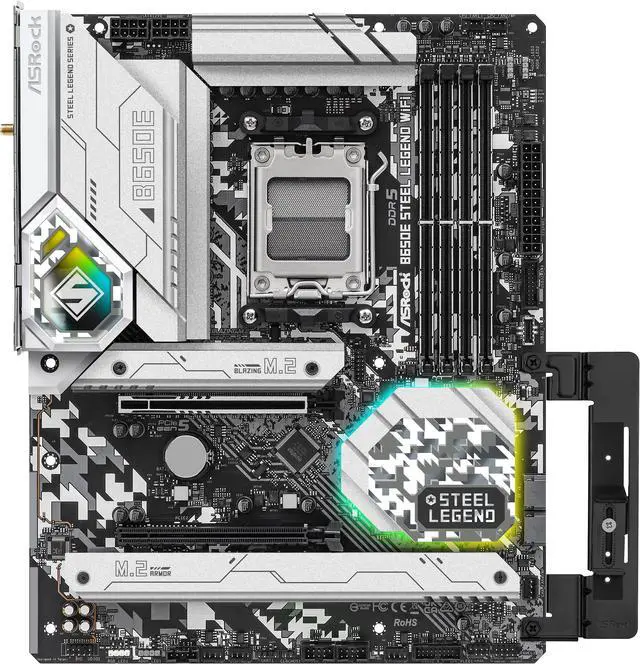

Package Contents	1 x User Manual 2 x SATA Data Cables 1 x ASRock WiFi 2.4/5/6 GHz Antenna 3 x Screws for M.2 Sockets 1 x Standoff for M.2 Socket 1 x Graphics Card Holder
