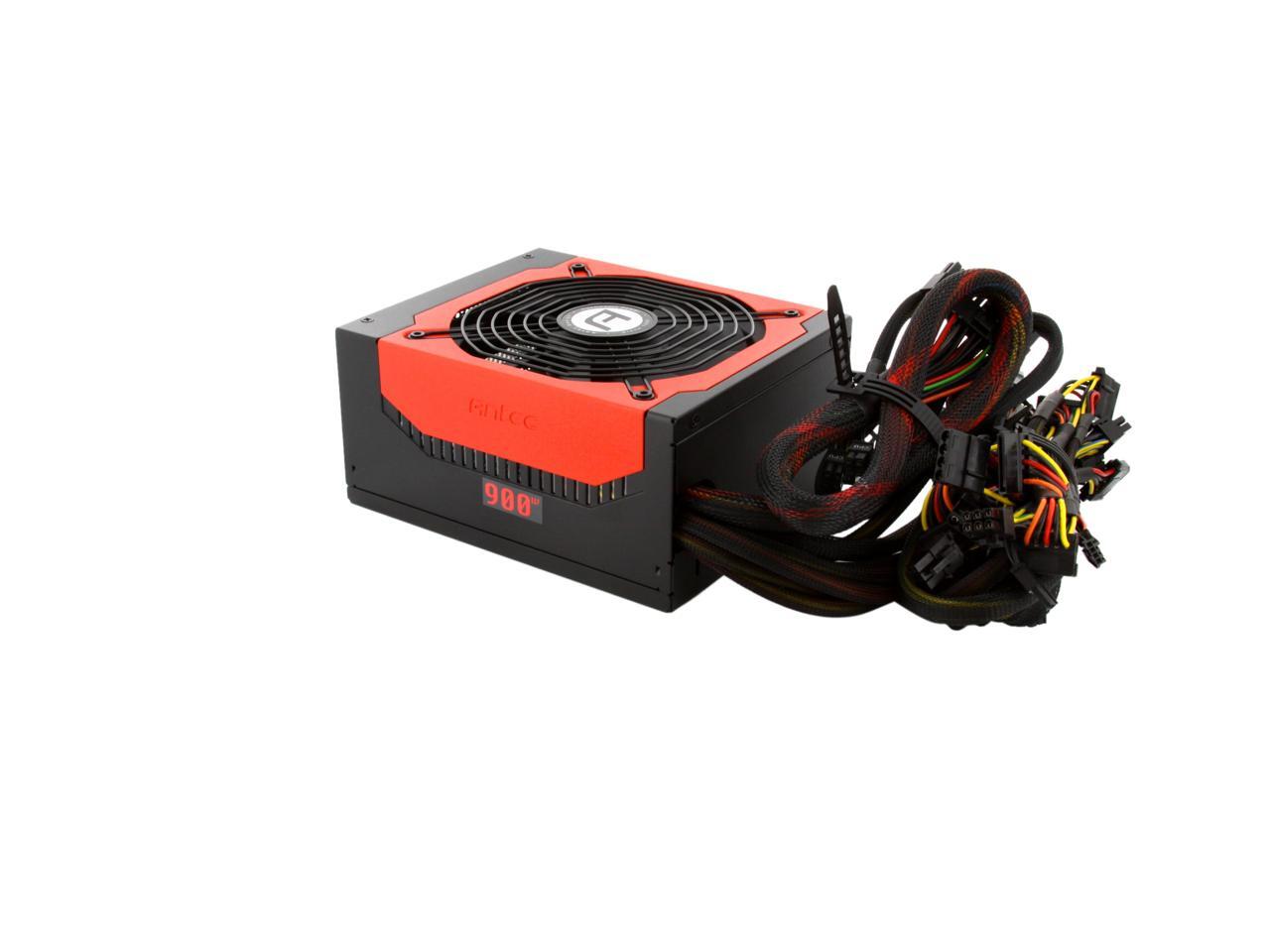

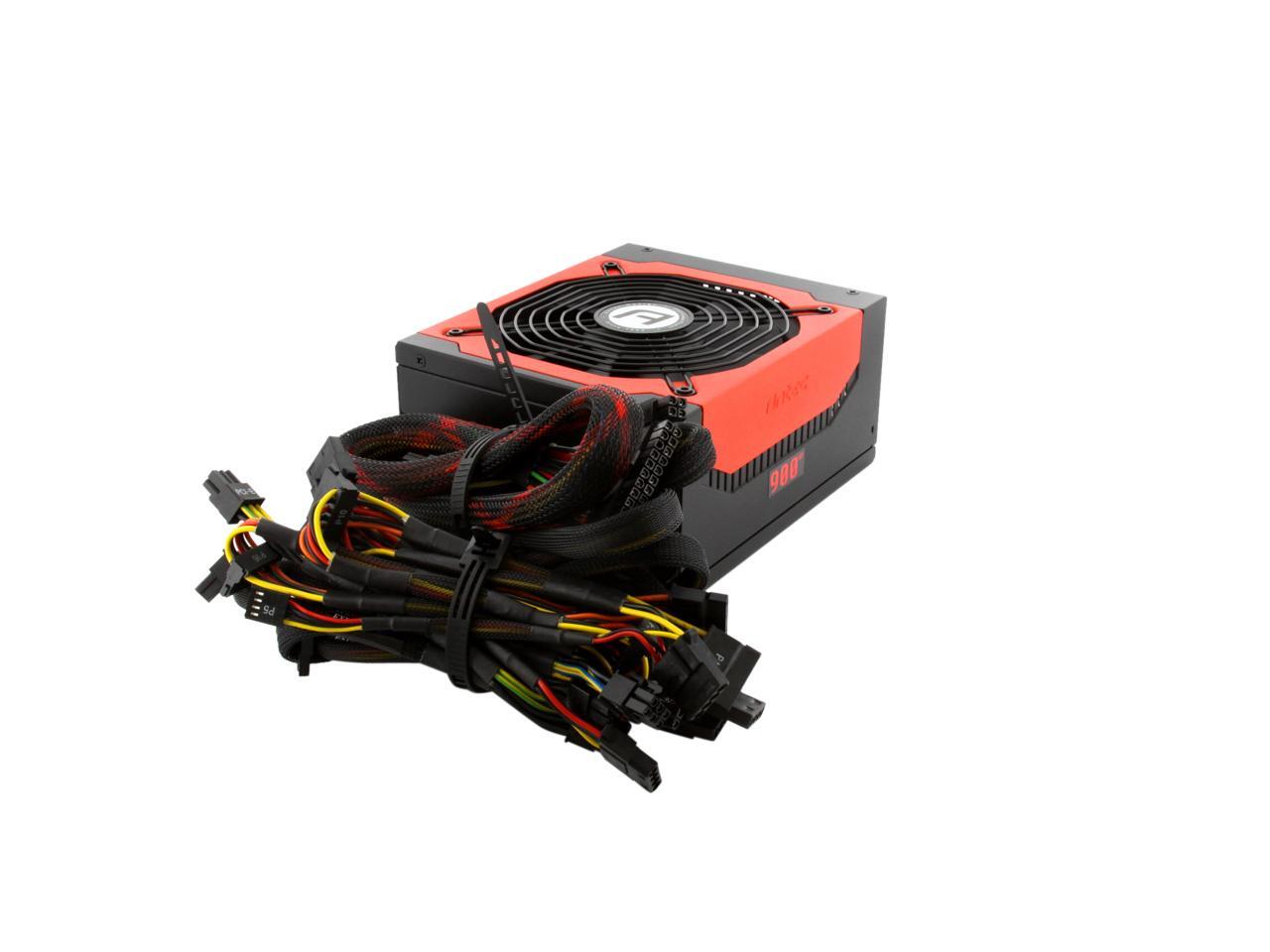

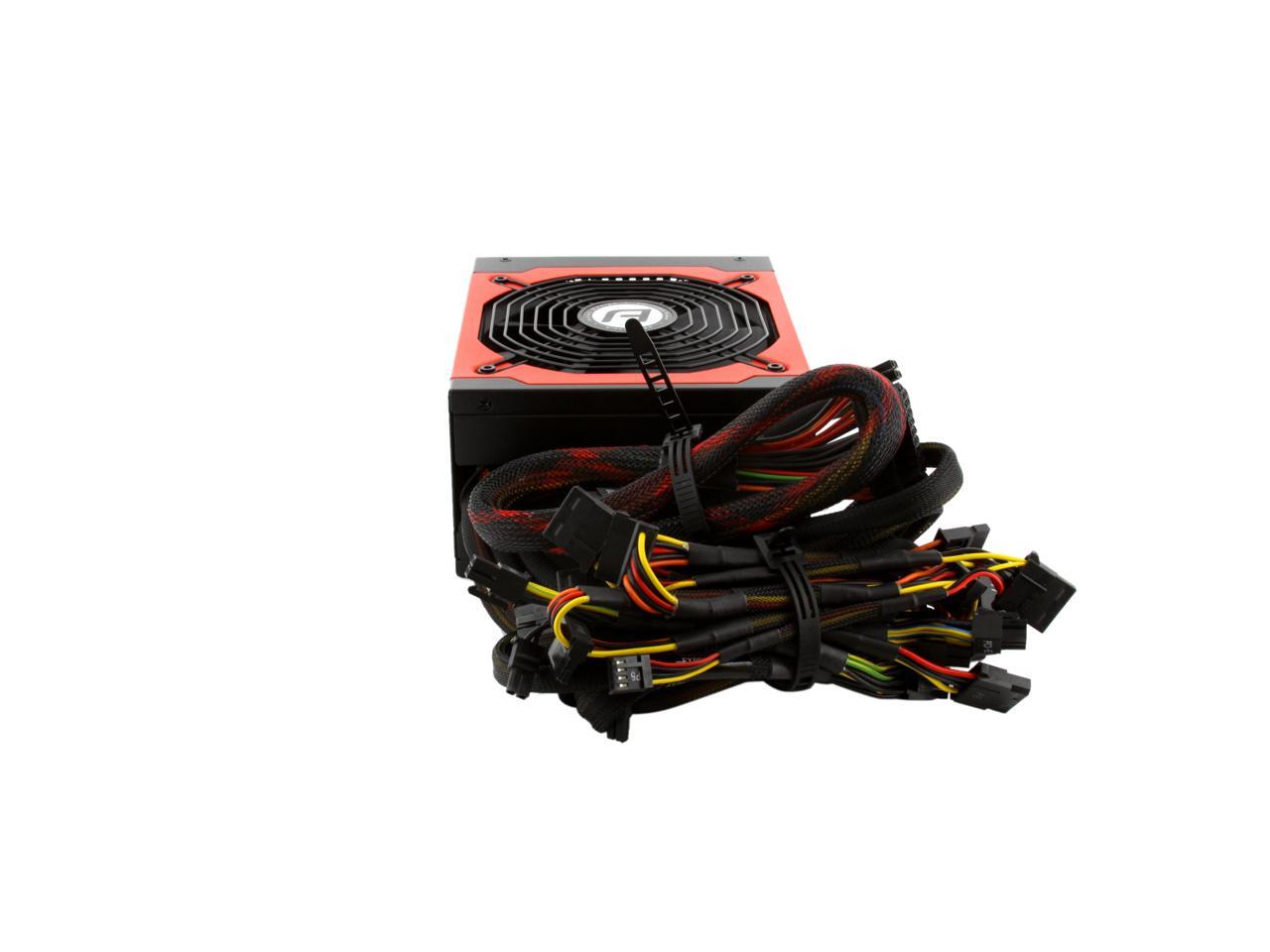

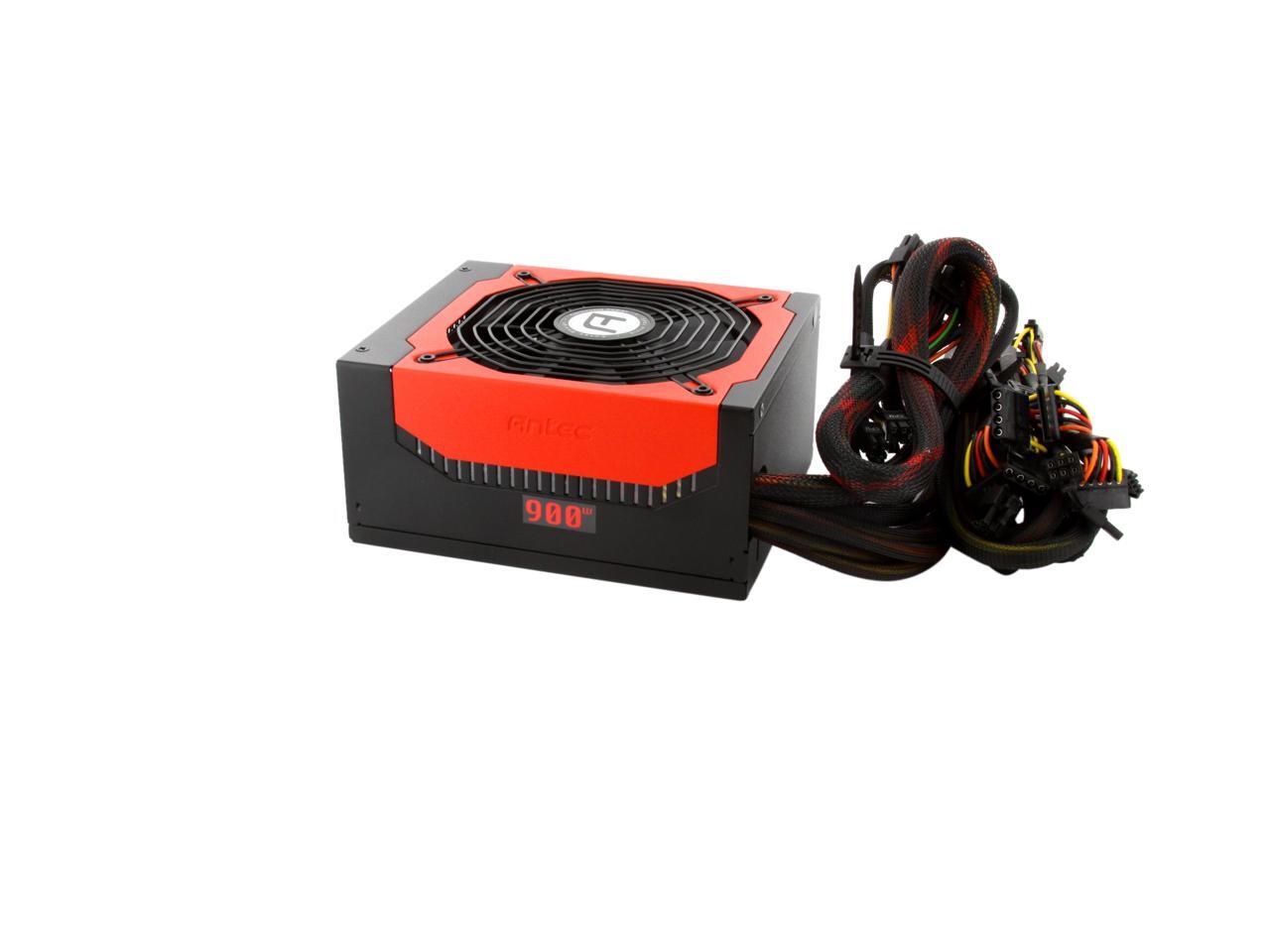

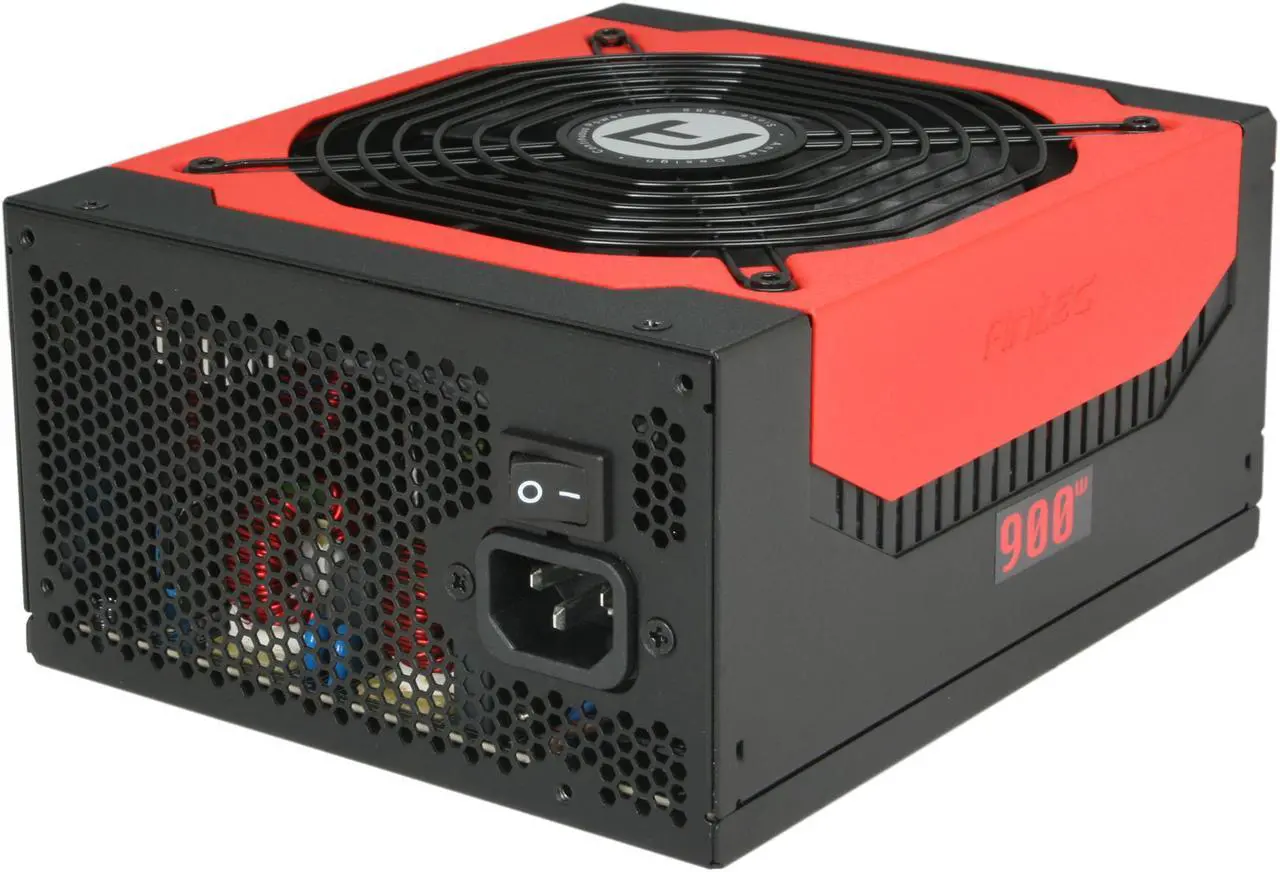

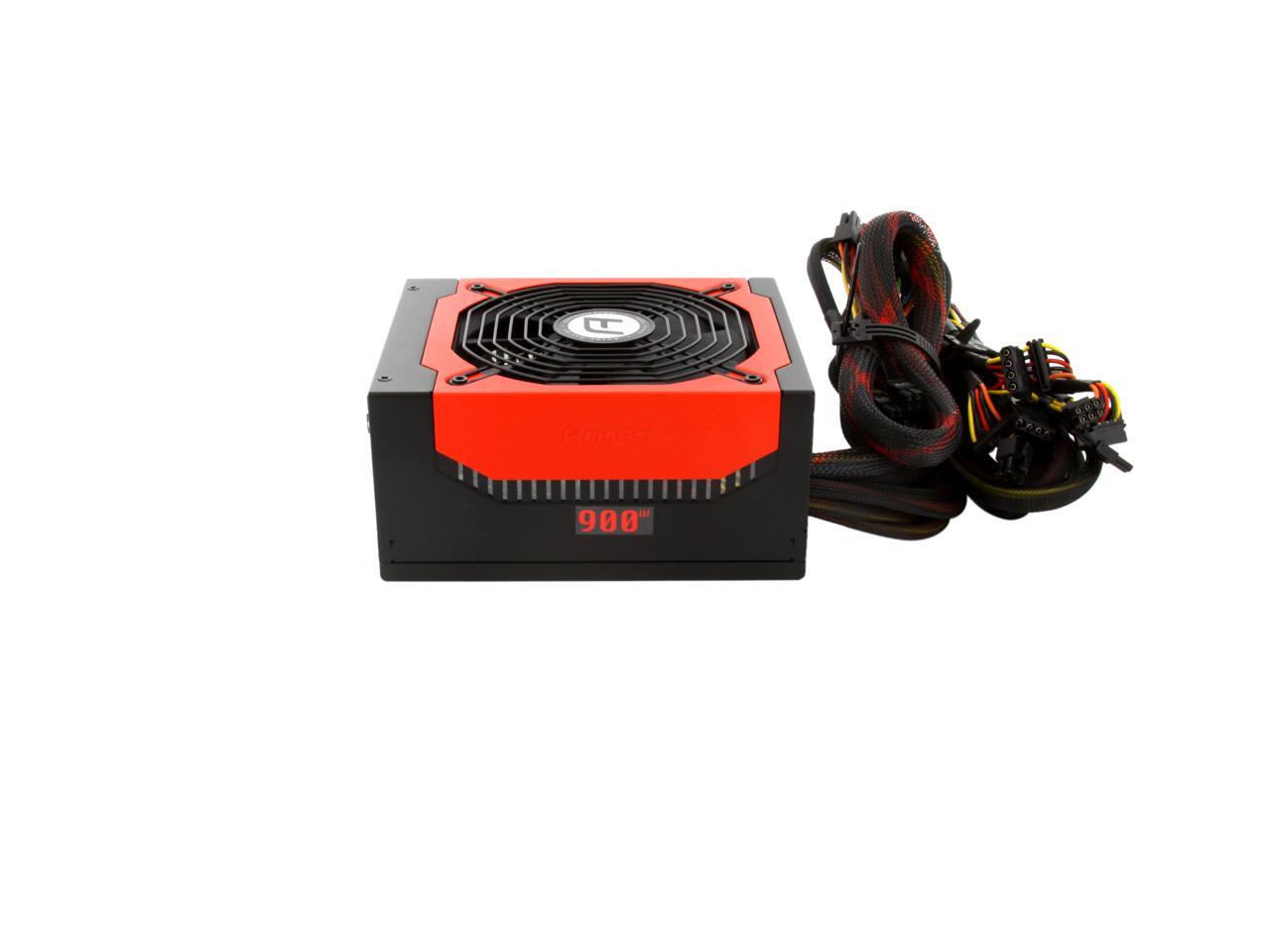

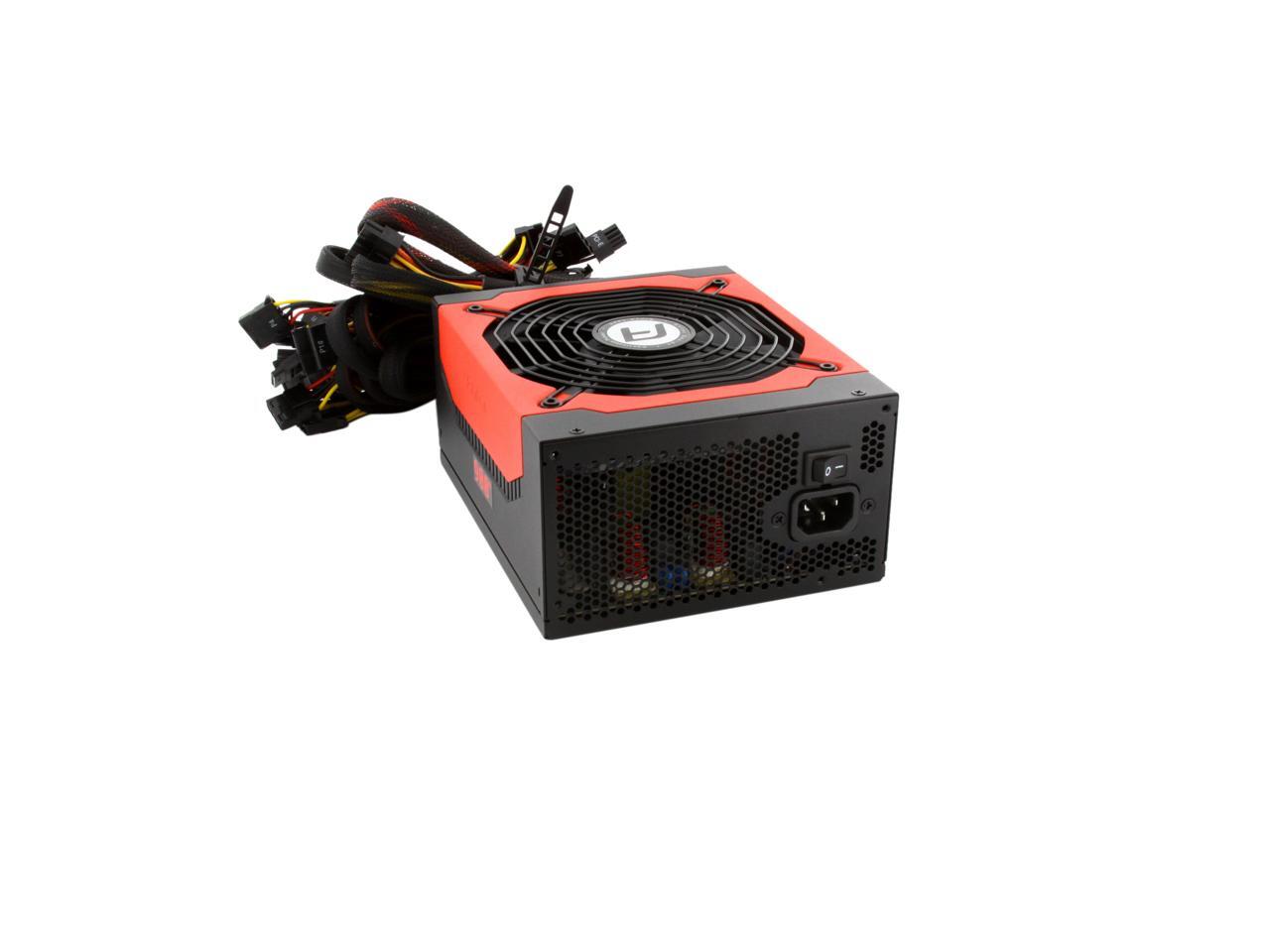

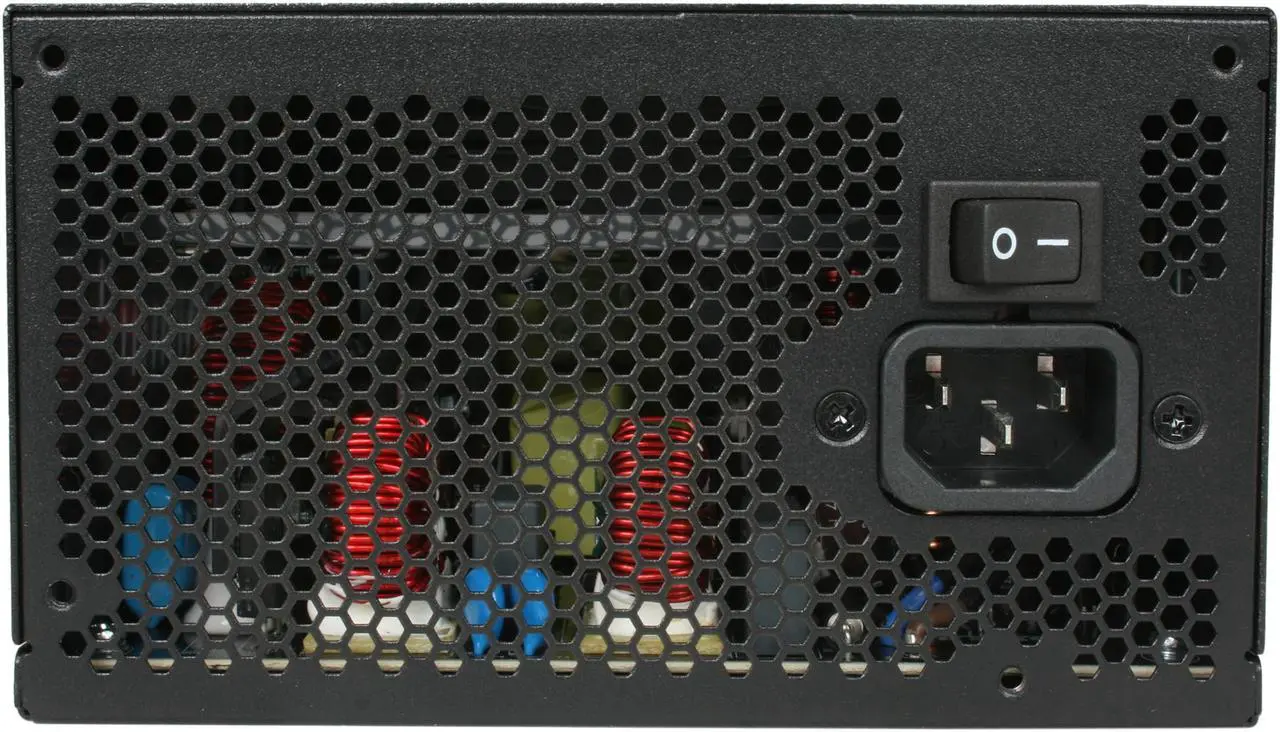

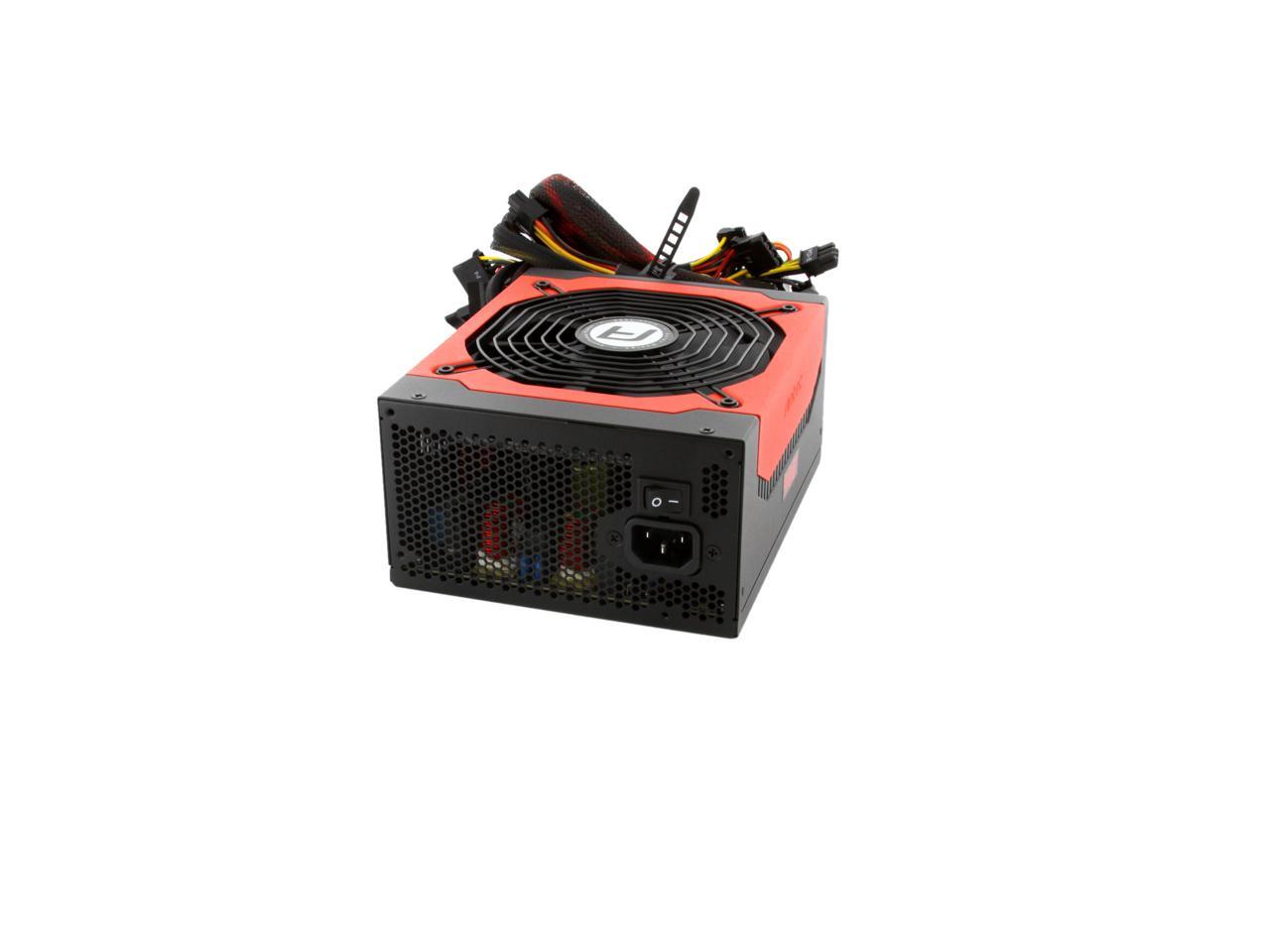

Antec High Current Gamer Series HCG-900 900W ATX12V v2.3 / EPS12V v2.91 SLI Certified CrossFire Certified 80 PLUS BRONZE Certified Active PFC Power Supply - Intel Haswell Fully Compatible
- ATX12V v2.3 / EPS12V v2.91
- 80 PLUS BRONZE Certified
- 100 - 240VAC ±10% 47 - 63 Hz
- +3.3V@25A, +5V@25A, +12V1@40A, +12V2@40A, +12V3@40A, +12V4@40A, [email protected], [email protected]
Overview
Specs
Reviews (136)
Making quad rail power and highly advanced power supply design available at a popular wattage, the HCG-900 features special High Current connectors and heavy-duty cabling, earning it NVIDIA SLI-Ready and ATI CrossFireX certifications. At the same time the HCG-900 is also 80 PLUS Bronze certified for efficiency, and features active PFC with a swift, quiet 135 mm double ball bearing fan so you know you're getting not only High Current, but also high efficiency and excellent cooling. If loads of power, High Current engineering and exceptional efficiency are what you're after, the HCG-900 is the perfect PSU for you.
Making quad rail power and highly advanced power supply design available at a popular Wattage, the HCG-900 features special High Current connectors and heavy-duty cabling, earning it NVIDIA® SLI®-Ready and ATI™ CrossFire™ certifications. At the same time the HCG-900 is also 80 PLUS® Bronze certified for efficiency, and features Active Power Factor Correction (PFC) with a swift, quiet 135mm double ball bearing fan so you know you're getting not only High Current, but also high efficiency and excellent cooling. If loads of power, High Current engineering and exceptional efficiency are what you're after, the HCG-900 is the perfect PSU for you.
Features
- 900 Watts of Continuous Power
- NVIDIA&® SLI®-Ready Certified, ATI CrossFire™ Certified
- 80 PLUS® Bronze Certified - Up to 88% efficiency
- Quad High Current +12V Rails With high maximum load for better graphics card compatibility

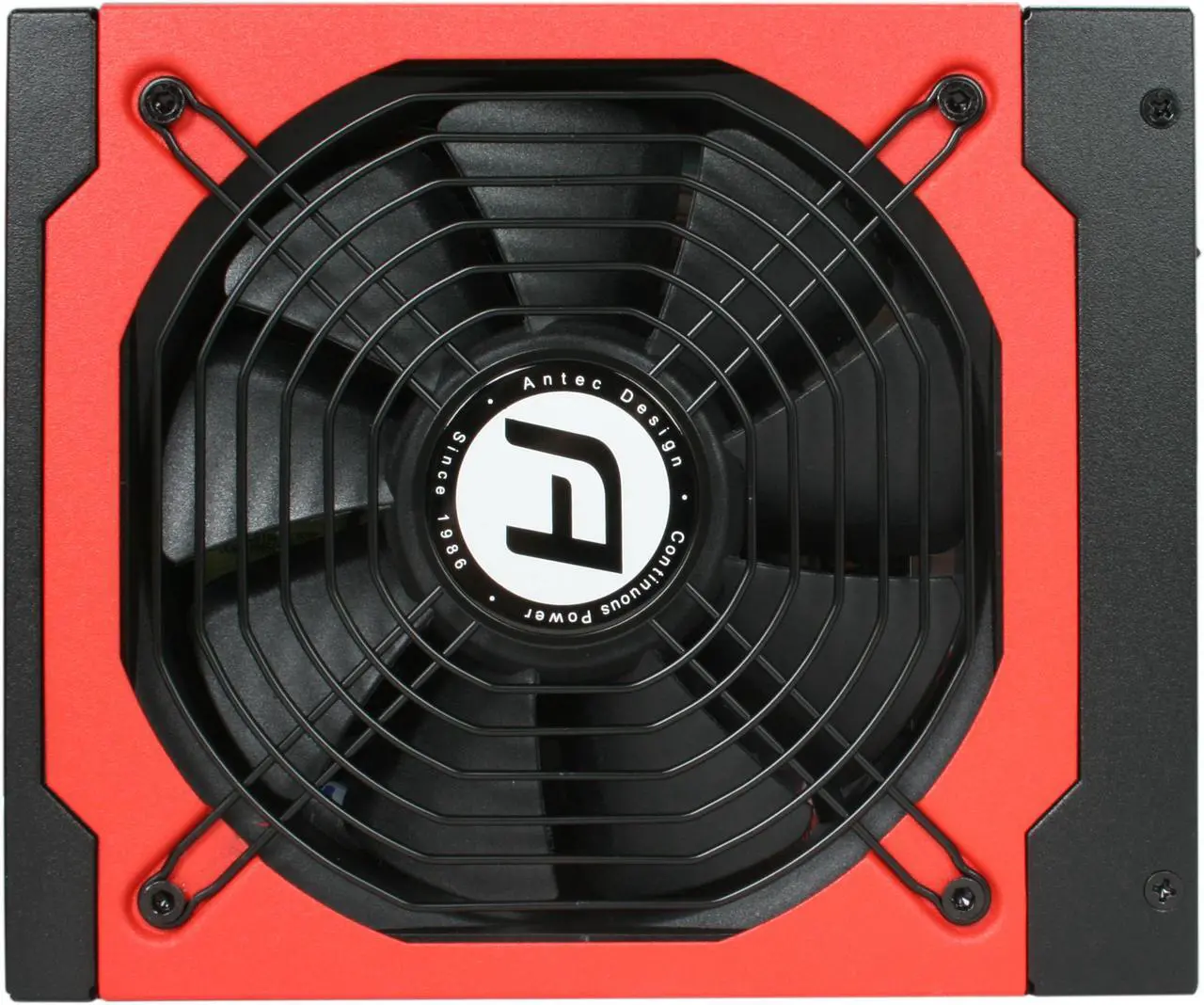

- Quiet 135mm Double Ball Bearing Cooling Fan With low start voltage
- Four Gold-Plated 8-Pin (6 + 2) PCI-E Connectors For multiple-graphics card configurations
- All Japanese Brand Capacitors For reliability
- ATX12V Version 2.3 and EPS Version 2.91 Compliant
- Gold-plated High Current terminals For optimal conductivity
- Universal Input - Works on any 100V ~ 240V grid
- Active PFC With PF: 0.99 - less harmonic pollution, greater efficiency
- Full Suite of Industrial Grade Protection: Over current protection (OCP), Over voltage protection (OVP), Short circuit protection (SCP), Over power protection (OPP), and Over temperature protection (OTP).
- MTBF: 100,000 hours
- Meets ErP Lot 6: 2010 Requirement: 5Vsb < 1W
- Safety: cUL, TÜV, CE, CB, FCC, C-TICK, CCC, BSMI, Gost-R
- AQ5: Antec Quality 5-year limited warranty on parts and labor
- Unit Dimensions (H x W x D): 3.4 x 5.9 x 7.1 inches (86 x 150 x 180mm)
- Package Dimensions (H x W x D): 4.9 x 12.2 x 7.1 inches (124 x 310 x 180mm)
- Weight: 6.0lbs (2.7kg) (Net), and 7.5lbs (3.4kg) (Gross)

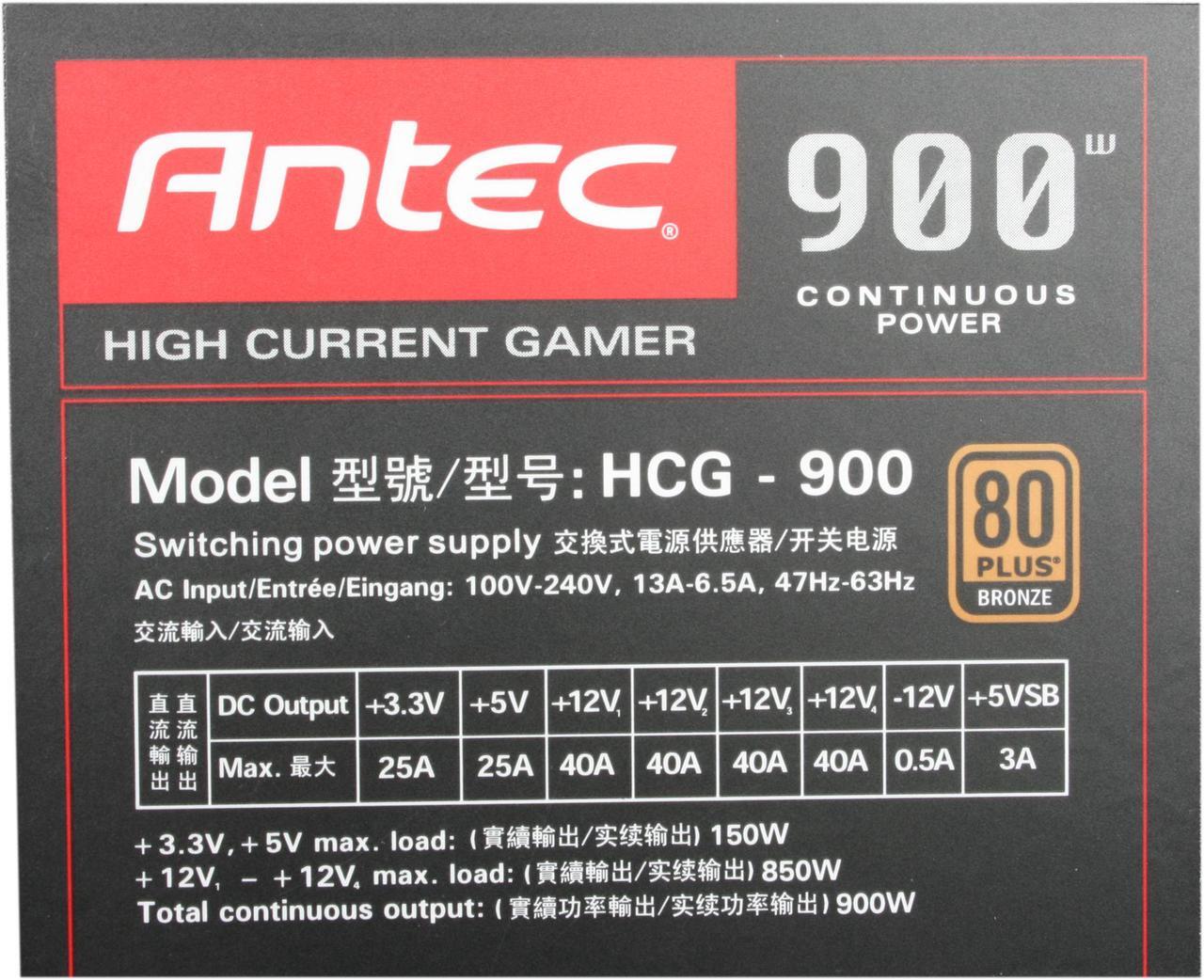

Output
| Output Voltage | Range MAX | Reg. | OCP Set Point | Ripple & Noise |
|---|---|---|---|---|
| +5V | 25A | ±5% | 38A | 50 |
| +12V1 | 40A | ±5% | 52A | 120 |
| +12V2 | 40A | ±5% | 52A | 120 |
| +12V3 | 40A | ±5% | 52A | 120 |
| +12V4 | 40A | ±5% | 52A | 120 |
| -12V | 0.5A | ±10% | 120 | |
| +5V5B | 3A | ±5% | 50 | |
| +3.3V | 25A | ±5% | 38A | 50 |
| +5V and +3.3V combined max. output: 150W; +12V outputs combined max. output: 850W (70.8A) | ||||
Input
| Input Voltage | 100 ~ 240VAC ±10% |
| Input Frequency Range | 47Hz ~ 63Hz |
| Efficiency | Up to 88% |

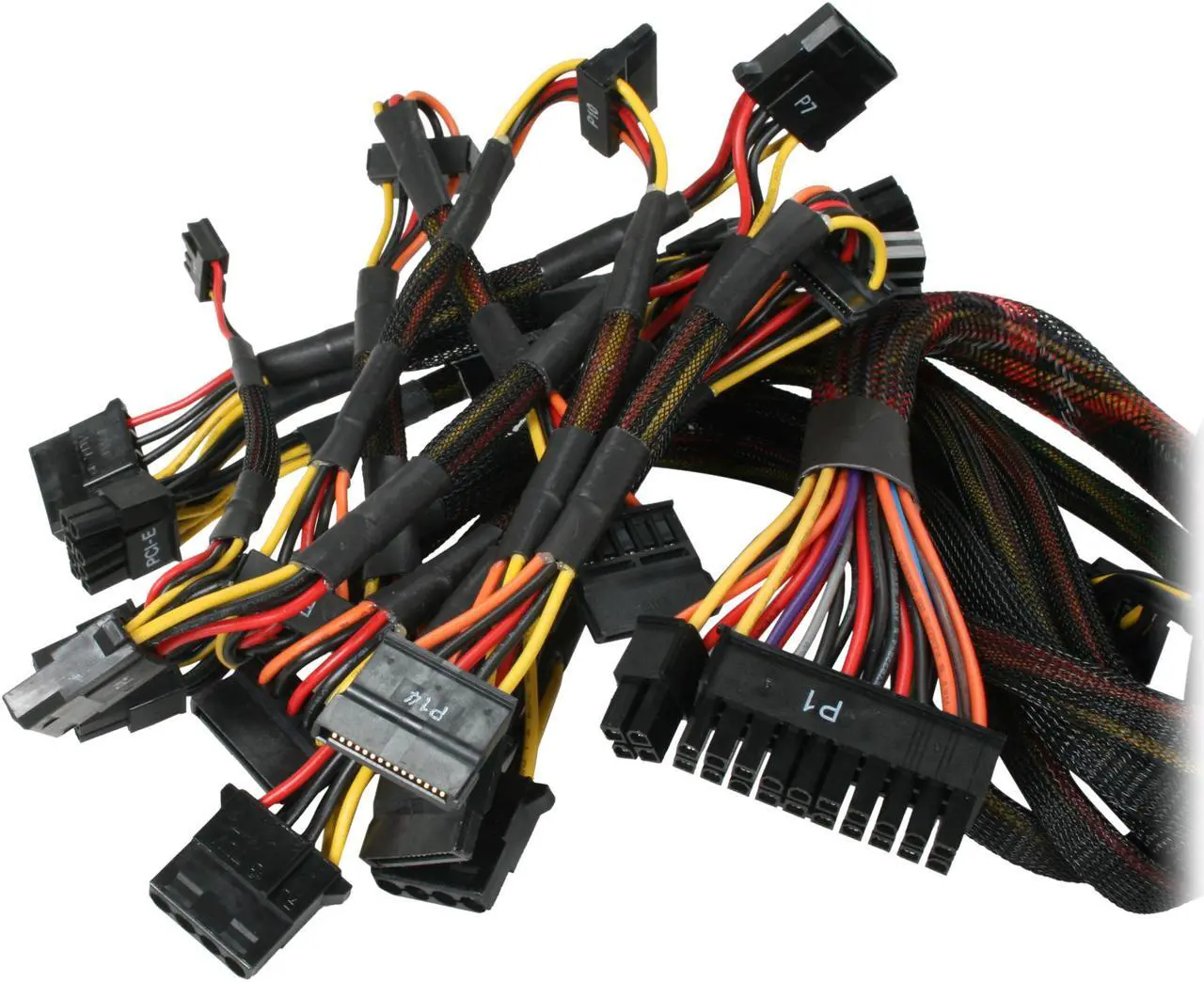

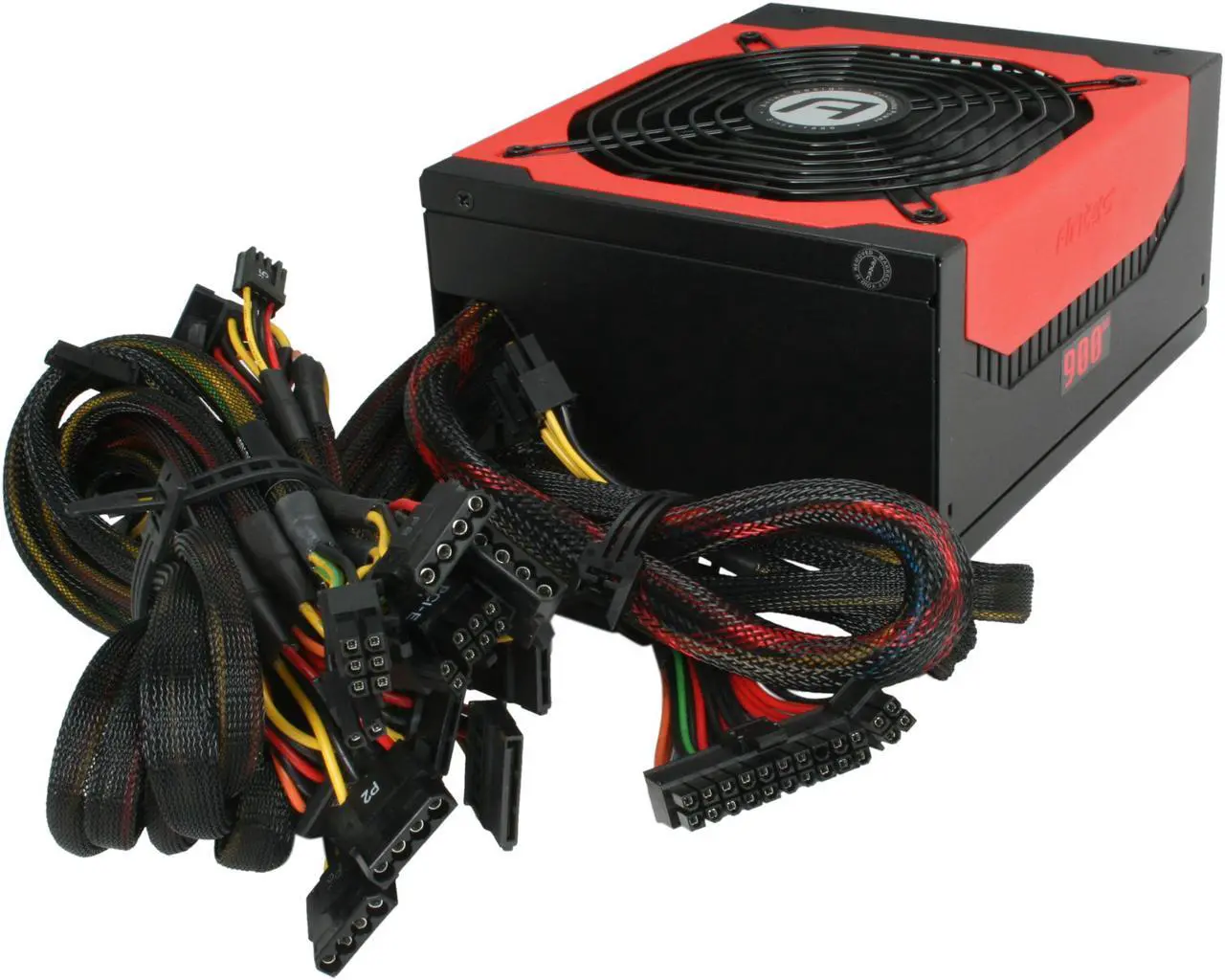

Connectors
1 x 20 + 4-Pin
4 x 6 + 2 PCI-E
9 x SATA
6 x Molex
1 x Aux.
1 x 4 + 4-Pin ATX/EPS

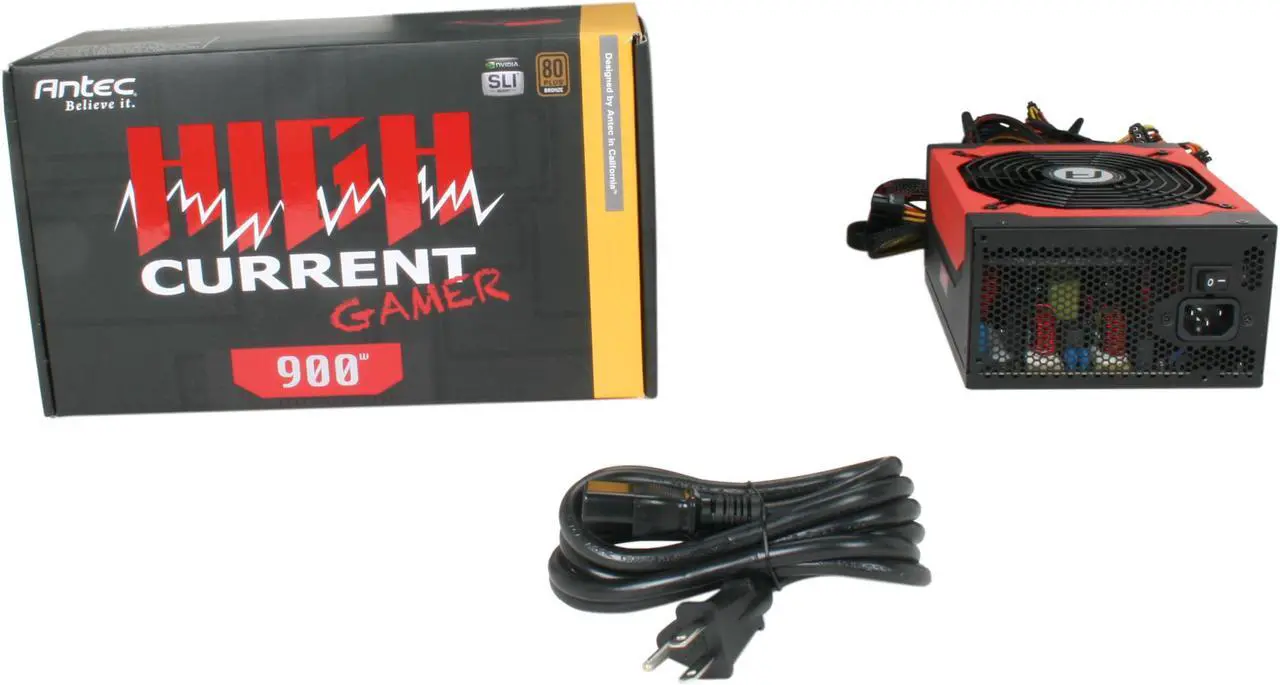

What's in the Box
