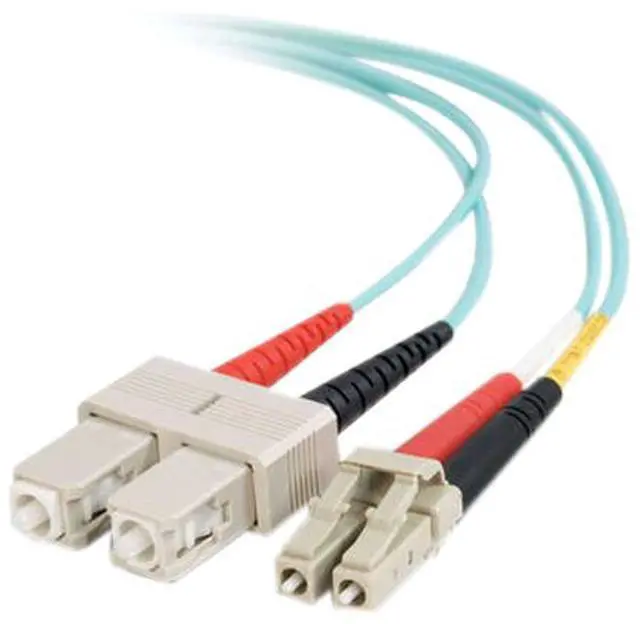

C2G 33052 6.56 ft. 10 Gb LC/SC Duplex 50/125 Multimode Fiber Patch Cable

4 Connector Number
Aqua

Overview

Specs

Reviews

E3D BRASS NOZZLE - 1.75MM X 0.25MM

Get blazing-fast 10 gigabit performance with laser-optimized multimode fiber (LOMMF) cables. Besides fully providing backward compatibility with existing 50/125 equipment, they also provide the performance headroom required to support LED and VCSEL laser light sources, and 10 gigabit Ethernet applications.

Warranty & Returns

Warranty, Returns, And Additional Information

Return Policies*

Return for refund within: 30 days

Returns are subject to restocking fees and return shipping fees. Please click here to learn more about restocking fees and return shipping fees.

This item is covered by Newegg.com's International Return Policy. Read full return policy for details.
*Subject to applicable law
Warranty Notice:
This product does not include manufacturer warranty when purchased or used outside of its designated sales region. By purchasing internationally, you acknowledge that warranty support from the manufacturer will not be available.

Brand	C2G
Model	33052
Type	Network Cable
Type	Cable Connectors
Color	Aqua

Length	6.56 ft.
Connector Number	4
Connector Detail	Connector A: LC Male Connector B: SC Male
Specifications	LC Connector Dimensions: 10.75mm - Height x 12.5mm - Width x 50mm - Depth (with installed duplex clip) SC Connector Dimensions: 10.6mm - Height x 26mm - Width x 58mm - Depth (with installed duplex clip) Maximum Connector Loss: 0.50 dB Typical Connector Loss: 0.30 dB Typical Return Loss: -25 dB Buffer Material: PVC Buffer OD: 900 um Jacket Material: PVC (OFNR riser-rated) Jacket OD: 1.8 mm Installation Tensile Load: 100 N (445 lbs) Long-Term Tensile Load: 50 N (222 lbs) Maximum Tensile Load: 100 N/cm Installation (Loaded) Minimum Bend Radius: 5.0cm (1.97in) Long-Term (Unloaded) Minimum Bend Radius: 3.0cm (1.2in) Crush Resistance: 750 N/cm Impact Resistance: 1,000 cycles Flex Resistance: 5,000 cycles Attenuation at 1300 nm: 1.0 dB/km Attenuation at 850 nm: 3.5 dB/km Operating Temperature: -20 Degree to +70 Degree Please Note: Attenuation testing performed in accordance with EIA/TIA-455-171A. Length: 2m Weight: 0.08 lbs. Jacket Rating: Standard

C2G 33052 6.56 ft. 10 Gb LC/SC Duplex 50/125 Multimode Fiber Patch Cable
