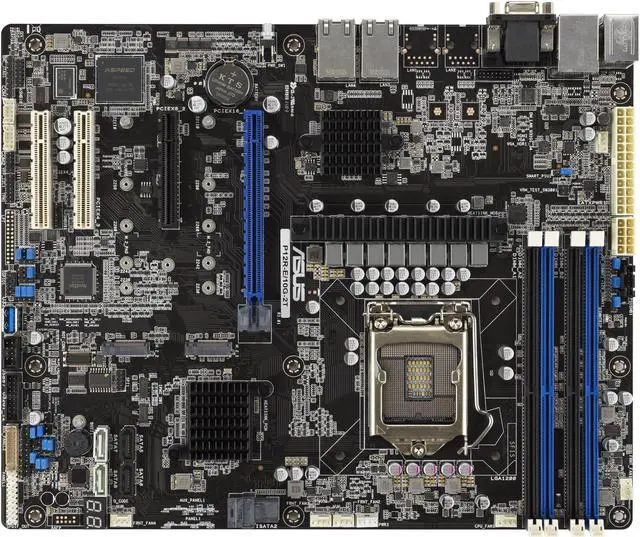

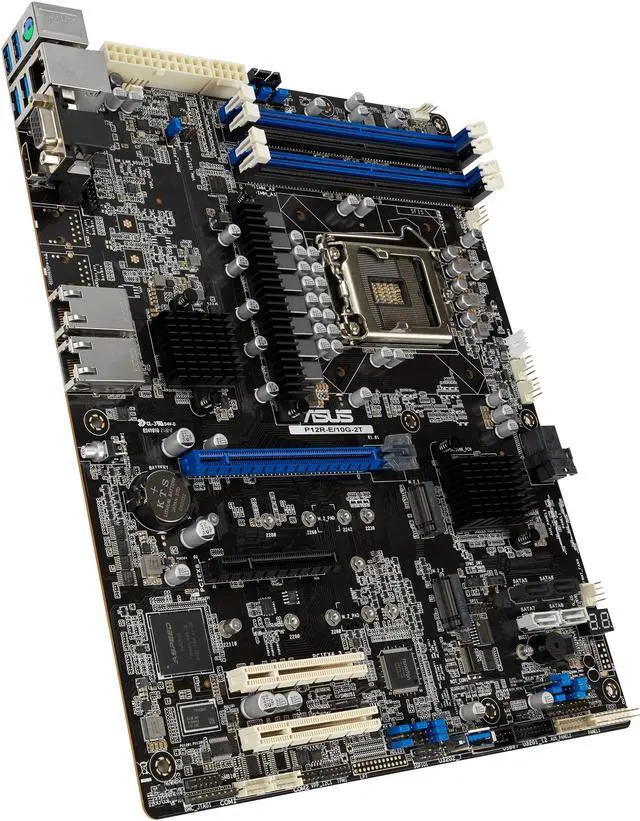

Intel® Xeon® E-2300 LGA 1200 ATX server motherboard with four DIMM and dual M.2 slots, plus dual 10G LAN, eight SATA, one HDMI, two PCIe 4.0 slots, two USB 3.2 Gen 2.
- Ideal for remote office/branch office (ROBO) use and everyday business environments
- Powered by eight-core Intel® Xeon E-2300-series processor with support for up to 95 W TDP
- Flexible expandability with eight native SATA HDDs and two PCIe Gen4 slots
- Dual Intel X710AT 10GbE Ethernet with teaming support
- Dual M.2 support up to 22110 PCIe Gen4 x4 Link and PCIe Gen3 x2 Link
- HDMI 1.4 support for high-resolution display maintenance and monitoring
- Optional ASUS ASMB10-iKVM with ASPEED AST2600 controller for out-of-band management
- Optional PFR FPGA as the platform Root-of-Trust solution for firmware resiliency
Specs
Reviews (1)
Learn more about the ASUS P12R-E-10G-2T
| Brand | ASUS |
|---|---|
| Model | P12R-E-10G-2T |
| CPU Socket Type | LGA 1200 |
|---|---|
| CPU Type | Supports Intel Pentium processors, Intel Xeon E Processors |
| North Bridge | Intel C256 |
|---|
| Number of DDR4 Slots | 4 x 288-pin |
|---|---|
| DDR4 Standard | DDR4 3200 |
| Maximum Memory Supported | 128GB |
| Channel Supported | Dual Channel |
| PCI Express 4.0 x16 | Slot Location 6 : PCI-E x16 (Gen4 X16 Link), Auto switch to x8 link if slot 4 is occupied |
|---|---|
| PCI Express x8 | Slot Location 1 : PCI-E x8 (Gen3 X4 Link) Slot Location 2 : PCI-E x8 (Gen3 X4 Link) Slot Location 4 : PCI-E x8 (Gen4 X8 Link) |
| SATA | 8 x SATA 6.0Gb/s |
|---|---|
| M.2 | 2 x M.2 connector(2242/2260/2280/22110) both SATA & PCIe mode |
| Onboard Video Chipset | Aspeed AST2600 |
|---|
| LAN Chipset | Intel X710-AT2 |
|---|---|
| LAN Speed | 10Gbps |
| Back I/O Ports | 2 x USB 3.2 Gen 2 2 x USB 3.2 Gen 1 1 x HDMI Port (useable only with iGPU) 1 x VGA Port (VGA from BMC) 2 x 10GbE LAN + 1 x Mgmt LAN 1 x PS/2 KB/Mouse |
|---|
| Other Connectors | 1 x VGA Header 1 x HDMI 1 x TPM header 1 x COM port 1 x PS/2 KB/MS port 1 x Onboard header for optional management card 6 x Fan Header, 4pin 1 x SMBus 1 x Chassis Intruder 4 x Front LAN LED 1 x Serial Port Header 1 x PSU Power Connector (24-pin ATX power connector + 8-pin ATX 12V power connector) 2 x M.2 Connector 2 x USB3.2 Gen2 ports 2 x USB3.2 Gen1 ports 1 x USB3.2 Gen1 header |
|---|
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12.0" x 9.6" |
| First Listed on Newegg | June 29, 2023 |
|---|
