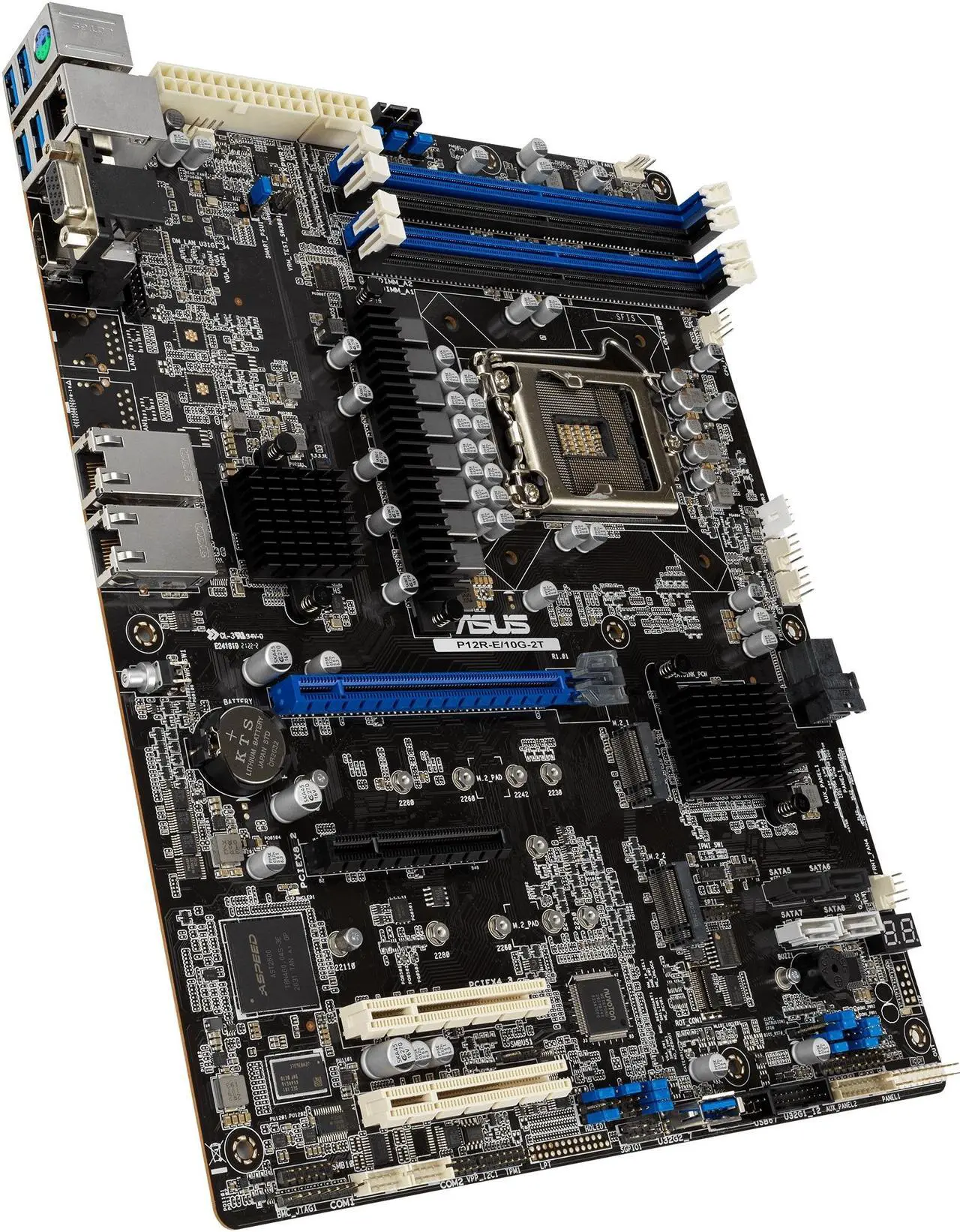

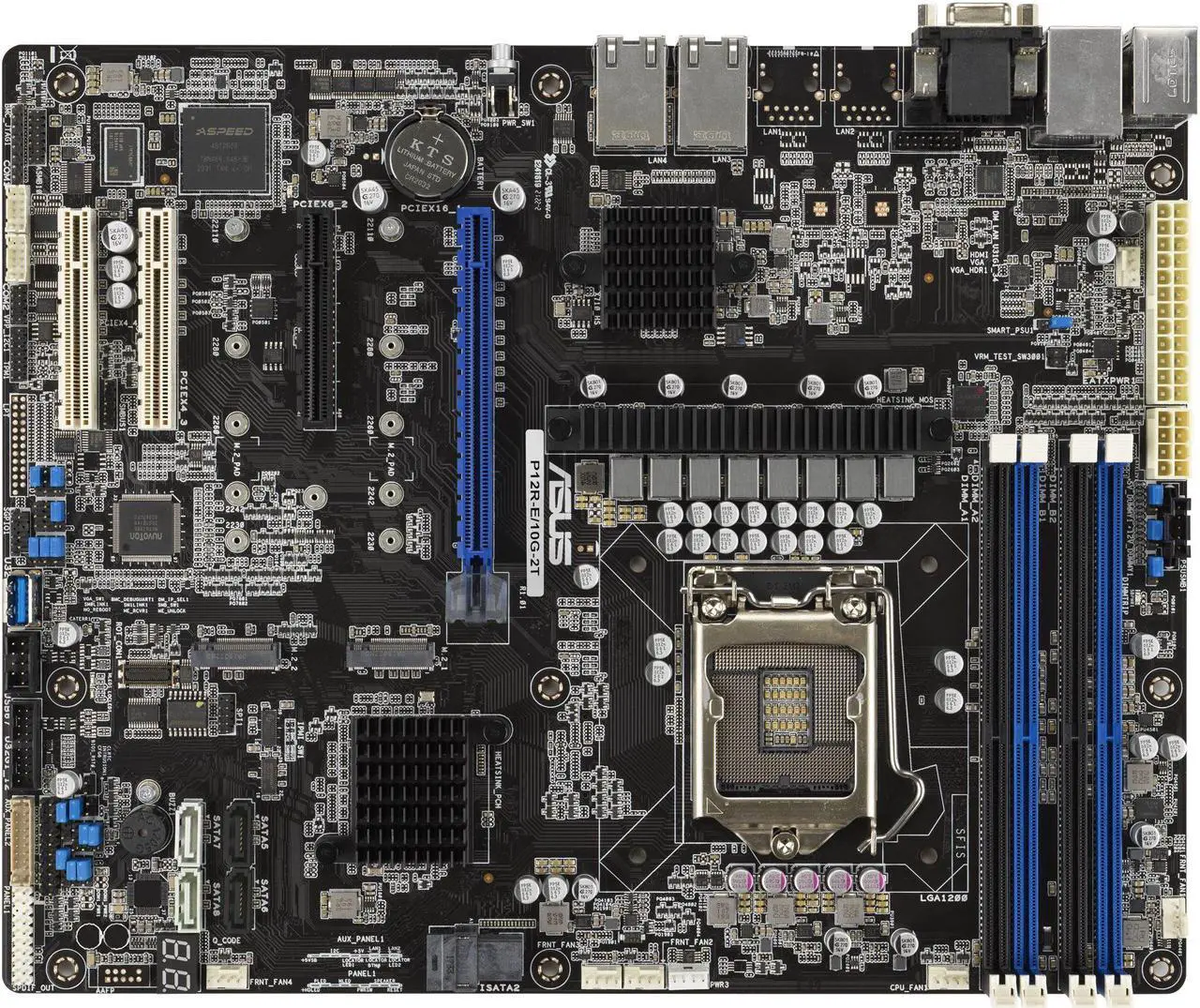

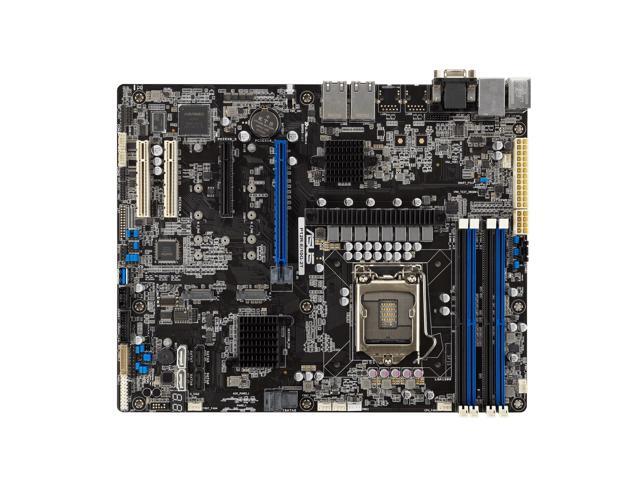

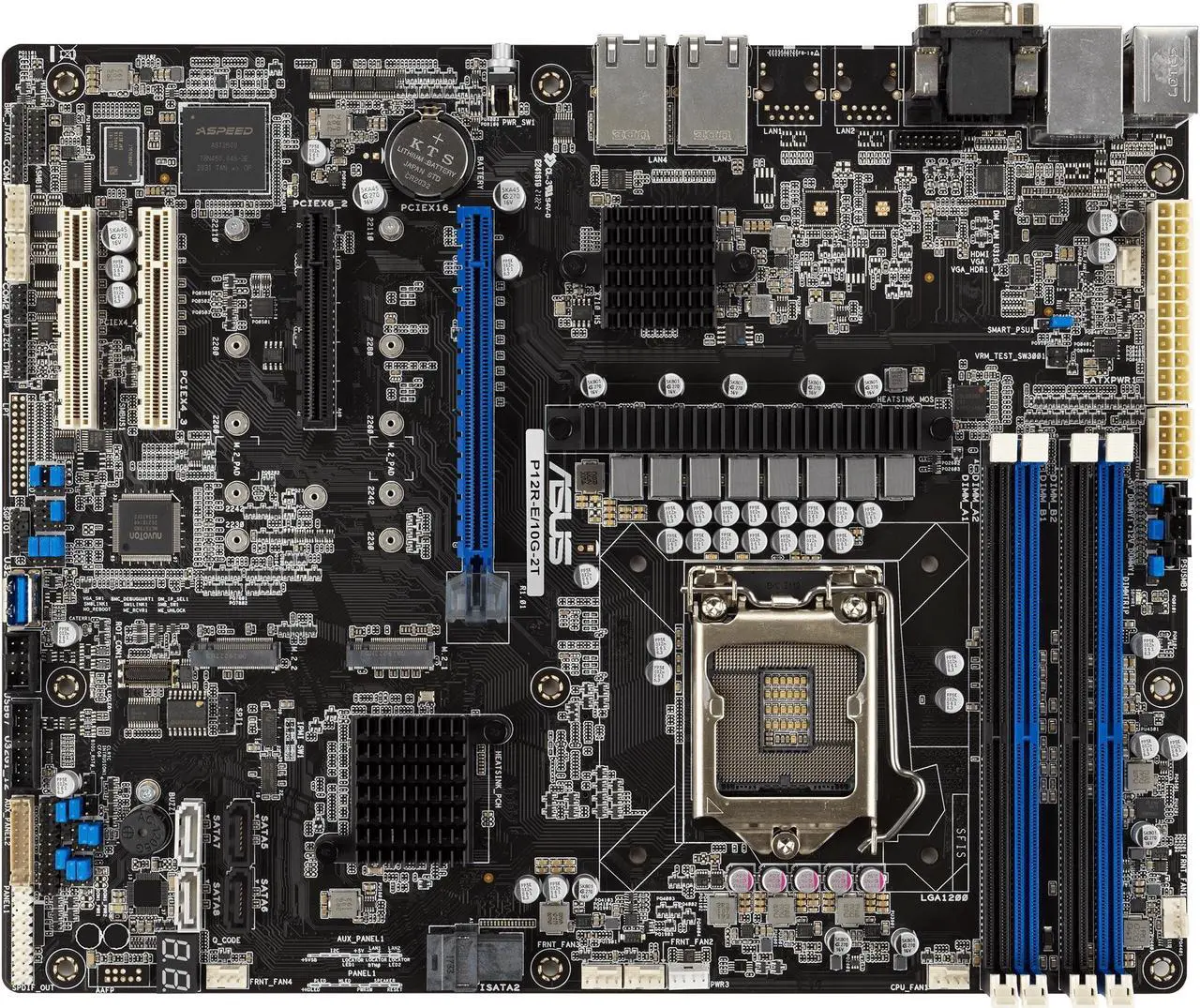

Brand | ASUS |
---|---|
Model | P12R-E-10G-2T |
CPU Socket Type | LGA 1200 |
---|---|
CPU Type | Supports Intel Pentium processors, Intel Xeon E Processors |
North Bridge | Intel C256 |
---|
Number of DDR4 Slots | 4 x 288-pin |
---|---|
DDR4 Standard | DDR4 3200 |
Maximum Memory Supported | 128GB |
Channel Supported | Dual Channel |
PCI Express 4.0 x16 | Slot Location 6 : PCI-E x16 (Gen4 X16 Link), Auto switch to x8 link if slot 4 is occupied |
---|---|
PCI Express x8 | Slot Location 1 : PCI-E x8 (Gen3 X4 Link) Slot Location 2 : PCI-E x8 (Gen3 X4 Link) Slot Location 4 : PCI-E x8 (Gen4 X8 Link) |
SATA | 8 x SATA 6.0Gb/s |
---|---|
M.2 | 2 x M.2 connector(2242/2260/2280/22110) both SATA & PCIe mode |
Onboard Video Chipset | Aspeed AST2600 |
---|
LAN Chipset | Intel X710-AT2 |
---|---|
LAN Speed | 10Gbps |
Back I/O Ports | 2 x USB 3.2 Gen 2 2 x USB 3.2 Gen 1 1 x HDMI Port (useable only with iGPU) 1 x VGA Port (VGA from BMC) 2 x 10GbE LAN + 1 x Mgmt LAN 1 x PS/2 KB/Mouse |
---|
Other Connectors | 1 x VGA Header 1 x HDMI 1 x TPM header 1 x COM port 1 x PS/2 KB/MS port 1 x Onboard header for optional management card 6 x Fan Header, 4pin 1 x SMBus 1 x Chassis Intruder 4 x Front LAN LED 1 x Serial Port Header 1 x PSU Power Connector (24-pin ATX power connector + 8-pin ATX 12V power connector) 2 x M.2 Connector 2 x USB3.2 Gen2 ports 2 x USB3.2 Gen1 ports 1 x USB3.2 Gen1 header |
---|
Form Factor | ATX |
---|---|
Dimensions (W x L) | 12.0" x 9.6" |
Date First Available | June 29, 2023 |
---|
