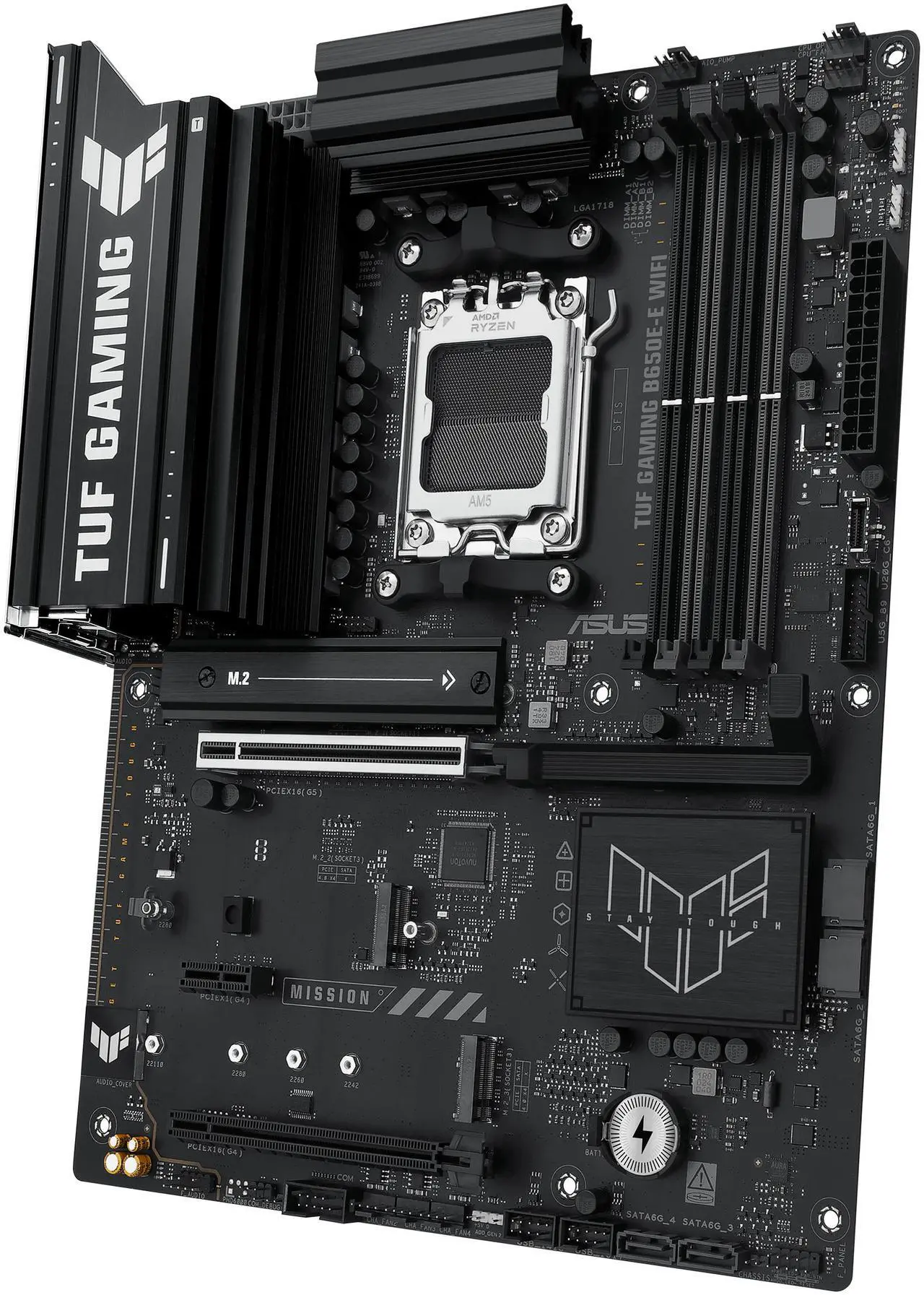

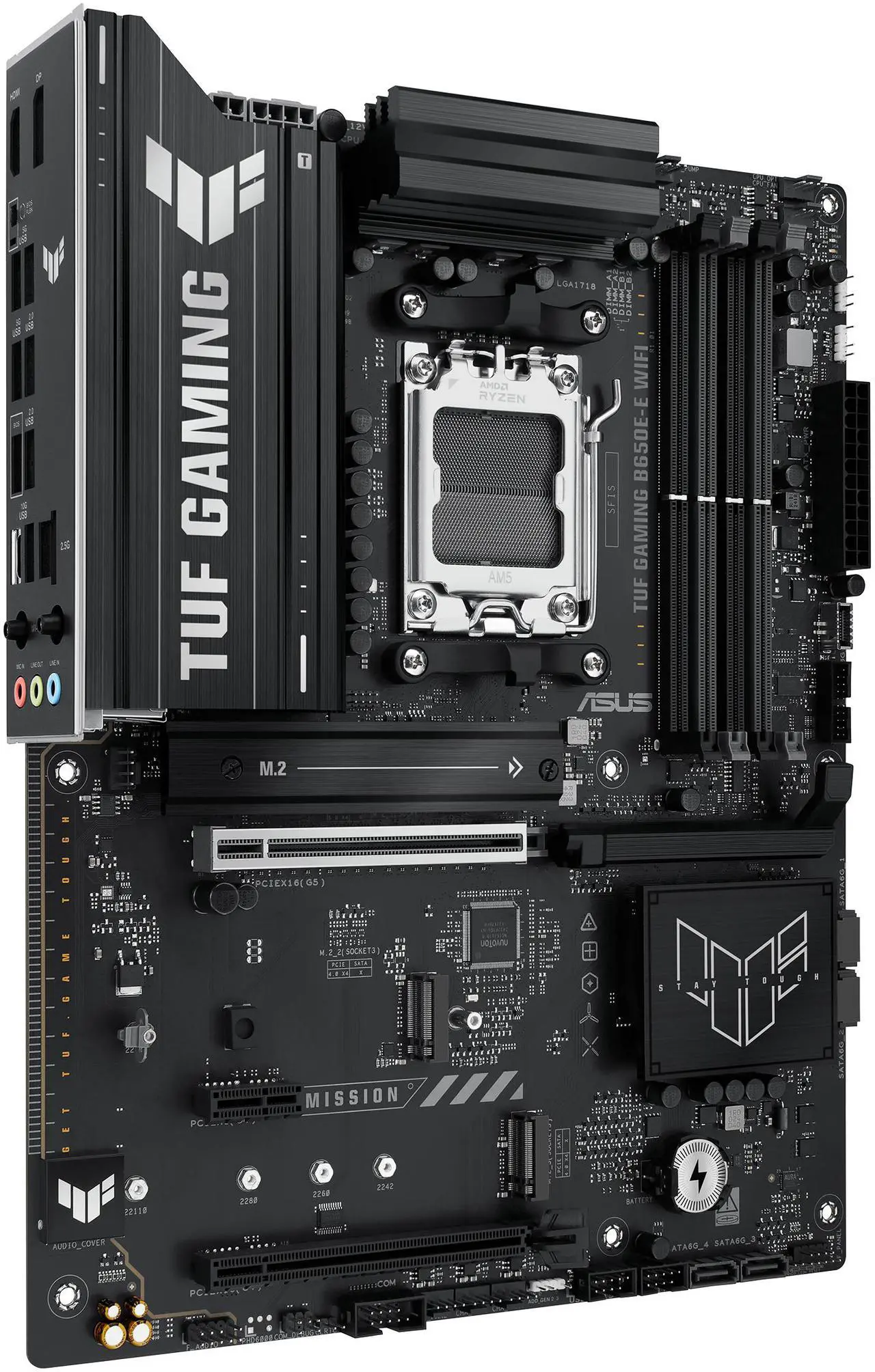

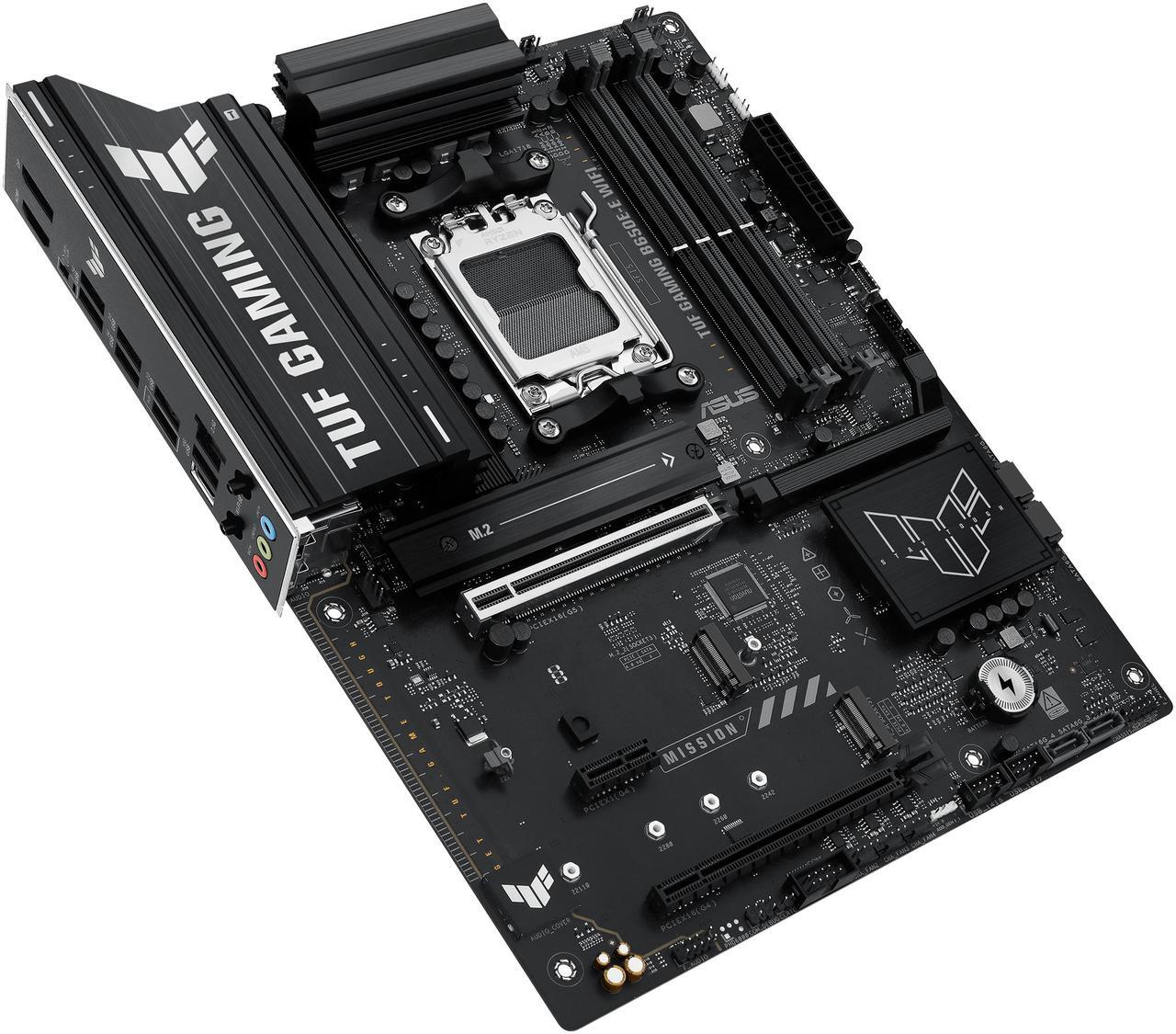

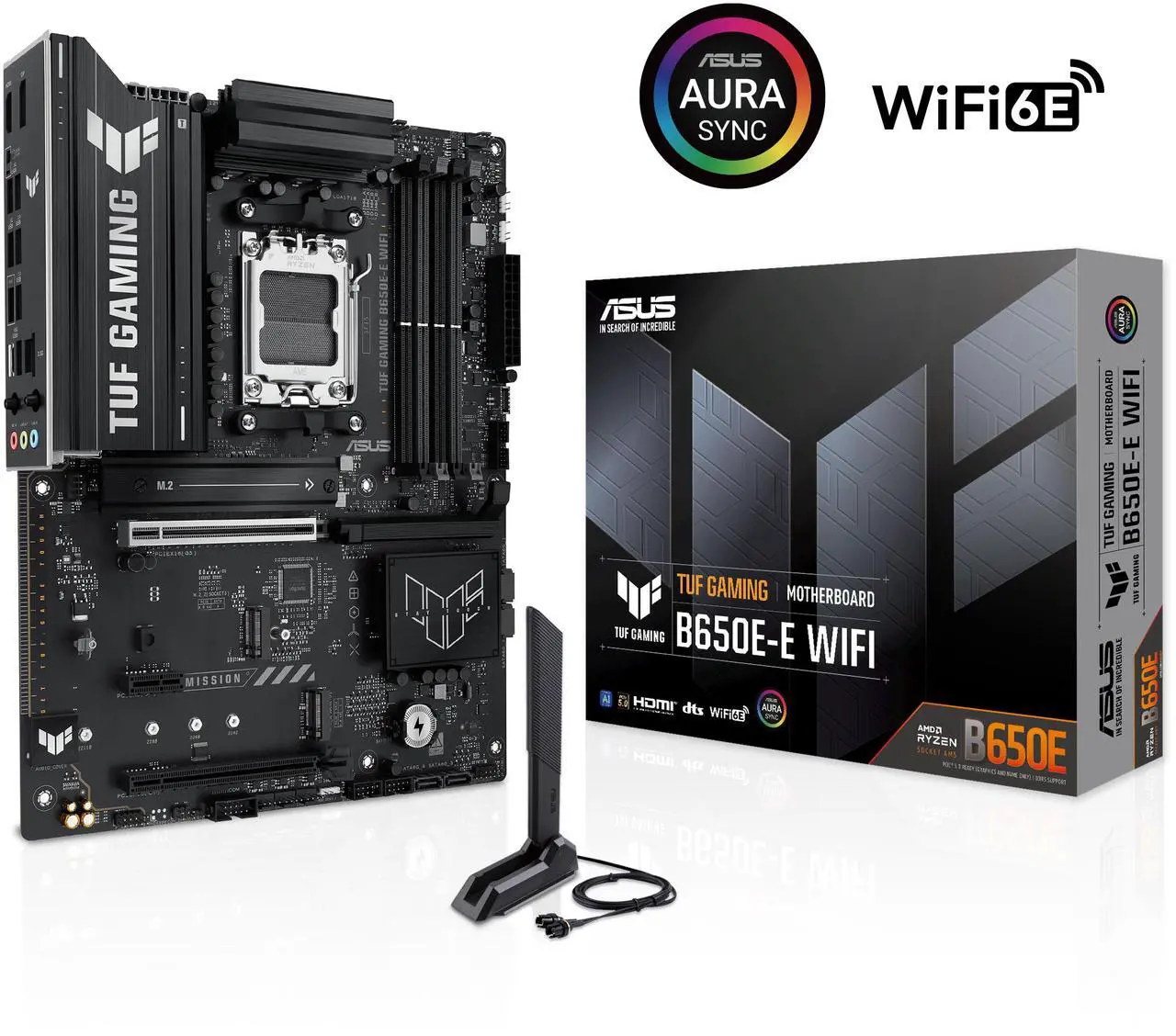

ASUS TUF GAMING B650E-E WIFI AMD AM5 B650 ATX motherboard, 8+2+1 80A DrMOS stage, DDR5, PCIe 5.0 Ready, 3x M.2, Wi-Fi 6E, 2.5 Gb LAN, DisplayPort, HDMI, USB 20Gbps Type-C, BIOS FlashBack, Aura Sync
- Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
- AMD AM5 Socket: Ready for AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
- Enhanced Power Solution: 8+2+1 80A DrMOS power stages, 8-layer PCB, 8+4 pin ProCool power connectors, alloy chokes and durable capacitors for stable power delivery
- Latest M.2 Support: One onboard PCIe 5.0 M.2 slot and two PCIe 4.0 M.2 slots
- Ultrafast Connectivity: Wi-Fi 6E, PCIe 5.0 x16 slot, Realtek 2.5Gb Ethernet, front USB 20Gbps Type-C connector, and rear USB 10Gbps Type-C port support
- Comprehensive Cooling: Enlarged VRM heatsink, flexible M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 4

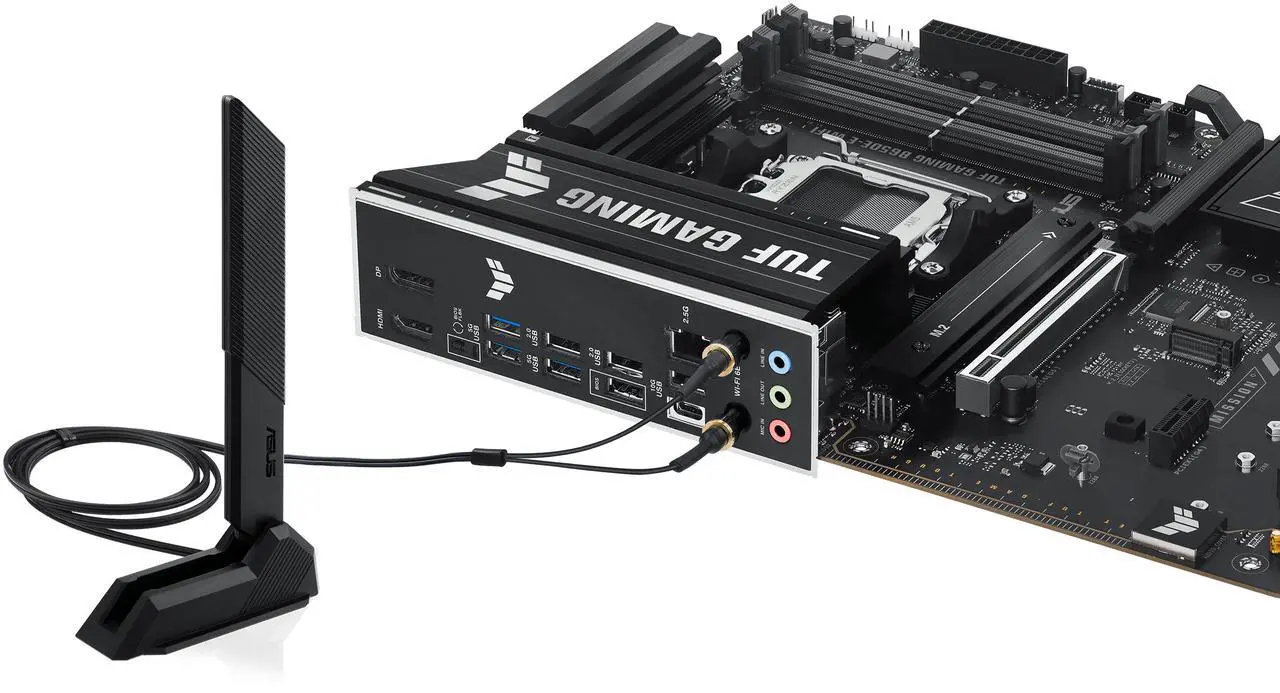

- DIY Friendly Design: PCIe Slot Q-Release, M.2 Q-Latch, Q-Antenna, Q-LED, BIOS FlashBack and Pre-mounted I/O shield
- Unmatched Personalization: Three Addressable RGB Gen 2 headers, all configurable with ASUS-exclusive Aura Sync RGB lighting
+
+
Specs
Reviews
Learn more about the ASUS TUF GAMING B650E-E WIFI
| Brand | ASUS |
|---|---|
| Model | TUF GAMING B650E-E WIFI |
| CPU Socket Type | AM5 |
|---|---|
| CPU Type | Ryzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series |
| Chipset | AMD B650 |
|---|
| Number of Memory Slots | 4x288pin (DDR5) |
|---|---|
| Memory Standard | Up to 8000+MT/s(OC) |
| Maximum Memory Supported | 256GB |
| Channel Supported | Dual Channel |
| ECC Supported | Yes |
| Buffer Supported | Un-buffered |
| Memory Feature | Dual channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO) ASUS Enhanced Memory Profile (AEMP) * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. |
| PCI Express 5.0 x16 | AMD Ryzen 9000 & 7000 Series Desktop Processors* 1 x PCIe 5.0 x16 slot (supports x16 mode) AMD Ryzen 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)** |
|---|---|
| PCI Express 4.0 x16 | AMD B650 Chipset 1 x PCIe 4.0 x16 slot (supports x1 mode) |
| PCI Express x1 | 1 x PCIe 4.0 x1 slot |
| Serial ATA (SATA) | 4 x SATA 6Gb/s |
|---|---|
| M.2 | AMD Ryzen 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) AMD Ryzen 8000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4/x2 mode)* AMD B650 Chipset M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) |
| SATA RAID | AMD RAIDXpert2 Technology Ryzen 9000 Series Processors: RAID 0/1/5/10 Ryzen 8000 Series Processors: RAID 0/1 Ryzen 7000 Series Processors: RAID 0/1/10 |
| Audio Channels | Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers - Audio cover * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
|---|
| Max LAN Speed | 2.5Gbps |
|---|---|
| Wireless LAN | Wi-Fi 802.11 ax |
| Bluetooth | Bluetooth 5.3 |

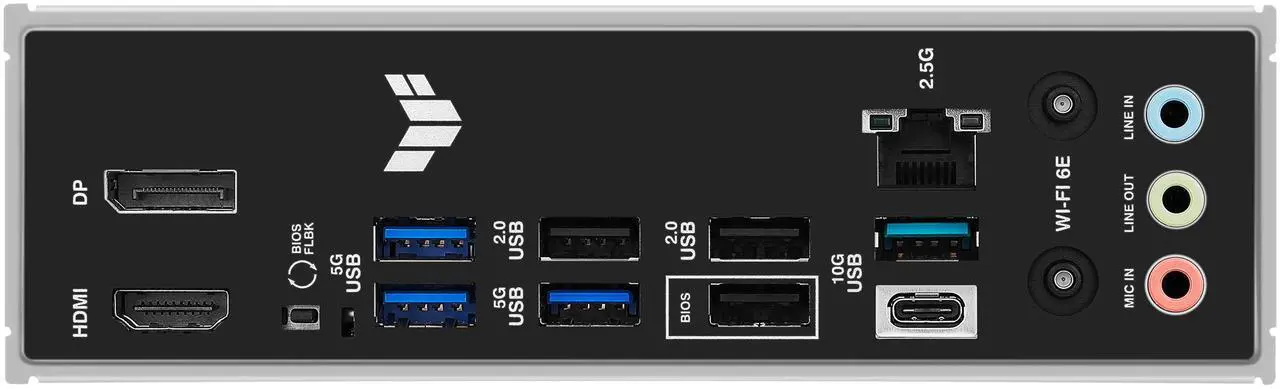

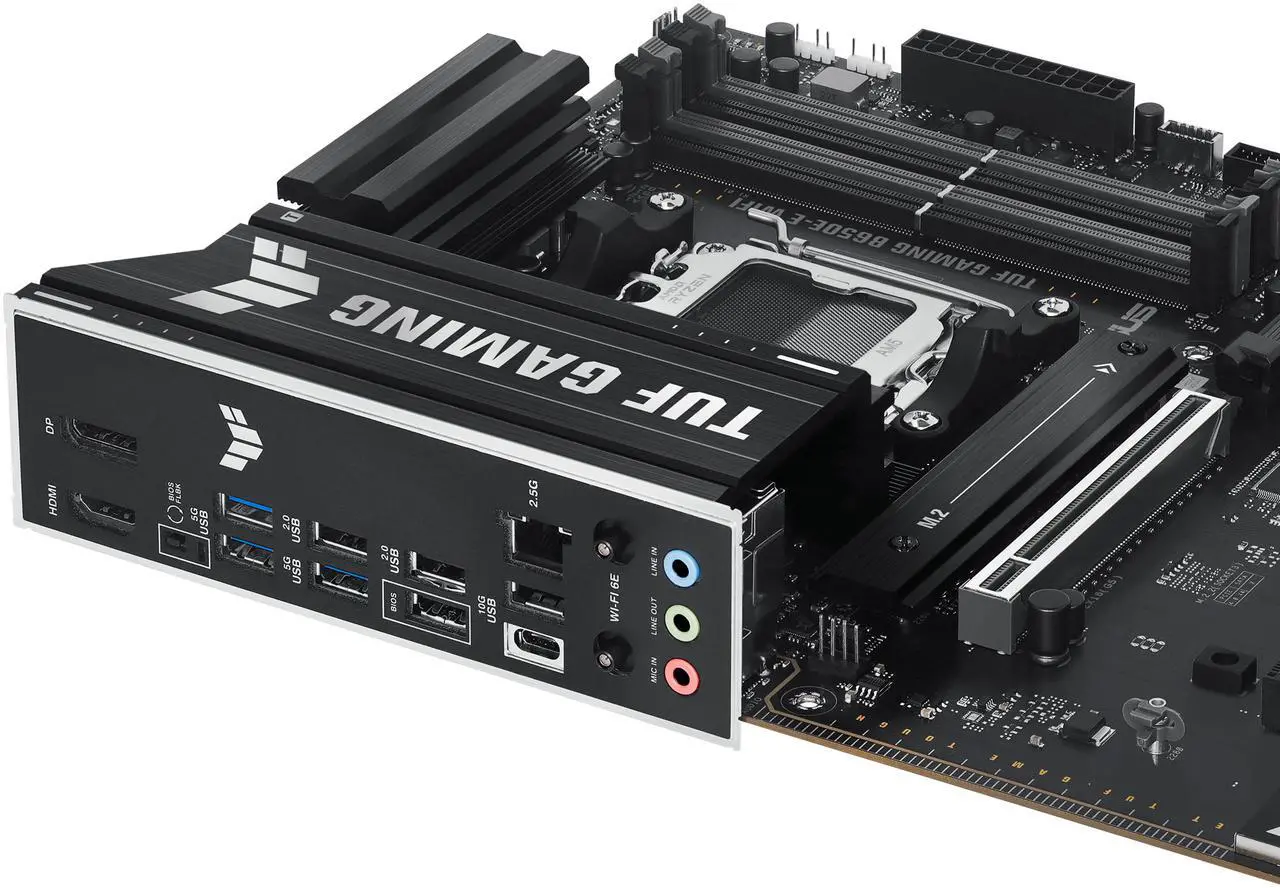

| Back I/O Ports | 2 x USB 10Gbps ports (1 x Type-A + 1 x USB Type-C) 3 x USB 5Gbps ports (3 x Type-A) 3 x USB 2.0 ports (3 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Wi-Fi module 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x BIOS FlashBack button |
|---|
| Onboard USB | 1 x USB 20Gbps connector (supports USB Type-C) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
|---|---|
| Other Connectors | Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Miscellaneous 3 x Addressable RGB Gen 2 headers 1 x Clear CMOS header 1 x Chassis Intrusion header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x 10-1 pin Front Panel System header |
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12.0" x 9.6" |
| Power Pin | 1 x 24-pin Main Power connector 1 x 8-pin +12V CPU Power connector 1 x 4-pin +12V CPU Power connector |
| BIOS Feature | 256 Mb Flash ROM, UEFI AMI BIOS |
|---|---|
| Software | ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 4 - Power Saving -Two-Way Al Noise cancelation Al Suite 3 -TurboV EVO -DIGI+ VRM -PC Cleaner ASUS DriverHub TUF GAMING CPU-Z DTS Audio Processing Adobe Creative Cloud (Free Trial) Norton 360 for Gamers (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey |
| Features | ASUS TUF PROTECTION - DIGI+ VRM (- Digital power design with DrMOS) - ESD Guards - TUF LANGuard - Overvoltage protection - SafeSlot - Stainless-steel back I/O ASUS Q-Design - M.2 Q-Latch - PCIe Slot Q-Release - Q-Antenna - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - Flexible M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED - ProCool - Pre-mounted I/O shield - SafeDIMM Aura Sync - Addressable RGB Gen 2 headers |
|---|

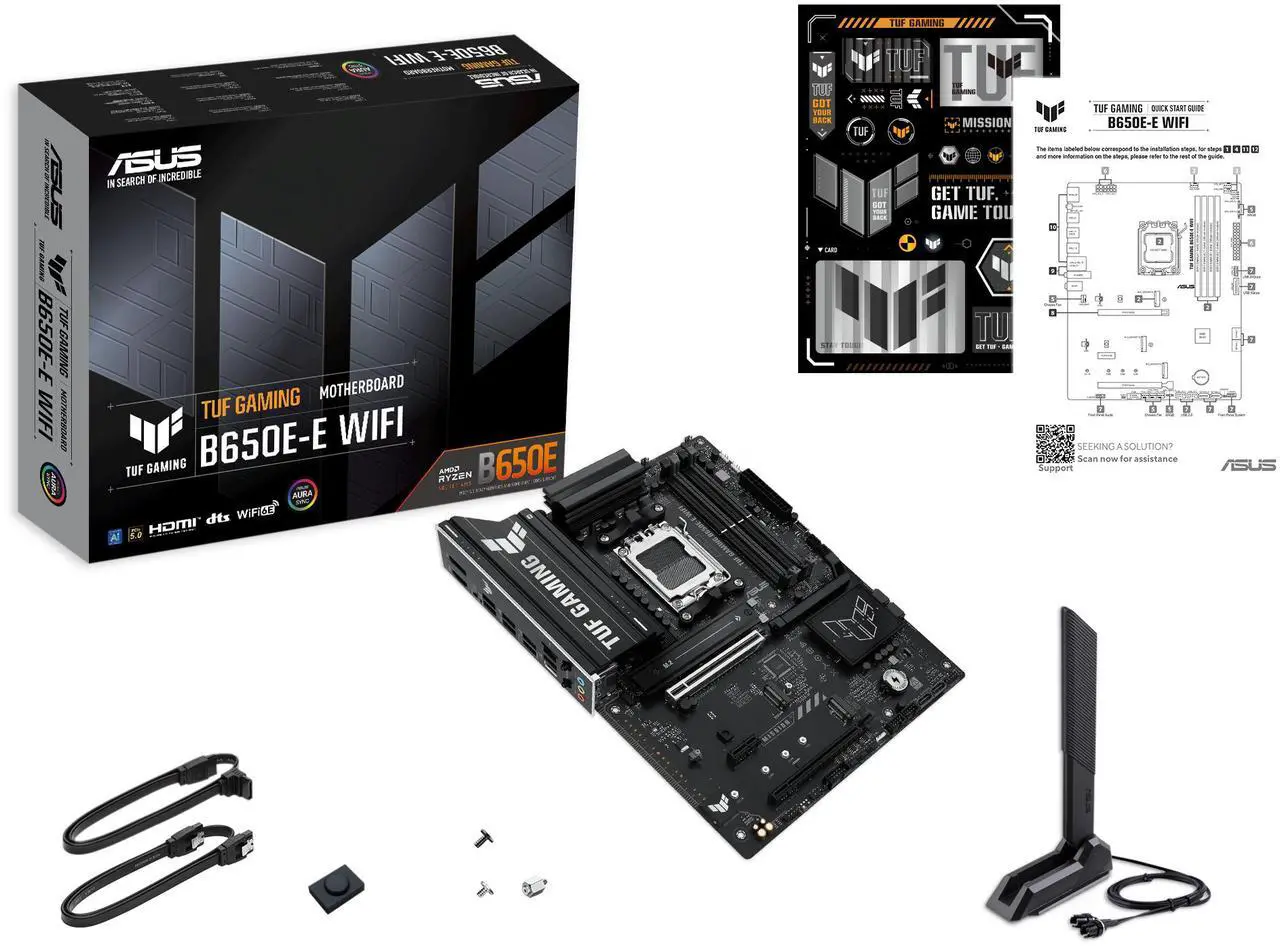

| Package Contents | Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS WiFi Q-Antenna 1 x TUF Gaming sticker 1 x M.2 rubber package 2 x Screw packages for M.2 SSD Documentation 1 x Quick start guide |
|---|
| Date First Available | April 24, 2025 |
|---|
