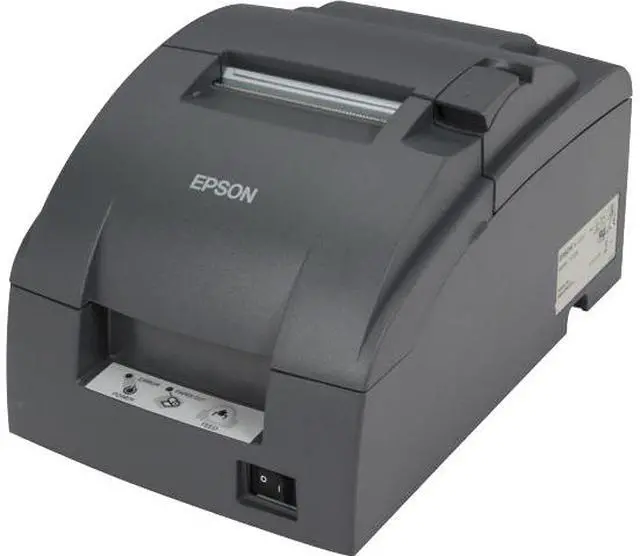

Epson TM-U220B Dot Matrix Two-Color Receipt Printer - Gray
- Manufacturer: Epson America
- Manufacturer Part Number: C31C514767
- UPC: 0783555147207
TM-U220 POS Receipt/Kitchen Printer
Epson's TM-U220 Point-of-Sale (POS) impact receipt and kitchen printers are compact, reliable, and optimized for high-speed throughput. They offer every easy-to-use feature important to retail, restaurant, and hospitality industries, as well as two-color printing to highlight special offers, kitchen orders, and high-impact logos. In addition, the TM-U220 printers have been designed to be 100% compatible with existing systems that currently use a TM-U200 printer.
Epson's TM-U220 Printers are the Enhanced and More Powerful Successors to Epson's Best-Selling TM-U200 Family
Available in three different models, Epson's TM-U220 printers are compact, reliable and fast, and offer all the easy-to-use features important to the retail, restaurant and hospitality industries.
Features
- Three impact printer models
- Easy to operate
- 30% faster than the TM-U200 Series
- Drop-in paper loading
- Two-color black and red receipt and order printing
- Right-side-up printing for kitchen orders
- Flexible paper widths
- Two-year warranty
Universal Features
All three printer models in Epson's TM-U220 Series are optimized for high-speed throughput so customer receipts and kitchen orders print faster than ever. For maximum efficiency, the TM-U220A, TM-U220B and TM-U220D all offer drop-in paper loading and two-color, black and red printing to highlight special offers and print more high-impact logos. They also have an adjustable paper width feature that allows you to use 58, 70 or 76mm paper rolls for more flexibility and greater cost savings.
A Model for Every Need
With Epson's TM-U220 series, you have the freedom to select the model that best fits your needs. The TM-U220A and TM-U220B come with an autocutter so you can choose between a full or partial cut, and an Auto Status Back function that automatically transmits changes in the printer status. The TM-U220A includes a take-up journal device and the TM-U220B and the TM-U220D have a wall-mounting option that prints the receipt right side up for easy reading right out of the printer. And of course, all three printers feature the quality, reliability and advanced printing technology that Epson is famous for.
Smooth and Easy Transition
To make upgrading even easier, Epson's TM-U220 series has been designed to be 100% compatible with existing systems that currently use a TM-U200 printer. Because the external dimensions of the TM-U200 and TM-U220 printer series are almost identical, transitioning to a new TM-U220 printer is as simple as removing the TM-U200 and dropping in the new TM-U220 and AC adapter.
Specifications
| General | |
|---|---|
| Print Method | 9-pin, serial impact dot matrix |
| Print Font | 7 x 9 / 9 x 9 |
| Column Capacity (Columns) | 40/42 or 33/35 |
| Character Size (W x H) (mm) | 1.2 x 3.1 / 1.6 x 3.1 |
| Character Set | 95 Alphanumeric, 37 International, 128 x 12 GraphicTraditional/Simplified Chinese, Thai, Japanese, Korean |
| Characters per Inch (cpi) | 17.8 / 16 or 14.5 / 13.3 |
| Printer | |
| Data Buffer | 4KB or 40 bytes |
| Print Speed - Lines per Second (lps) | 4.7 (at 40 columns, 16cpi), 6.0 (at 30 columns, 16cpi) |
| Paper Dimensions | 57.5 ± 0.5mm, 69.5 ± 0.5mm, 76 ± 0.5mm (W) x 83.0 dia. |
| Paper Thickness | 0.06 to 0.085 |
| Copy Capability | One original and one copy |
| Inked Ribbon | ERC-38 (Black, Black/Red) |
| Ribbon Life | Black: 3 x 106 characters B/R: 15 x 105 characters (Black), 75 x 104 characters (Red) |
| Power | 24VDC ± 7% |
| D.K.D. Function | 2 drivers |
| Reliability MTBF MCBF |
18 x 104 hours 18 x 106 lines |
| Overall Dimensions (W x D x H) | Type A: 6.3 x 11.3 x 6.2" (160 x 286 x 157.5mm) Type B: 6.3 x 9.8 x 5.5" (160 x 248 x 138.5mm) Type D: 6.3 x 9.8 x 5.5" (160 x 248 x 138.5mm) |
| Mass (Approx.) | Type A: 6lbs (2.7kg) Type B: 5.5lbs (2.5kg) Type D: 5lbs (2.3kg) |
| Environmental Standards | WEEE, RoHS compliant |
| Factory Options | Near-end sensor, power supply cover, wall-hanging bracket WH-10, Exclusive Adaptor C (included) |
| Control Board | |
| EMI standards | VCCI class A, FCC class A, CE marking, AS/NZS 3548 class B |
| Safety standards | UL, CSA, TÜV (EN60950) |
Epson TM-U220: TM-U220A, TM-U220B, TM-U220D series are optimized for high-speed throughput so customer receipts and kitchen orders print faster than ever. For maximum efficiency, the TM-U220 A (with journal take-up and auto-cutter), TM-U220 B (with auto-cutter only), and TM-U220 D (no options) all offer drop-in paper loading and two-color, black and red printing to highlight special offers and print more visible logos, and an adjustable paper width feature that allows you to use 58, 70 or 76 mm paper rolls for more flexibility and greater cost savings.
FEATURES
TM-U220B Dot Matrix Printer - Two-color - Desktop, Wall Mount - Receipt Print - Ethernet - 2.99" Print Width - 4.7 lps Mono - 180 dpi - Roll Paper, Receipt, Plain Paper
