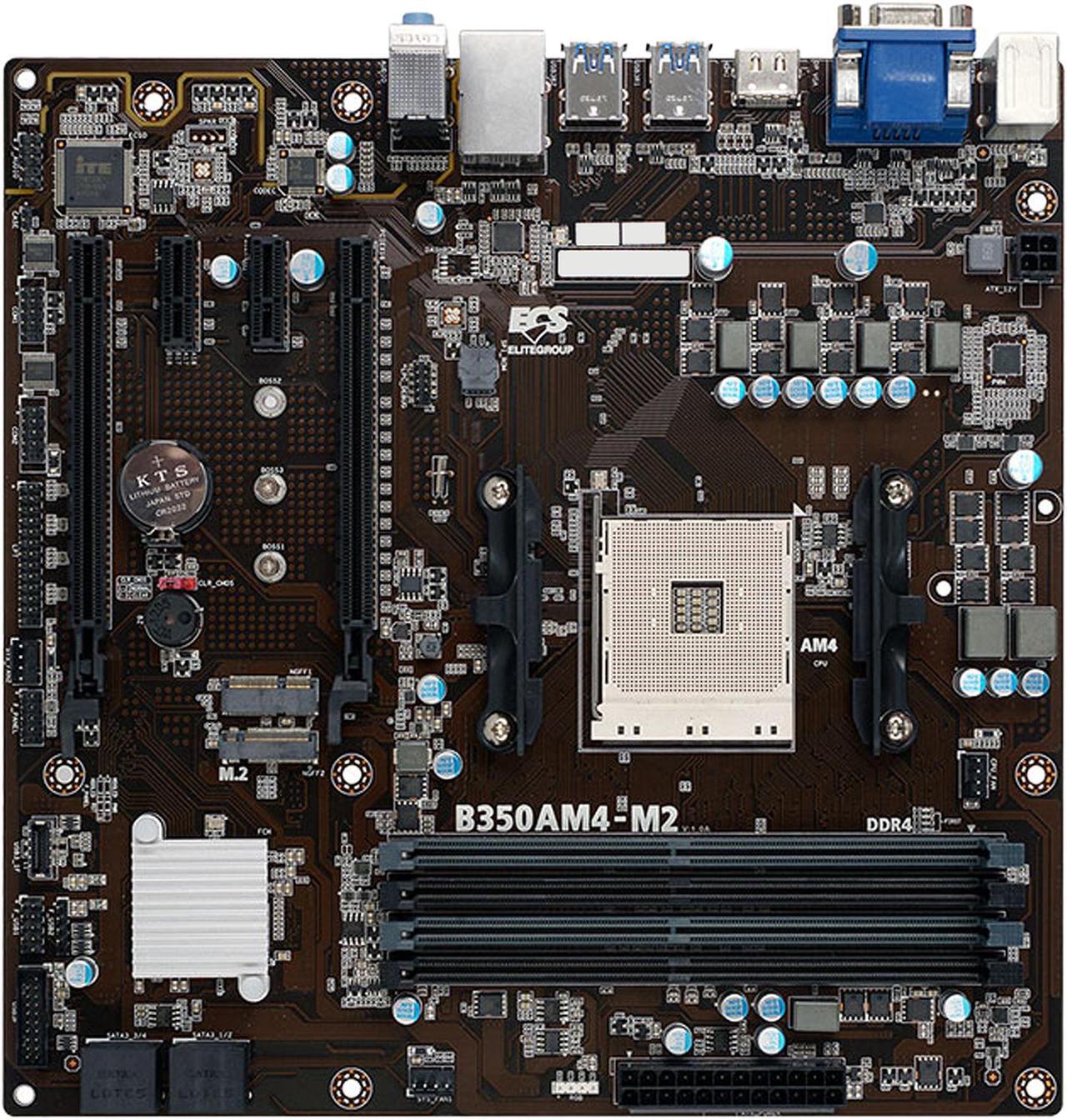

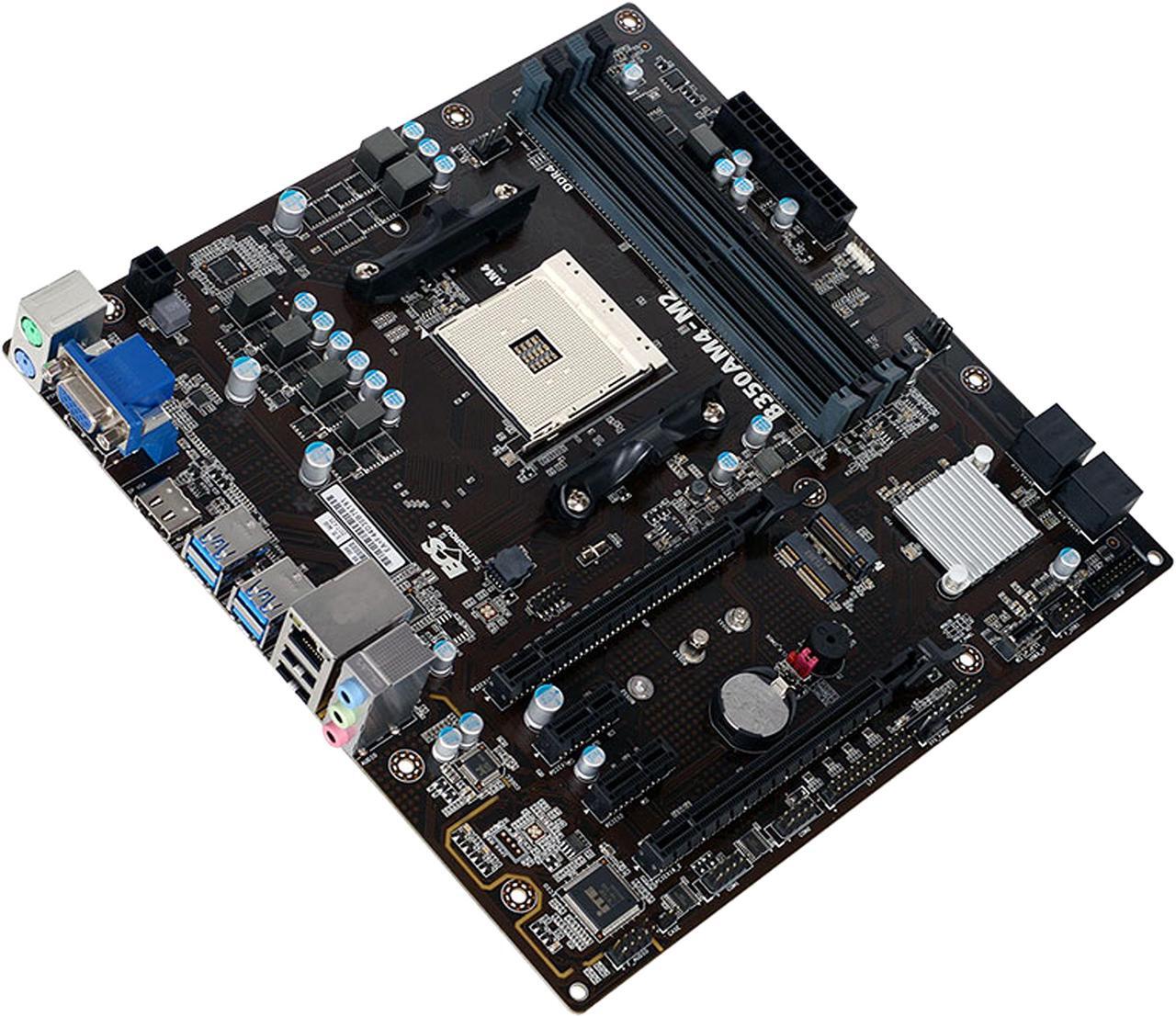

ECS B350AM4-M2 AM4 AMD B350 SATA 6Gb/s USB 3.0 HDMI Micro ATX AMD Motherboard

Be the first to review this product...
  • AMD B350
  • Supports AMD AM4 socket for AMD Ryzen processors and 7th Gen A-series / Athlon Processors
  • DDR4 2667/ 2400
Specs
Reviews

Learn more about the ECS (EliteGroup) B350AM4-M2

Model
Brand ECS
Model B350AM4-M2
Supported CPU
CPU Socket Type AM4
CPU Type Supports AMD AM4 socket for AMD Ryzen processors and 7th Gen A-series / Athlon Processors
Chipsets
Chipset AMD B350
Memory
Number of Memory Slots 4x288pin (DDR4)
Memory Standard DDR4 2667/ 2400
Maximum Memory Supported 64GB*
* Due to AMD CPU spec limitation, please refer to Memory QVL for more information.
Channel Supported Dual Channel
Expansion Slots
PCI Express 3.0 x16 1 x PCI Express 3.0 x16
PCI Express 2.0 x16 1 x PCI Express X16 Gen 2.0 slot(s), runs at x2
PCI Express x1 2 x PCI Express X1 Gen 2.0 slot(s)
Other Slots 1 x M.2 slot for Wi-Fi/BT
Storage Devices
Serial ATA (SATA) 4 x SATA 6Gb/s
M.2 1 x M.2
SATA RAID 0/1/10
Onboard Video
Onboard Video Chipset Supported only by CPU with integrated graphic
Onboard Audio
Audio Chipset Realtek ALC662
Audio Channels 6 Channels
Onboard LAN
LAN Chipset RTL 8111GN
Max LAN Speed 1Gbps

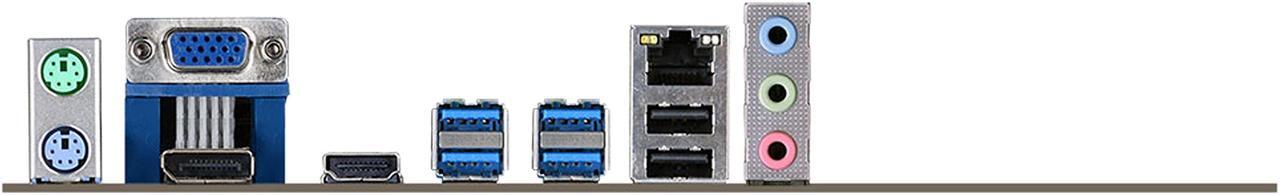

Rear Panel Ports
Back I/O Ports 1 x D-Sub / 1 x DisplayPort / 1 x HDMI / 1 x LAN (RJ45) / 1 x PS/2 / 2 x USB 2.0/1.1 / 3 x Audio Jacks / 4 x USB 3.1 Gen 1
PS/2 1 x PS/2 keyboard/mouse port
Video Ports D-Sub
HDMI 1 x HDMI
RJ45 1 x RJ45
DisplayPort 1 x DisplayPort
USB 3.0 4 x USB 3.0
USB 1.1/2.0 2 x USB 2.0
Audio Ports Line Out/Line In/Mic In
Internal I/O Connectors
Onboard USB 1 x USB 3.1 port(s) up to 10Gb/s (Support additional 2 USB ports)
1 x USB 3.0 header (Support additional 2 USB ports)
2 x USB 2.0 header (Support additional 3 USB ports)
Other Connectors 1 x 4-pin CPU_FAN connector
1 x 4-pin SYS_FAN connector
1 x 4-pin SYS_FAN connector with smart fan
1 x Front Panel switch/LED header
1 x Front panel audio header
1 x Onboard Buzzer
1 x CLR_CMOS header
2 x Serial port header (COM)
1 x Parallel port header (LPT)
Physical Spec
Form Factor Micro ATX
Dimensions (W x L) 9.6" x 9.6"
Power Pin 1 x 24-pin ATx Power Supply connector
1 x 4-pin Power Connector for Graphics
Features
Features Windows 10 Workable support

2-Way multi-graphics solution

Supports 3 independent displays

6 Phase Power Design

Applied 100% Solid capacitor design to maximize component reliability

ECS Durathon Technology ensure the stability, reliability and performance of system

ESD Protection prevents computers from electrostatic discharge damage to enhance its durability and lifespan

Supports ECS EZ BIOS for tweaking BIOS in graphical user interface within a multi language environment

Supports GUI UEFI for tweaking BIOS in Graphical interface within a multi language environment

Dual Display design for multiple output support

Supports HDMI 1.4a Technology ( resolution up to 1920X1200 ) and HDCP function

Supports Display Port 1.2 Technology

Supports AMD Dual Graphics Technology

ECS Intelligent EZ Utility: eBLU, eDLU, eSF
Additional Information
Date First Available November 30, 2017
