EVGA 1000 GQ (210-GQ-1000-V3) 1000W ATX SLI Ready CrossFire Ready 80 PLUS GOLD Certified Semi-Modular Active PFC Power Supply
- ATX
- Semi-Modular
- 80 PLUS GOLD Certified
- 100 - 240 V 50/60 Hz
- +3.3V at 24A, +5V at 24A, +12V at 83.3A , -12V at 0.5A, +5Vsb at 3A
Specs
Reviews
Learn more about the EVGA 1000 GQ (210-GQ-1000-V3)
| Brand | EVGA |
|---|---|
| Model | 1000 GQ (210-GQ-1000-V3) |
| Type | ATX |
|---|---|
| Maximum Power | 1000 W |
| Fans | 1 x 135mm Fan |
| PFC | Active |
| Main Connector | 24Pin |
| +12V Rails | Single |
| PCI-Express Connector | 10 x 6+2-Pin |
| SATA Power Connector | 12 |
| SLI | SLI Ready |
| CrossFire | CrossFire Ready |
| Modular | Semi-Modular |
| Efficiency | > 90% |
| Energy-Efficient | 80 PLUS GOLD Certified |
| Over Voltage Protection | Yes |
| Input Voltage | 100 - 240 V |
| Input Frequency Range | 50/60 Hz |

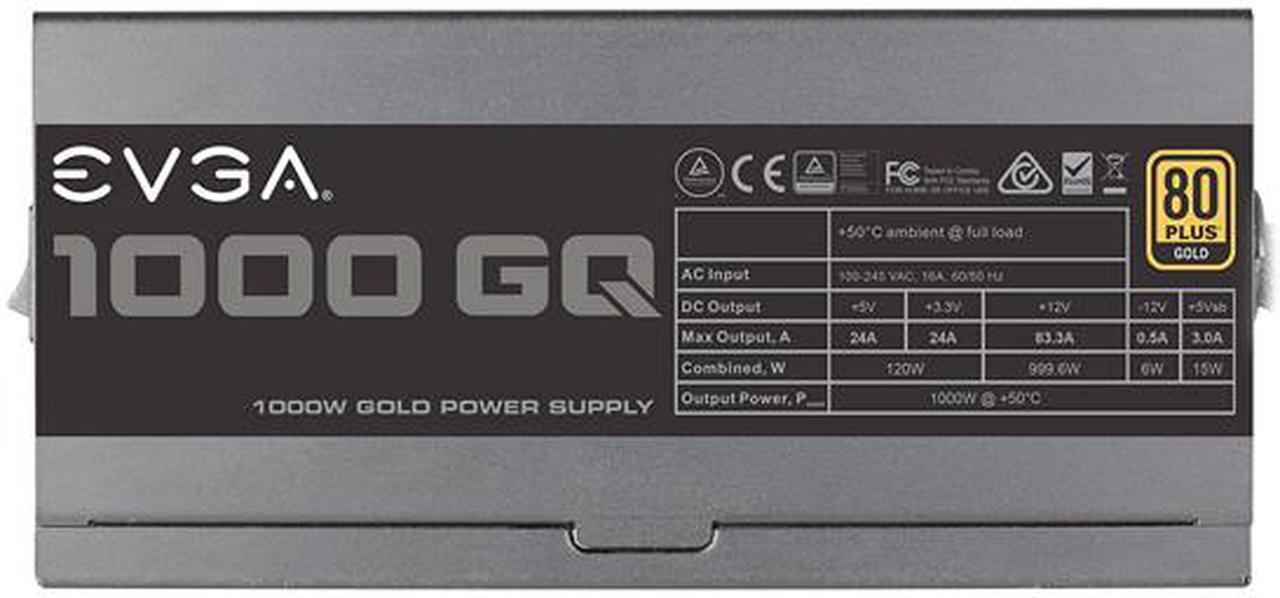

| Output | +3.3V at 24A, +5V at 24A, +12V at 83.3A , -12V at 0.5A, +5Vsb at 3A |
| MTBF | >100,000 Hours |
| Approvals | TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS, Compliance with ErP Lot 6 2013 Requirement |

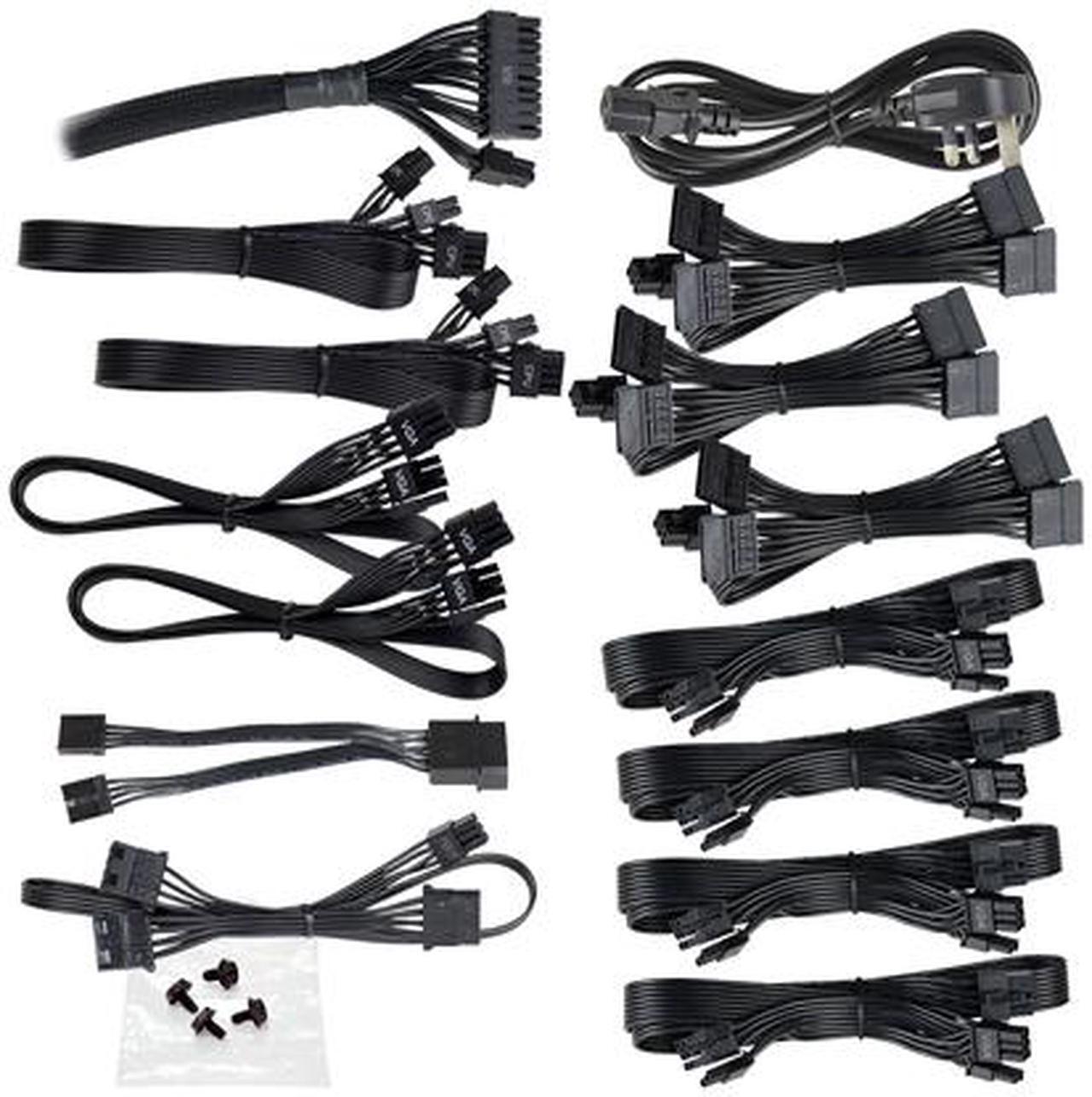

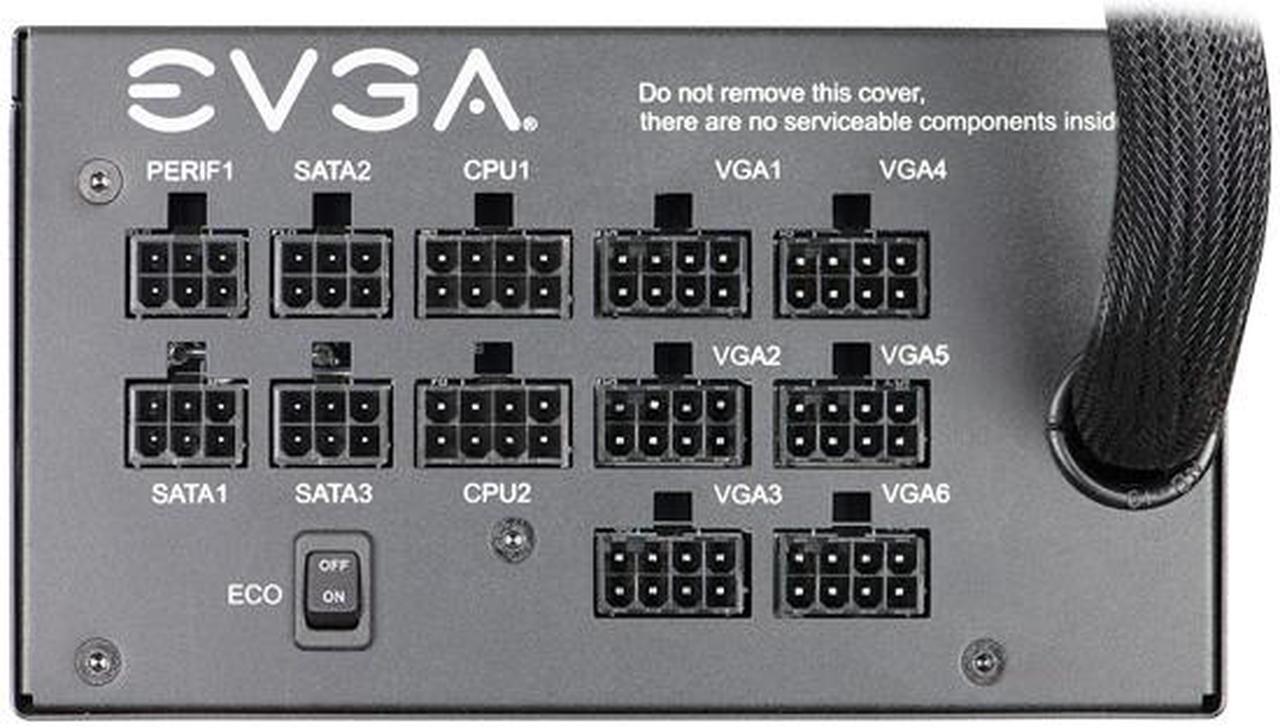

| Connectors | 1 x 24 Pin 2 x 4+4 Pin CPU 10 x 6+2 Pin PCIE 12 x SATA 3 x 4 Pin Peripheral 2 x Floppy |
| Features | Whisper Slient The EVGA ECO mode feature ensures that the power supply stays completely silent during low to medium loads. The fan does not spin until necessary, allowing for completely silent operation! Unrivaled Performance 90% efficiency or higher under typical loads and 100% of the highest quality Japanese brand capacitors ensure long-erm reliability. Modular Design Semi-moular design allows you to only use the cables you need, helping to improve case airflow, eliminated unnecessary wires, and best of all, reduce calbe clutter. Single +12V Rail A single +12V rail offers the best power output, rail stability and compatibility with the lastest hardware. EVGA 1000 GQ can provide up to 83.3A on the +12V rail! Active Clamp Circuit Design Active Clamp SR+DD Circuit Layout. Full DC to DC Active Clamp circuit design improves efficiency. Modular Modular design allows some cables to be removed from the power supply for ease of installation and removal. You can leave off unnecessary cables to reduce case clutter and maximize case airflow. NVIDIA SLI Ready Run multiple NVIDIA graphics cards for the ultimate gaming experience. The EVGA GQ gives you the power you need to drive these demanding systems and achieve the best overclocks. 100% High Quality Japanese Nippon Chemi-Con Solid State Capacitors Get the most reliability and greatest performance with the use of the highest possible quality Japanese solid state capacitors. Gold Rated Efficiency 80 Plus certification ensures your power supply isn't wasting power and turning it into excess heat. Under typical loads these power supplies are 90% efficiency or higher. |
|---|
| Dimensions | 3.35" x 5.91" x 7.09" |
|---|---|
| Weight | 7.00 lbs. |
| Top Fans Size | 135mm |
|---|---|
| Top Fans Bearing Type | Fluid Dynamic Bearing |
| Over Voltage Protection | Yes |
|---|---|
| Short Circuit Protection | Yes |
| Under Voltage Protection | Yes |
| Over Current Protection | Yes |
| Over Power Protection | Yes |
| Over Temperature Protection | Yes |
| Date First Available | November 14, 2017 |
|---|
