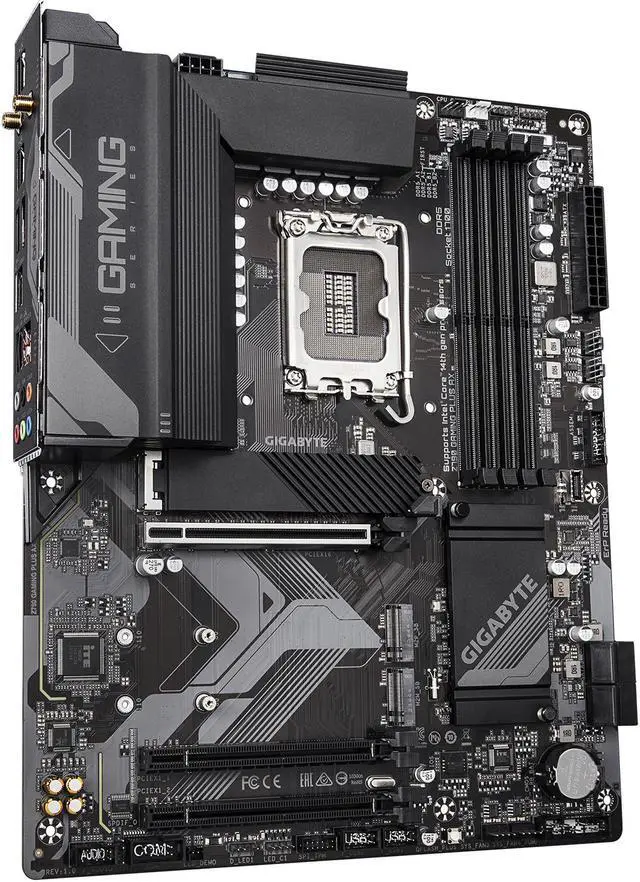

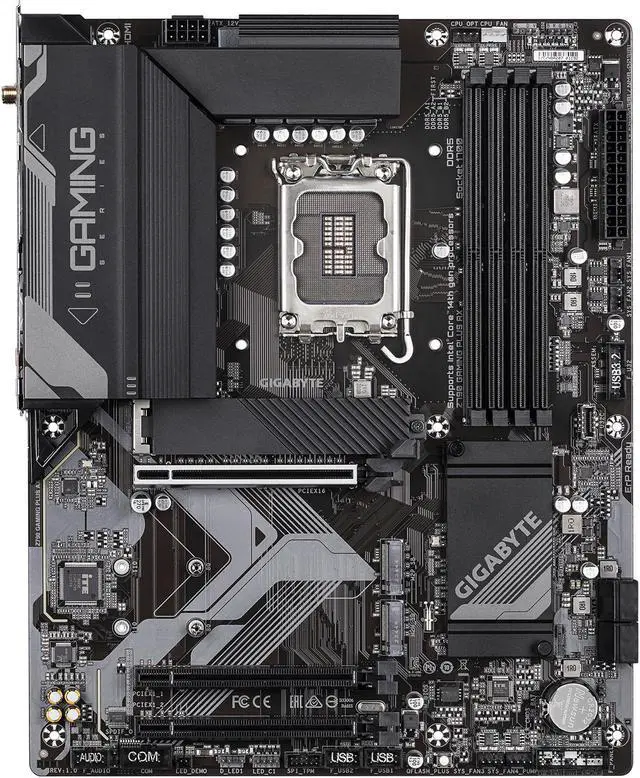

GIGABYTE Z790 GAMING PLUS AX LGA 1700 Intel Z790 ATX Motherboard with DDR5, Triple M.2, PCIe 4.0, USB 3.2 Gen2 Type-C, Realtek Wi-Fi 6, Realtek LAN, Q-Flash Plus, EZ-Latch

(685)(91) Write a Review
  • Z790 AORUS ELITE AX
  • Z790 UD AC
  • Z790 GAMING X AX
  • Z790 AORUS PRO X
  • Z790 AORUS ELITE X WIFI7
  • Z790 AORUS PRO X WIFI7
  • Z790 EAGLE AX
  • Z790M AORUS ELITE AX ICE
  • Z790 GAMING PLUS AX

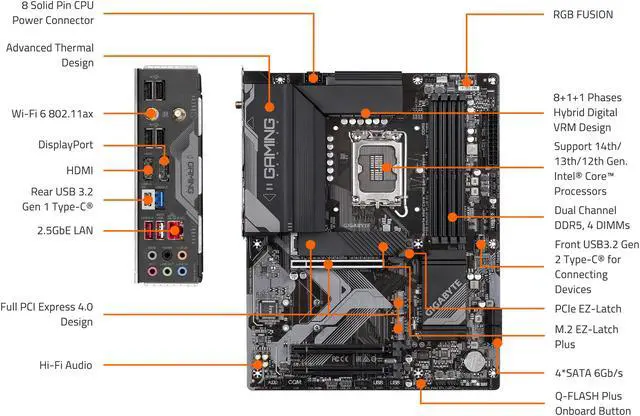

  • Intel LGA 1700 Socket: Supports 14th, 13th, and 12th Gen Intel Core Series Processors
  • DDR5 Compatible: Dual Channel DDR5, 4 DIMMs
  • Sturdy Power Design: Hybrid 8+1+1 Phases Digital VRM Solution
  • Comprehensive Thermal Design: Advanced Thermal Design, Fully Covered MOSFET Heatsinks, M.2 Thermal Guard
  • Next Gen Connectivity: PCIe 4.0, NVMe M.2, USB 3.2 Gen 2 Type-C
  • Fast Networking: 2.5GbE LAN, Realtek Wi-Fi 6
  • Fine Tuning Features: Smart Fan 6, Q-Flash Plus Update BIOS without installing, CPU, Memory, and GPU
+
+
Specs
Reviews (685)

Learn more about the GIGABYTE Z790 GAMING PLUS AX

Model
Brand GIGABYTE
Model Z790 GAMING PLUS AX
Supported CPU
CPU Socket Type LGA 1700
CPU Type Celeron / Intel Core 12th Gen (LGA 1700) / Intel Core 13th Gen (LGA 1700) / Intel Core 14th Gen (LGA 1700) / Pentium Gold
Chipsets
Chipset Intel Z790
Memory
Number of Memory Slots 4x288pin (DDR5)
Memory Standard DDR5 5600
Maximum Memory Supported 192GB
Channel Supported Dual Channel
Memory Feature 14th and 13th Generation Intel Core i9/i7 Processors:
- Support for DDR5 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600 / 5200 / 4800 / 4400 MT/s memory modules
13th Generation Intel Core i5/i3 and 12th Generation Intel Core, Pentium Gold and Celeron Processors:
- Support for DDR5 4800/4400 MT/s memory modules
4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Expansion Slots
PCI Express 4.0 x16 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
PCI Express x1 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2)
Storage Devices
Serial ATA (SATA) 4 x SATA 6Gb/s
M.2 CPU:
- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
- 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2M_SB)
SATA RAID RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
Onboard Audio
Audio Chipset Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out
Audio Channels 7.1-channel audio, access the audio software for audio settings.
Onboard LAN
Max LAN Speed 2.5Gbps
Wireless LAN Wi-Fi 802.11 ax
Bluetooth BLUETOOTH 5.3

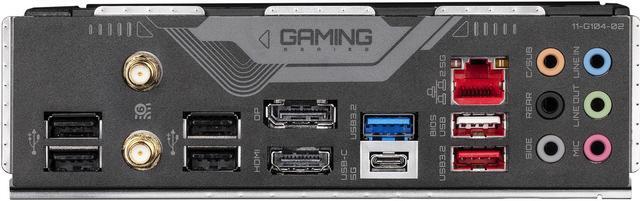

Rear Panel Ports
Back I/O Ports 1 x USB 3.2 Gen 2 Type-A port (red)
1 x USB Type-C port, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 port
5 x USB 2.0/1.1 ports
2 x SMA antenna connectors (1T1R)
1 x DisplayPort
1 x HDMI port
1 x RJ-45 port
6 x audio jacks
Internal I/O Connectors
Onboard USB 1 x USB Type-C header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
Other Connectors 1 x CPU fan header
1 x CPU fan/water cooling pump header
3 x system fan headers
1 x system fan/water cooling pump header
2 x addressable LED strip headers
2 x RGB LED strip headers
3 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only)
1 x serial port header
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper
Software Feature
Windows 11 Support for Windows 11 64-bit
Support for Windows 10 64-bit
Physical Spec
Form Factor ATX
Dimensions (W x L) 12.0" x 9.6"
Power Pin 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
Features
Features Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

Support for Q-Flash
Support for Q-Flash Plus

BIOS:
- 1 x 256 Mbit flash
- Use of licensed AMI UEFI BIOS
- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Additional Information
Date First Available July 01, 2024
