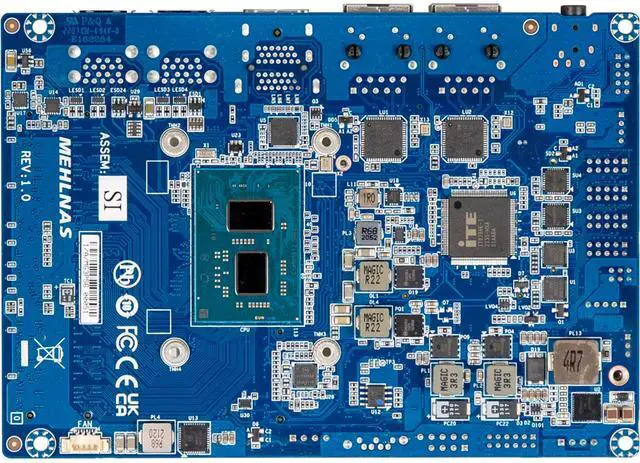

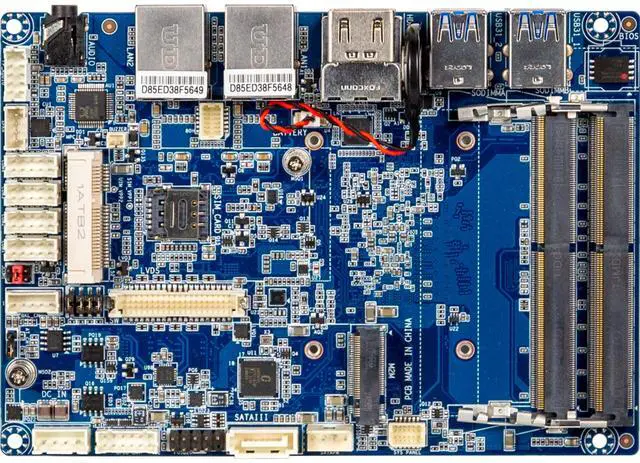

GIGAIPC QBiP-6412A 3.5" SubCompact Embedded Motherboard with Intel Celeron J6412 Processor, Dual Channel DDR4 memory, 4 x COM, 1 x SATA 6Gb/s, 4 x USB 3.2 Gen 1, 2 x USB 2.0 - OEM
- 3.5" SBC
- Intel Celeron J6412 Processor
- Dual Channel DDR4, 2 x SO-DIMMs
- 2 x GbE LAN Ports
- 1 x SATA 6Gb/s Port
- 2 x HDMI, LVDS ports for multiple display
- 1 x COM Port (RS-232/422/485 & RI/5V/12V)
- 1 x COM Port (RS-232/422/485)
- 2 x COM Ports (RS-232)
- 4 x USB 3.2 Gen 1
+
+
Specs
Reviews
Learn more about the GIGABYTE QBiP-6412A
| Brand | GIGAIPC |
|---|---|
| Model | QBiP-6412A |
| CPU Type | Intel Celeron J6412 |
|---|
| Number of DDR4 Slots | 2 x 260-pin |
|---|---|
| DDR4 Standard | DDR4 3200 |
| Maximum Memory Supported | 32GB |
| Other Slots | 1 x Full-size mini PCIe with SIM slot |
|---|
| SATA | 1 x SATA 6.0Gb/s |
|---|---|
| M.2 | 1 x 2280 M.2 M-Key (PCIe x2, SATA 6Gb/s) |
| Audio Chipset | Realtek Audio Codec |
|---|
| LAN Chipset | Intel I210AT |
|---|---|
| LAN Speed | 10/100/1000Mbps |
| Max LAN Speed | 2 x 1Gbps |

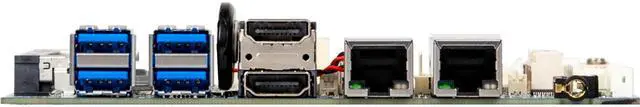

| Back I/O Ports | Rear l/O 1 x Headphone Jack 2 x HDMI 2 x RJ45 LAN Ports 4 x USB 3.2 Gen 1 |
|---|
| Other Connectors | 1 x 4-pin box power connector (+12V~36VDC) 1 x SATA Power header 1 x CPU fan header 1 x Front panel header 1 x Front panel audio header 1 x 2W Speaker out header 2 x USB 2.0 headers 1 x COM header (RS-232/422/485 & RI/5V/12V) 1 x COM header (RS-232/422/485) 2 x COM headers (RS-232) 1 x Backlight Control header 1 x AT/ATX mode select jumper 1 x GPIO (8 bits) & SMBus header 1 x Buzzer header |
|---|
| Form Factor | 3.5" SBC |
|---|---|
| Dimensions (W x L) | 5.75" x 4" |
| First Listed on Newegg | August 05, 2025 |
|---|
