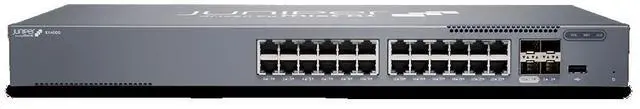

Juniper Networks EX4000Switch, 24-Port 10/100/1000BaseT, 4x 1G/10G SFP/SFP+ (optics sold separately) with Standard SW | EX4000-24T
- Cloud-Native, AI-Native switches featuring Juniper Mist Wired Assurance and Marvis Virtual Network Assistant.
- Offers full suite of Layer 2 and Layer 3 capabilities.
- Fixed form factor 24-port configuration non-PoE.
+
+
Specs
Reviews
Learn more about the Juniper Networks, Inc. EX4000-24T
| Brand | Juniper Networks, Inc. |
|---|---|
| Series | EX4000 |
| Model | EX4000-24T |
| Part Number | EX4000-24T |
| Network Management Type | Managed |
|---|
| Primary Ports | 24 x RJ45 + 4 x SFP+ |
|---|
| Security | Media Access Control (MAC) limiting (per port and per VLAN) Allowed MAC addresses: 32,000 Dynamic Address Resolution Protocol (ARP) dynamic ARP inspection (DAI) IP source guard Local proxy ARP Static ARP support Dynamic Host Configuration Protocol (DHCP) snooping Captive portal Persistent MAC address configurations Distributed denial of service (DDoS) protection (CPU control path flooding protection) |
|---|---|
| QoS | L2 QoS L3 QoS Ingress policing: 1 rate 2 color Hardware queues per port: 12 (8 unicast + 4 multicast) Scheduling methods (egress): Strict priority (SP), weighted deficit round-robin (WDRR) 802.1p, DiffServ code point (DSCP)/IP precedence trust and marking L2-L4 classification criteria: Interface, MAC address, Ethertype, 802.1p, VLAN, IP address, DSCP/IP precedence, TCP/UDP port numbers, and more Congestion avoidance capabilities: Tail drop, weighted random early detection (WRED) |
| Layer | 3 |
| Layer 2 Features | Layer 2 switching Maximum MAC addresses per system: 32,000 Jumbo frames: 9216 bytes Concurrent Active VLAN: 1020 Range of possible VLAN IDs: 1 to 4094 Virtual Spanning Tree (VST) instances: 253 Port-based VLAN Voice VLAN Physical port redundancy: Redundant trunk group (RTG) Compatible with Per-VLAN Spanning Tree Plus (PVST+) Routed VLAN interface (RVI) Uplink failure detection (UFD) ITU-T G.8032: Ethernet Ring Protection Switching IEEE 802.1AB: Link Layer Discovery Protocol (LLDP) LLDP-MED with VoIP integration Default VLAN and multiple VLAN range support MAC learning deactivate Persistent MAC learning (sticky MAC) —MAC notification —Private VLANs (PVLANs) Explicit congestion notification (ECN) Layer 2 protocol tunneling (L2PT) IEEE 802.1ak: Multiple VLAN Registration Protocol (MVRP) IEEE 802.1p: Class of Service (CoS) prioritization IEEE 802.1Q: VLAN tagging IEEE 802.1X: Port Access Control IEEE 802.1ak: Multiple Registration Protocol IEEE 802.3: 10BASE-T IEEE 802.3u: 100BASE-T IEEE 802.3ab: 1000BASE-T IEEE 802.3z: 1000BASE-X IEEE 802.3ae: 10-Gigabit Ethernet IEEE 802.3by: 25-Gigabit Ethernet IEEE 802.3af: Power over Ethernet IEEE 802.3at: Power over Ethernet Plus IEEE 802.3x: Pause Frames/Flow Control IEEE 802.3ah: Ethernet in the First Mile |
| Layer 3 Features | Layer 3 features: IPv4 Maximum number of ARP entries: 4,000 Maximum number of IPv4 unicast routes in hardware: 1,000 prefixes; 7,800 host routes Maximum number of IPv4 multicast routes in hardware: 3,200 multicast routes Routing protocols: RIPv1/v2, OSPF, BGP, IS-IS Static routing Routing policy Bidirectional Forwarding Detection (BFD) L3 redundancy: Virtual Router Redundancy Protocol (VRRP) VRF-Lite Layer 3 Features: IPv6 Maximum number of neighbor discovery (ND) entries: 3,000 Maximum number of IPv6 unicast routes in hardware: 1,000 prefixes; 3,800 host routes Maximum number of IPv6 multicast routes in hardware: 1,650 multicast routes Routing protocols: RIPng, OSPFv3, IPv6, IS-IS Static routing |
| Max Power Consumption | without PoE: 43W |
|---|
| Dimensions | 17.36 x 1.71 x 8.42 in (44.10 x 4.34 x 21.40 cm) |
|---|---|
| Weight | 2.89 Kg |
| First Listed on Newegg | December 18, 2025 |
|---|
