Question 1

Newegg lists this LGS108 as a "smart switch" but I checked Linksys' website. appears this is just an unmanaged switch, right?

Accepted Answer

Correct.  It is an unmanaged switch.  Maybe what it means by "smart" is just that this switch is just that it would turn off the ports that are not connected or active to be energy efficient.

Question 2

Do the LED's indicate the link speed?  Some indicate the speed with different colors.

How many LED's are there per port?

Accepted Answer

No, sadly the LED's do not change color (Amber/Green for 100/1000 respectively).  There is only 1 LED per port.

Question 3

D I need a crossover network cable  to connect my router to the LINKSYS LGS108 Smart 8-Port Gigabit Switch?

Accepted Answer

I just ran a normal Cat 6E cable from my router to it, and it works fine.  I don't think you will need a crossover patch cable.

Question 4

What voltage does the power supply use... 110 - 240 or 110 only?

Accepted Answer

Sticker says 110-240 V, 50/60 Hz

Question 5

Does this switch provide power over Ethernet?

Accepted Answer

No. A similar model, the Linksys LGS108P (notice the 'P' in the model #), does though.

Question 6

is this smart switch also for cat 6 cable?

Accepted Answer

Yes. I have a mix of Cat 6 and Cat 5e now because I did not have enough left-over Cat 6 to make more cables. I'm using it with a Linksys WRT1900AC router and DPC3008 modem.

Question 7

I have a Linksys WRTG45L router hooked to my satellite internet modem.   I need several more ports and bought a rosewill 8 port unmanaged switch (10/100).

Am I going to see a speed improvement with this switch?  Also, if I have devices hooked to this switch, do they communicate directly through it, or is everything sent back through the router first?

I have cat 6 cables.

Thanks to all who reply.

Accepted Answer

The Gigabit switch will greatly improve the traffic on your local network.  This switch allows all traffic to and from devices plugged in to communicate at a higher bandwidth according to the speed the device itself supports.  The router is shared through the switch when connected but the traffic if unaffected by the router other than your access to your internet service.  I doubt that your internet will ever reach 100 Mbps so the gigabit speed will not add to the speed of the internet connection, just local traffic.  Also, most cables will only allow 350 to 400 Mbps so you do not actually get full capacity of the switch but the speed of data transfers is definitely improved.

Question 8

Newegg' descrption says this is a Smart switch, but Linksys (and their data sheet) just call it unmanaged. Anyone know the real story?

Accepted Answer

It is just an unmanaged switch Just as Linksys describes.

Question 9

Does this have a network UI?

Accepted Answer

No, this an unmanaged switch

Question 10

Compared to the Linksys SE3008, is this switch exactly the same thing except it's for Small Business Solutions, and less items in the packaging? Linksys Live Help wasn't even worth it, maybe someone here has better knowledge...

Accepted Answer

These two switches are the same, both 8 port and both gigabit.  I replaced my SE3008 (the plastic version) as the lights were on the same side as the cable  distribution and I wanted the LGS108 as it is metal and you have decent looking face with the lights on the front with the wires coming out of the back of the unit.

Format	Desktop
Standards	IEEE 802.3, 802.3u, 802.3x, 802.3ab, 802.3az
Network Management Type	Smart

Uplink Ports	None
Primary Ports	8 x RJ45
Primary Port Speed	10/100/1000Mbps

Protocols	TCP/IP
PoE	No
Stackable	No
Layer	Layer 3 Light
LEDs	Link and activity indicators

Dimensions	154 x 85 x 26 mm (6.06 x 3.34 x 1.02 in.)
Weight	0.340 kg (0.75 lbs)

Temperature	0°C to 40°C (32°F to 104°F)
Humidity	10% - 90%, Non-condensing

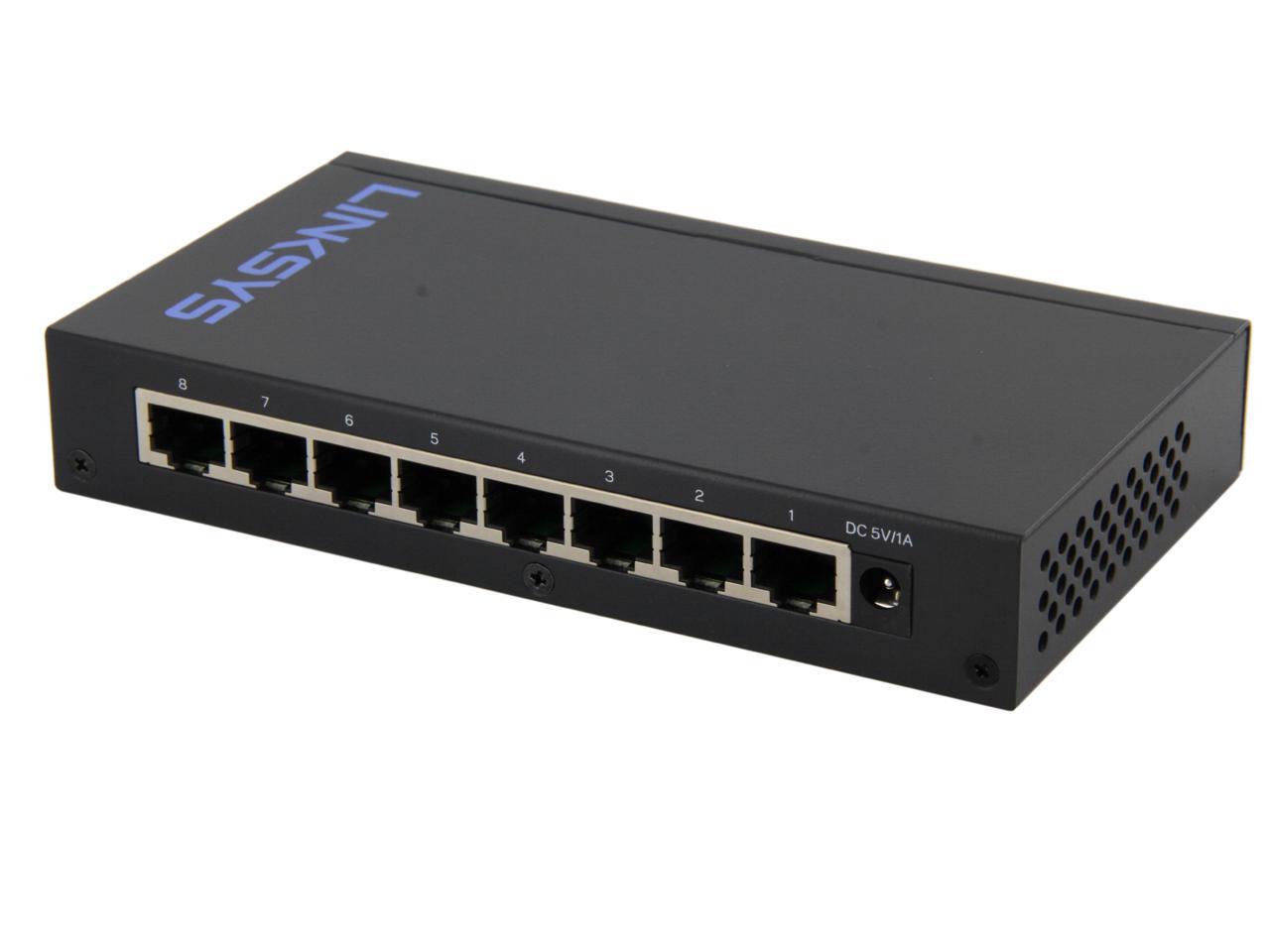

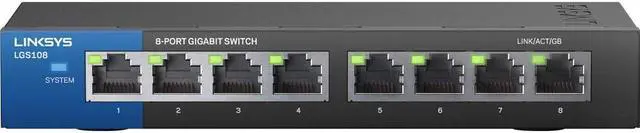

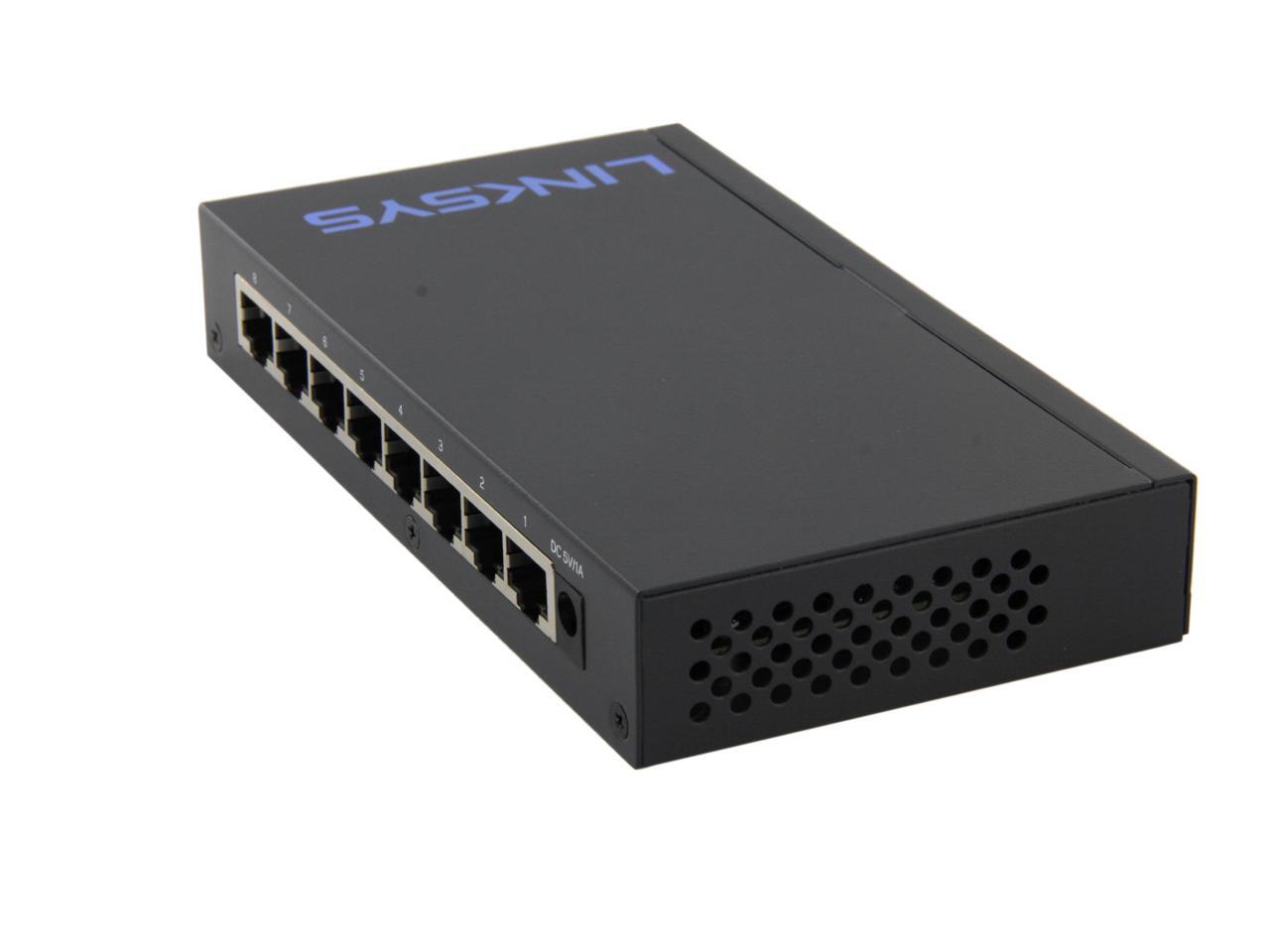

Linksys 8-Port Business Desktop Gigabit Switch (LGS108)
