The H5 Flow boosts airflow and GPU cooling with its fully perforated PSU shroud, mesh panels, and robust radiator support.
The Coolers Graphics: Designed for enhanced GPU cooling, the mesh PSU shroud maximizes air intake from bottom-mounted fans.
Go Big On Cooling: The front supports up to a 360mm radiator, and the top supports up to 240 mm or 280mm if using low-profile RAM - for powerful cooling potential.
Performance Paneling: Ultra-fine mesh panels optimize airflow for intake and exhaust while doubling as dust filters.

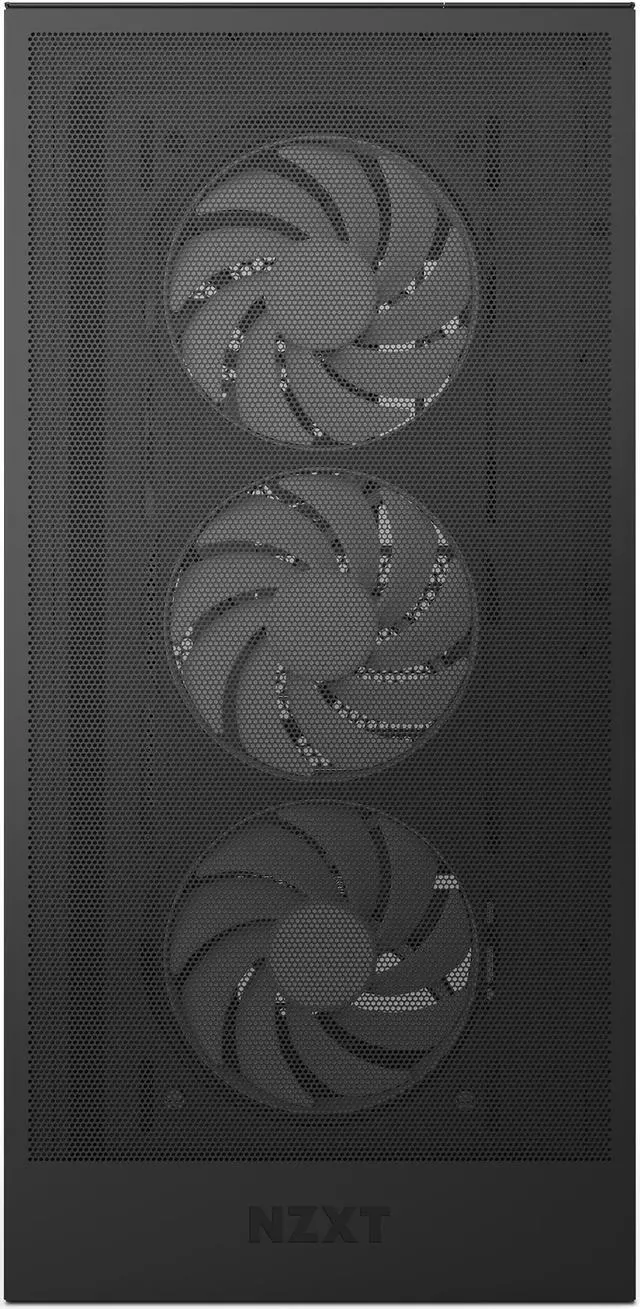

RGB: Equipped with a front-mounted F360 RGB Core fan for exceptional out-of-the-box cooling and lightning.
+
+
Overview
Specs
Reviews (12)

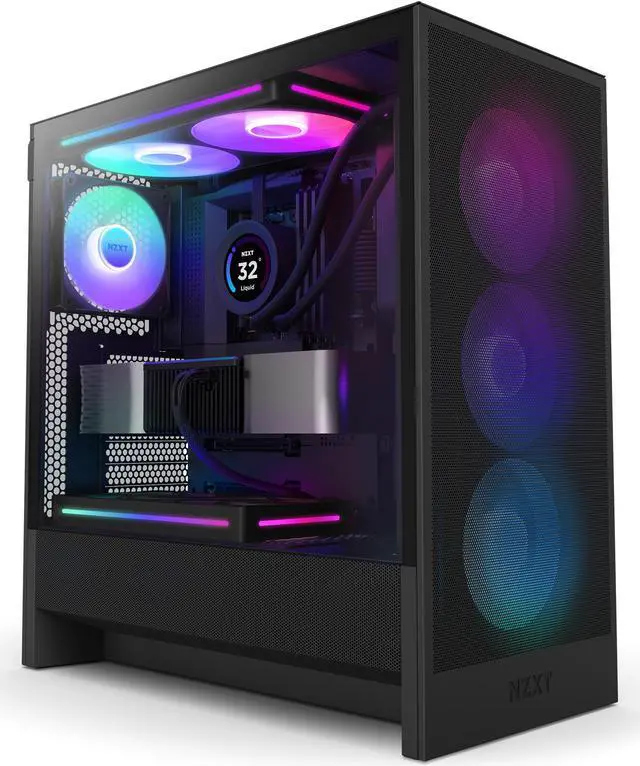

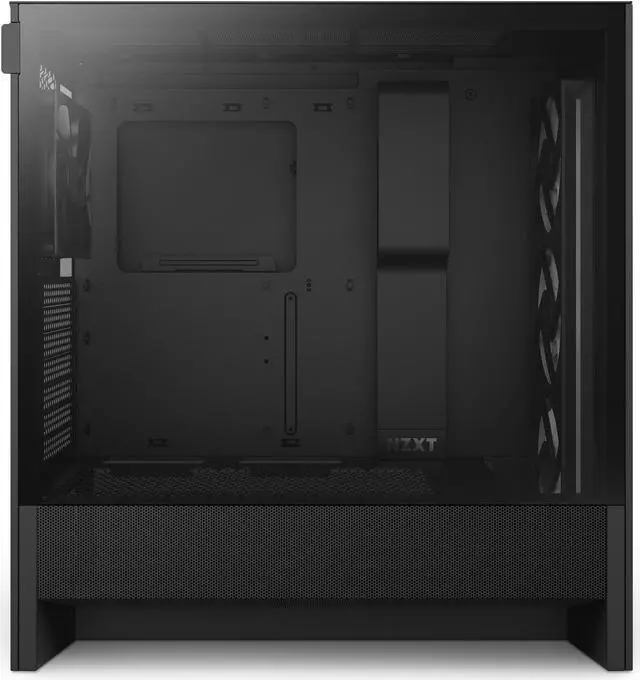

A perfect blend of style and functionality, the NZXT H5 Flow RGB Compact Tempered Glass ATX Mid-Tower Airflow Computer Case in Black is designed to enhance your PC building experience. This compact mid-tower chassis is engineered to boost airflow and optimize GPU cooling, thanks to its innovative perforated PSU shroud and mesh panels. The case supports large radiator configurations, accommodating a 360mm radiator at the front and a 240mm radiator at the top, making it ideal for powerful liquid cooling setups. The H5 Flow RGB is optimized for superior airflow with ultra-fine mesh panels that not only facilitate exceptional air circulation but also help filter out dust particles, ensuring your components remain clean and efficient.

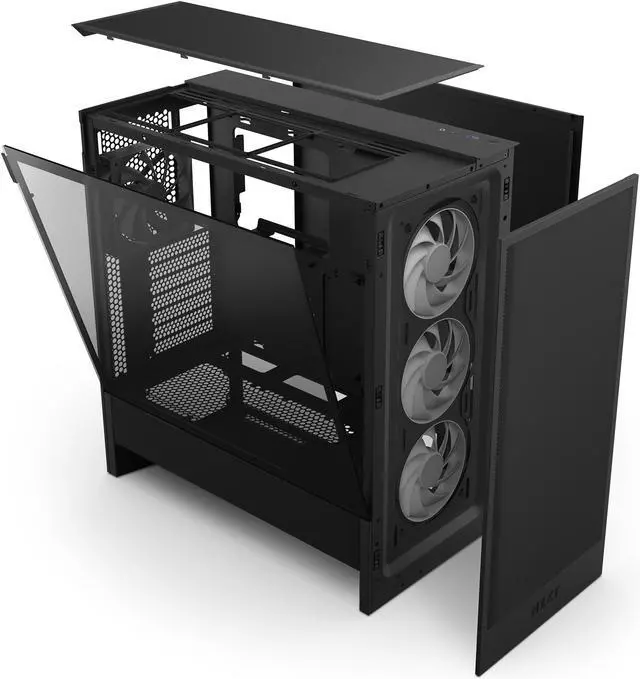

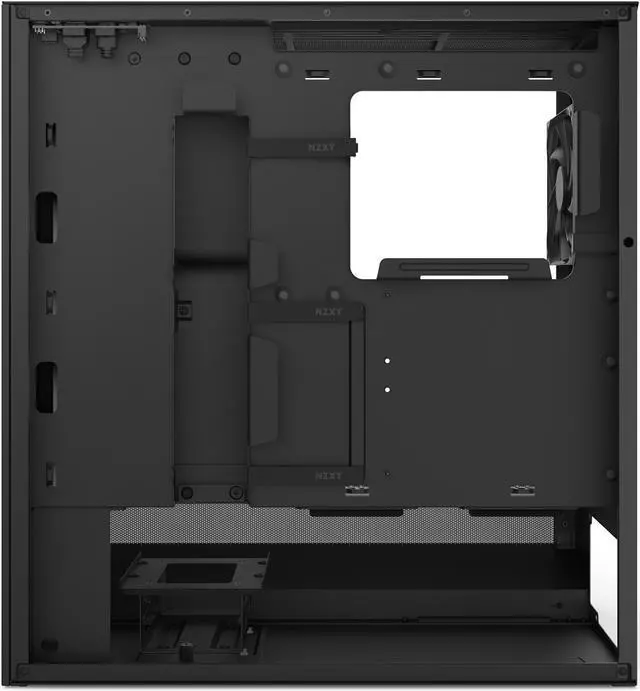

The mesh PSU shroud maximizes air intake from two 120mm bottom-mounted fans (fans not included), directing more air to the GPU for enhanced cooling performance. Pre-installed with a front-mounted F360 RGB Core fan and a rear F120Q fan, this case offers out-of-the-box cooling and vibrant lighting effects. The H5 Flow RGB also features an intuitive cable management system, allowing you to effortlessly route and conceal cables using wide channels, hooks, and straps for a clean and organized build. Accessing your components is made easy with tool-less entry to the front, side, and top panels, allowing for quick upgrades and maintenance.
Constructed from thick steel and tempered glass, the NZXT H5 Flow RGB case not only provides a strong and durable build but also showcases your components with a sleek and modern aesthetic.
Learn more about the NZXT CC-H52FB-R1
Model
Brand
NZXT
Series
H5 Flow RGB
Model
CC-H52FB-R1
Details
Type
ATX Mid Tower
Color
Black
Case Material
SGCC Steel / Dark Tinted Tempered Glass
With Power Supply
No
Power Supply Mounted
Bottom
Motherboard Compatibility
ATX / E-ATX / Micro ATX / Mini ITX
Side Panel Window
Yes
LED
RGB
Dust Filters
Bottom / Front / Top
Expansion
Internal 3.5" Drive Bays
1
Internal 2.5" Drive Bays
2
Expansion Slots
7
Front Panel Ports
Front Ports
1 x USB 3.2 Type-A, 1 x USB 3.2 Type-C, 1 x Audio
Cooling System
Fan Options
Front: 3 x 120 mm / 2 x 140 mm (1 x F360 RGB Core Case Version included) Top: 2 x 120 mm / 2 x 140 mm Bottom: 2 x 120 mm Rear: 1 x 120 mm (2 x F120Q Case Version included)
Radiator Options
Front: Up to 360 mm Top: Up to 240 mm (280mm with low-profile memory only)
Dimensions & Weight
Max GPU Length
410 mm
Max CPU Cooler Height
170 mm
Max PSU Length
200 mm
Dimensions (H x W x D)
465 x 225 x 430 mm / 18.31" x 8.86" x 16.93"
Weight
7.28 kg / 16.04 lbs.
Additional Info
Package Content
1 x H5 Flow RGB 1 x F360 RGB Core (CV) 2 x F120Q (CV) 1 x Installation accessories 1 x User guide
Additional Information
