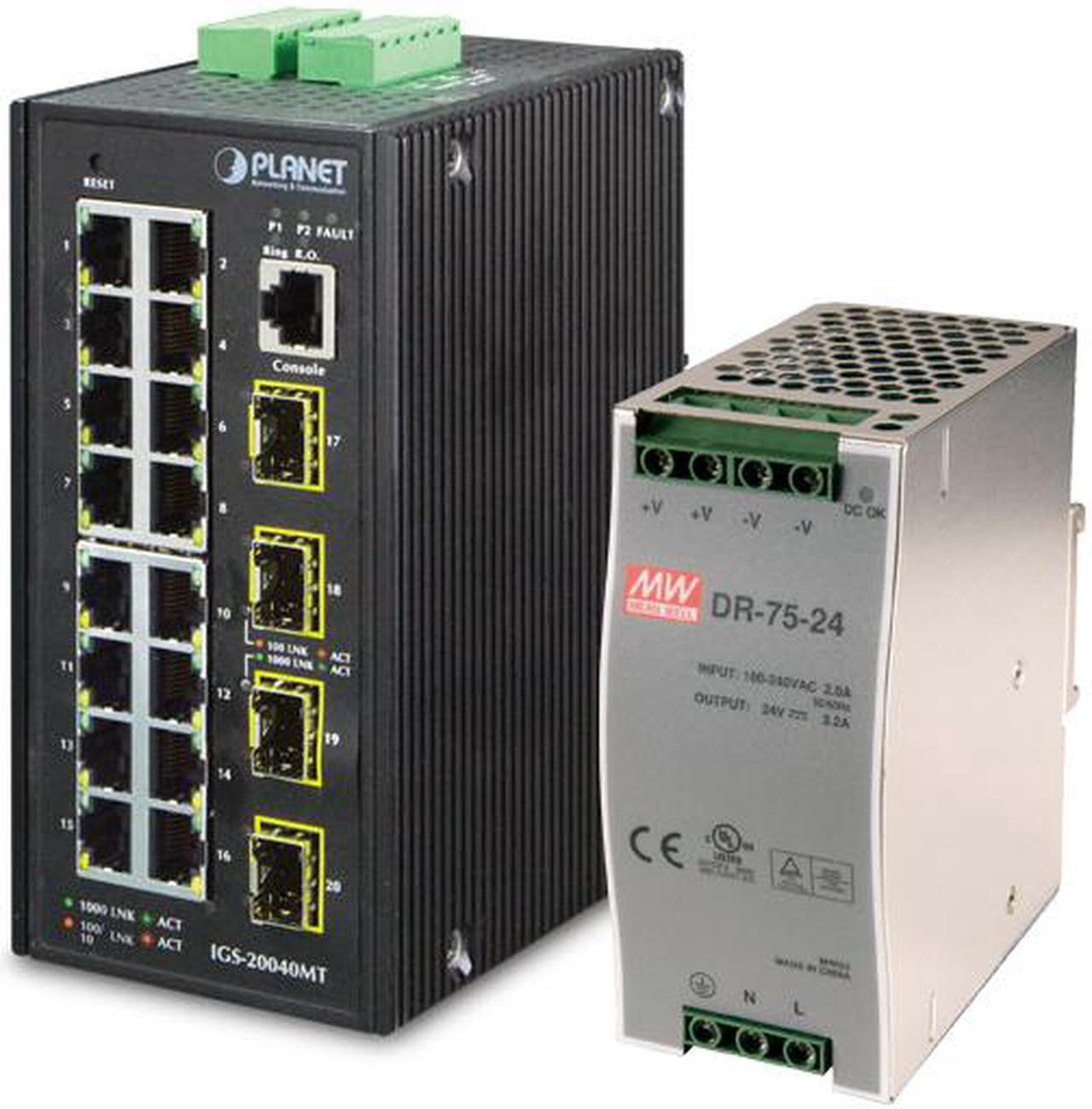

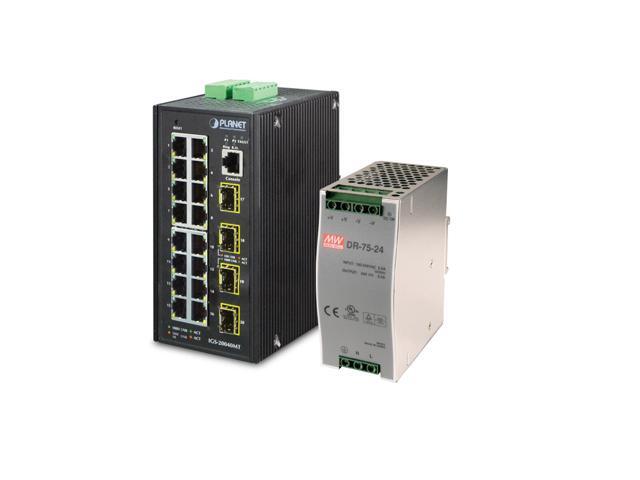

Planet IGS-20040MT L2+ Industrial 16-Port 10/100/1000T + 4 100/1000X SFP Managed Switch (-40 ~ 75 degrees C)

Physical Port 16-Port 10/100/1000Base-T RJ45 copper 4 100/1000Base-X mini-GBIC/SFP slots, SFP type auto detection One RJ45 console interface for basic management and setup Industrial Case / Installation IP30 aluminum case protection DIN-rail and wall-mount design Redundant Power Design - 12 to 48V DC, redundant power with polarity reverse protect function - AC 24V power adapter acceptable Supports EFT protection for 6000V DC power and 6000V DC Ethernet ESD protection -40 to 75 degrees C operating temperature Digital Input / Digital Output 2 Digital Input (DI) 2 Digital Output (DO) Integrates sensors into auto alarm system Transfers alarm to IP network via email and SNMP trap Layer 2 Features High performance of Store-and-Forward architecture and runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth Storm Control support - Broadcast / Multicast / Unknown Unicast Supports VLAN - IEEE 802.1Q tagged VLAN - Up to 255 VLA
Ns groups, out of 4095 VLAN IDs - Provider Bridging (VLAN Q-in-Q) support (IEEE 802.1 ad) - Private VLAN Edge (PVE) - Protocol-based VLAN - MAC-based VLAN - Voice VLAN Supports Spanning Tree Protocol - STP, IEEE 802.1D Spanning Tree Protocol - RSTP, IEEE 802.1 w Rapid Spanning Tree Protocol - MSTP, IEEE 802.1 s Multiple Spanning Tree Protocol by VLAN - BPDU Guard Supports Link Aggregation - 802.3 ad Link Aggregation Control Protocol (LACP) - Cisco ether-channel (Static Trunk) - Maximum 10 trunk groups, up to 8 ports per trunk group - Up to 16Gbps bandwidth (duplex mode) Provides port mirror (many-to-1) Port Mirroring of the incoming or outgoing traffic on a particular port Loop protection to avoid broadcast loops Supports E.

R. P. S. (Ethernet Ring Protection Switching) IEEE 1588 and Synchronous Ethernet network timing Quality of Service Ingress Shaper and Egress Rate Limit per port bandwidth control 8 priority queues on all switch ports Traffic classification - IEEE 802.1 p CoS - IP TOS / DSCP / IP Precedence - IP TCP/UDP port number - Typical network application Strict priority and Weighted Round Robin (WRR) CoS policies Supports QoS and In/Out bandwidth control on each port Traffic-policing policies on the switch port DSCP remarking Multicast Supports IPv4 IGMP Snooping v1, v2 and v3 Supports IPv6 MLD Snooping v1 and v2 Querier mode support IGMP Snooping port filtering MLD Snooping port filtering MVR (Multicast VLAN Registration) Security Authentication - IEEE 802.1 x Port-based / MAC-based network access authentication - Built-in RADIUS client to cooperate with the RADIUS servers - TACACS+ login users access authentication - RADIUS / TACACS+ users access authentication Access Control List - IP-based Access Control List (ACL) - MAC-based Access Control List Source MAC / IP address binding DHCP Snooping to filter un-trusted DHCP messages Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding IP Source Guard prevents IP spoofing attacks Auto DoS rule to defend DoS attack IP address access management to prevent unauthorized intruder Layer 3 IP Routing Features Supports maximum 128 static routes and route summarization
