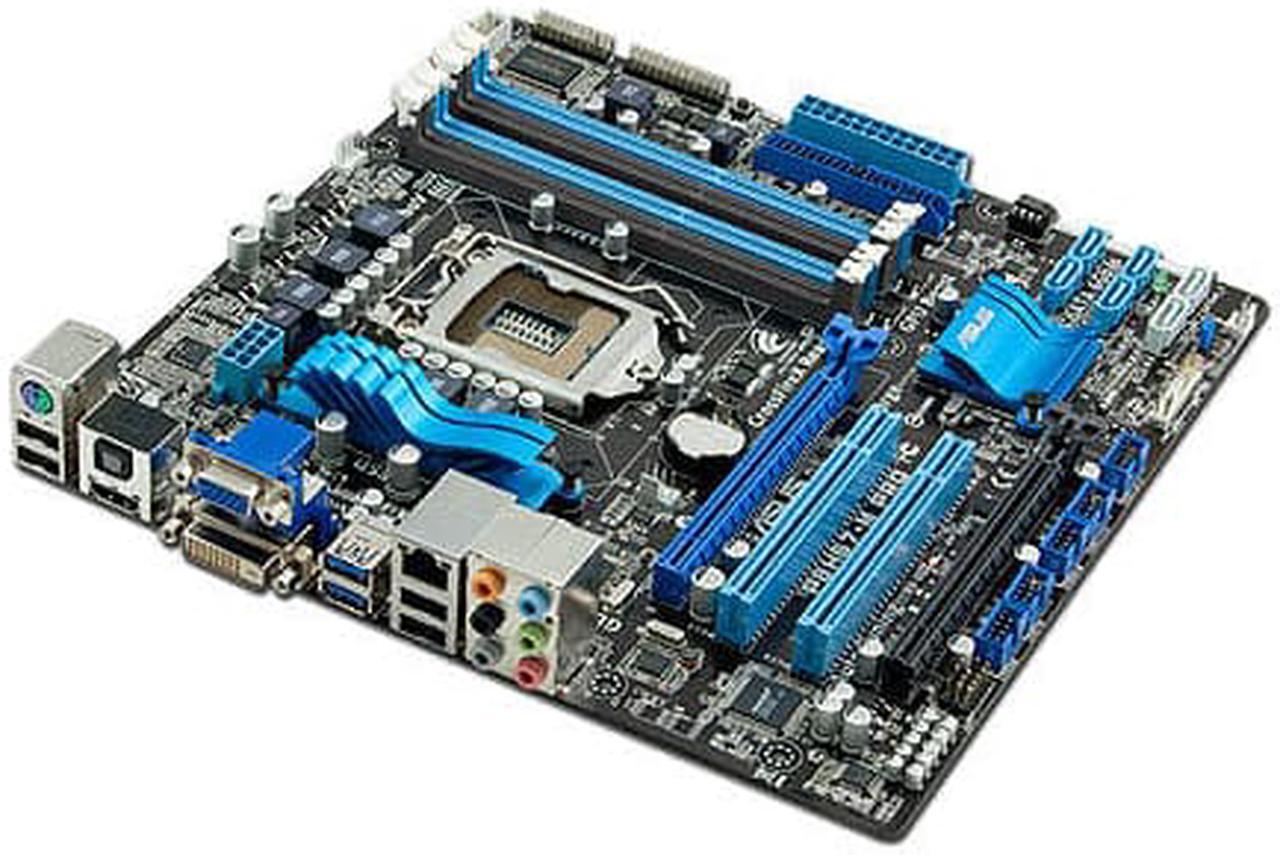

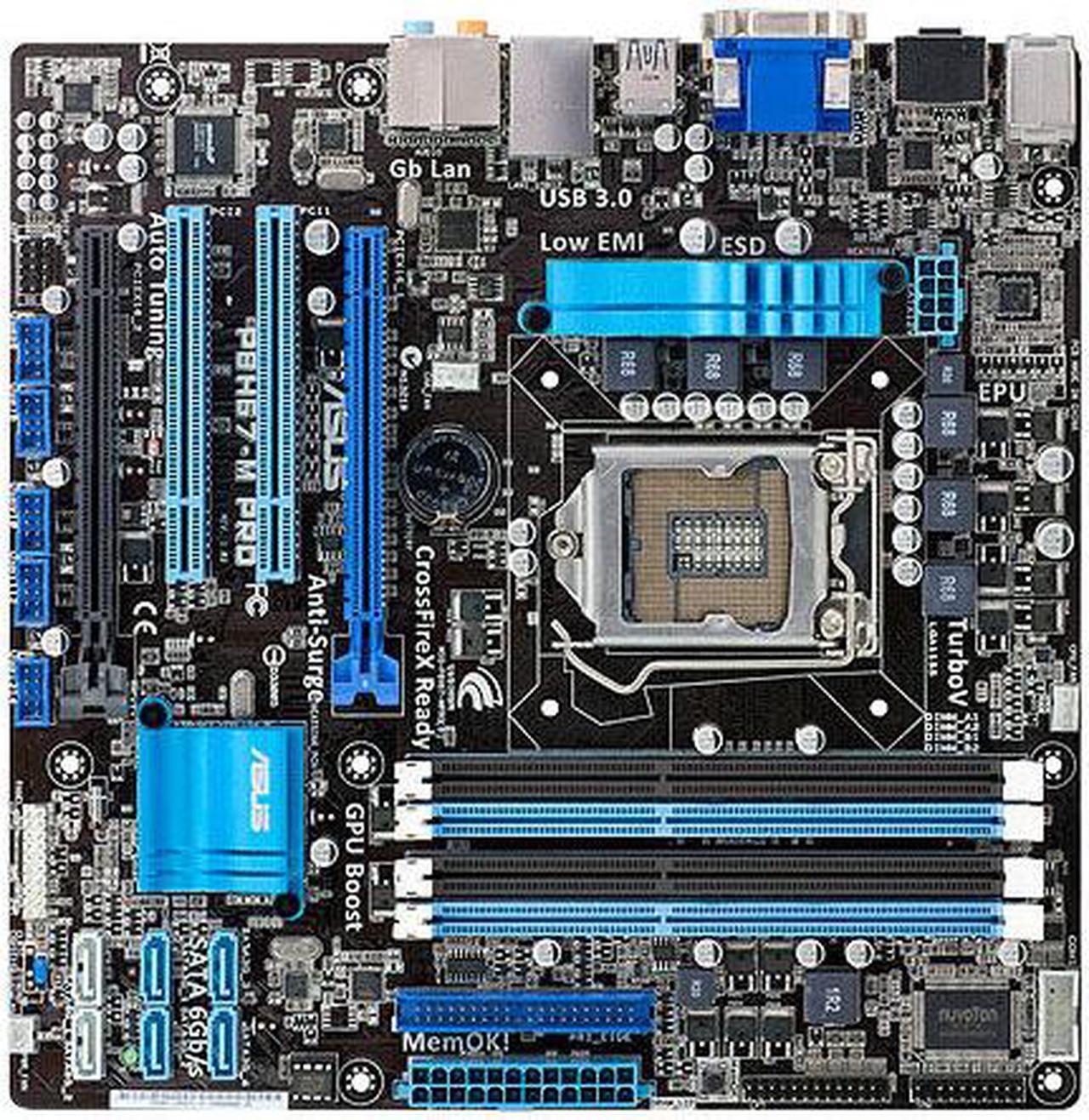

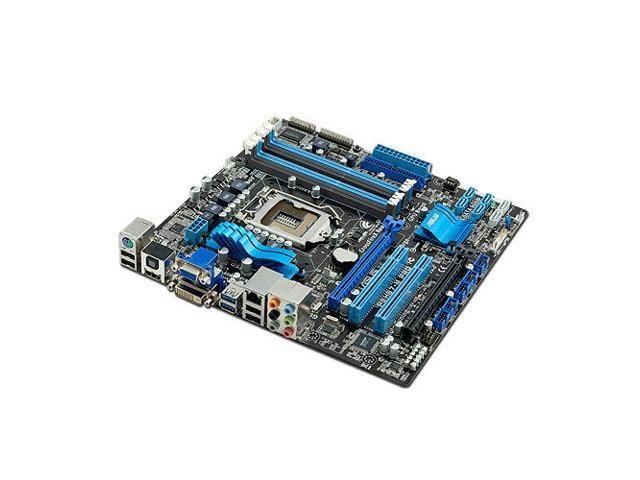

ASUS P8H67-M PRO/CM6650/DP_MB P8H67-M PRO/CG8250/DP_MB P8H67-M PRO/CG8350/DP_MB P8H67-M PRO/V-P8H67E LGA 1155 Intel H67 HDMI SATA 6Gb/s USB 3.0 Micro ATX Motherboard

No original packing, Only the motherboard and the I/O shield

Shipped by DHL(about 3-10 days)

warranty: 60 days

Intel® Socket 1155 for 2nd Generation Core™ i7/Core™ i5/Core™ i3 Processors
Supports Intel® 32 nm CPU
Supports Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
Chipset
Intel® H67(B3)
Memory
4 x DIMM, Max. 32GB, DDR3 1333/1066 Hz Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* The XMP support (MAX 1333MHz) is subject to the physical characteristics of individual CPUs and the package of DRAM. Please refer to Memory QVL for details.
* According to Intel® SPEC, the Max. 32GB memory capacity can be supported with DIMMs of 8GB (or above). ASUS will update QVL once the DIMMs are available on the market.
* Refer to www.asus.com or user manual for the Memory QVL (Qualified Vendors Lists).
Graphic
Integrated Graphics Processor
Multi-VGA output support : HDMI/DVI/RGB ports
- Supports HDMI with max. resolution 1920 x 1200 @ 60 Hz
- Supports DVI with max. resolution 1920 x 1200 @ 60 Hz
- Supports RGB with max. resolution 2048 x 1536 @ 75 Hz
Maximum shared memory of 1748 MB
Multi-GPU Support
Supports AMD Quad-GPU CrossFireX™ Technology
Expansion Slots
1 x PCIe 2.0 x16 (blue)
1 x PCIe 2.0 x16 (x4 mode, black)
2 x PCI
Storage
Intel® H67(B3) chipset :
2 x SATA 6Gb/s port(s), gray
4 x SATA 3Gb/s port(s), blue
Support Raid 0, 1, 5, 10
VIA VT6415 controller :
1 x UltraDMA 133/100/66 for up to 2 PATA devices , navy blue
LAN
Realtek® 8111E , 1 x Gigabit LAN Controller(s)
Audio
Realtek® ALC 892 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
Audio Feature :
- Blu-ray audio layer Content Protection
- Optical S/PDIF out port(s) at back panel
USB Ports
Built-in Controller :
2 x USB 3.0 port(s) (2 at back panel, blue)
Intel® H67(B3) chipset :
14 x USB 2.0 port(s) (4 at back panel, black, 10 at mid-board)
ROG Exclusive Features
Overclocking Protection :
- ASUS C.P.R.(CPU Parameter Recall)
Special Features
ASUS TurboV EVO :
- Auto Tuning
- TurboV
- GPU Boost without switch
ASUS EPU :
- EPU
ASUS Power Design :
- 4 +2 Phase Power Design
ASUS Protect 3.0 Technology :
- Anti-Surge Protection
- Low EMI Solution
ASUS Exclusive Features :
- MemOK!
- AI Suite II
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution
- ASUS Fan Xpert
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
ASUS Q-Design :
- ASUS Q-Slot
- ASUS Q-DIMM

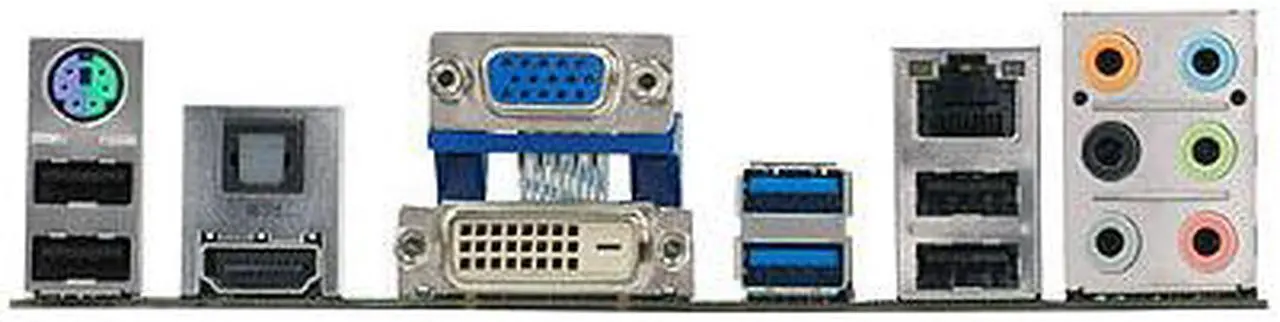

Back I/O Ports
1 x PS/2 keyboard/mouse combo port(s)
1 x DVI
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.0
4 x USB 2.0
1 x Optical S/PDIF out
6 x Audio jack(s)
