SIM868 Quad-band GSM GPRS Bluetooth GNSS SMS GLONASS Module Chip Text and PDU Replace SIM808 SIM908

Description:

• Quad-band 850/900/1800/1900MHz

• GPRS multi-slot class 12/10
• GPRS mobile station class B
• Compliant to GSM phase 2/2+
• - Class 4 (2 W @ 850/900MHz)
• - Class 1 (1 W @ 1800/1900MHz)
• Dimensions: 17.6*15.7*2.3mm
• Weight: 1.5g
• Control via AT commands (3GPP TS 27.007, 27.005 and SIMCom enhanced AT Commands)
• Supply voltage range 3.4 ~ 4.4V
• Low power consumption
• Operation temperature: -40°C ~85°C

Specifications for GPRS Data

• GPRS class 12: max. 85.6 kbps (downlink/uplink)
• PBCCH support
• Coding schemes CS 1, 2, 3, 4
• PPP-stack
• USSD

Specifications for SMS via GSM/GPRS:

• Point to point MO and MT
• SMS cell broadcast
• Text and PDU mode

Specification for GNSS

• Receiver type
• -22 tracking/66 acquisition-channel
• -GPS L1 C/A code

Specification for GPS

• Receiver type
• -22 tracking /66 acquisition -channel
• -GPS L1 C/A code
• Sensitivity
• -Tracking: -166 dBm
• -Cold starts : -148 dBm
• Time-To-First-Fix
• -Cold starts: 29s (typ.)
• -Hot starts: <1s
• -Warm starts: 22s
• Accuracy
• -Horizontal position : <2.5m CEP

Interfaces

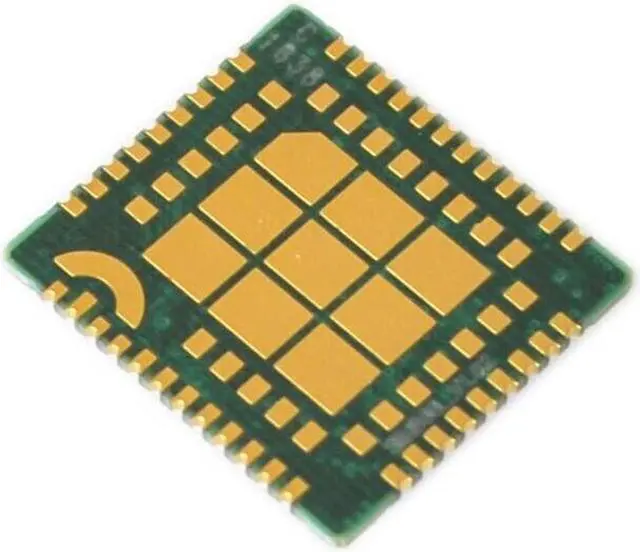

• 77 SMT pins including
• SIM Card Interfaces
• -SIM card: 3V/ 1.8V
• Analog audio interface
• RTC GNSS backup
• I2C interface
• USB interface
• Serial interface
• SD
• GPIO
• ADC
• GSM Antenna pad
• GNSS Antenna pad
• Bluetooth Antenna pad

What's in the Package:

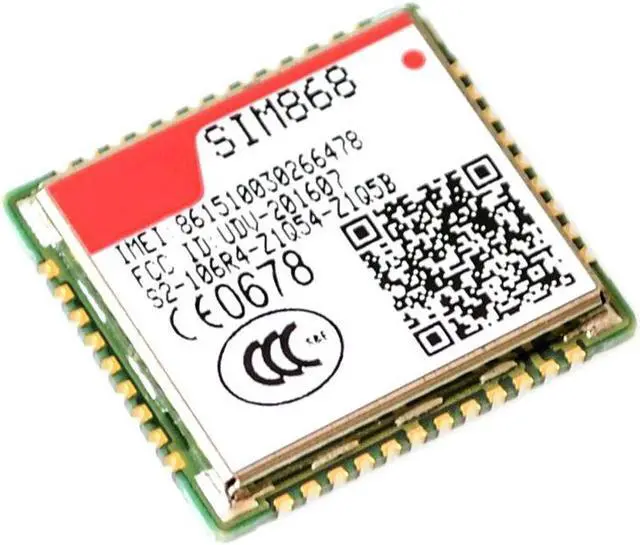

• 1pcs SIM868 GSM GPRS Quad-band Chip
