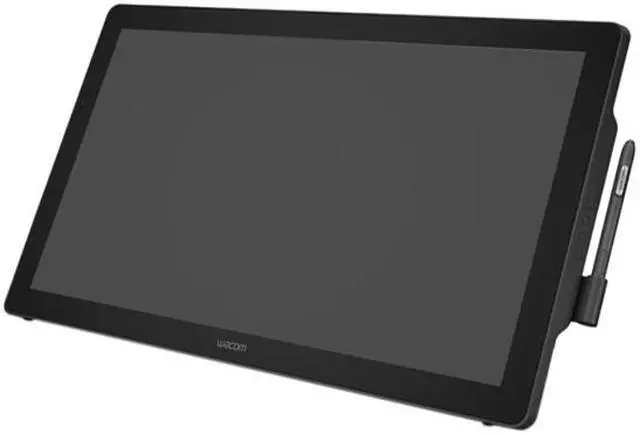

Wacom DTH-2452 24" Full HD Interactive Pen Display for Electronic Signature Capture, Multi-touch, 2540 lpi, 2048 Pressure Level, Pen, USB Interface, Mac/PC
- 23.80", 1920 x 1080, 210 nit
- Designed to improve workflow and enhance visual communication
- For teaching, educators can mark up and annotate presentations, or design lesson plans for interactive teaching
- In business settings, the pen on screen can be used to complete electronic forms using digital ink, and capture signatures directly in documents
- Multi-touch functionality for intuitive navigation and support for common gestures
- HDCP compliant
- Hardened anti-glare etched glass ensures visibility and durability
- Standard DVI-I and USB connections for easy installation
- Secure eDocument transactions thanks to state-of-the-art encryption
- Four integrated ExpressKeys for frequently used tools
- A built-in video pass-thru connector that allows mirroring directly from pen display to another display
- Multi-angle tilting stand to position the screen is the most comfortable angle for writing
- VESA mountable for use with external stands or arms
- Landscape mode only
- Software sold separately
Specs
Reviews
Learn more about the Wacom DTH2452
| Brand | Wacom |
|---|---|
| Model | DTH2452 |
| Color | Black |
| Interfaces | USB 2.0 |
|---|---|
| Sensor Type | Multi-touch screen support touch gestures and navigation |
| Data Conversion Rate | 187 points per second (pen) 100 point per second (touch) |
| Resolution | 1920 x 1080 (Native resolution) |
| Dimensions | 14.00" x 23.70" x 1.80" |
|---|---|
| Weight | 15.90 lbs. (without stand) |
| Features | General specifications Stand inclination: 11 degrees - 73 degrees incline Power supply: AC 100 - 240 V 50 / 60 Hz Power consumption: 45 Watts or lower, Power Save mode: 0.5 Watt or lower, Power OFF mode: 0.5 Watt or lower Supported operating systems: Windows 7 / 8 / 8.1 / 10, Mac OS X (10.11 and later) LCD specifications Screen Size: 23.8“ diagonal (20.70" x 11.70") Aspect ratio: 16:9 Display type: VA Cover glass surface: Anti-glare Supported resolutions: VGA: 640 x 480 @ 6 0Hz, SVGA: 800 x 600 @ 60 Hz, XGA: 1024 x 768 @ 60 Hz, WXGA: 1280 x 800 @ 60 Hz, HD: 1366 x 768 @ 60 Hz, SXGA: 1280 x 1024 @ 60 Hz, WSXGA: 1680 x 1050 @ 60Hz, FHD:1920 x 1080 @ 60Hz Viewing angle H: 178 degrees (89 degrees / 89 degrees), V: 178 degrees (89 degrees / 89 degrees) Colors: 16.7M colors Brightness: 210 nits (typical) Contrast ratio: 1000:1 (typical) Response rate: 16 ms (typical) Tablet and Pen Technology: Electromagnetic Resonance (EMR) Active area size: 20.70" x 11.70" Pen pressure levels: 2048 Coordinate resolution: 0.01 mm / point / 2540 lpi Coordinate accuracy: +/-0.5 mm (center) for pen / +/-1 mm (center) for touch Reading height: 10 mm (center) Miscellaneous Pen storage: Detachable pen holder Wall mount: VESA mount Operating temperature / Relative humidity: 5 to 40 degrees / 30 to 80% Storage temperature / Relative humidity: -20 to 60 degrees / 30 to 90% Key features and benefits 24.00" LCD panel offers a large, comfortable surface and a wide viewing angle for excellent performance Multi-touch functionality for intuitive navigation and support for common gestures 2048 levels of pen pressure for precise drawing, writing, and annotating, plus enhanced biometric signature capturing DVI video in / out for support of both analog and digital connections Adjustable stand supports multiple angles to fit any working environment Standard VESA mounting for use with 3rd party stands and arms |
|---|
| Bundled Software | Electronic signature software is sold separately. Please check with your software provider regarding compatibility with Wacom devices. |
|---|
| First Listed on Newegg | January 25, 2019 |
|---|
