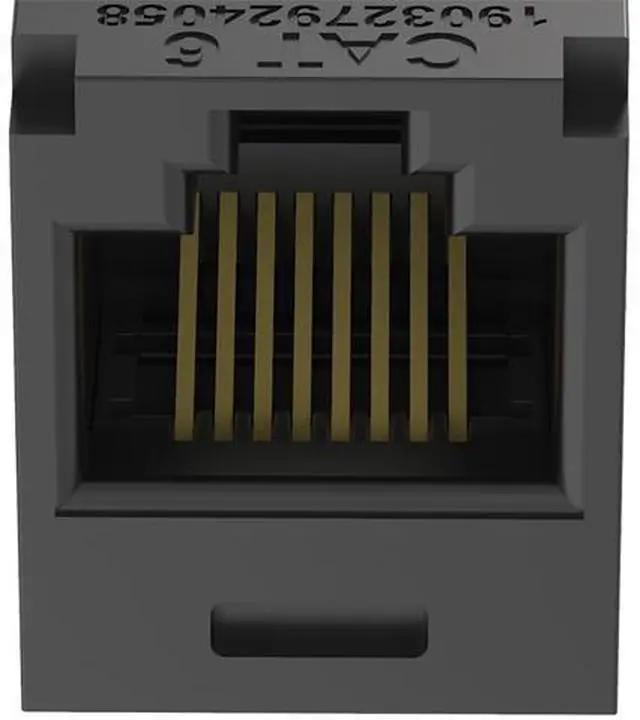

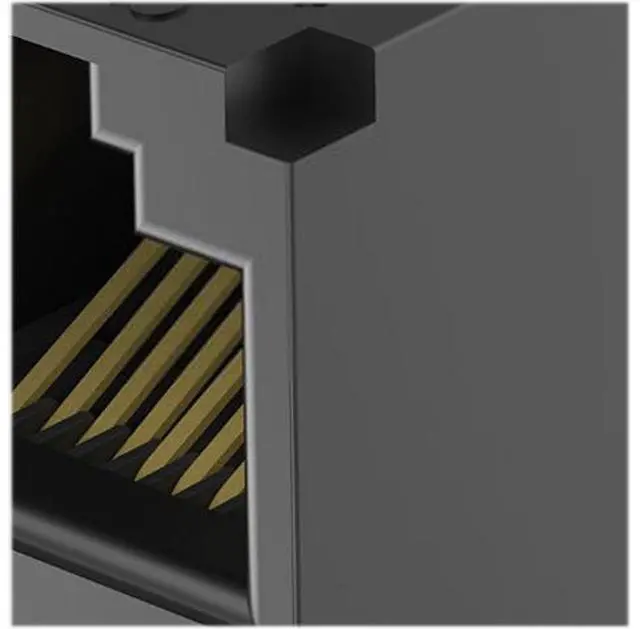

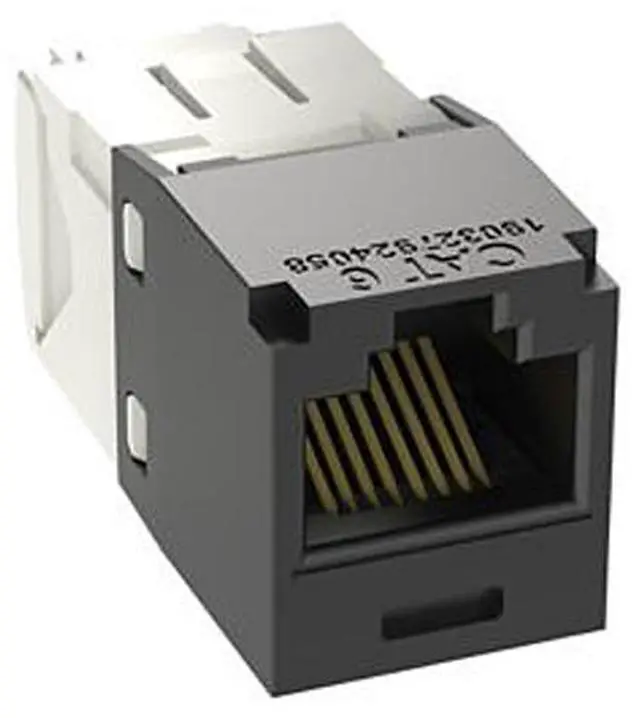

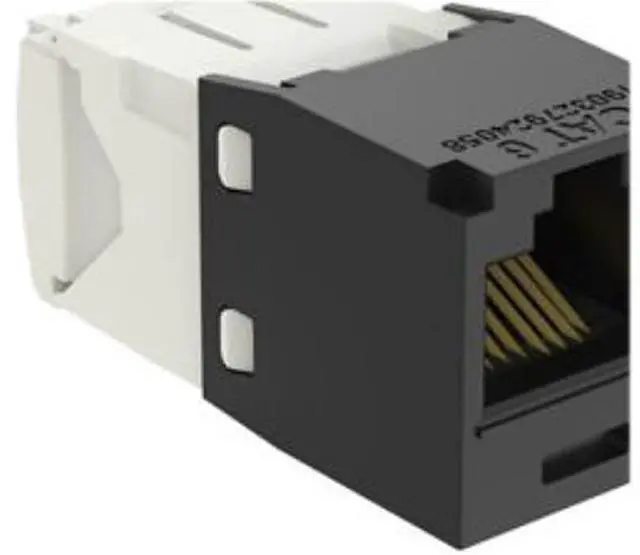

Panduit CJ688TGBL-24 Mini-Com UTP RJ45 Cat 6 TG Jack Module, Black, 24-pack

  • CJ688TGBL-24
Specs
Reviews

Learn more about the Panduit CJ688TGBL-24

Model
Brand Panduit
Model CJ688TGBL-24
Details
Color Black
Type Jack Module
Specifications Performance Level: Category 6

Termination Style: TG Style

Body Material : ABS

Contact Material: Plated Phosphor Bronze

Module Type: Mini-Com

Wiring Scheme: T568A/T568B

Shield Type: Unshielded (UTP)

Sub Brand: Pan-Net

Maximum Operating Temperature (°C): 65

Maximum Operating Temperature (°F): 149

Minimum Operating Temperature (°C): -10

Minimum Operating Temperature (°F): 14

Maximum Storage Temperature (°C): 70

Maximum Storage Temperature (°F): 158

Minimum Storage Temperature (°C): -40

Minimum Storage Temperature (°F): -40

Resistance Properties: Heat-Resistant

Standards Met: Exceeds Channel Requirements of ANSI/TIA-568-C.2 Category 6A and ISO 11801 Class EA Standards for Supporting 10GBASE-T Transmission Over Twisted Pair Cabling Systems in a 4-Connector Configuration up to 100 meters at Swept Frequencies 1 to 500 MHz, Exceeds Component Requirements of ANSI/TIA-568-C.2 Category 6Aand ISO 11801 Class EA Standards at Swept frequencies 1 to 500 MHz, Meets ANSI/TIA-1096-A, Meets IEC 60603-7 and IEC 60512-99-001, Rated for 2500 Cycles with IEEE 802.3af / 802.3at and Proposed 802.3bt Type 3 and Type 4, UL 1863 and UL 2043, RoHS Complaint

RoHS Compliant: Yes

Overall Depth (In.): 1.5

Overall Height (In.): 0.71

Overall Length (In.): 1.5

Overall Width (In.): 0.62
Features
Features The Mini-Com Cat 6 UTP RJ45 TG Jack Module is designed to terminate 4-pair, 22-26 AWG twisted pair cable. Each module is 100% factory tested to exceed industry standard performance requirements. TG style termination eliminates the need for a termination tool. Each jack is individually serialized for traceability and is compatible with Mini-Com Modular Patch Panels and Faceplates. The jack module is black and includes 24 per package.
Additional Information
First Listed on Newegg July 21, 2022
