Peerless PT650 37"-75" Tilt TV Wall Mount LED & LCD HDTV up to VESA 600x400 max load 175 lbs,Compatible with Samsung, Vizio, Sony, Panasonic, LG, and Toshiba TV
- Optional IncreLok offers fixed tilt angles of -5º, 0º, 5º, 10º, 15º
- Easy-Glide bracket design easily hook onto wall plate
- Horizontal display adjustment: 8"
- Comes with fastener pack with hardware
Overview
Specs
Reviews
MAIN OVERVIEW FEATURES:
- Device Supported: Flat Panel Display
- Maximum Load Capacity: 150 lb
- Maximum Screen Size Supported: 75"
- Color: Gloss Black
- Height: 16.9"
- Width: 33.6"
- Depth: 2.6"
- Weight (Approximate): 8.15 lb
- Package Contents:
- Universal Tilt Wall Mount for 37" to 75" Displays
- Wall and Display Installation Hardware
- Installation Instructions
- Compatibility:
Flat Panel Screens
- Environmentally Friendly: Yes
- Environmental Certification: RoHS
- Country of Origin: United States
- Limited Warranty: 5 Year
Peerless 37"-75" Universal Flat Wall Mount - PT650
Easily install large displays with this simple, intuitive mounting solution. Its simple three step installation combined with its tool-less tilt angle adjustment enables displays to be installed and adjusted quickly. Cables and cords are easily managed behind the display with large knockouts in the wall plate. For perfect display positioning, center the display by smoothly sliding it along the horizontal rails of the wall plate.
Features

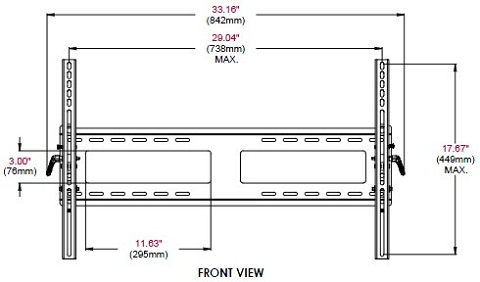

- Universal mount accommodates displays with mounting hole patterns up to 738 x 449mm (29.04" W x 17.67" H)
- Adjustable 15° forward tilt and -5° backward tilt for finding the optimal viewing angle
- Easy-GripTM racheting handle locks the display position into place
- Optional IncreLokTM feature offers fixed tilt angles of -5°, 0°, 5°, 10°, 15°

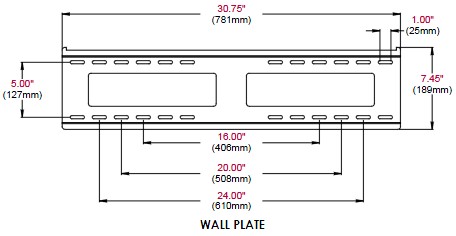

- Open wall plate design allows for greater access to electrical outlets and cable managment
- Easy-GlideTM bracket design easily hook onto wall plate for a simple, safe and quick installation
- Horizontal display adjustment of up to 8" (203mm) for perfect display placement
- Mounts to wood studs, concrete, cinder block or metal studs (metal stud accessory required)
- Comes with fastener pack with all necessary display attachment hardware
- UL listed
- Easy Installation Simple hook-on design makes installation quick and easy
- Viewing Flexibility Horizontal display adjustment up to 8” (203mm)
- IDEAL VIEWING ANGLE Tilt adjustment of +15/-5° without the use of tools
- INCRELOK TILT LOCK OPTION Optional tilt angle lock in 5° increments
- WALL ACCESS Open wall plate design allows for greater wall access and cable management

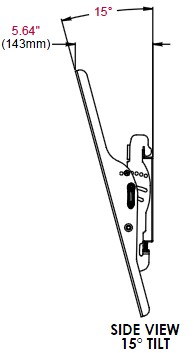

Quick and easy tilt adjustment of +15/-5°
Specifications
| Minimum to Maximum Screen Size: | 37" to 75" |
| VESA Pattern: | 600 x 400 |
| Mounting Pattern: | 738 x 449mm (29.04 x 17.67") |
| Weight Capacity: | 175lb (79.0kg) |
| Color: | Black |
| Finish: | High Gloss |
| Security Features: | Non-Security Hardware |
| Tilt: | +15 / -5 |
| Increlock Increments: | -5, 0, 5, 10, 15 |

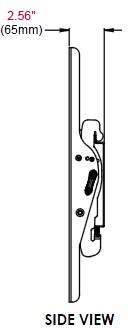

| Distance from Wall: | 2.56 - 5.64" (65 - 143mm) |
| Product Dimensions: | 33.16 x 18.50 x 2.57 - 5.64" (842 x 470 x 65 - 143mm) |
| Ship Dimensions: | 8.5 x 3.75 x 31.6875" (215.9 x 95.3 x 804.9mm) |
| Shipping Weight: | 10.5lb (5.0kg) |
| UPC Code: | 735029254881 |
