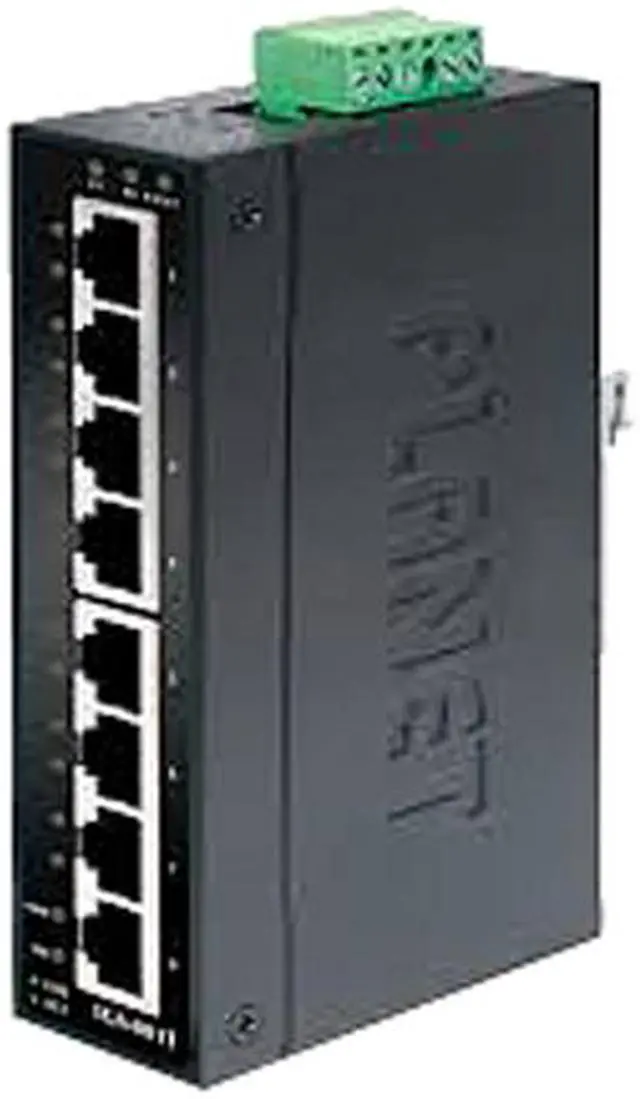

PLANET IGS-801T 8-port 10/100/1000 Mbps Industrial Gigabit Ethernet Switch (-40~75 Degrees C Operating Temperature)

New slim type with more practicability and convenienceAfter entering the Industrial Ethernet market with popular ISW / IFT series Fast Ethernet Switch / Converter products PLANET now releases the advanced industrial hardened Gigabit Ethernet Switch series with new slim type IP-30 metal case. The compact IP-30 standard metal case allows either DIN rail or wall mounting for efficient use of cabinet space. The IGS-801T one of the new series model equips with 8 10/100/1000Mbps auto negotiation ports and operates reliably in Heavy Industrial demanding environments. Stable performance under difficult environmentsThe IGS-801T provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb side traffic control cabinets.

Being able to operate under the temperature range from -40 to 75 degree C the IGS-801T can be placed in almost any difficult environment. The IGS-801T also possesses an integrated power supply source with wide range of voltages (12 to 48V DC) for worldwide high availability applications requiring dual or backup power inputs. Robust Switch performanceThe IGS-801T offers high performance switch architecture. With the 8 10/100/1000Mbps Gigabit Ethernet ports providing non-blocking switch fabric and wire-speed throughput as high as 16Gbps and the 8K MAC Address table the IGS-801T can perform wire-speed packets transfer without risk of packet loss. Â The flow control function enables the IGS-801T to provide fast and reliable data transfer.

The Gigabit port with 9K Jumbo frame supported can handle extremely large amounts of data transmission in industrial topology that forward data to central control room. Â All of the RJ-45 copper interfaces in the IGS-801T support 10/100/1000Mbps Auto-Negotiation for optimal speed detection through RJ-45 Category 6 5 or 5e cables. The standard Auto-MDI/MDI-X support can detect the type of connection to any Ethernet device without requiring special straight or crossover cables. Application Industrial area Switch for data collection and forwardingThe IGS-801T equips with 8 10/100/1000Mbps ports that offers auto MDI / MDIX feature 16 Gbps non-blocking switch fabric and the 8K MAC Address table so that it can perform wire-speed packets transfer without risk of packet loss.

The Gigabit ports supporting 9K jumbo packet can handle large amounts of data transmission in a secure topology linking to a backbone Switch or high-power servers. The IGS-801T with the slim type IP 30 metal shape is ideal for most Heavy Industrial demanding environments. Key Features Physical Port 　8-Port 10/100/1000Base-T RJ-45 with auto MDI/MDI-X function Layer 2 Features 　Complies with IEEE 802.3 10Base-T IEEE 802.3 u 100Base-TX IEEE 802.3 ab 1000Base-T Ethernet standard 　Supports Auto-negotiation and 10/100Mbps half / full duplex and 1000Mbps full  duplex mode 　High performance Store and Forward architecture broadcast storm control runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth 　Prevents packet loss with back pressure (Half-Duplex) and IEEE 802.3 x PAUSE frame flow control (Full-Duplex) 　Backplane (Switching Fabric): 16Gbps 　Integrated address look-up engine support 8K absolute MAC addresses 　176 kilobytes on-chip frame buffer 　9K Jumbo packet size support 　Automatic address learning and address aging 　CSMA/CD Protocol  Industrial Case / Installation 　IP-30 Metal case / Protection 　DIN Rail and Wall Mount Design 　12 to 48V DC redundant power with polarity reverse protect function and  connective removable terminal block for master and slave power 　Supports EFT protection 6000 VDC for power line 　Supports 6000 VDC Ethernet ESD protection 　40 to 75 Degree C operation temperature
