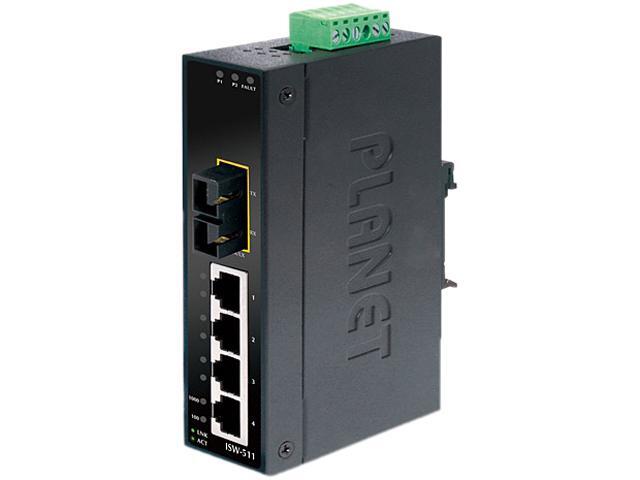

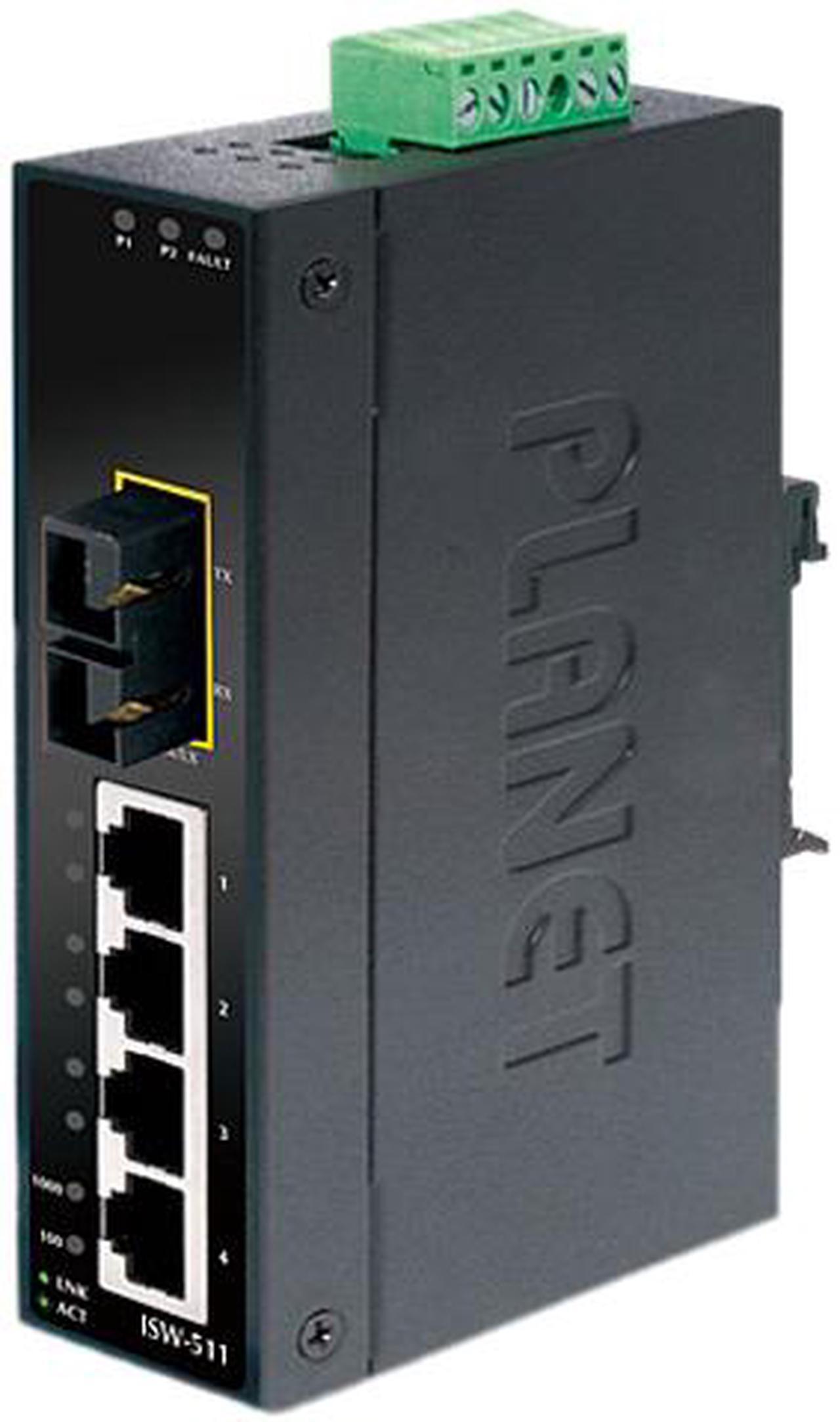

PLANET ISW-511S15 4+1 100FX Port Single-mode Industrial Ethernet Switch - 15 km (-10~60 Degrees C Operating Temperature)

Be the first to review this product...
  • 4-port 10/100Base-TX RJ-45 with auto MDI / MDI-X function
  • 1-port 100Base-FX interface for up to 2 km
  • 1-port 100Base-FX interface for up to 15 km
  • Complies with IEEE 802.3, IEEE 802.3u 10/100Base-TX, 100Base-FX Ethernet standard
  • Backplane (Switching Fabric): 1 Gbps
  • IP-30 metal case / protection
  • DIN rail and wall mount design
+
+
Specs
Reviews

Learn more about the PLANET ISW-511S15

Model
Brand PLANET
Model ISW-511S15
Format & Standards
Format DIN Rail Kit and Wall Mount Ear
Standards IEEE 802.3 Ethernet, 10Base-T
IEEE 802.3u Fast Ethernet, 100Base-TX, 100Base-FX
IEEE 802.3x Full-duplex flow control
Network Management Type Unmanaged
Ports & Interface
Primary Ports 5 x RJ45
Primary Port Speed 10/100Mbps
Data Transmission
MAC Address Table 2K
Details
Buffer Memory 1MB
Power 12 - 48 VDC,
Redundant power with polarity reverse protection function

9.1 watts / 31 BTU
Features
Features Physical Port:
4-port 10/100Base-TX RJ-45 with auto MDI/MDI-X function
1-port 100Base-FX interface for up to 2km (Multi-mode fiber 50µm/125µm) on ISW-511
1-port 100Base-FX interface for up to 15km (Single-mode fiber 9µm/125µm) on ISW-511S15

Layer 2 Features
Complies with IEEE 802.3, IEEE 802.3u 10/100Base-TX, 100Base-FX Ethernet standard
Supports auto negotiation and 10/100Mbps half / full duplex mode for each copper port
High performance Store and Forward architecture
Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
Backplane (Switching Fabric): 1Gbps
Integrated address look-up engine, support 2K absolute MAC addresses
1 Mbit on-chip frame buffer
Automatic address learning and address aging
CSMA/CD Protocol

Industrial Case / Installation:
IP-30 metal case / protection
DIN rail and wall mount design
12 to 48V DC, redundant power with polarity reverse protect function and connective removable terminal block for master and slave power
Supports EFT protection 6000 VDC for power line
Supports 6000 VDC Ethernet ESD protection
10 to 60 degrees C operating temperature

Cable: 9/125µm fiber

Mode: Single-mode

Distance: 15km

Frequency: 1310nm

Launch Power: Max. -7dBm, Min. -20dBm

Receive Sensitivity: -28dBm

Max. Input Power: -8dBm
Dimensions & Weight
Dimensions 1.26" x 5.31" x 3.82"
Weight 0.96 lb.
Environmental
Temperature Operating: -10 - 60 degree Celsius
Storage: -40 - 85 degree Celsius
Humidity Operating: 5 - 90%
Storage: 5 - 90% (non-condensing)
Additional Information
Date First Available September 05, 2017
