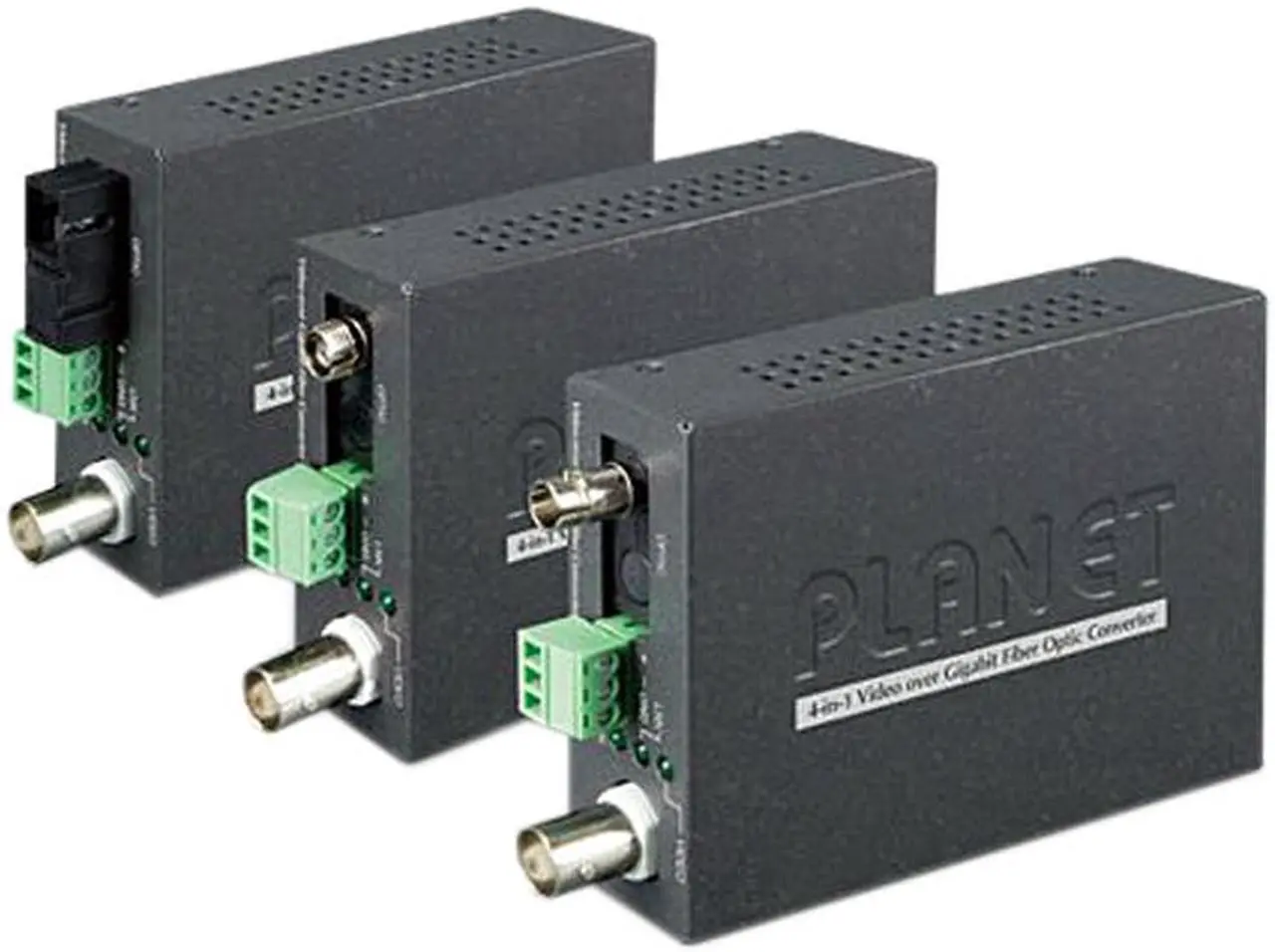

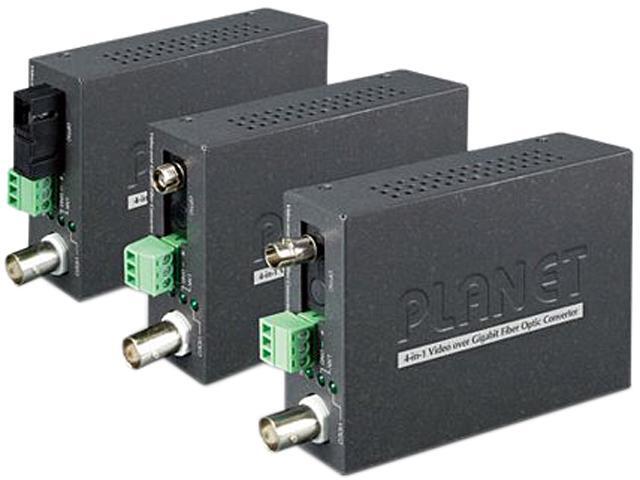

Main image of PLANET VF-106G-KIT 1-Channel 4-in-1 Video over Gigabit Fiber Bundle Kit (VF-106G-T + VF-106G-R)

Shop All PLANET Products

PLANET VF-106G-KIT 1-Channel 4-in-1 Video over Gigabit Fiber Bundle Kit (VF-106G-T + VF-106G-R)

Be the first to review this product...

VF-106G-KIT
Other

Specs

Reviews

Learn more about the PLANET VF-106G-KIT

Model
Brand	PLANET
Model	VF-106G-KIT

Details
Type	Other
Specifications	Video Channel: 1 channel bi-direction Signal Mode: NTSC / PAL / SECAM Video Connector: BNC Video Bandwidth: 60 MHz Video Input / Output Voltage: 1.0 Vpp / typical peak-to-peak value Video Input / Output Impedance: 75 ohm / unbalanced interface Supported Video Type: 1080p: AHD / TVI / CVI 480p: CVBS Video Digital Bit Width: 8/10 bit Differential Gain (DG): < 1.3% (typical value) Differential Phase (DP): < 1.3 degree (typical value) SNR Weighted: > 67 dB (typical value) Data Channel: 1 channel Physical Protocol: RS485 Operation Mode: Simplex Data Connector: 3-pin terminal block with screw clamps Data Rate: DC-115.2 Kbps Bit Error Rate (BER): < 10ns LED Indicators: Power Video Link (fiber optic) Power Requirement: 5V DC, 2A Power Consumption: 4.8 watts (maximum) Mechanical: Metal Installation: Wall-mountable, DIN-rail (with optional kit), chassis installation (with optional chassis) Compatible Converter Chassis: MC-700 / MC-1500 / MC-1500R

Features
Features	Compliant with hybrid video (AHD / TVI / CVI / CVBS) Long-distance data transmission of 20km Status indication for power supply, optical signal and video High-speed synchronous digital transmission technology Guarantees safe transmission under poor electromagnetic environment Video and data transmission over Gigabit fiber optic cable PAL, NTSC, SECAM compatible Data type: RS485 8-/10-bit digital Video Signal sampling Standalone or work with PLANET MC-700 / 1500 / 1500R media converter chassis Compact size, wall-mount design, easy installation

Additional Information
Date First Available	December 28, 2018
