SIIG 3-Port FireWire 800 PCIe Card Model NN-E38012-S3
- Installs in any available PCI Express slot and supports data rates up to 800Mbps
- Standard height and low profile brackets are included to work in different chassis form factors
+
+
Overview
Specs
Reviews (7)
- PCI Express 1-lane (x1) FireWire adapter works with PCI Express slots with different lane width
- Installs in any available PCI Express slot and supports data rates up to 800Mbps
- Standard height and low profile brackets are included to work in different chassis form factors
- Works with various FireWire devices including DV camcorder, CD-RW/DVD-ROM, portable hard disk, digital camera, and other audio/video devices
- Works with Sony, Panasonic, Cannon, Sharp, JVC and many other DV camcorders for digital video creating/editing
FireWire 800 Three-Port PCIe
NN-E38012-S3
NN-E38012-S3
Description

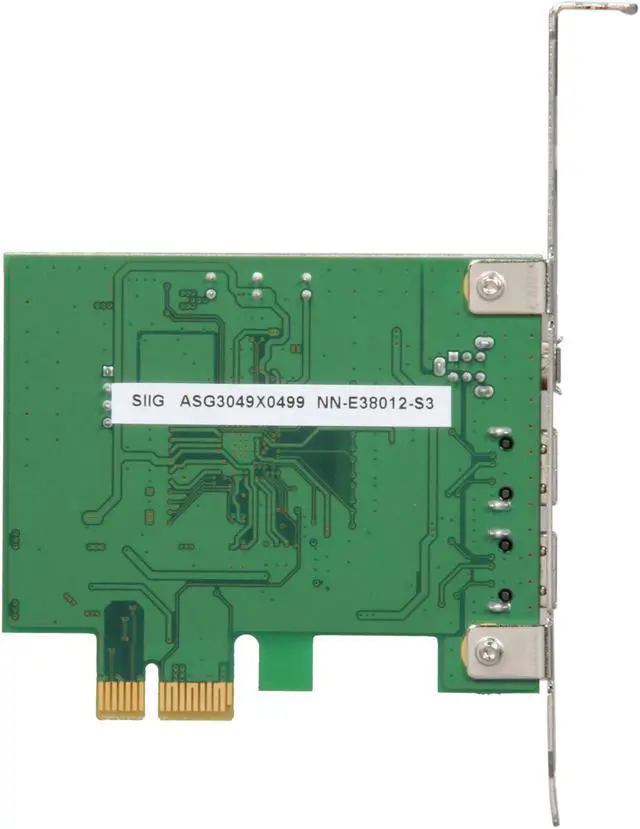

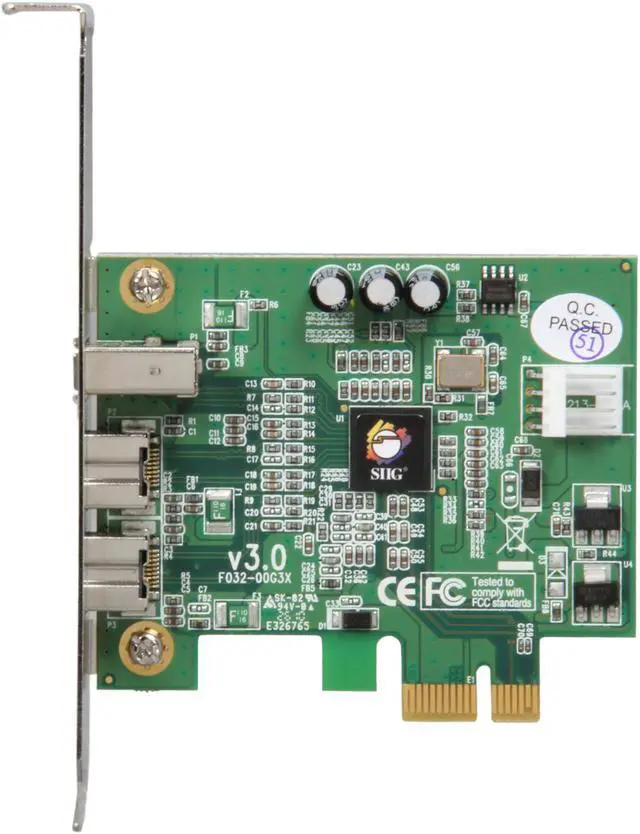

Three-Port FireWire 800 (2 x 9-Pin, 1 x 6-Pin) PCI Express x1 Card
SIIG’s FireWire 800 Three-Port PCIe instantly adds three FireWire 800 (1394b) ports to your desktop computer. The FireWire 800 (1394b) Three-Port PCIe host adapter supports data transfer rates of up to 800Mbps and allows you to hot-swap devices (connect and disconnect) without first turning your system off. It works with a variety of FireWire 400 (1394a) and FireWire 800 (1394b) devices such as DV camcorders, CD-RW/DVD-ROMs, portable hard disks, digital cameras, and other audio/video devices. It fully supports IEEE P1394b and is backwards compatible with 1394a-2000 and 1394-1995 standards.
The FireWire 800 3-port PCIe host adapter comes with two 9-pin (1394b) and one 6-pin (1394a) ports, providing flexible data transfer rates up to 800Mbps and 400Mbps respectively. The onboard power connector provides a reliable power source. Included with the FireWire 800 3-port PCIe are a FireWire 800 driver CD and user’s manual.
The FireWire 800 Three-Port PCIe is powered by Texas Instruments chip and is fully compliant with the PCI Express Base Specification Revision 1.0a. It is also FCC Class B (DoC) & CE regulatory approved and RoHS compliant. It is fully compatible with a wide variety of Windows and Mac OS operating systems and is backed by SIIG’s limited lifetime warranty.
Features
- Installs in any available PCI Express slot and supports data rates up to 800Mbps
- Standard height and low profile brackets are included to work in different chassis form factors
- Works with various FireWire devices including DV camcorder, CD-RW/DVD-ROM, portable hard disk, digital camera, and other audio/video devices
Specifications
- Chipset: Texas Instruments TI XIO2213
- Bus type: PCI Express x1

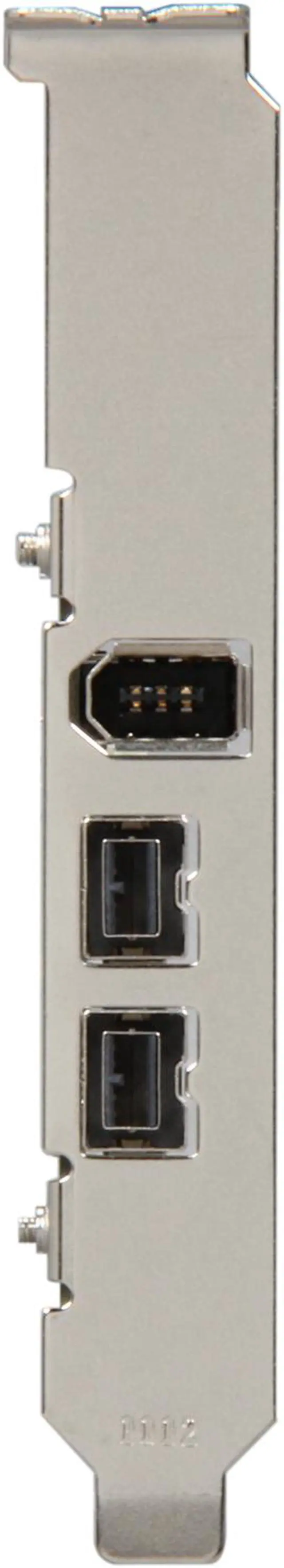

- Port type: Two 9-pin and one 6-pin external FireWire ports
- Compliant with PCI Express Base Specification Revision 1.0a
- Supports IEEE P1394b and backwards compatible with 1394a-2000 and 1394-1995 standards
- Hot-swapping feature allows you to connect & disconnect devices without powering down the system
- Supports serial bus data transfer rates of 100, 200, 400 and 800Mbps and supports up to 63 devices
- Onboard power connector to provide reliable power source
- Environmental conditions:
- Operating temperature: 32 to 122°F (0 to 50°C)
- Operating humidity: 10% to 90% RH
- Storage temperature: -4 to 140°F (0 to 60°C)
- Storage humidity: 10% to 90% RH
- Certifications/Standards: FCC, CE, RoHS
- Warranty: Lifetime limited
- Country of origin: China
Requirements
- PCI Express enabled system with an available PCI Express slot
- Windows® 8 (32-/64-bit) / 7 (32-/64-bit) / Vista (32-/64-bit) / XP (32-/64-bit) / Server 2003 & 2008 (32-/64-bit) / Server 2008 R2 / 2000
- Mac OS® X v10.4.x or later

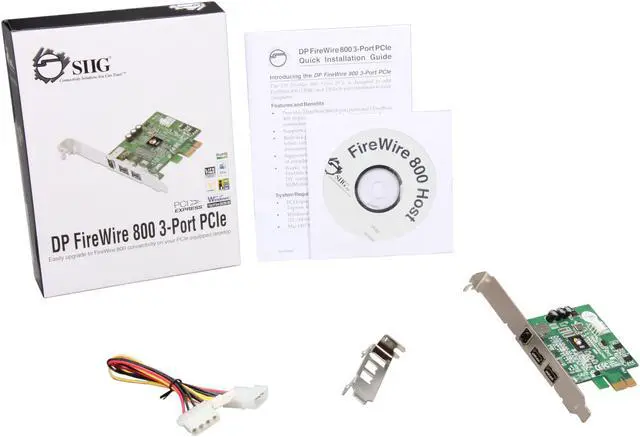

Package Contents
- DP FireWire 800 3-Port PCIe
- Spare Low-Profile Bracket
- Y-Split Power Cable
- Driver CD
- User's Manual
Channel Product Codes
- Ingram Micro: BD2827
- Tech Data: 10537999
- D&H: NNE38012S3
- ASI: 81906
- Dell: A2837243
- Synnex: 2727996
