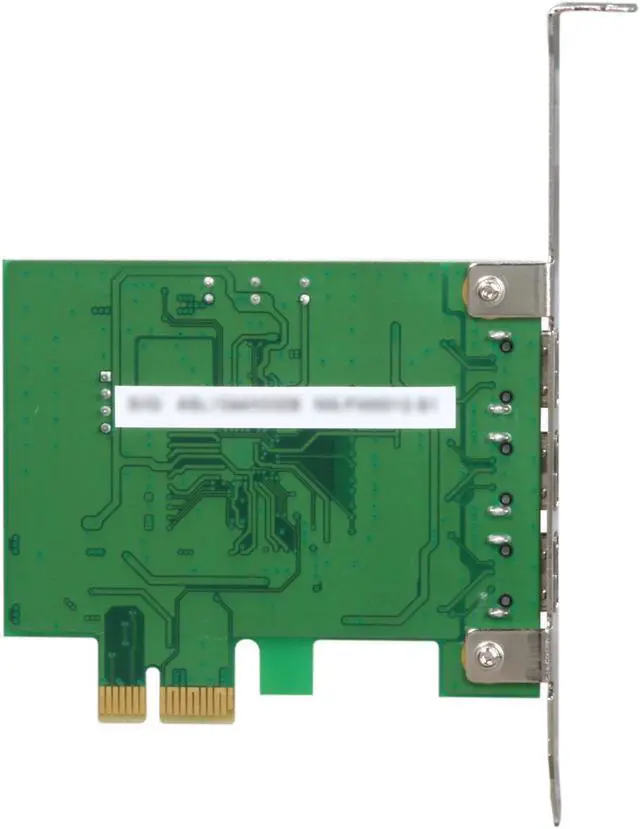

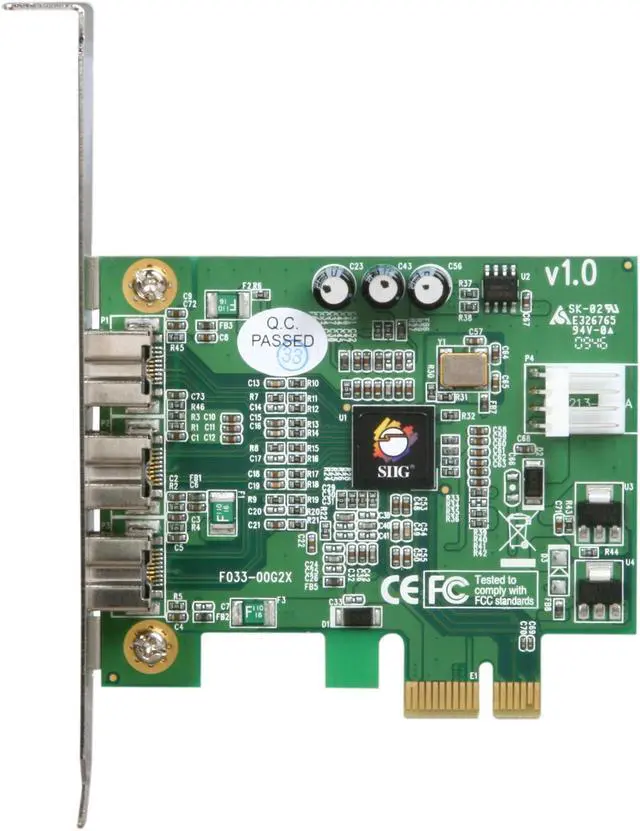

SIIG 3 Ports FireWire 800 PCIe Card Model NN-FW0012-S1

(11) Write a Review
  • PCI Express to 1394 Card
  • 1394B
  • 800/400/200/100 Mbps Data Transfer Rate
+
+
Overview
Specs
Reviews (11)
Provides 3 FireWire 800 ports (9-pin) for multiple device connections Works with DV camcorders, FireWire hard disks, digital cameras, scanners, CD-RW/DVD drives, video game systems, and other audio/video devices Installs in standard height or low profile chassis with included brackets Package ContentsNN-FW0012-S1 2 Port FireWire AdapterSpare low profile bracketY-split power cableDriver CDUser's manualHost InterfacePCI Express x1Product TypeFireWire AdapterManufacturer Part NumberNN-FW0012-S1Packaged Quantity1Platform SupportedMacLimited WarrantyLifetimeWeight (Approximate)2.40 ozColorGreenForm FactorPlug-in CardProduct ModelNN-FW0012-S1Product NameNN-FW0012-S1 2 Port FireWire AdapterPackage TypeRetailCountry of OriginChinaHeight4.8"Depth3.3"Environmentally FriendlyYesEnvironmental CertificationChina RoHSTotal Number of FireWire/i.LINK Ports3Number of FireWire/i.LINK 800 Ports3
NN-FW0012-S1
DP FireWire 800 PCIe
NN-FW0012-S1
Description

Easily Upgrade to FireWire 800 Connectivity on Your PCIe Equipped Desktop

SIIG's DP FireWire 800 PCIe is a superior adapter card designed to add FireWire 800 interface to your computer for connecting multiple high-speed FireWire devices. It features three external FireWire 800 (1394b) ports, delivers data transfer rates up to 800Mbps, supports isochronous and asynchronous data transfer modes, features Plug-n-Play connection of peripheral devices and allows you to connect and disconnect devices without turning your system off. It works flawlessly with a variety of FireWire 400 (1394a) and FireWire 800 (1394b) devices including DV camcorders, hard disk drive enclosures, digital cameras, scanners, CD-RW/DVD drives, video game systems, and other audio/video devices. The DP FireWire 800 PCIe can be installed in any available PCI Express slot. It comes with a built-in 4-pin power connector to provide extra reliable power source from the system and a spare low profile bracket for systems with low profile system chassis installations.

Features
NN-FW0012-S1
  • Provides 3 FireWire 800 ports (9-pin) for multiple device connections
  • Works with DV camcorders, FireWire hard disks, digital cameras, scanners, CD-RW/DVD drives, video game systems, and other audio/video devices
  • Installs in standard height or low profile chassis with included brackets
Specifications
  • Chipset: Texas Instruments TI XIO2213BZAY
  • Compliant with IEEE 1394b and backward compatible with 1394a-2000 and 1394-1995 standards
  • Compliant with PCI Express Base Specification Revision 1.0a
  • Installs in any available PCI Express slot and supports serial bus data transfer rates of 100, 200, 400, 800Mbps
  • Hot-swapping allows you to connect/detach devices without first turning your system off
  • Onboard power connector to provide more reliable power source
  • Interfaces/Ports:
    • 3, Firewire 800, 9-Pin, Female, External
  • Product dimensions (W x H x D): 4.72 x 3.62 x 0.79"
  • Product weight: 0.10 lbs
  • Environmental conditions:
    • Operating temperature: 32 to 122°F (0 to 50°C)
    • Storage temperature: -4 to 140°F (0 to 60°C)
    • Operating humidity: 10% to 90% RH
    • Storage humidity: 10% to 90% RH
  • Certifications/Standards: FCC, CE, RoHS
  • Warranty: Lifetime limited
  • Country of Origin: China
Requirements
  • PCI Express enabled PC or Mac® desktop with an available PCI Express slot
  • Windows® 8 (32-/64-bit) / 7 (32-/64-bit) / Vista (32-/64-bit) / XP (32-/64-bit) / Server 2003 & 2008 (32-/64-bit) / Server 2008 R2 / 2000
  • Mac OS® X v10.5 or later

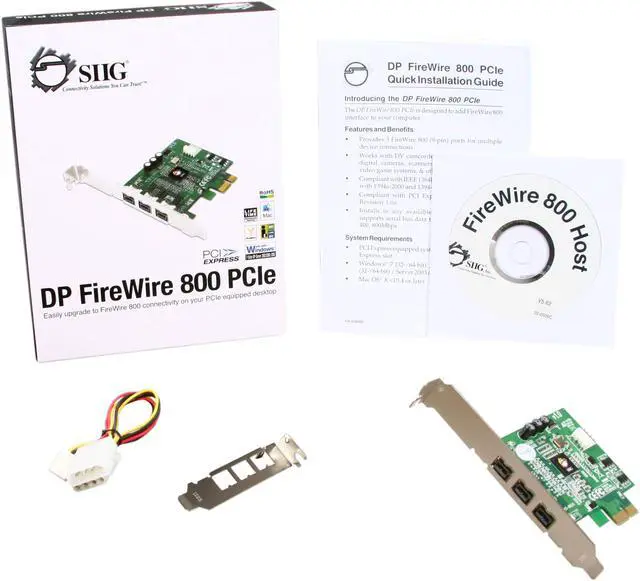

Package Contents
  • DP FireWire 800 PCIe
  • Spare Low Profile bracket
  • "Y" split power cable
  • Driver CD
  • Installation guide
Channel Product Codes
  • Ingram Micro: U12762
  • Tech Data: 10538003
  • ASI: 75232
  • Synnex: 2728000
  • neweggAdd FireWire Capability to ComputerThe SIIG NN-FW0012-S1 adapter card is designed to add three 9-pin FireWire 800 (1394b, 800Mb/s) ports to your PCIe enabled computer for easy connection to a rich variety of FireWire devices.
  • neweggPCI Express InterfaceThe utilization of PCIe interface guarantees compatibility with the latest computer systems, and offers adequate bandwidth for bottleneck-free data transfers.
