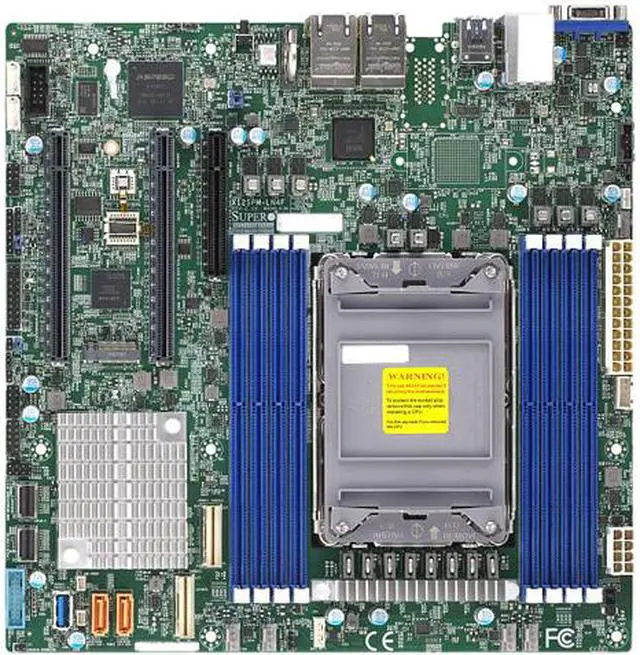

SUPERMICRO MBD-X12SPM-LN4F-O Micro ATX Server Motherboard Socket P+ Intel C621A

(2) Write a Review
  • 3rd Gen Intel Xeon Scalable processors, Single Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP
  • Intel C621A
  • Up to 2TB 3DS ECC RDIMM, DDR4-3200MHz; Up to 2TB 3DS ECC LRDIMM, DDR4-3200MHz
  • Up to 2TB Intel Optane Persistent Memory 200 Series, in 8 DIMM slots
  • 1 PCI-E 4.0 x8, 2 PCI-E 4.0 x16, 4 PCI-E 4.0 NVMe x4 Internal Port(s)
  • M.2 Interface: 1 SATA/PCI-E 3.0 x4
  • M.2 Form Factor: 2280, 22110
  • M.2 Key: M-Key
  • Quad LAN with 1GbE with Intel I350-AM4
  • Intel C621A controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
  • Supports 12V DC power input
  • 4x NVMe port PCI-E 4.0 x4 via SlimSAS connector
  • 5 USB 3.0 (2 rear, 1 Type-A, 2 via header), 6 USB 2.0 (2 rear, 4 via headers)
+
+
Specs
Reviews (2)

Learn more about the Supermicro MBD-X12SPM-LN4F-O

Model
Brand SUPERMICRO
Model MBD-X12SPM-LN4F-O
Supported CPU
CPU Socket Type Socket P+
CPU Type Supports 3rd Gen Intel Xeon Scalable processors
Chipsets
North Bridge Intel C621A
Memory
Number of DDR4 Slots 8 x 288-pin
DDR4 Standard DDR4 3200
Maximum Memory Supported Up to 2TB 3DS ECC RDIMM, DDR4-3200MHz; Up to 2TB 3DS ECC LRDIMM, DDR4-3200MHz
Up to 2TB Intel Optane Persistent Memory 200 Series, in 8 DIMM slots
ECC Supported Yes
Expansion Slots
PCI Express 4.0 x16 2
PCI Express x8 1 x PCI Express 4.0 x8
Storage Devices
SATA 10 x SATA 6.0Gb/s
SATA RAID 0/1/5/10
M.2 M.2 Interface: 1 SATA/PCI-E 3.0 x4
Form Factor: 2280, 22110
Key: M-Key
Onboard Video
Onboard Video Chipset Aspeed AST2600
Onboard LAN
LAN Chipset Intel I350-AM4
LAN Speed 10/100/1000Mbps
Rear Panel Ports
Back I/O Ports 4 x RJ45 Gigabit Ethernet LAN ports
6 x USB 2.0 ports (2 rear + 4 via headers)
5 x USB 3.2 Gen1 ports (2 rear + 2 via headers + 1 Type A)
1 x VGA port
1 x COM Port (1 header)
TPM Header
Dimensions
Form Factor Micro ATX
Dimensions (W x L) 9.6" x 9.6"
Additional Information
First Listed on Newegg September 08, 2021

Warranty & Returns

Warranty, Returns, And Additional Information

Return Policies*

  • Return for refund within: 30 days
  • Returns are subject to restocking fees and return shipping fees. Please click here to learn more about restocking fees and return shipping fees.
  • This item is covered by Newegg.com's International Return Policy. Read full return policy for details.
  • *Subject to applicable law

  • Warranty Notice:

    This product does not include manufacturer warranty when purchased or used outside of its designated sales region. By purchasing internationally, you acknowledge that warranty support from the manufacturer will not be available.
