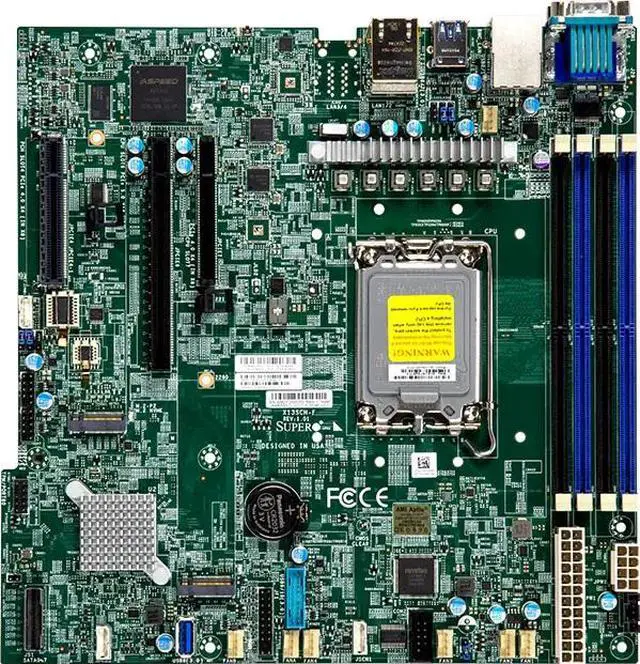

Supermicro MBD-X13SCH-F-O, Intel LGA-1700 Single Socket mATX Server Motherboard

  • Intel Xeon 6300-series/E-2400 Series Processor, Pentium Processor, Single Socket LGA-1700 (Socket V0) supported, CPU TDP supports Up to 95W TDP
  • Intel C266 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
  • Up to 128GB ECC Unbuffered DIMM, DDR5-4400MHz, in 4 DIMM slots
  • 1 PCIe 5.0 x16
  • 2 PCIe 4.0 x4 ( in x8)
  • I/O: 1 VGA, 2 COM, 1 TPM header
  • M.2 Interface: 2 PCIe 4.0 x4
  • M.2 Form Factor: 2280, 22110
  • M.2 Key: M-Key
  • Dual LAN with Intel i210 Gigabit Ethernet Controller
  • 5 USB 3.2 Gen1 ports (2 rear + 1 Type A + 2 via header)
  • 6 USB 2.0 ports (2 rear + 4 via header)
Specs
Reviews

Learn more about the Supermicro MBD-X13SCH-F-O

Model
Brand SUPERMICRO
Model MBD-X13SCH-F-O
Supported CPU
CPU Socket Type LGA 1700
CPU Type Intel Xeon 6300-series/ E-2400/Pretium Processor
Number of Processor Support 1
CPU Features Up to 95W TDP
Chipsets
North Bridge Intel C266
Memory
Memory Slots 4 x DDR5 288-pin
Memory Standard DDR5 4400
Maximum Memory Supported 128GB
ECC Supported Yes
Expansion Slots
PCI Express 5.0 x16 1 x PCIe 5.0 x16
PCI Express x4 2 x PCIe 4.0 x4 (in x8 slot)
Storage Devices
SATA 8 SATA3 (6Gbps) port(s) via Slimline SAS x8 connector
SATA RAID 0/1/5/10
M.2 M.2 Interface: 2 PCIe 4.0 x4
Form Factor: 2280/22110
Key: M-Key
Onboard Video
Onboard Video Chipset Aspeed AST2600
Onboard LAN
LAN Chipset Intel I210
LAN Speed 10/100/1000Mbps
Max LAN Speed 2 x 1Gbps
Rear Panel Ports
Back I/O Ports 1 x COM (Serial Port) / 1 x D-Sub / 2 x LAN (RJ45) / 2 x USB 2.0/1.1 / 3 x USB 3.2 Gen 1
Features
BIOS Feature AMI 32MB AMI UEFI
ACPI 6.4
SMBIOS 3.5
UEFI 2.8
Plug and Play (PnP)
PCI FW 3.3
Dimensions
Form Factor Micro ATX
Dimensions (W x L) 9.6" x 9.6"
Additional Information
Date First Available March 26, 2025
