Question 1

Hello which windows versions does this piece of hardware supports?

Accepted Answer

I've personally used this card on Windows 7 and Server 2012.  Being that it works with Server 2012, Windows 8 is probably supported as well.

Question 2

I am looking to purchase this USB 3.0 internal card to replace the failing card already in the computer.
> I am running "Windows 7"
> My Desktop has a GIGABYTE GA-H61M-DS2 Motherboard
> The existing card plugs directly into the motherboard with what looks like the same configuration as the above board.
> There is an 8 pin plug on the rear of the existing card and a cable plugged into it, There are 4 leads that go to the hard drive and the other 4 leads go to a plug that is not in use. The above board seems to have the same plug set-up

Will the above card work on my computer?? If not could you recommend one that would.
Thanks; Joe Capaldi

Accepted Answer

Joe - If the cable is going to the hard drive then it is a controller card. More than likely it is going past the HD and is plugged into USB ports on the front panel of your computer.

Anyway, I purchased this card to go on a Gigabyte GA-890GPA-UD3H motherboard. I can't get the computer to boot past the post with this card installed. Take the card out, boots right into Windows.  So I would say to avoid this card on a Gigabyte board. Haven't bothered with any other cards as I don't want to just throw money at it hoping one will work.

Best Regards

Brand	SYBA

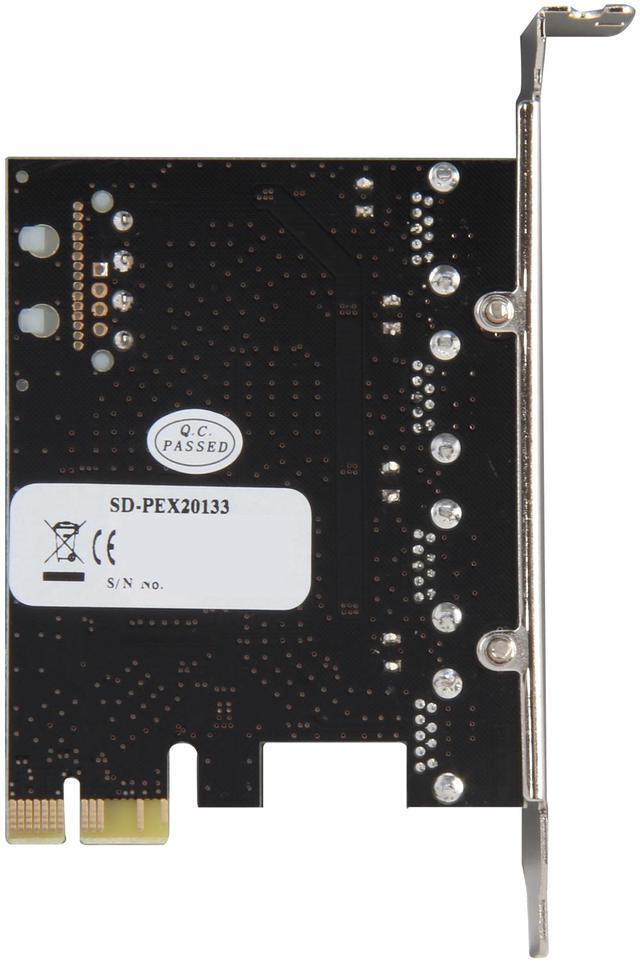

Model	SD-PEX20133

Type	PCI Express to USB Card

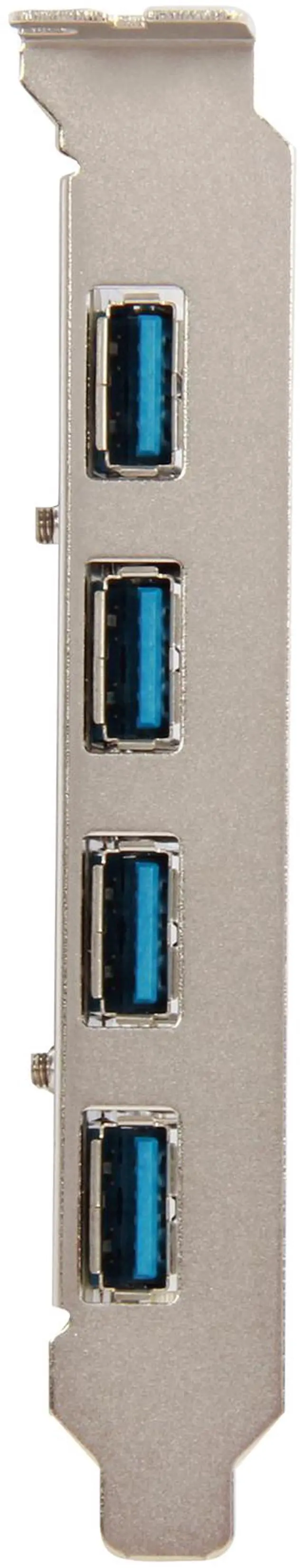

External USB Ports	4x USB Ports
Standard	USB 3.0
Data Transfer Rate	Up to 5.0 Gbps
Operating Systems Supported	Windows 7 (32/64-bit) Vista (32/64-bit) Windows XP (32/64-bit) Windows 2000 (32/64-bit) Server 2003-2008 (32/64-bit)

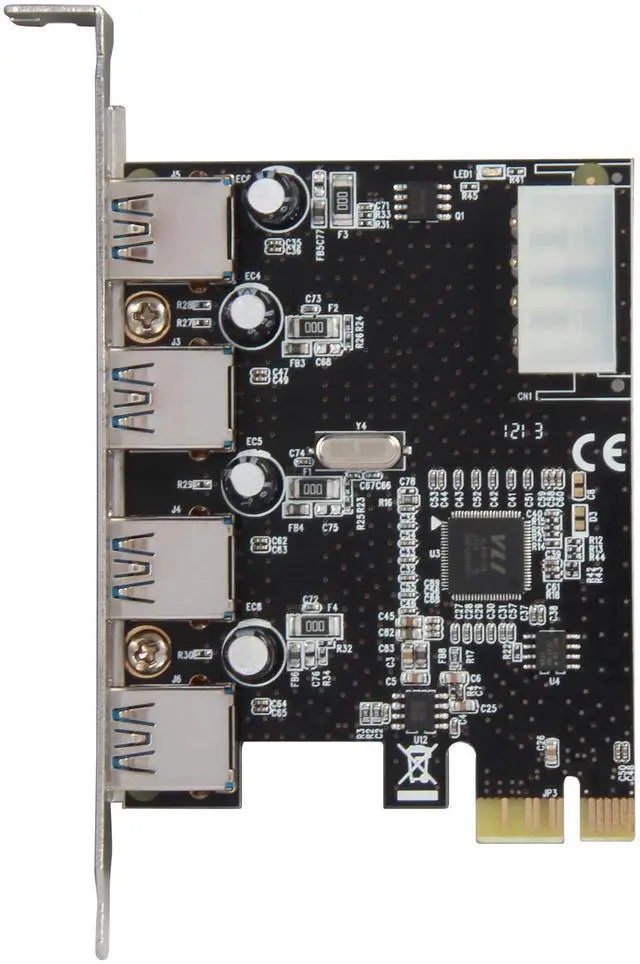

Specifications	Real Connector: Molex (IDE 4-pin) Power Connector Based on VLI VL80x (VL800-Q8) USB 3.0 Host Controller IC Compliant with Intel's Extensible Host Controller Interface (xHCI) Specification Revision 0.96 Compliant with PCI Express Base Specification 2.0 PCI-e Specification: - PCI-Express 2.0 1-Lane (x1) Interface with Data Transfer Rate up to 5Gbps - Backwards Compatible to PCI-Express 1.0a with Data Transfer Rate up to 2.5Gbps - Internal HDD Power Connector for Supplying Extra +5V Power to the USB Ports - Internal HDD Power Connector LED Indicator: Lights Up when USB BUS Power is Supplied from the HDD Power Connector Connected to the Power Supply Unit (PSU) USB Specification: - Compliant with Universal Serial Bus 3.0 Specification Revision 1.0 - Provide USB 3.0 Super-speed (5Gbps) Host Port, Backward Compatible with USB 2.0 High-speed (480Mbps), Full-speed (12Mbps) and Low-speed (1.5Mbps) Interface - Supports all USB Compliant Data Transfer Types (Control/Bulk/Interrupt/Isochronous) - Supports all USB Compliant Peripheral (e.g. Keyboard, mouse, monitor, joystick, etc.) - Full Support of Real Time Dynamic Insertion and Removal of USB Devices

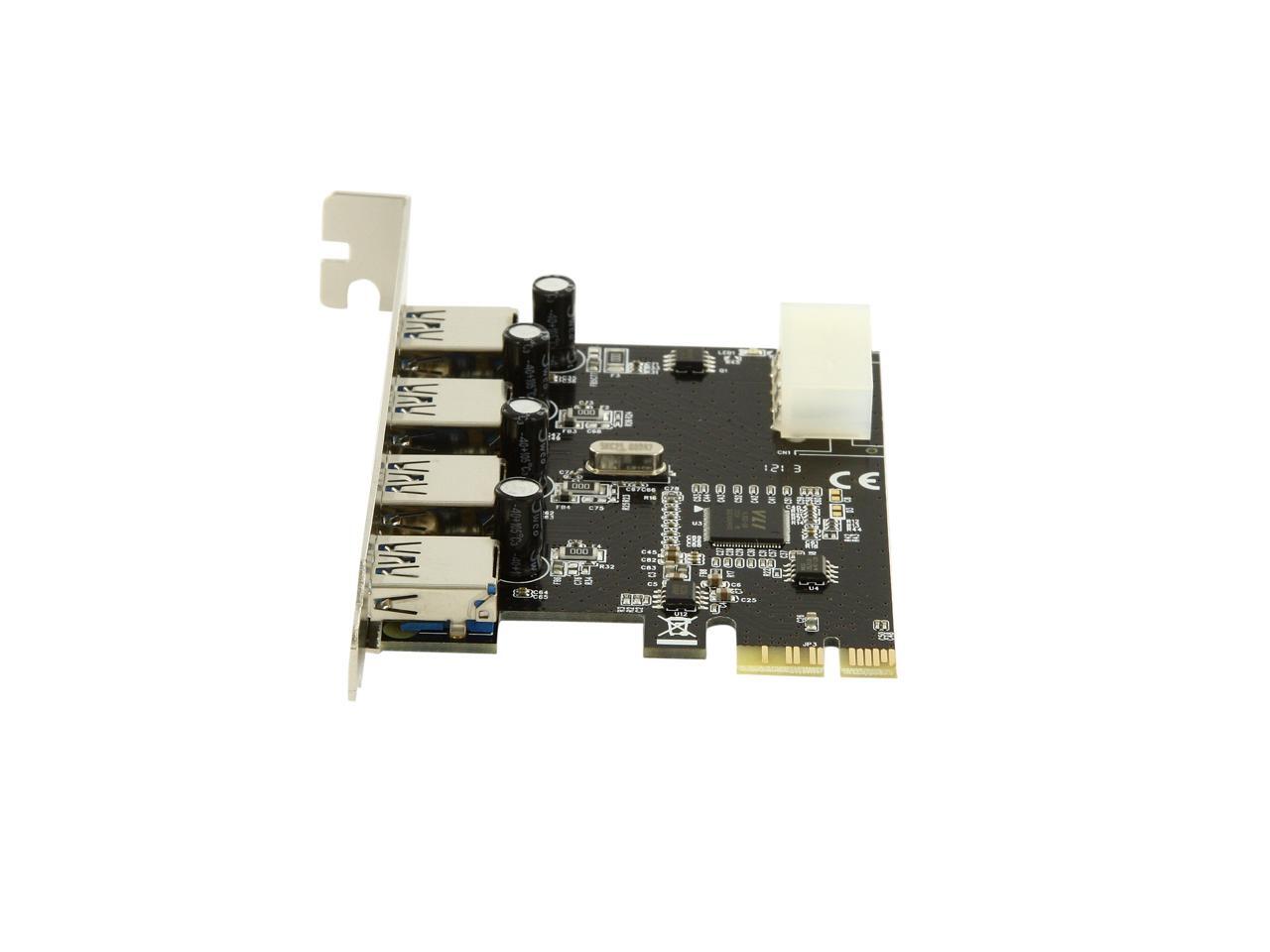

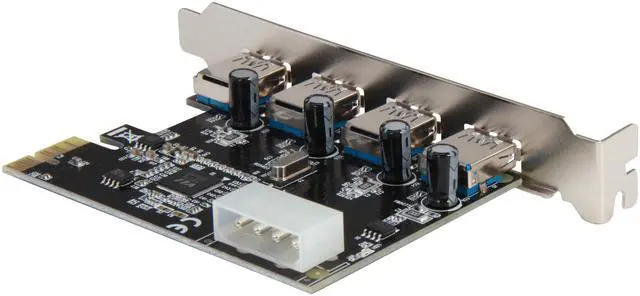

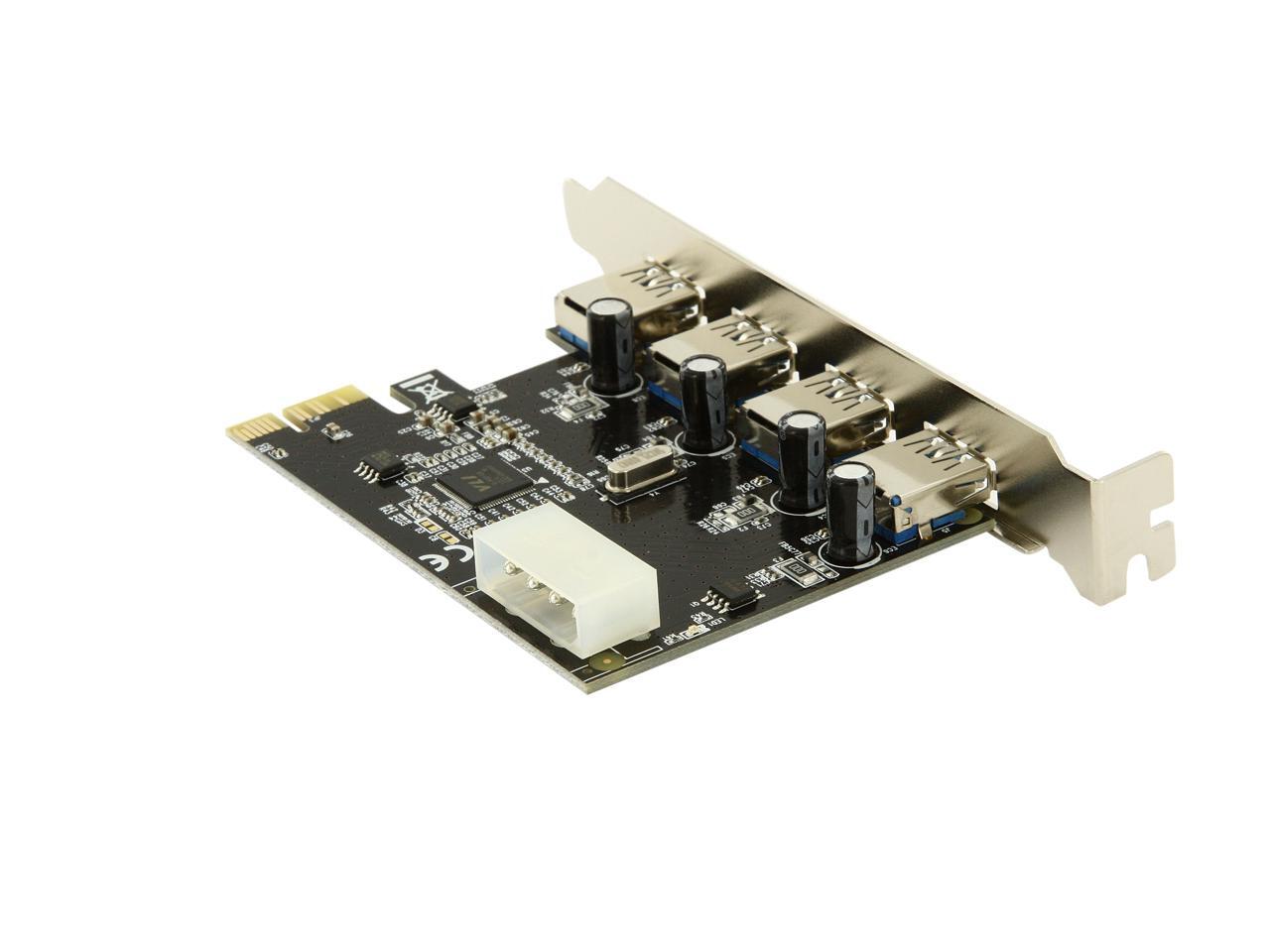

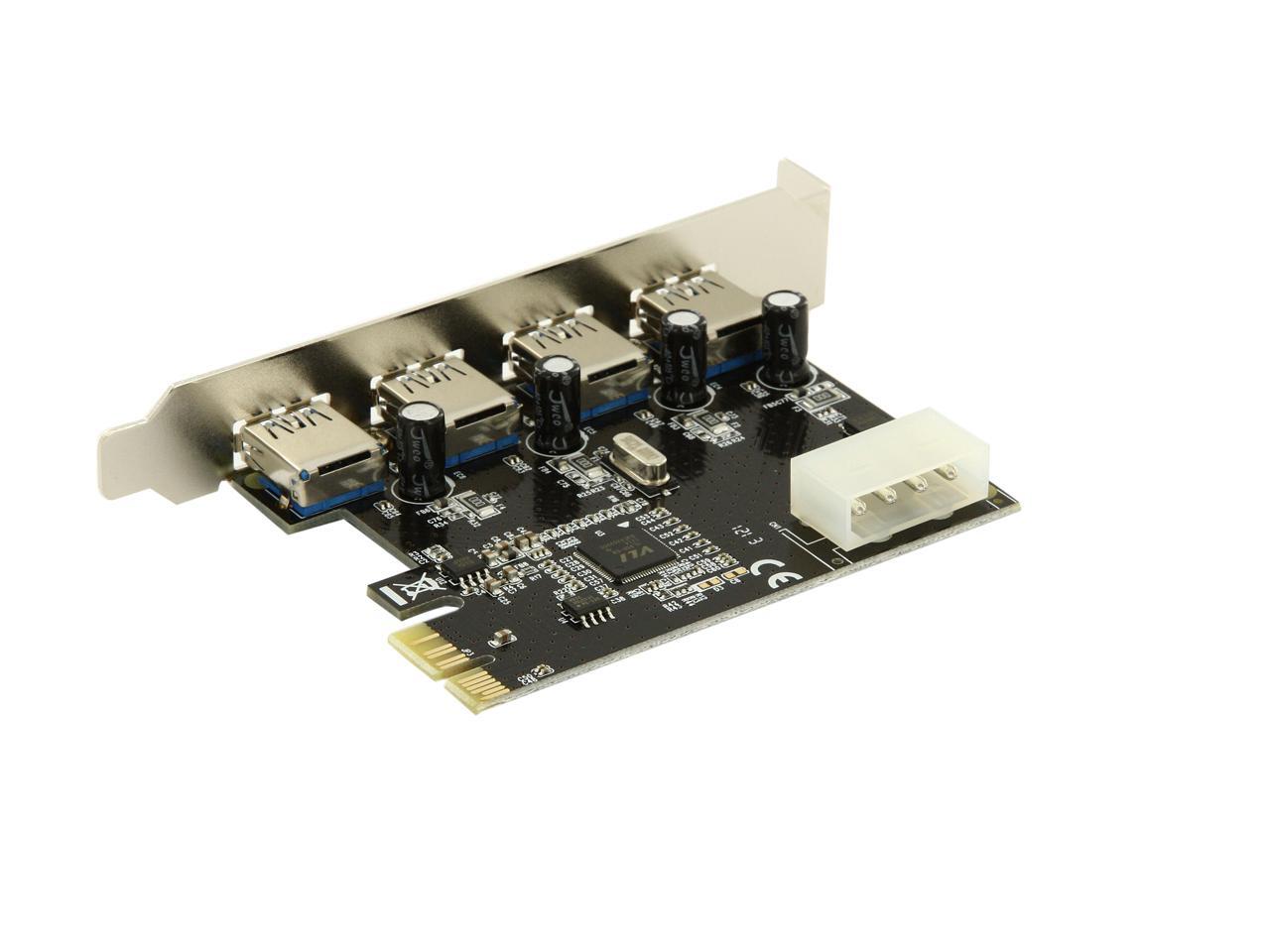

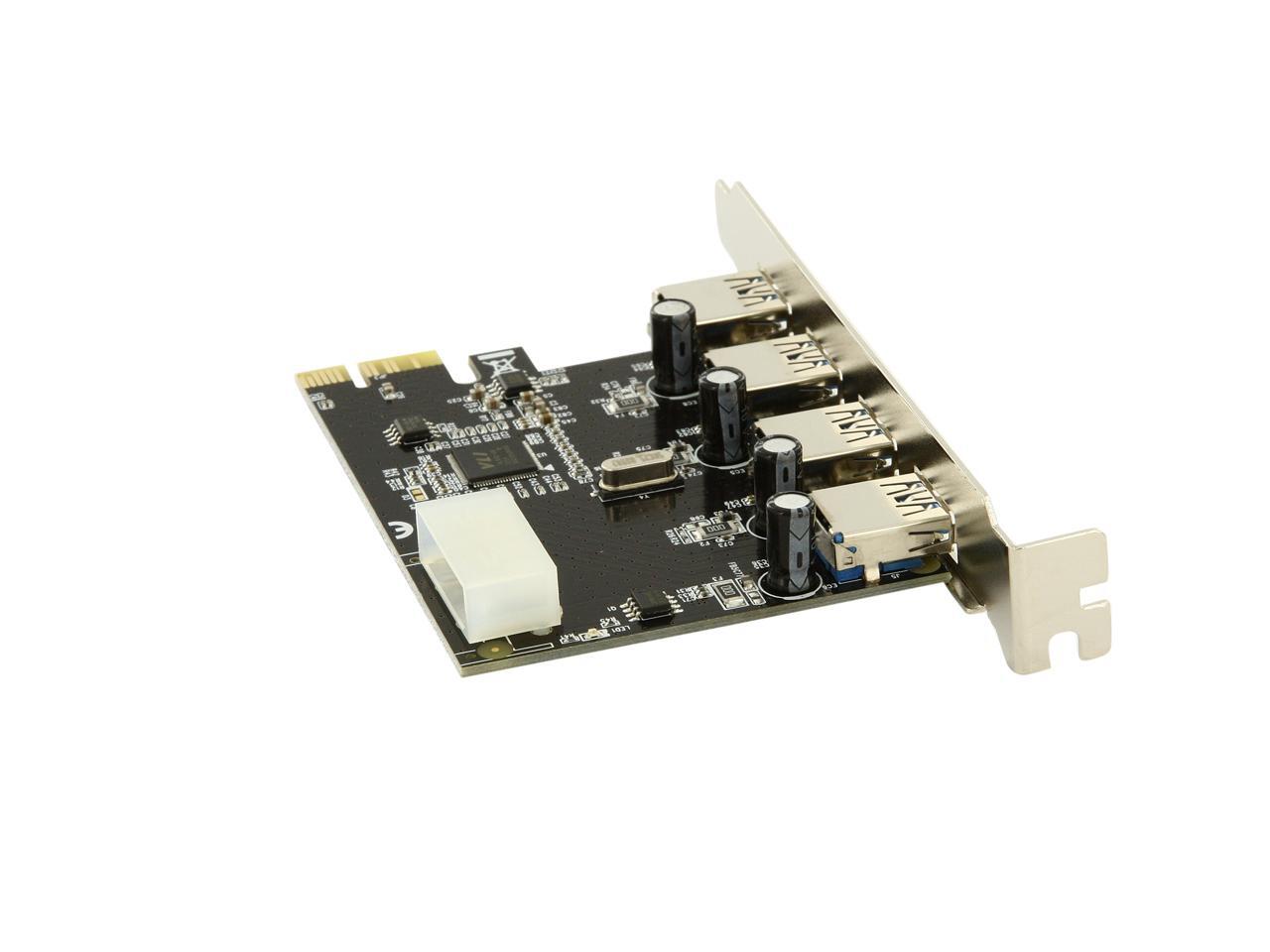

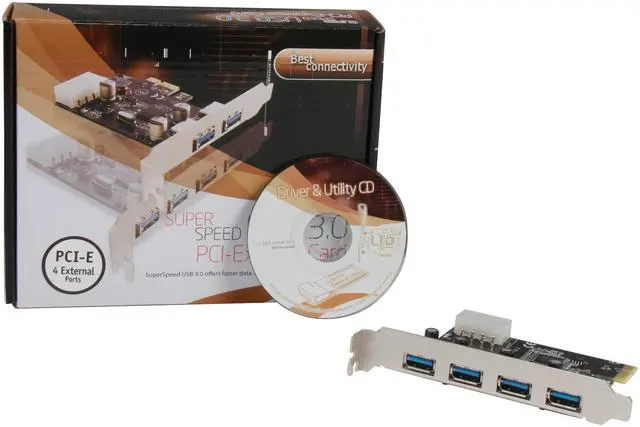

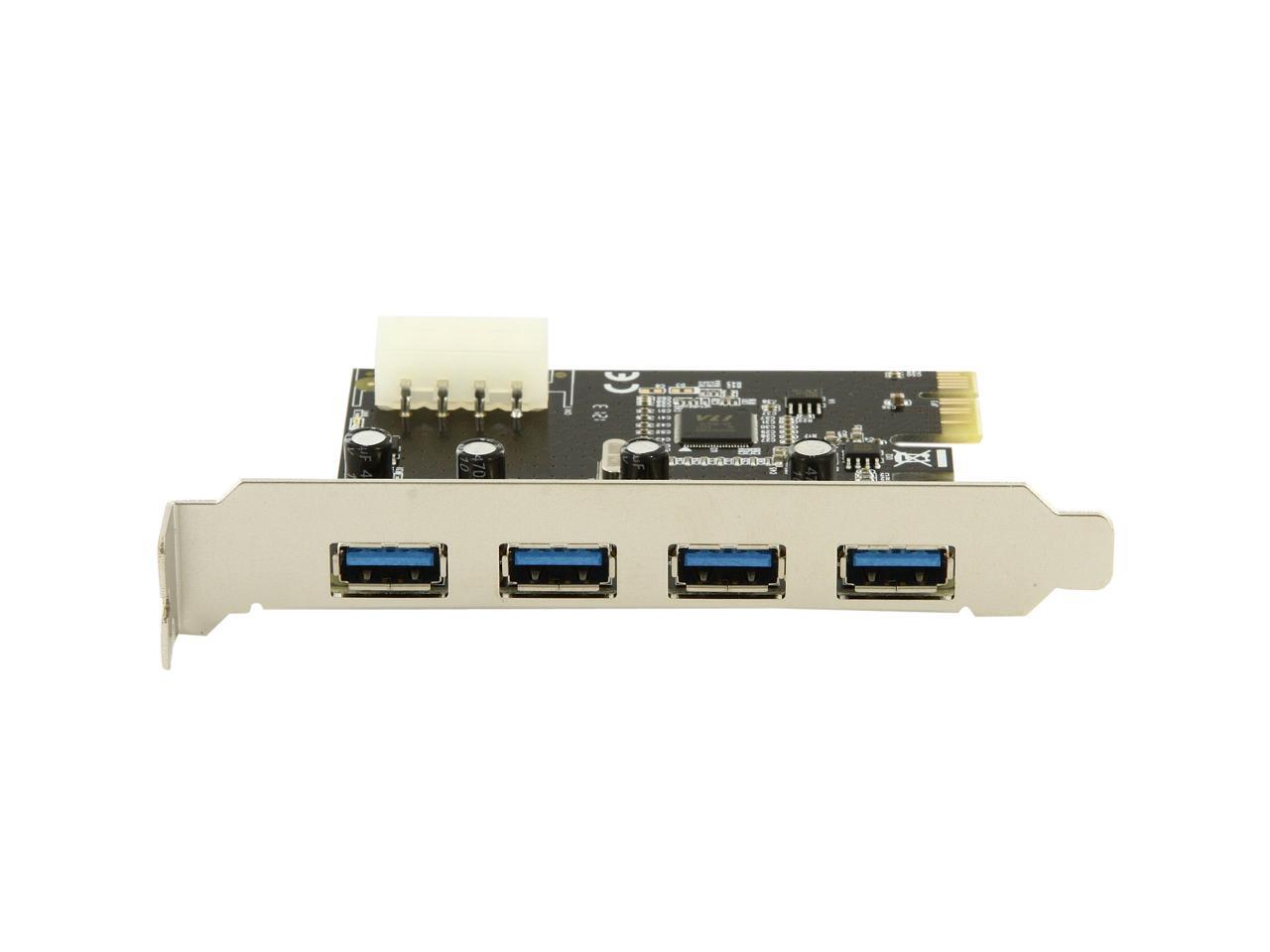

SYBA USB 3.0 4-port PCI-Express x1 Controller Card, VLI VL80x Chip Model SD-PEX20133
