Hantek 60MHz 100MHz 200MHz 250MHz 300MHz Oscilloscope Probe Accessories PP-300
- Integral injection molding makes the usage more flexible and the oscilloscope able to adapt more testing situations. Attenuation ratio: 1x and 10x optional. Compatible with domestic and international digital and analog oscilloscopes in relevant frequency.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
PP-300 Oscilloscope Rapier
Performance & Characteristics
Attenuation ratio: 1× and 10× optional.
Portable design according with ergonomics.
Integral injection molding makes the usage more flexible and the oscilloscope able to adapt more testing situations.
Safety standards: it has passed the CE Attestation of European Community.
Application Fields
Compatible with domestic and international digital and analog oscilloscopes in relevant frequency.
Measurement in intermediate and low frequency signals.
Order Information
Accessories included by PP series passive voltage rapier
Operation manual
Adjusting tool: adjusts compensation capacitance to assure the rapier match with oscillograph.
Contractive-type acuminate hook

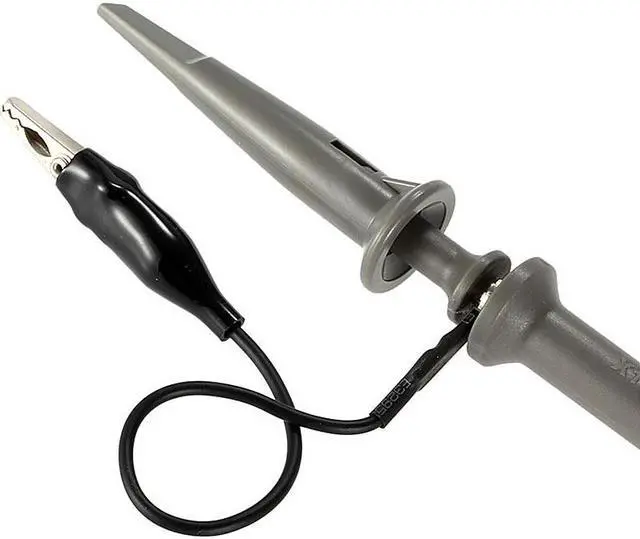

12cm earth wire with alligator clip
4 pairs of colorized cable markers
Locating sleeve adapts to IC testing.
Attenuationx1 x10
Input resistance1M: 10M
Input capacitance: x 1: 85 pF-115pF x 10:18. 5pF- 22.5 pF
Compensation scope: 15pF-35pF
System bandwidth: x1: DC-6MHzx10: DC-300MHz
Input voltage:
x1: <200V DC +Peak AC x10: <600V DC +Peak AC
weight: 55g
Cable length: 120cm
Temperature scope: Operation: -10--+50 Not Operation: -20--+75
Humidity: 85% (Relative humidity)

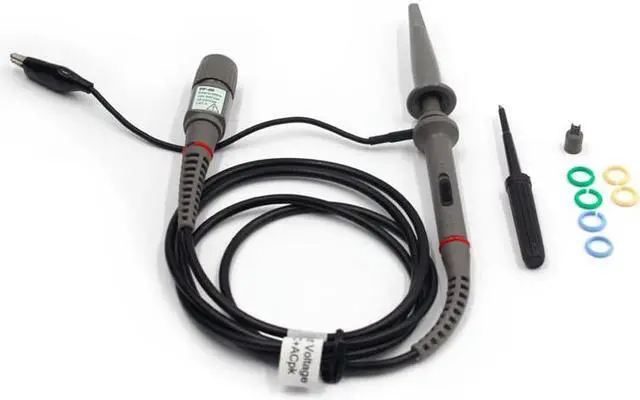

Package Included:

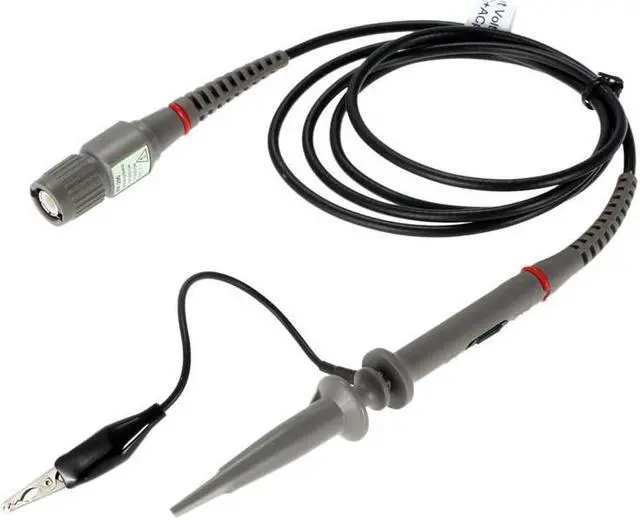

1 x Oscilloscope probe

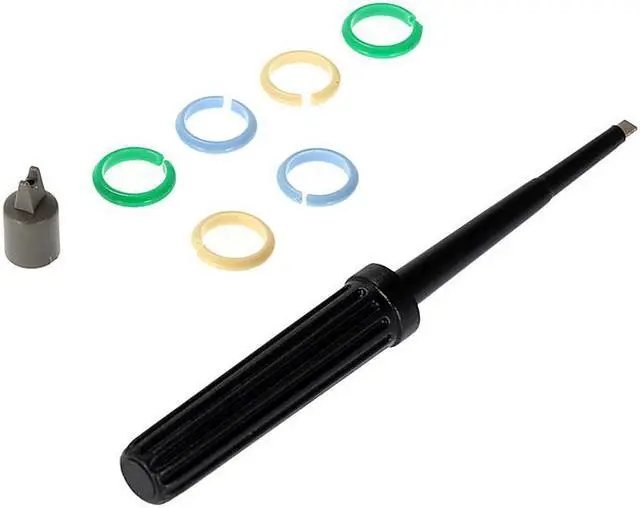

1 x adjust tool
2 x probe caps
8 x color ring
1 x ground spring
1 x joint
Performance & Characteristics
Attenuation ratio: 1× and 10× optional.
Portable design according with ergonomics.
Integral injection molding makes the usage more flexible and the oscilloscope able to adapt more testing situations.
Safety standards: it has passed the CE Attestation of European Community.
Application Fields
Compatible with domestic and international digital and analog oscilloscopes in relevant frequency.
Measurement in intermediate and low frequency signals.
Order Information
Accessories included by PP series passive voltage rapier
Operation manual
Adjusting tool: adjusts compensation capacitance to assure the rapier match with oscillograph.
Contractive-type acuminate hook
12cm earth wire with alligator clip
4 pairs of colorized cable markers
Locating sleeve adapts to IC testing.
Attenuationx1 x10
Input resistance1M: 10M
Input capacitance: x 1: 85 pF-115pF x 10:18. 5pF- 22.5 pF
Compensation scope: 15pF-35pF
System bandwidth: x1: DC-6MHzx10: DC-300MHz
Input voltage:
x1: <200V DC +Peak AC x10: <600V DC +Peak AC
weight: 55g
Cable length: 120cm
Temperature scope: Operation: -10--+50 Not Operation: -20--+75
Humidity: 85% (Relative humidity)
Package Included:
1 x Oscilloscope probe
1 x adjust tool
2 x probe caps
8 x color ring
1 x ground spring
1 x joint
