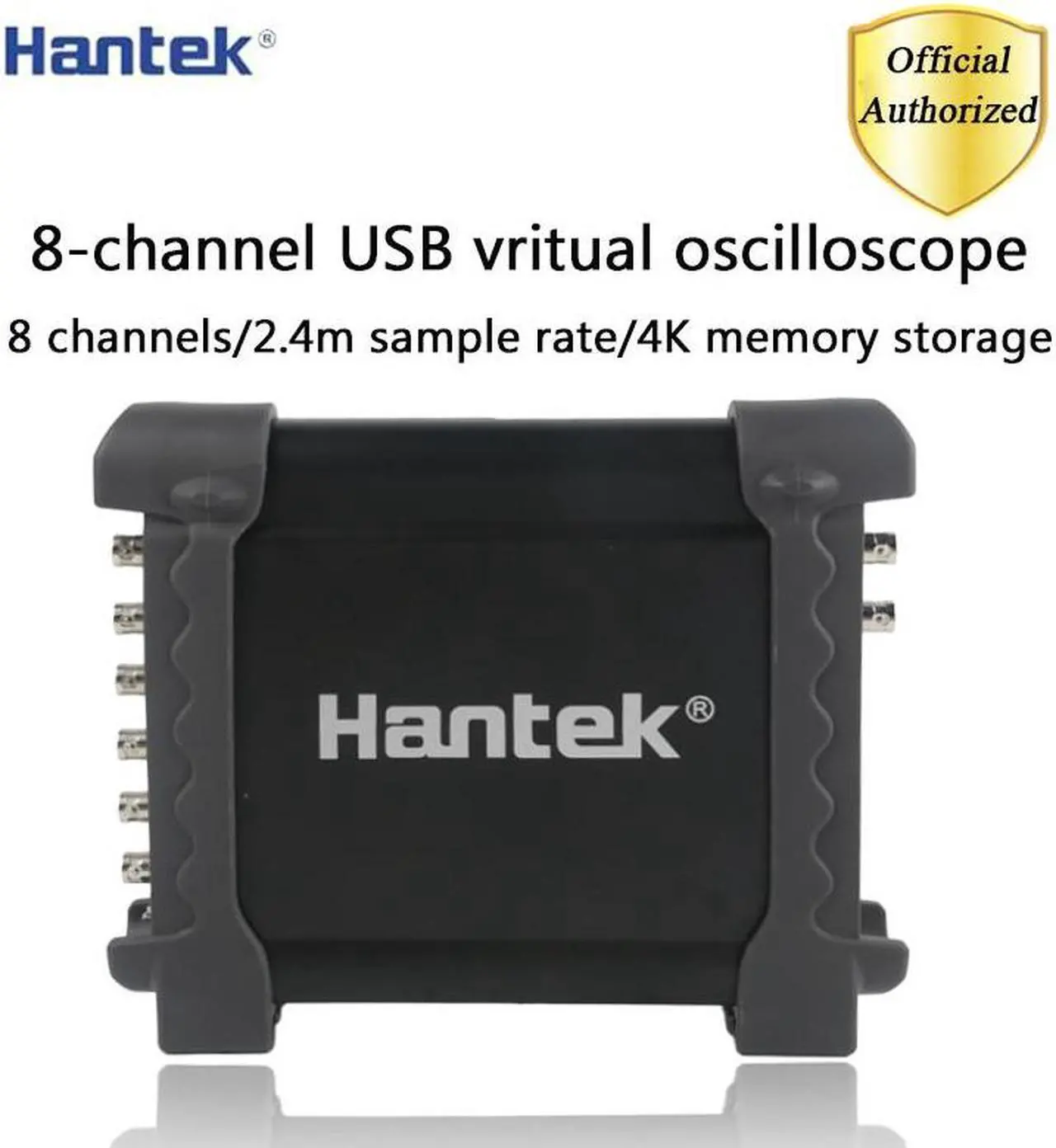

Hantek 1008C Automotive PC Storage USB 8 Channel Programmable Generator
Cost-effective Hantek PC USB 8CH Automotive Diagnostic Oscilloscope / DAQ /
Programmable Generator: Highly efficient and economical;
8-channel oscilloscope for vehicle testing;
Automatic Ignition Probe;
Real-time sampling rate of 2.4MS a/s, 12bit vertical resolution;
Spectrum analysis function;
10mV/div at 5V/div input sensitivity;
DAQ card function;
8-channel programmable generator that can analogue signals from the crankshaft, camshaft, etc.
Features:
(1) Vehicle tests
First diagnosis: Intake manifold vacuum and ignition, Petrol smoke adjustment valve vacuum & ignition, Exhaust idle ignition, Starting exhaust ignition
Ignition: primary and secondary
Sensor: Air flow meter, camshaft, crankshaft, distributor, Lambda sensor, throttle position
Bus diagnostics: Examine CAN bus data, CAN bus signal integrity, CAN bus LH long time acquisition, LIN bus
Performer: Petrol/Diesel
Starting and charging circuits
(2) Oscilloscope
8-channel oscilloscope, 2.4MS a/s real-time sampling rate
12-bit vertical resolution, spectrum analysis function
(3) Programmable Generator
8-channel programmable generator
Can analogue signals from crankshaft, camshaft, etc.
(4) Other
USB 2.0 plug and play interface, and no need for an extra power supply;
More than 20 types of automatic test function, an interface similar to a bench oscilloscope, easy to use;
Pls note: the device language only with English Germany and Chinese.
Software support: Windows NT, Windows 2000, Windows XP, VISTA, Windows 7/8/10, 32 BIT and 64 BIT.
