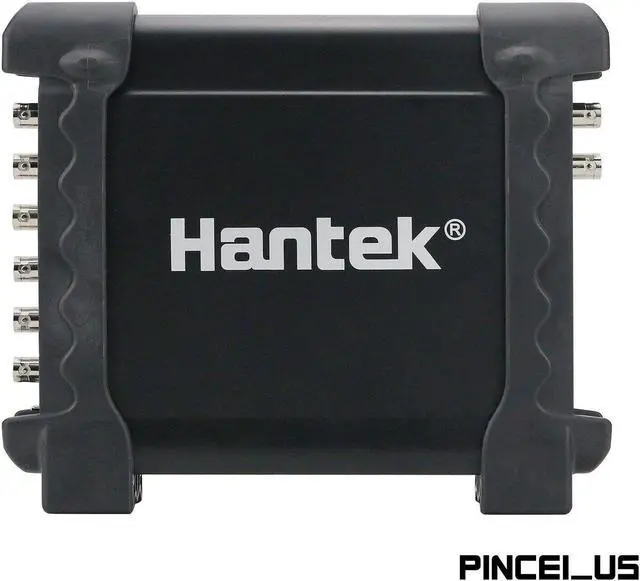

Hantek 1008c Automotive Oscilloscope/DAQ/Programmable Generator Handheld 8 Channels USB Oscilloscopes with Auto Ignition Probe

Hantek 1008C Automotive PC Storage USB 8 Channel Programmable Generator

Cost-effective Hantek PC USB 8CH Automotive Diagnostic Oscilloscope / DAQ /
Programmable Generator: Highly efficient and economical;

8-channel oscilloscope for vehicle testing;

Automatic Ignition Probe;

Real-time sampling rate of 2.4MS a/s, 12bit vertical resolution;

Spectrum analysis function;

10mV/div at 5V/div input sensitivity;

DAQ card function;

8-channel programmable generator that can analogue signals from the crankshaft, camshaft, etc.



Features:
(1) Vehicle tests

First diagnosis: Intake manifold vacuum and ignition, Petrol smoke adjustment valve vacuum & ignition, Exhaust idle ignition, Starting exhaust ignition

Ignition: primary and secondary

Sensor: Air flow meter, camshaft, crankshaft, distributor, Lambda sensor, throttle position

Bus diagnostics: Examine CAN bus data, CAN bus signal integrity, CAN bus LH long time acquisition, LIN bus

Performer: Petrol/Diesel

Starting and charging circuits

(2) Oscilloscope

8-channel oscilloscope, 2.4MS a/s real-time sampling rate

12-bit vertical resolution, spectrum analysis function

(3) Programmable Generator

8-channel programmable generator

Can analogue signals from crankshaft, camshaft, etc.

(4) Other

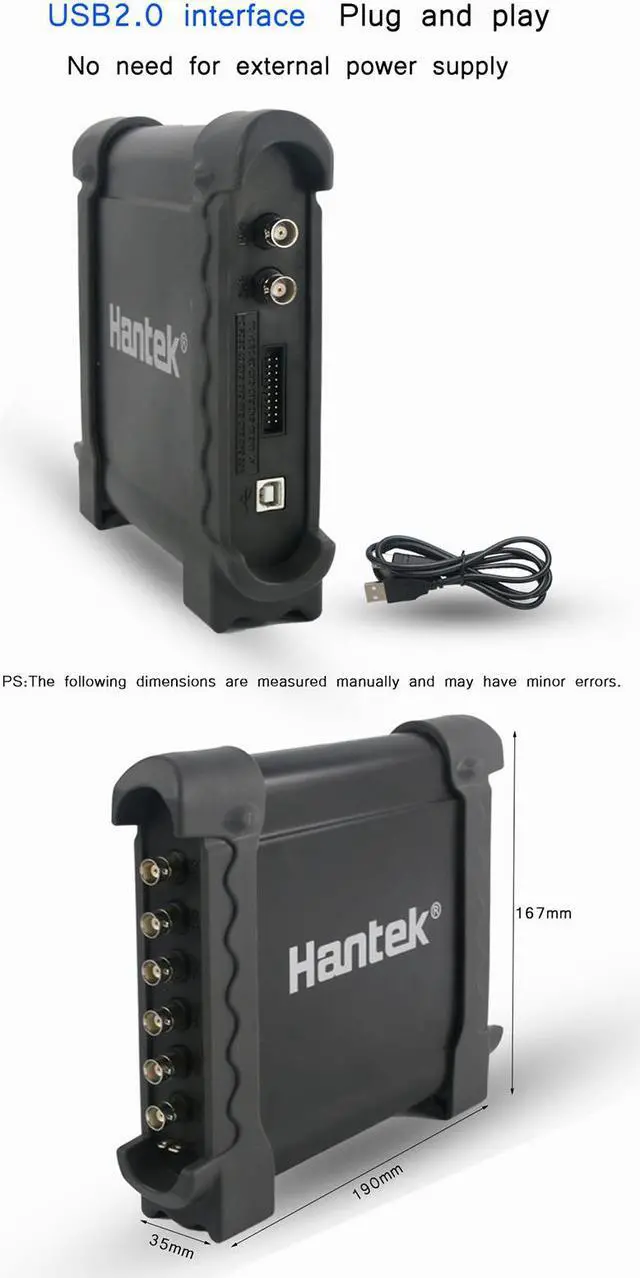

USB 2.0 plug and play interface, and no need for an extra power supply;

More than 20 types of automatic test function, an interface similar to a bench oscilloscope, easy to use;

Pls note: the device language only with English Germany and Chinese.
Software support: Windows NT, Windows 2000, Windows XP, VISTA, Windows 7/8/10, 32 BIT and 64 BIT.
