Hantek Official 6022BE Laptop PC USB Digital Storage Virtual Oscilloscope 2 Channels 20Mhz Handheld Portable Osciloscopio

Hantek 6022BE Digital Oscilloscope Portable PC Based 2 Channels 20MHz USB Oscilloscopes



USA SELLER



Cost-effective, 20MHz bandwidth 2CH scope, 48MSa/s sample rate, with 2pcs probes; Standard USBXI (TM) interface, easily inserts into USBXI (TM) housing to make up a combination instrument.



Features:


1. Characteristic

Cost-effectiveness; Excellent industrial design-the same anodized aluminum casing as iPad, which is not only beautiful and tasteful but also greatly enhanced the hardness of aluminum alloy surface, and has good heat resistance and strong wearability.

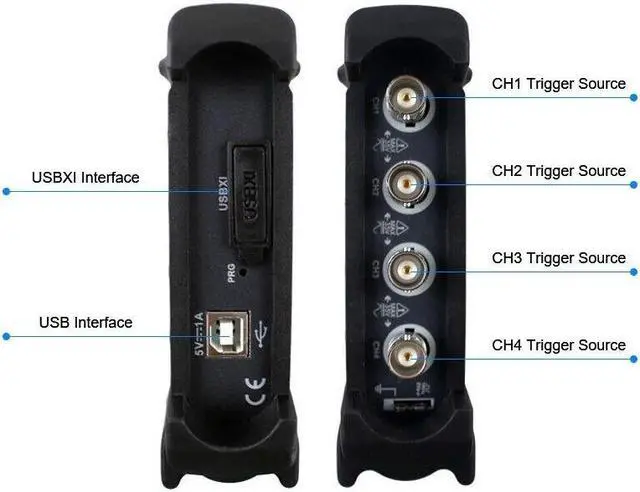

Standard USBXITM interface, easily inserts into USBXITM housing to make up a combination instrument.

USB 2.0 interface, no external power source required, easy to use.

Be suitable for notebook computer, product line maintenance, be used easily on business.

Dimensions (mm): 205 (L) x120 (W) x35 (H), be carried easily.

High performance, 48MS/s real-time sampling, 20MHz Bandwidth,

Operating System: Windows 7, Windows 8, Windows 10,

Windows NT, Windows 2000, Windows XP, VISTA.

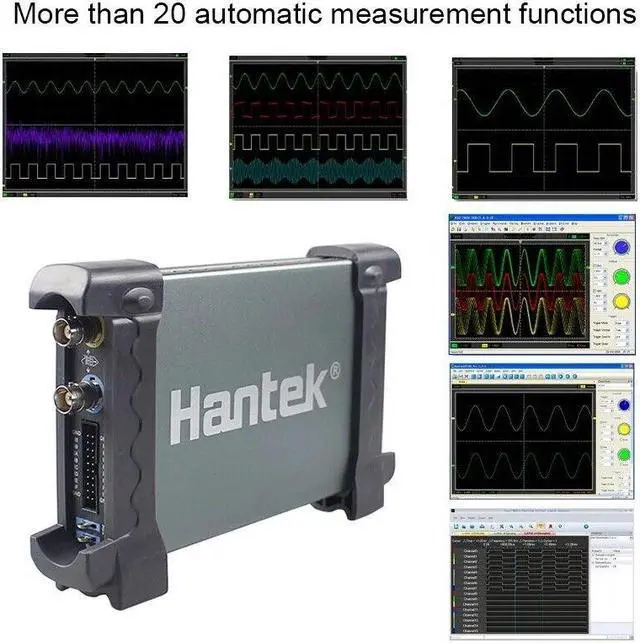

23 measurement functions, PASS/FAIL Check, be suitable for technical application>

Waveform average, persistence, intensity, invert, addition, subtraction, multiplication, division, X-Y plot.

Save waveform in the following: text file, jpg/bmp graphic file, MS excel/word file.

FFT

One computer can connect many DSO, extend channel easily.

Labview\VB\VC\Delphi\C++Builder Second Design instance.


3. Software

Operating system: Windows 7, Windows NT, Windows 2000, Windows XP, VISTA



4. Second Design

Supply DEMO code(VC, CVI, VB, LABVIEW) and technical support.


Package Including:
1 x Virtual Oscilloscope
1 x USB Data Cable
1 x Oscilloscope Probe
1 x Plastic Parts
