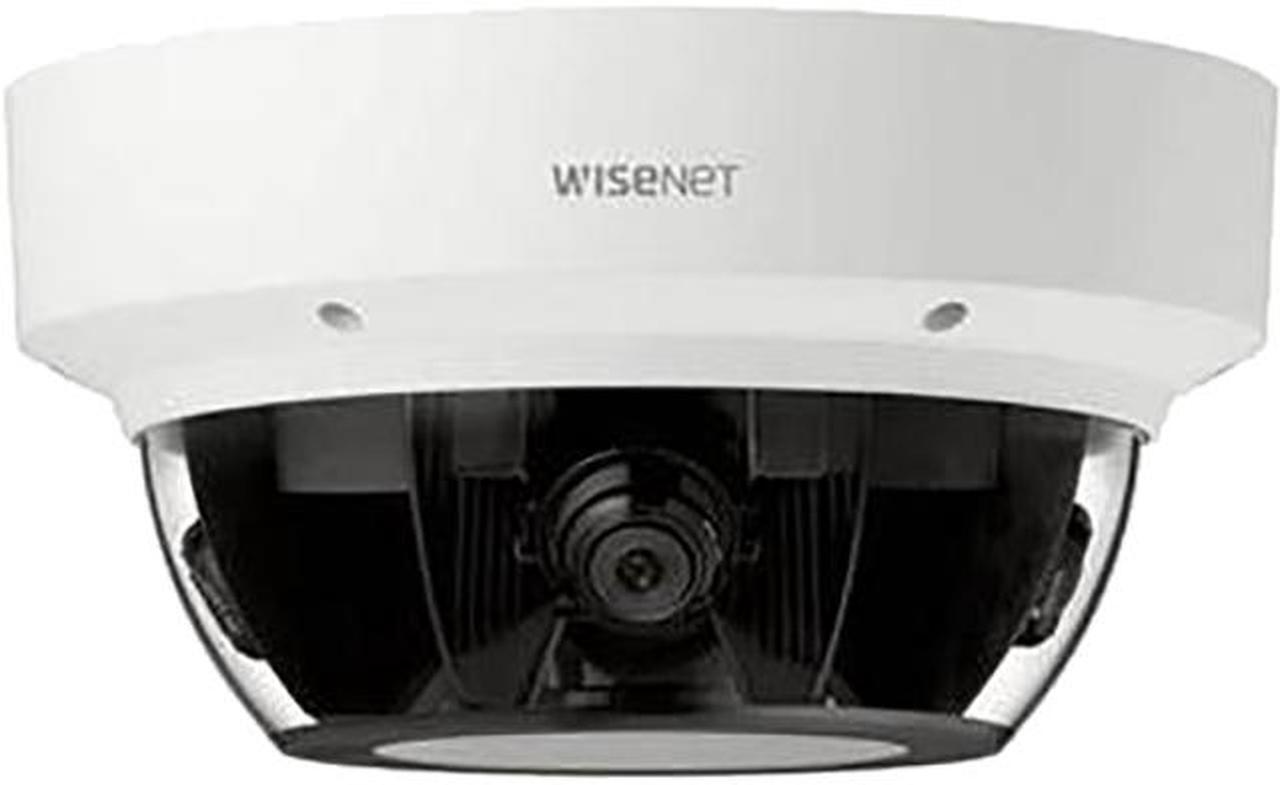

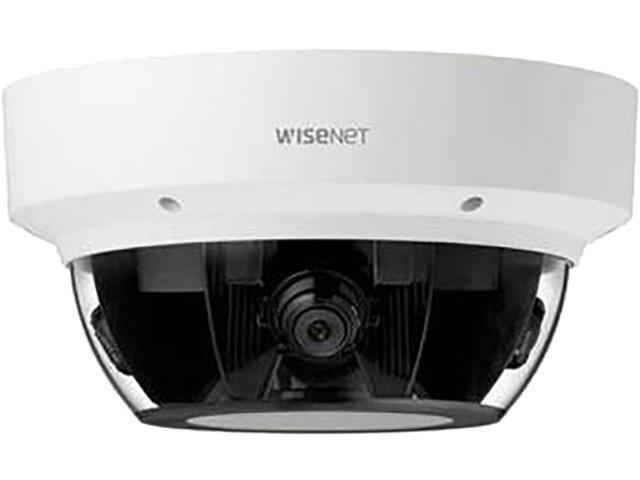

Hanwha Techwin PNM-9002VQ 2560 x 1920 MAX Resolution Metal shielded RJ-45(10/100BASE-T) 4 x 2MP / 5MP Multi-sensor Multi-directional Camera
- Metal shielded RJ-45(10/100BASE-T)
- 2560 x 1920 MAX Resolution
Specs
Reviews
Learn more about the Hanwha Techwin PNM-9002VQ
| Brand | Hanwha Techwin |
|---|---|
| Model | PNM-9002VQ |
| Network Camera | Yes |
|---|---|
| Connection Type | Metal shielded RJ-45(10/100BASE-T) |
| Color | White |
| Micro SD Slot | Micro SD/SDHC/SDXC 4slot 256GB(Each CH) |
| Networking Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP |
|---|---|
| ONVIF | Yes |
| Pixels | 4 x 2MP / 5MP |
|---|---|
| MAX Resolution | 2560 x 1920 |
| Video Capture Resolution | [5MP] 2560x1920, 2560x1440, 1920x1080, 1600x1200, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 320x240 [2MP] 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 |
| Frame Rate | H.265/H.264: 2MP Max. 60fps/50fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz) |
| Security | HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP) |
| Power over Ethernet | Yes |
|---|---|
| Power | Input Voltage: PoE+(IEEE802.3at, Class4) Power Consumption: Max 25.5W |
| Humidity | Less than 90% RH |
|---|---|
| Temperature | Operating Temperature: -40°C ~ +55°C(-40°F ~ +131°F) Storage Temperature: -50°C ~ +60°C(-58°F ~ +140°F) |
| Features | Exchangeable 4ea x 2MP / 5MP lens modules 8MP to 20MP resolution depend on the combination of lens modules 60fps@2MP, 30fps@5MP (H.265 / H.264) WDR 150dB with 2MP lens module, 120dB with 5MP lens module 2.4mm, 2.8mm, 3.6mm, 6mm fixed lens (2MP module) 3.7mm, 4.6mm, 7mm fixed lens (5MP module) H.265, H.264, MJPEG codec, Multi streaming support Video analytics, WiseStream IP66, IK10, SD / SDHC / SDXC memory 4 slots Lens modules are required, not included with the camera |
|---|
| Date First Available | May 04, 2022 |
|---|
