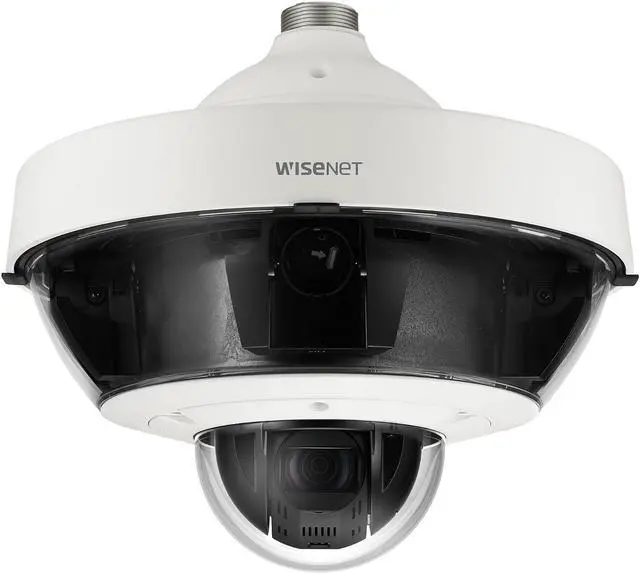

Hanwha Techwin PNM-9322VQP 10MP to 22MP Multi-directional + 2MP PTZ Network Camera
- Interchangeable 4 x 2MP / 5MP lens modules
- 8MP to 20MP resolution depend on the combination of lens modules
- WDR 150dB with 2MP lens module, 120dB with 5MP lens module
- 2.4mm, 2.8mm, 3.6mm, 6mm, 12mm fixed lens (2MP module)
- 3.7mm, 4.6mm, 7mm fixed lens (5MP module)
- PTZ camera
- 2MP (1920 x 1080) resolution
- 4.44~142.6mm (Optical 32x) lens
- WDR 150dB, Day & Night (ICR)
- PTZ Auto Tracking, SmartZoom to Preset / IVA Trigger
- 60fps@2MP, 30fps@5MP (H.265 / H.264)
- H.265, H.264, MJPEG codec support
- Video Analytics, WiseStream II support
- SD / SDHC / SDXC memory 5 slots
- Lens modules are required, not included with the camera
- HPoE (IEEE802.3bt, Class8, Type3, Injector included), SFP port in injector
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Hanwha Techwin PNM-9322VQP
| Brand | Hanwha Techwin |
|---|---|
| Model | PNM-9322VQP |
| Network Camera | Yes |
|---|---|
| Type | Surveillance Camera |
| Connection Type | RJ45 |
| Color | White |
| Networking Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP |
|---|---|
| Ports | Metal shielded RJ-45(10/100/1000BASE-T), 1000Base-T SFP port in HPoE Injector |
| Pan/Tilt/Zoom | 1~4CH: Optional lens / 5CH: 360° Endless / 190° (-5°~185°) |
|---|---|
| Sensor & Detector | CMOS |
| Pixels | 5 MP |
| HD Resolution | 2K |
| MAX Resolution | 2560 x 1920 |
| Video Capture Resolution | [5MP] 2560x1920, 2560x1440, 1920x1080, 1600x1200, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 320x240 [2MP] 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 |
| Frame Rate | H.265/H.264: 2MP Maximum 60fps, 5MP Maximum 30fps MJPEG: Maximum 30fps |
| Lens Type | Focal Length (Zoom Ratio): 1~4CH: Optional lens / 5CH: 4.44~142.6mm(32x) zoom Maximum Aperture Ratio: 1~4CH: Optional lens / 5CH: F1.6(Wide)~F4.4(Tele) Angular Field of View: 1~4CH: Optional lens / 5CH: H 61.8°(Wide)~2.19°(Tele), V 36.2°(Wide)~1.24°(Tele) Minimum Object Distance: 1~4CH: Optional lens / 5CH: Wide:1.5m, Tele:2m Focus Control: 1~4CH: Optional lens / 5CH: Oneshot AF Optional Lens: SLA-2M2400P(2MP 2.4mm) SLA-2M2800P(2MP 2.8mm) SLA-2M3600P(2MP 3.6mm) SLA-2M6000P(2MP 6.0mm) SLA-2M1200P(2MP 12mm) SLA-5M3700P(5MP 3.7mm) SLA-5M4600P(5MP 4.6mm) SLA-5M7000P(5MP 7.0mm) |
| Security | HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP) |
| Weight | 14.48" x 14.48" x 13.22" |
|---|
| Software | 15.54 lbs. |
|---|
| First Listed on Newegg | July 21, 2022 |
|---|
