Industrial 5 Ports Gigabit Ethernet Switch 4 Port RJ45 PoE Network Switch Outdoor Din Rail PoE+ Ethernet Switch
The 5 Ports Ethernet Switch features a high-strength IP40 protective casing, industrial-grade EMC design, and supports a wide range of redundant power supply(DC12-55V) to enhance the reliability of communication networks. It utilizes a four-level DIP switch for LPP ring network protection, BSP broadcast storm suppression, VLAN port isolation, and AI watchdog. The Industrial Din rail Mount Switch using a standard 35mm DIN rail, making it widely applicable in various fields such as smart grids, rail transportation, integrated pipe corridors, intelligent transportation, smart cities, mining and metallurgy, oil and petrochemicals, new energy, smart factories, ships, defense industry, and building security, providing favorable protection for industrial communication.

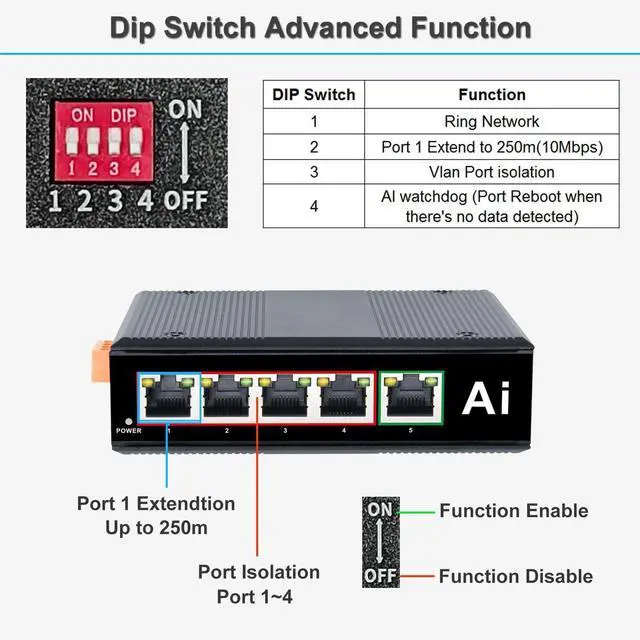

THe 5 Ports Din-rail Mount Ethernet Switch Come with 4P Dip Switch for Advanced Function, Suitable for More Application Scenarios.

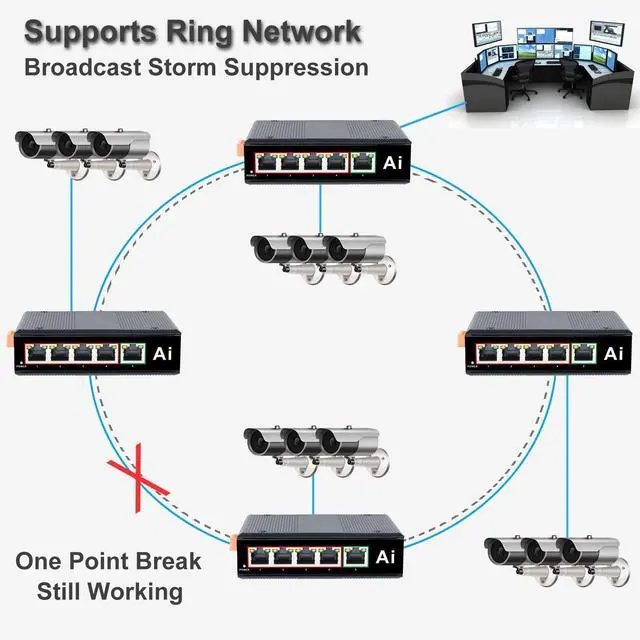

Dip Switch 1: LPP&BSP
When you turn on the DIP switch 1, the Ethernet switch will support Ring Network and Broadcast storm suppression. Ring network will improve network reliability.
Dip Switch 2: Port 1 Extension
When you turn on the DIP switch 2, the Ethernet (PoE) switch's port 1 can extend to 250 meters. Meanwhile port 1 rate forced to 10Mbps. This function can meet long transmission distance requirement.
Dip Switch 3: Port Isolation
When you turn on the DIP switch 3, the Industrial Ethernet (PoE) switch's 1~4 port will isolated from each other. This function can improve network security and control data flow direction.
Dip Switch 4: AI Watchdog
When you turn on the DIP switch 4, the Din Rail Ethernet Switch will support watchdog function. If any port didn't detect data transimission, the port will reboot to reconnect.

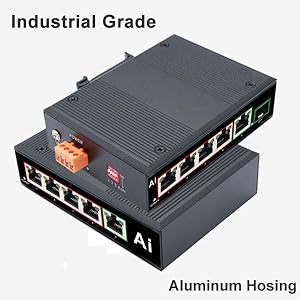

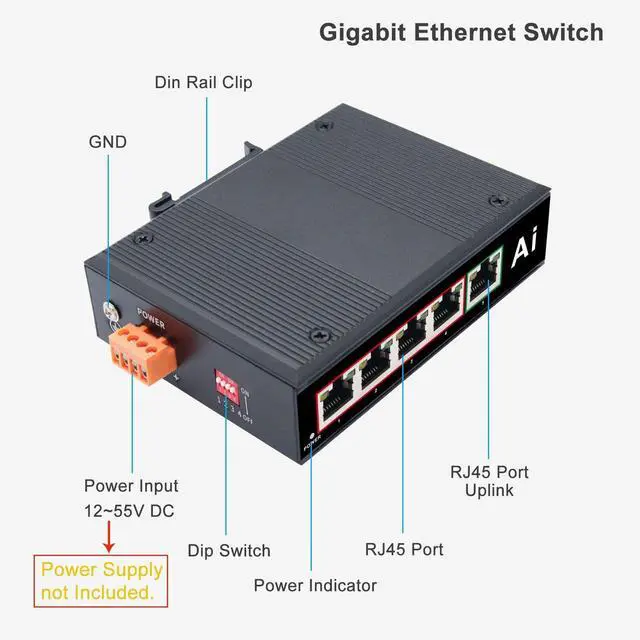

The 4+1 Switch is Industrial Grade Quality, suitable for harsh environment application.
- The Din-rail Gigabit Switch use industrial grade components
- The Ethernet Switch use IP40 rugged high-strength aluminum case.
- The Ethernet Switch can work at wide range temperature -40°C to 80°C (-40°F to 176°F).
- The Inustrial gigabit Switch suppots din rail mount.
- The Industrial Ethernet Switch Supports 6Kv Surge Protection.
- The Industrial Ethernet Switch supports44~55VDC wide range redundant power input.
- PoE Optional: IEEE802.3af/at, Power pin: 1/2+, 3/6-.
Note: Power Supply not included in Package.
Industrial Etehrnet Switch Specifications:

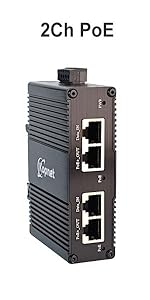

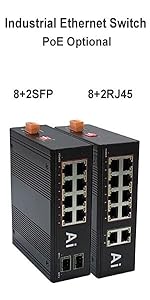

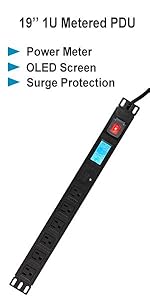

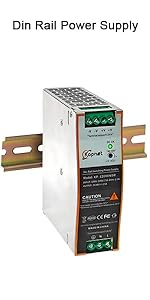

 10 Ports Industrial PoE Ethernet Switch Din Rail Mount |  Rack Mount Din Rail kit 19 inch 1U din rail bracket |  19 inch 1U Metered PDU 6 NEMA 5-15R Outlets Rack PDU Power Strip |  150W 48V Din Rail Mount Power Supply 48V Output AC-DC Industrial Power Adapte... |  Industrial 2ch Gigabit PoE Injector 30W/90W | |
|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — |
| Price | — | — | — no data | — | — |
| Related products | 10 Ports Gigabit Din Rail Mount Ethernet PoE Switch | Rack Chassis to Mount Industrial Ethernet Switch | Power Distribution Unit for Din Rail PoE Switch | Din Rail Mount 48V Power Supply for Ethernet PoE Switch | 2Ch Din Rail PoE Injector |
Industrial 5 Ports Gigabit Ethernet Switch 4 Port RJ45 PoE Network Switch Outdoor Din Rail PoE+ Ethernet Switch
The 5 Ports Ethernet Switch features a high-strength IP40 protective casing, industrial-grade EMC design, and supports a wide range of redundant power supply(DC12-55V) to enhance the reliability of communication networks. It utilizes a four-level DIP switch for LPP ring network protection, BSP broadcast storm suppression, VLAN port isolation, and AI watchdog. The Industrial Din rail Mount Switch using a standard 35mm DIN rail, making it widely applicable in various fields such as smart grids, rail transportation, integrated pipe corridors, intelligent transportation, smart cities, mining and metallurgy, oil and petrochemicals, new energy, smart factories, ships, defense industry, and building security, providing favorable protection for industrial communication.
THe 5 Ports Din-rail Mount Ethernet Switch Come with 4P Dip Switch for Advanced Function, Suitable for More Application Scenarios.
Dip Switch 1: LPP&BSP
When you turn on the DIP switch 1, the Ethernet switch will support Ring Network and Broadcast storm suppression. Ring network will improve network reliability.
Dip Switch 2: Port 1 Extension
When you turn on the DIP switch 2, the Ethernet (PoE) switch's port 1 can extend to 250 meters. Meanwhile port 1 rate forced to 10Mbps. This function can meet long transmission distance requirement.
Dip Switch 3: Port Isolation
When you turn on the DIP switch 3, the Industrial Ethernet (PoE) switch's 1~4 port will isolated from each other. This function can improve network security and control data flow direction.
Dip Switch 4: AI Watchdog
When you turn on the DIP switch 4, the Din Rail Ethernet Switch will support watchdog function. If any port didn't detect data transimission, the port will reboot to reconnect.
The 4+1 Switch is Industrial Grade Quality, suitable for harsh environment application.
- The Din-rail Gigabit Switch use industrial grade components
- The Ethernet Switch use IP40 rugged high-strength aluminum case.
- The Ethernet Switch can work at wide range temperature -40°C to 80°C (-40°F to 176°F).
- The Inustrial gigabit Switch suppots din rail mount.
- The Industrial Ethernet Switch Supports 6Kv Surge Protection.
- The Industrial Ethernet Switch supports44~55VDC wide range redundant power input.
- PoE Optional: IEEE802.3af/at, Power pin: 1/2+, 3/6-.
Note: Power Supply not included in Package.
Industrial Etehrnet Switch Specifications:
| Ethernet Port | 4xRJ45 |
| Rate | 10/100/1000Mbps |
| Operating mode | Store and forward |
| Iplink | 1xRJ45 or 1xRJ45+1xSFP |
| PoE Standard | IEEE802.3 af/at |
| PoE Pin | 12+, 36- |
| Power Input | 12~55V DC (Power adapter not included) |
| Operating temperature | -40°C to 80°C (-40°F to 176°F) |
