Harman/Kardon AVR154 5.1-Channel 5 x 30W A/V Receiver with HDMI Switching

(4) Write a Review
  • 5.1-Channel 30 Watts x 5, five channels driven at full power at 8 ohms, 20Hz – 20kHz, <0.07% THD (surround modes); 150 watts total 40 Watts x 2, two channels driven at full power at 8 ohms, 20Hz – 20kHz, <0.07% THD (surround off mode); 80 watts total
  • HDMI 3 In / 1 Out
  • Dolby Digital, Pro Logic II, Dolby Virtual Speaker, Dolby HP, DTS 5.1, DTS 96/24, DTS Neo:6, Logic 7
  • FM/AM Tuner
Specs
Reviews (4)
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the HARMAN KARDON AVR154

Model
Brand Harman/Kardon
Model AVR154
Details
Type Receiver
Color black/Silver
Channels 5.1-Channel

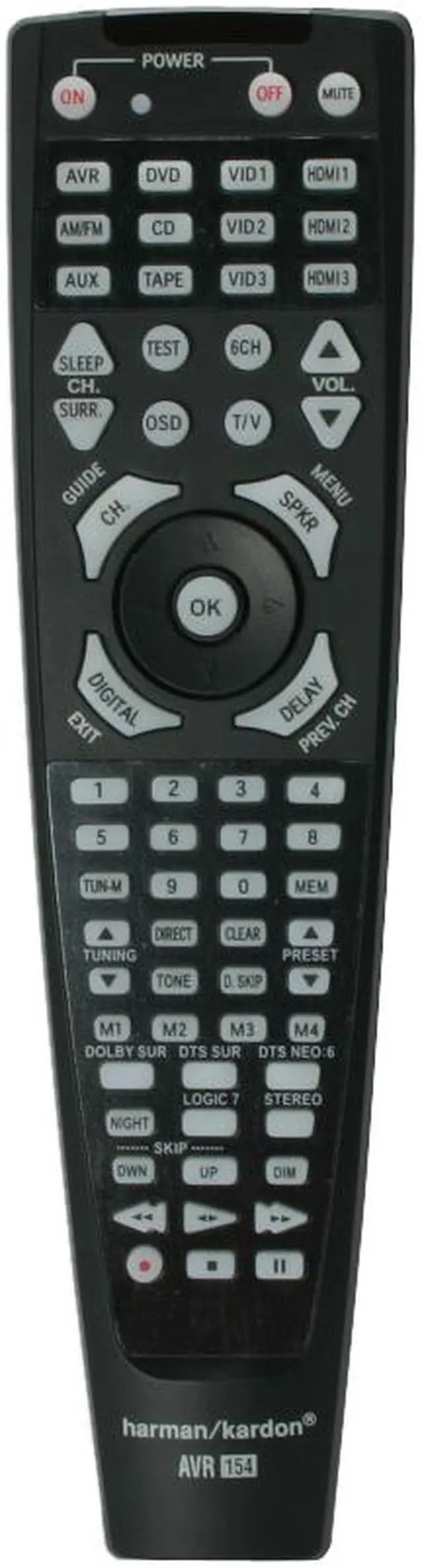

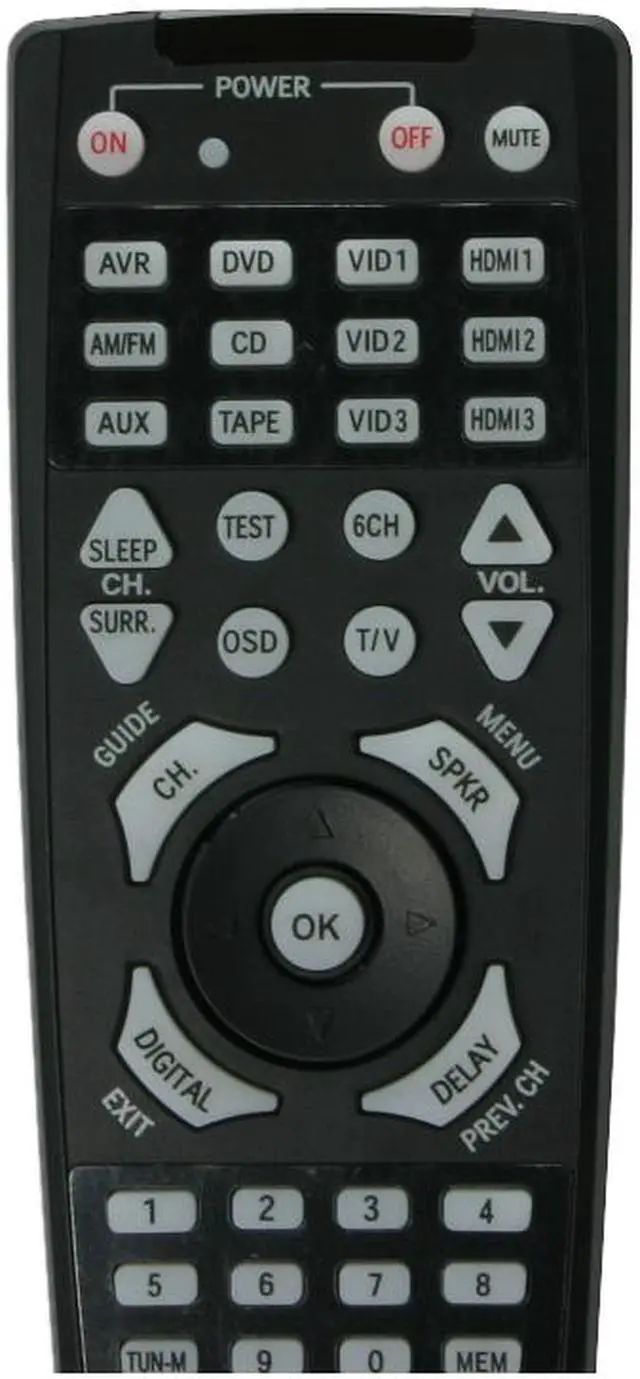

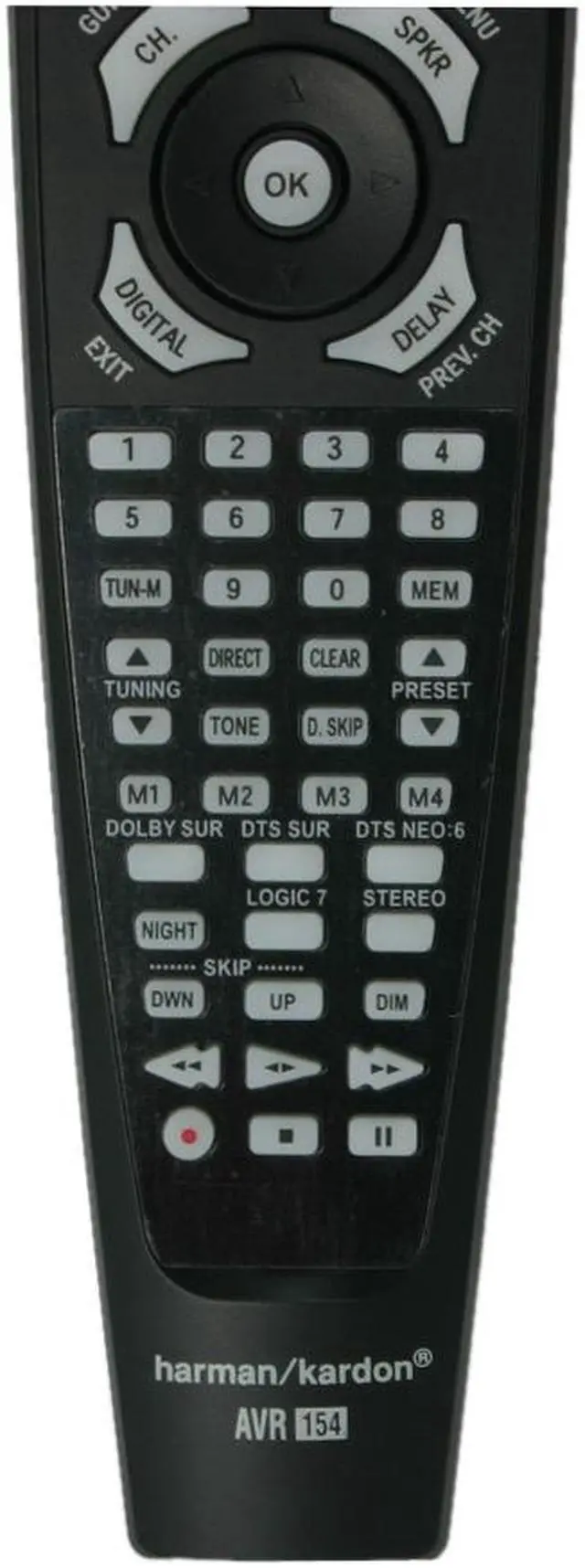

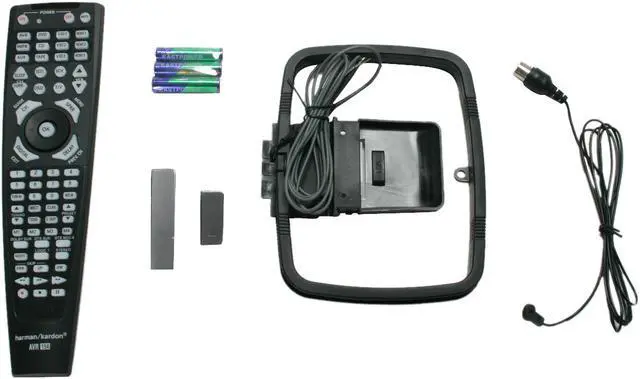

Remote Control Programmable 11-device main remote control
On Screen Display On-screen display with composite, S-video and component video (480i); choice of blue or black background
Processing
Power Output 30 Watts x 5, five channels driven at full power at 8 ohms, 20Hz – 20kHz, <0.07% THD (surround modes); 150 watts total
40 Watts x 2, two channels driven at full power at 8 ohms, 20Hz – 20kHz, <0.07% THD (surround off mode); 80 watts total
Frequency Response 10Hz – 130kHz
Decoder Dolby Digital, Pro Logic II, Dolby Virtual Speaker, Dolby HP, DTS 5.1, DTS 96/24, DTS Neo:6, Logic 7
Audio Input Sensitivity/Impedance, Linear (High-Level): 200mV/47k ohms
Signal-to-Noise Ratio (IHF-A): 100dB
Surround System Adjacent Channel Separation:
- Dolby Pro Logic I and II: 40dB
- Dolby Digital: 55dB
- DTS: 55dB
High Instantaneous Current Capability (HCC): ±25 Amps
Transient Intermodulation Distortion (TIM): Unmeasurable
Slew Rate: 40V/µsec
Video Television Format : NTSC
Input Level/Impedance : 1Vp-p/75 ohms
Output Level/Impedance : 1Vp-p/75 ohms
Video Frequency Response
- Composite and S-Video : 10Hz – 8MHz (–3dB)
- Component Video : 10Hz – 50MHz (–3dB)
HDMI: Switching
Radio
FM/AM Tuner Included

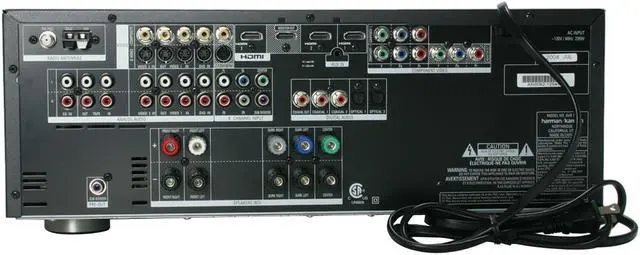

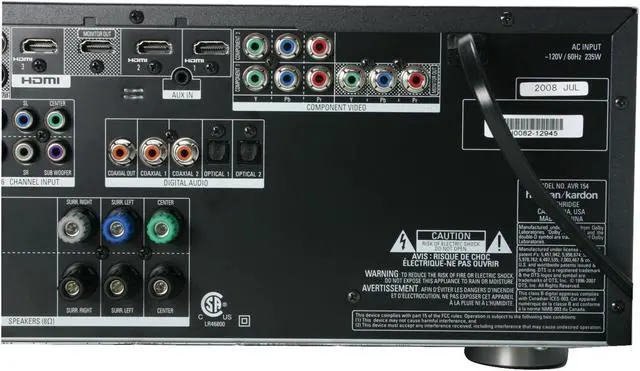

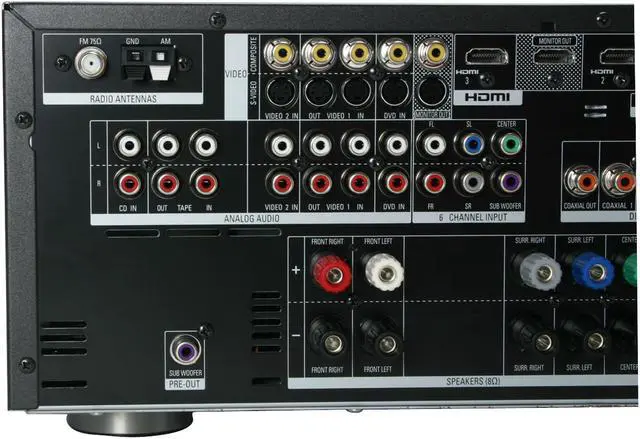

Connectivity
HDMI 3 In / 1 Out
Component Video 2 In / 1 Out
Digital Optical Audio 3 In
Digital Coaxial Audio 3 In / 1 Out
Headphone Jack Yes
Multi Channel Input 5.1-Channel
Pre-Amp Out Single Sub
Other Connectors AUX Input: 1
A/V Inputs: 4
S-Video Inputs: 4
A/V Outputs: 2
S-Video Outputs: 2
Power
Power Supply AC 120V/60Hz
Consumption 65W idle, 540W maximum (5 channels driven)
Features
Features High-current capability, ultrawide-bandwidth amplifier design with low negative feedback

All-discrete amplifier circuitry

Dual independent power supplies, for front and surround channels

Triple crossover bass management

24-Bit, twin-core Cirrus Logic CS 49510 DSP processor

192kHz/24-bit D/A conversion

Sampling upconversion to 96kHz

Two-line dot-matrix front-panel display

Source input renaming

A/ V sync delay up to 100ms
Dimensions & Weight
Dimensions 17.31" x 6.5" x 15"
Weight 20.5 lbs.
