7.1-Channel Stereo mode: 65 Watts x 2 Surround modes: 50 Watts x 7
Dolby Digital, Dolby Digital EX, Dolby Pro Logic IIx, Dolby Virtual Speaker, Dolby Headphone, DTS, TS-ES Discrete and Matrix, DTS 96/24 and DTS Neo:6
FM/AM Tuner
Overview
Specs
Reviews (10)

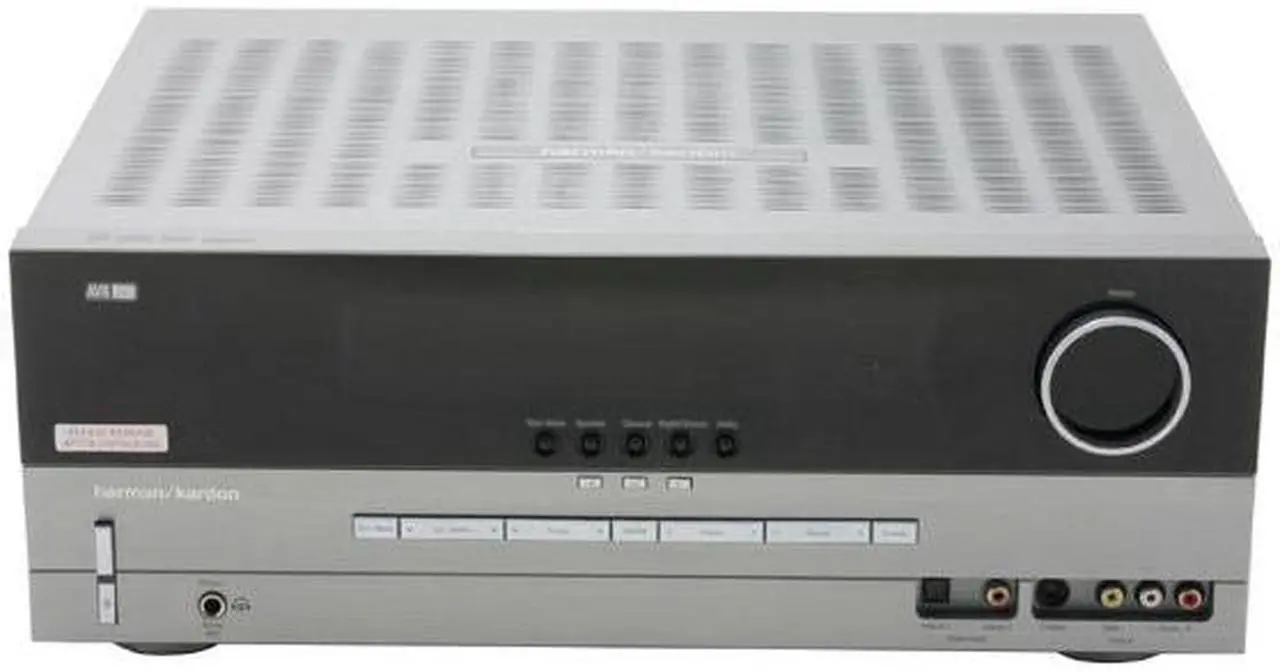

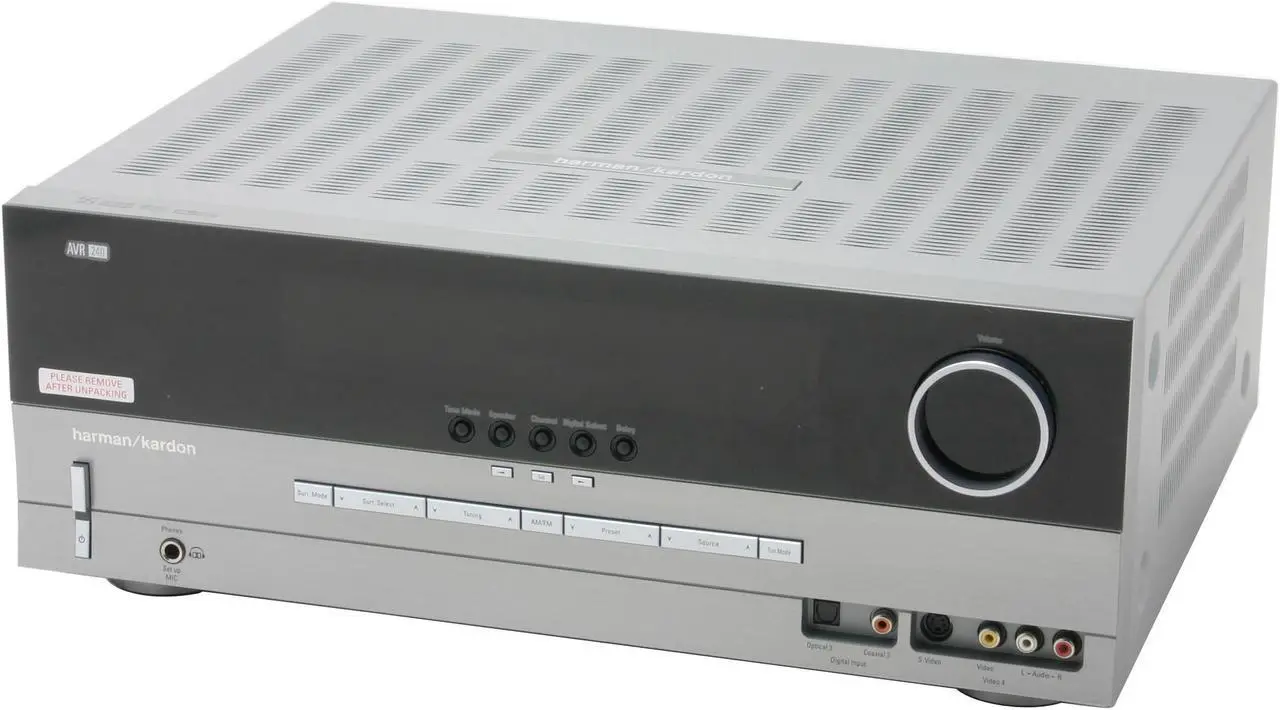

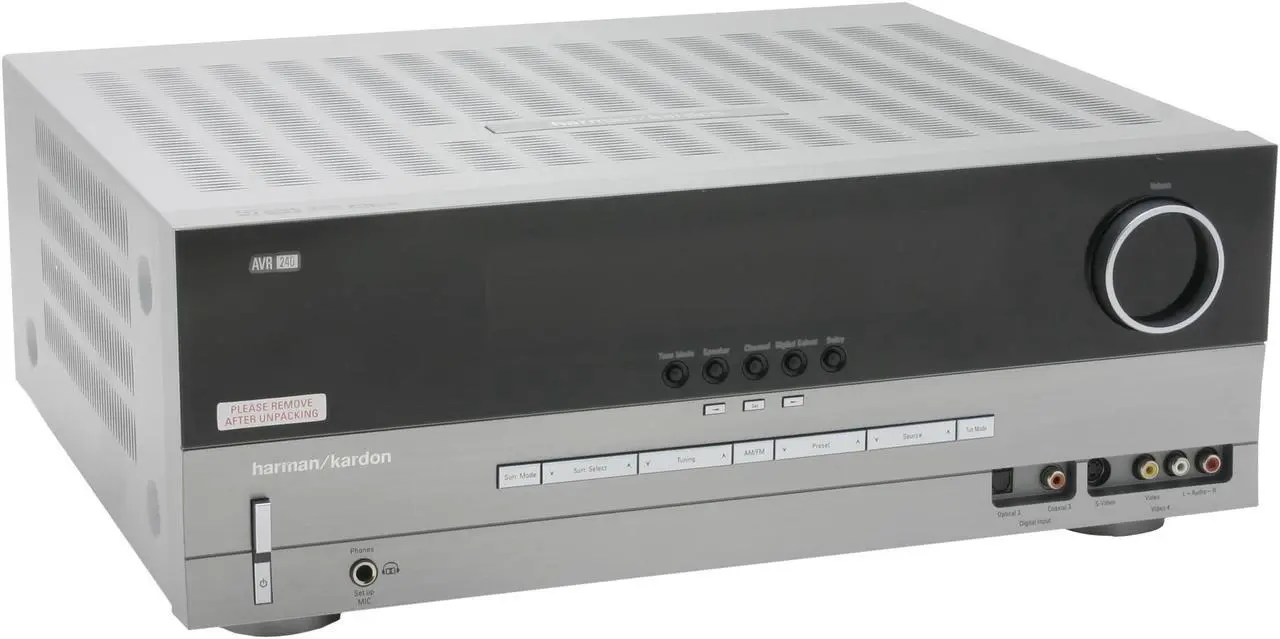

For high quality "by the numbers" the AVR 240 is clearly best in class. Seven channels of high-current amplification, Logic 7 processing, 192kHz/24-bit digital converters, two high-bandwidth component video inputs, a two-line front-panel display and more inputs and outputs than you can count. Add the power of EzSet+ to automatically set system speaker levels, and it all adds up to a magnificent total of high-quality audio and video performance.
For high quality "by the numbers" the AVR 240 is clearly best in class. Seven channels of high-current amplification, Logic 7 processing, 192kHz/24-bit digital converters, two high-bandwidth component video inputs, a two-line front-panel display and more inputs and outputs than you can count. Add the power of EzSet+ to automatically set system speaker levels, and it all adds up to a magnificent total of high-quality audio and video performance.
Learn more about the HARMAN KARDON AVR240
Model
Brand
Harman/Kardon
Model
AVR240
Details
Type
Receiver
Color
black/Silver
Channels
7.1-Channel
Remote Control
Programmable remote for control of AVR and seveadditional source components
On Screen Display
On-screemenu and display system with choice of blue or black background screen
Processing
Power Output
Stereo mode: 65 Watts x 2 Surround modes: 50 Watts x 7
Frequency Response
10Hz – 130kHz
Decoder
Dolby Digital, Dolby Digital EX, Dolby Pro Logic IIx, Dolby Virtual Speaker, Dolby Headphone, DTS, TS-ES Discrete and Matrix, DTS 96/24 and DTS Neo:6
Audio
Input Sensitivity/Impedance, Linear (High-Level): 200mV/47k ohms Signal-to-Noise Ratio (IHF-A): 100dB Surround System Adjacent Channel Separation: - Dolby Pro Logic I and II: 40dB - Dolby Digital: 55dB - DTS: 55dB High Instantaneous Current Capability (HCC): ±35 Amps Transient Intermodulation Distortion (TIM): Unmeasurable Slew Rate: 40V/µsec
Video
Television Format : NTSC Input Level/Impedance : 1Vp-p/75 ohms Output Level/Impedance : 1Vp-p/75 ohms Composite and S-Video : 10Hz – 8MHz (–3dB) Component Video : 10Hz – 50MHz (–3dB)
Radio
FM/AM Tuner
Included

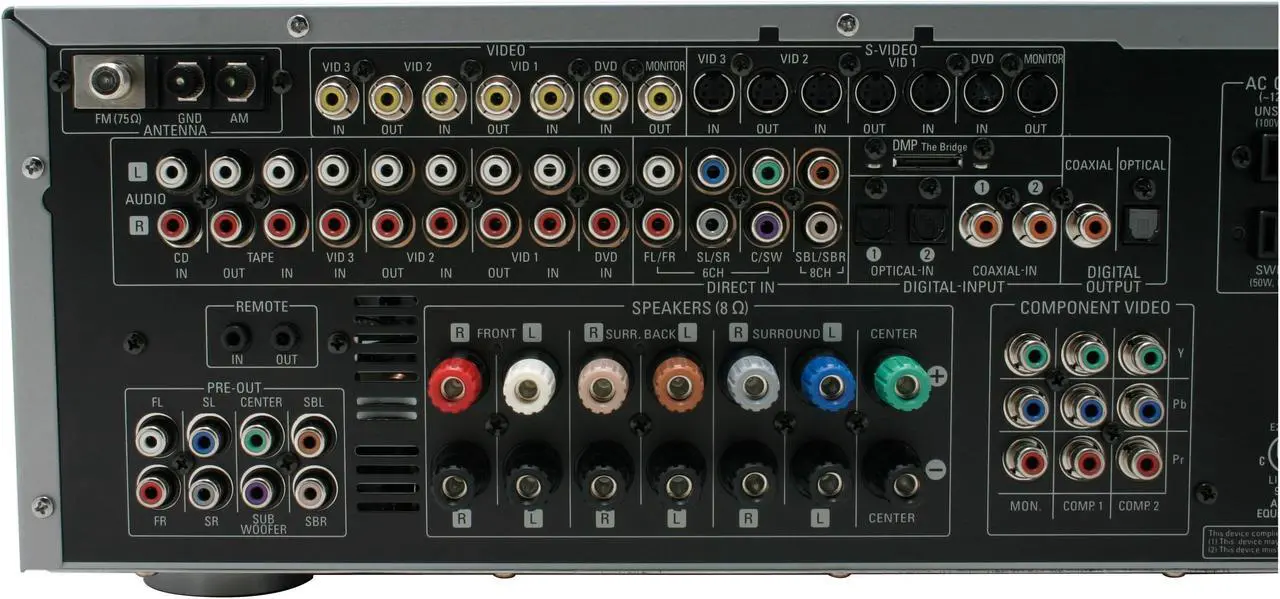

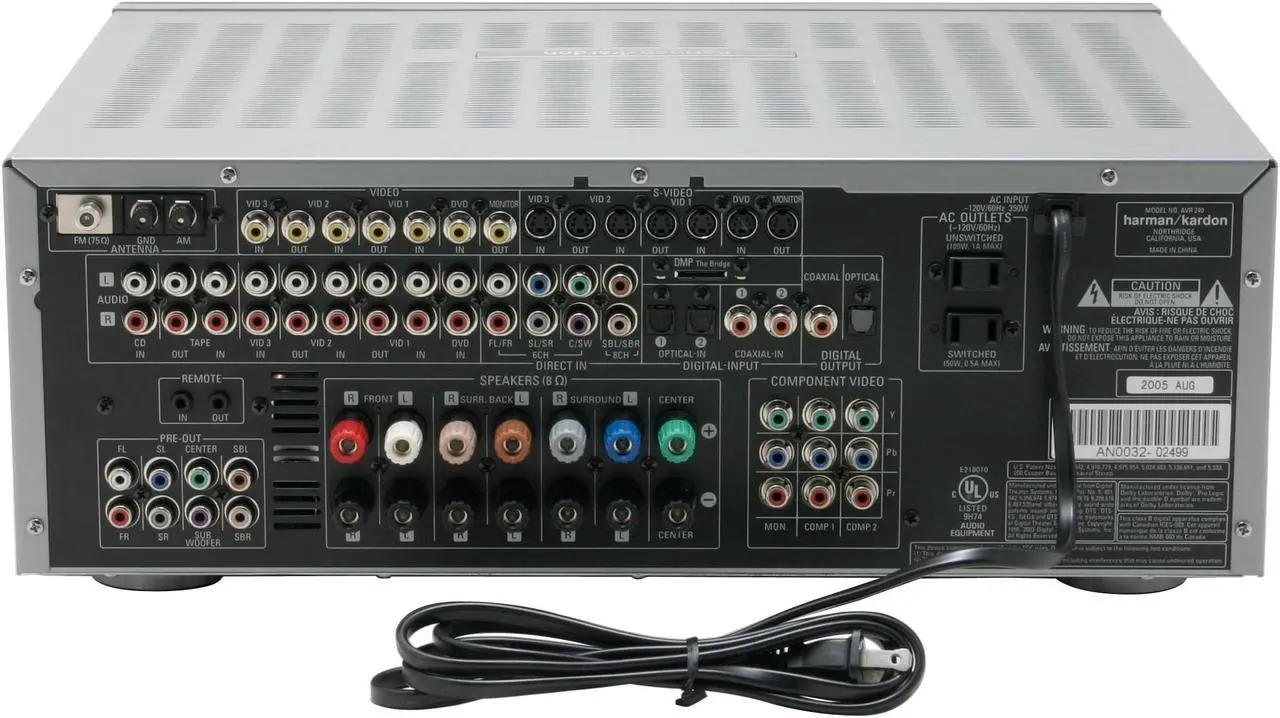

Connectivity
Component Video
2 In / 1 Out
Digital Optical Audio
3 In / 1 Out
Digital Coaxial Audio
3 In / 1 Out
Multi Channel Input
8-Channel
Pre-Amp Out
7.1-Channel
IR
1
Power
Power Supply
AC 120V/60Hz
Consumption
118W idle, 890W maximum (7 channels driven)
Features
Features
Sevechannels of high-current amplificatio
HarmaKardon’s exclusive Logic 7 processing, available with both 7.1 and 5.1 processing ia variety of modes, and two modes of VMAx

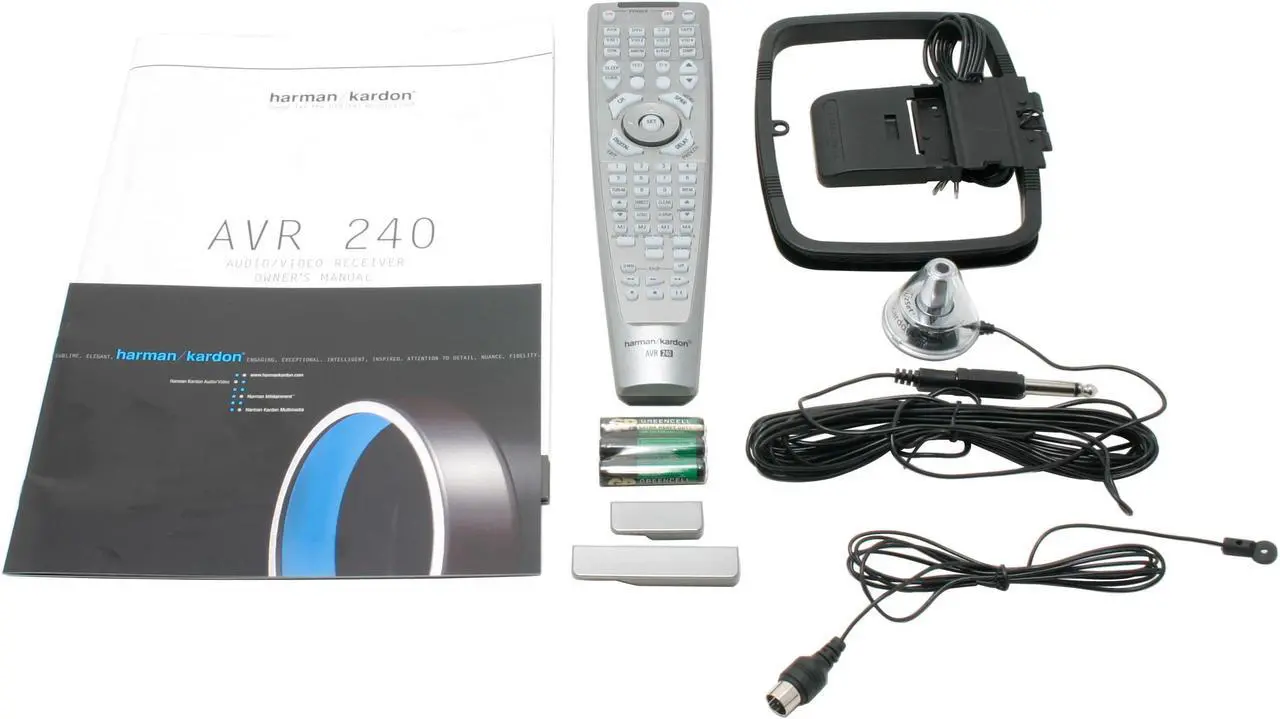

EZSet+ system with included microphone automatically configures speakers and sets delay times and output levels for optimal sound presentation
High-bandwidth, HDTV-compatible component video switching with assignable inputs

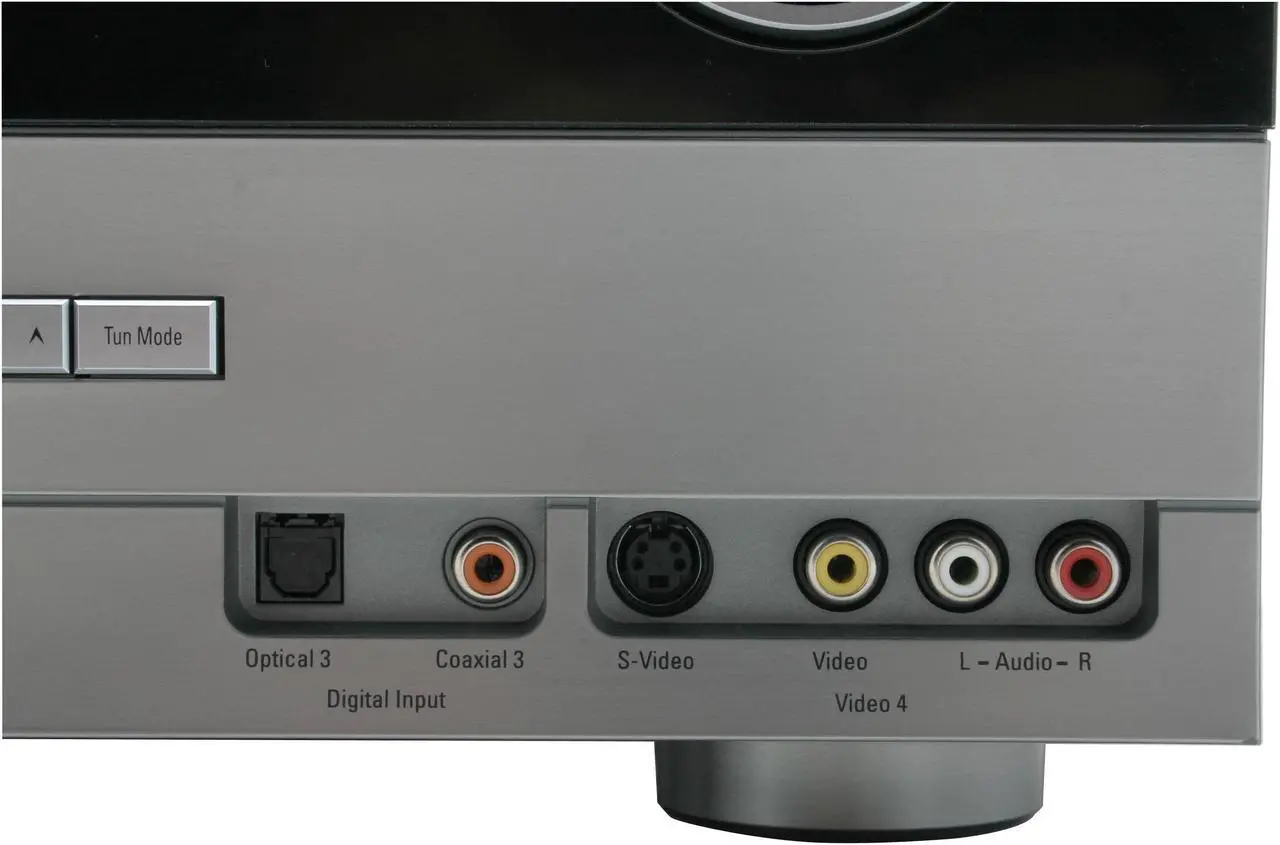

Discrete front-panel coaxial and optical digital inputs for easy connectioto portable digital devices and video game consoles
Input titling for all input sources (except tuner)
Extensive bass management options, including four separate crossover groupings
A/V Sync delay adjustable for each input delivers perfect lip sync
