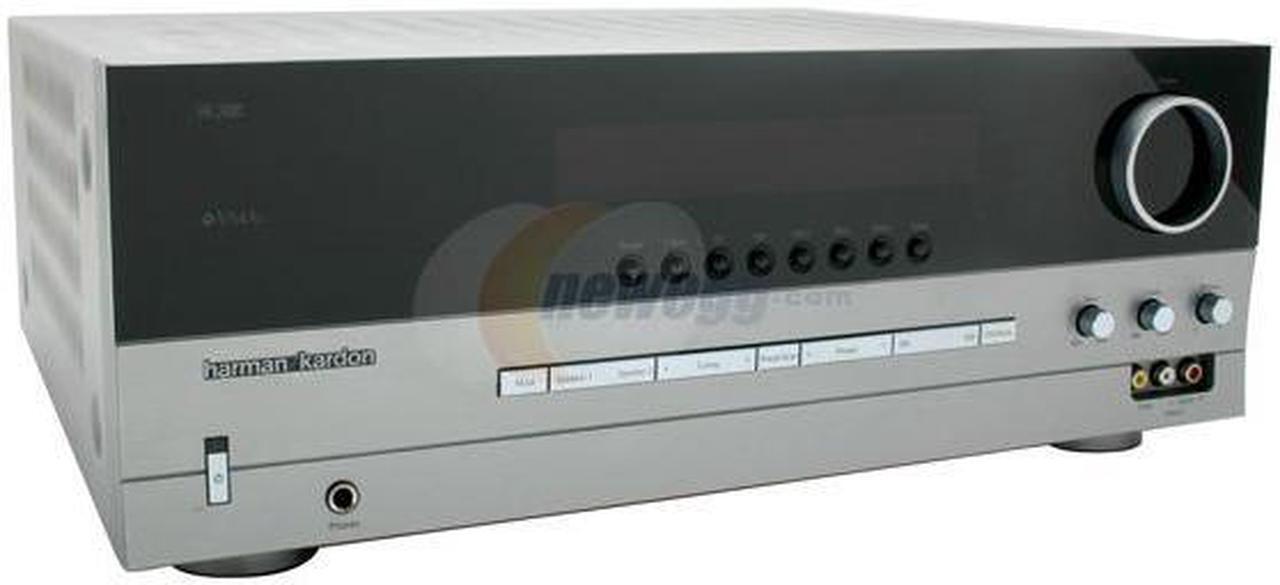

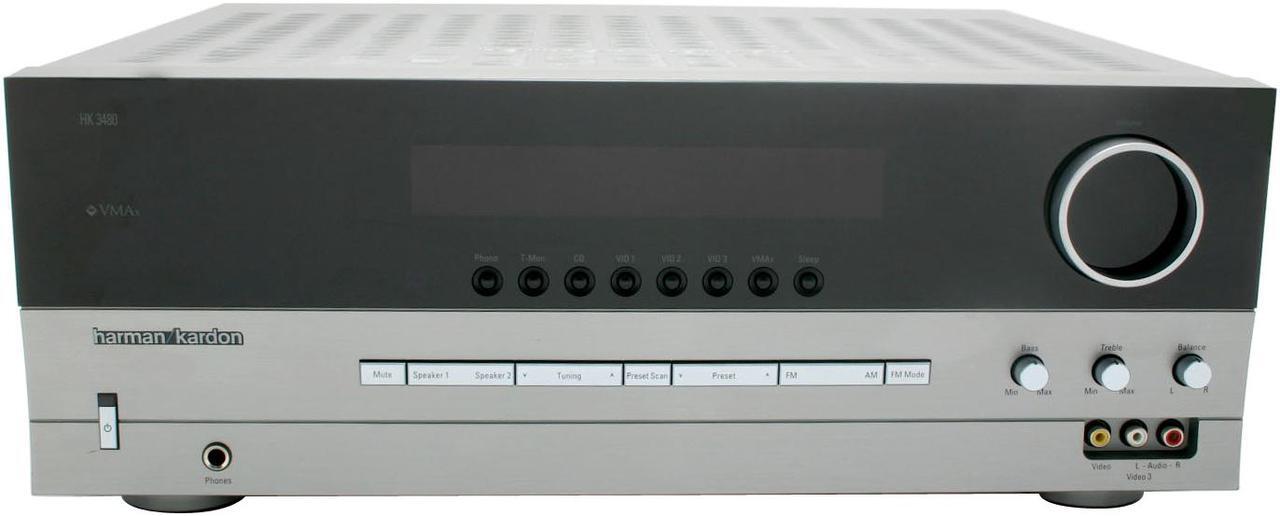

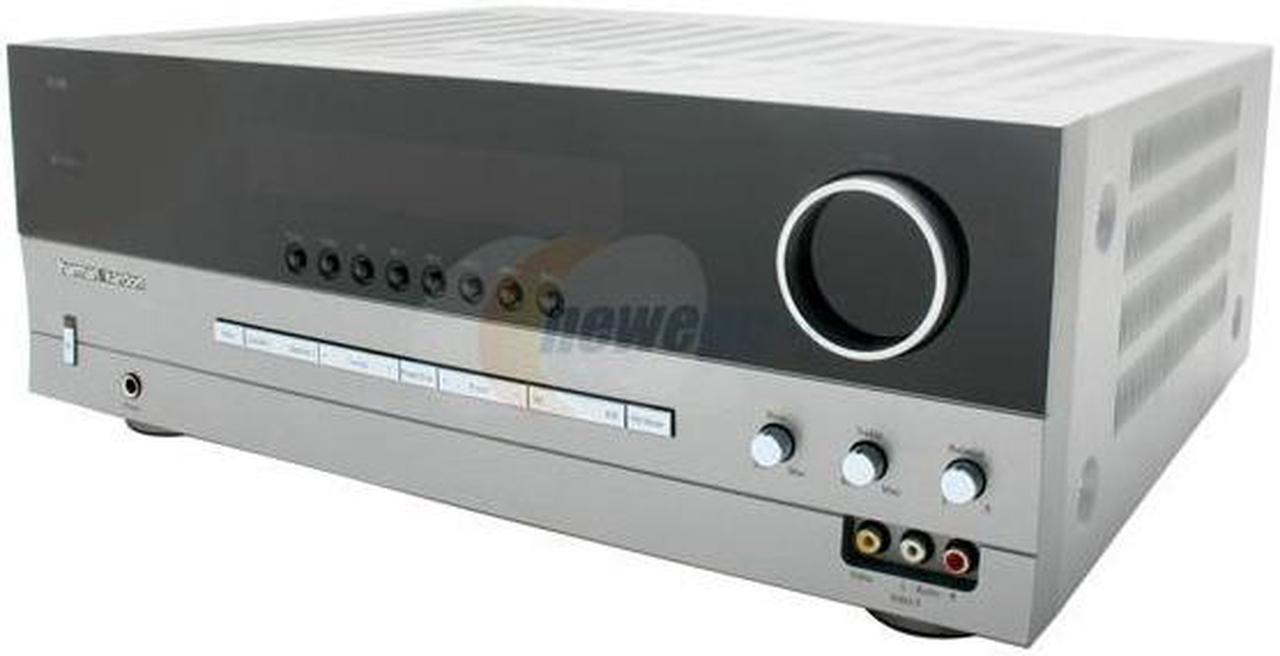

Harman/Kardon HK3480 Stereo Receiver
REFURBISHED Product Type
- Stereo 120 Watts per channel, 20Hz – 20kHz @ <0.07% THD, both channels driven into 8 ohms 150 Watts per channel, 20Hz – 20kHz @ <0.2% THD, both channels driven into 4 ohms
- FM/AM Tuner
Specs
Reviews
Learn more about the HARMAN KARDON HK3480
| Brand | Harman/Kardon |
|---|---|
| Model | HK3480 |
| Type | Receiver |
|---|---|
| Color | black/Silver |
| Channels | Stereo |
| Power Output | 120 Watts per channel, 20Hz – 20kHz @ <0.07% THD, both channels driven into 8 ohms 150 Watts per channel, 20Hz – 20kHz @ <0.2% THD, both channels driven into 4 ohms |
|---|---|
| Frequency Response | 10Hz – 110kHz |
| Audio | Signal-to-Noise Ratio (IHF-A): 95dB Rise Time: 16µsec Slew Rate: 40V/µsec |
| Video | Television Format: NTSC/PAL/SECAM Signal Format System: Composite Input Level/Impedance: 1Vp-p/75 ohms, unbalanced Sync Polarity: Negative Output Level/Impedance: 1Vp-p/75 ohms, unbalanced Video Frequency Response: 10Hz – 10MHz |
| FM/AM Tuner | FM Tuner Frequency Range: 87.5 – 108MHz Usable Sensitivity: IHF 1.12µV/13.5dBf Signal-to-Noise Ratio: Mono/Stereo 73/72dB Distortion: Mono/Stereo 0.3/0.4% Stereo Separation: 40dB @ 1kHz Selectivity: ±400kHz, 65dB Image Rejection: >80dB IF Rejection: >100dB Tuner Output Level: 1kHz, ±100kHz, Dev 500mV AM Tuner Frequency Range: 520 – 1720kHz Signal-to-Noise Ratio: >40dB Usable Sensitivity: Loop 500µV/M Distortion: 1kHz, 50% Mod 0.8% Selectivity: ±10kHz, >25dB |
|---|
| Power Supply | AC 120V/60Hz |
|---|---|
| Consumption | 280 Watts maximum (both channels driven) |
| Standby Consumption | 3 Watts |
| Dimensions | 17.4" x 6.6" x 15" / 442 x 168 x 382 mm (W x H x D) |
|---|---|
| Weight | 23.0 lbs. (10.44kg) |
| Date First Available | March 06, 2007 |
|---|
