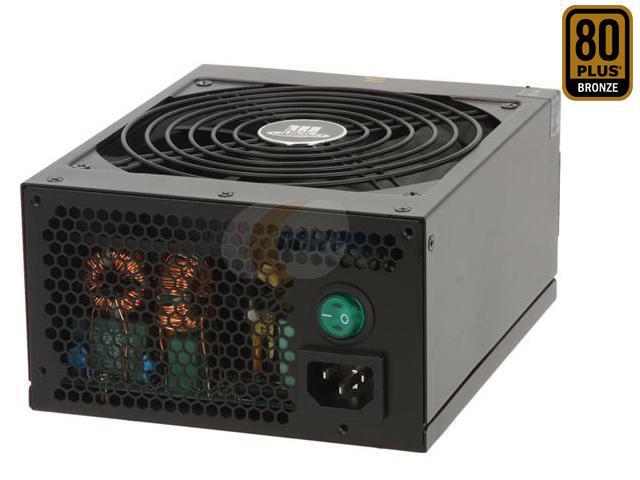

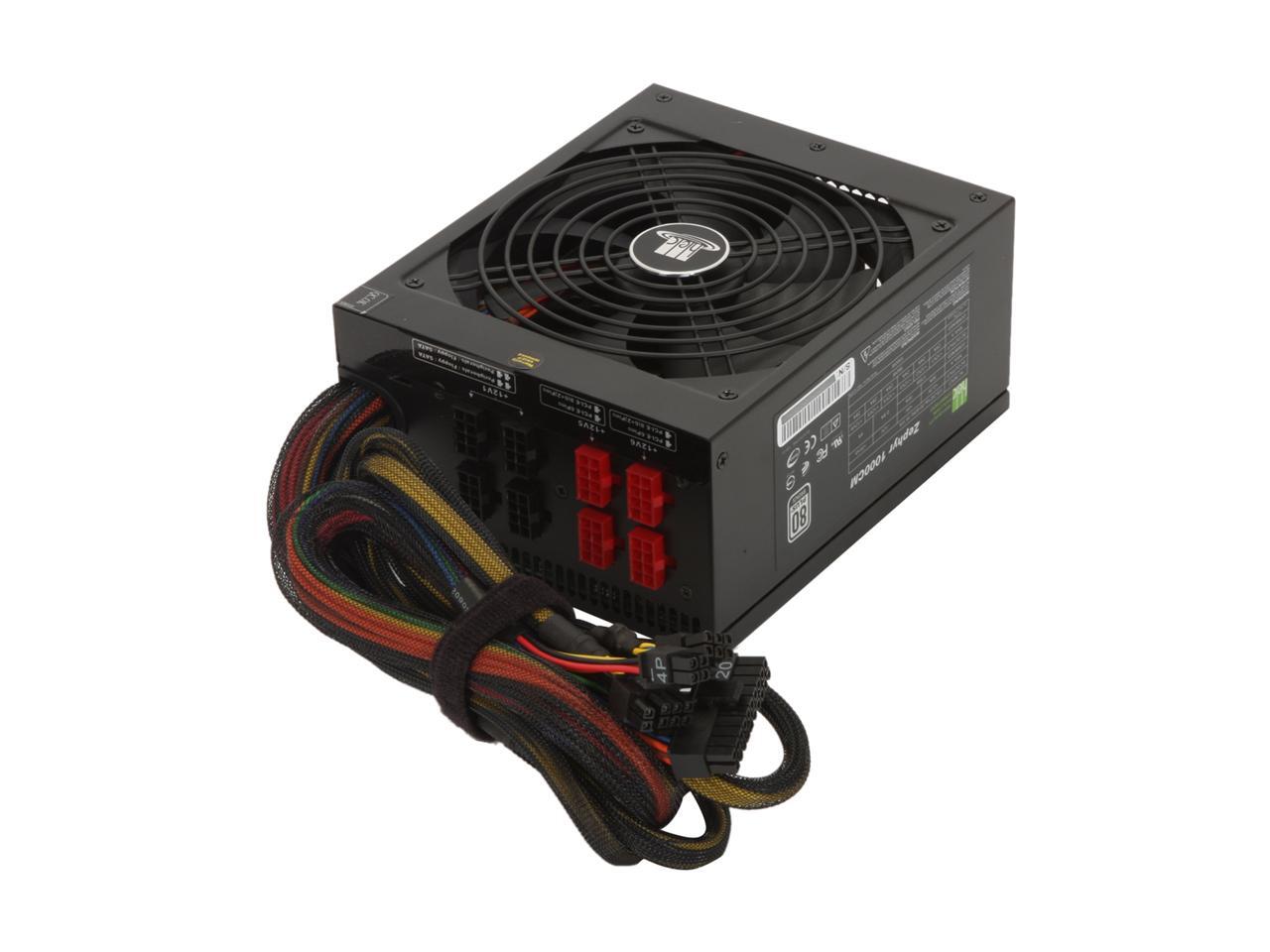

hec Zephyr 1000 1000W ATX12V V2.2 / EPS12V V2.91 SLI Certified CrossFire Certified 80 PLUS BRONZE Certified Modular Active PFC Power Supply
OUT OF STOCK.
- ATX12V V2.2 / EPS12V V2.91
- Modular
- 80 PLUS BRONZE Certified
- 100 - 240 V 50/60 Hz
- +3.3V@30A, +5V@30A, +12V1@24A, +12V2@24A, +12V3@24A, +12V4@24A, +12V5@28A, +12V6@28A, -12V@0.8A, +5VSB@4.0A
Specs
Reviews
Learn more about the Compucase Zephyr 1000
| Brand | hec |
|---|---|
| Model | Zephyr 1000 |
| Type | ATX12V V2.2 / EPS12V V2.91 |
|---|---|
| Maximum Power | 1000W |

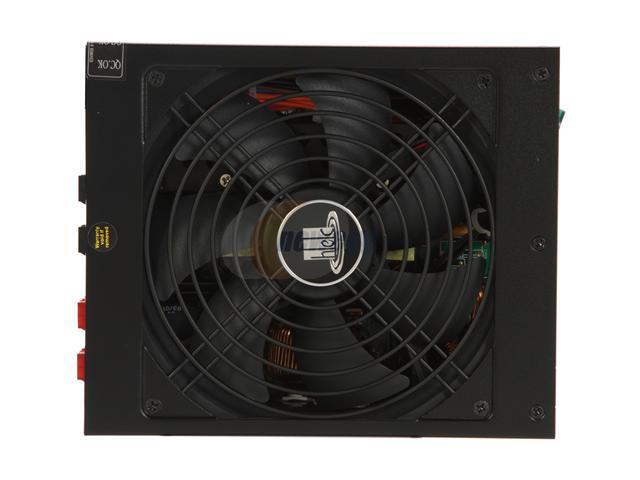

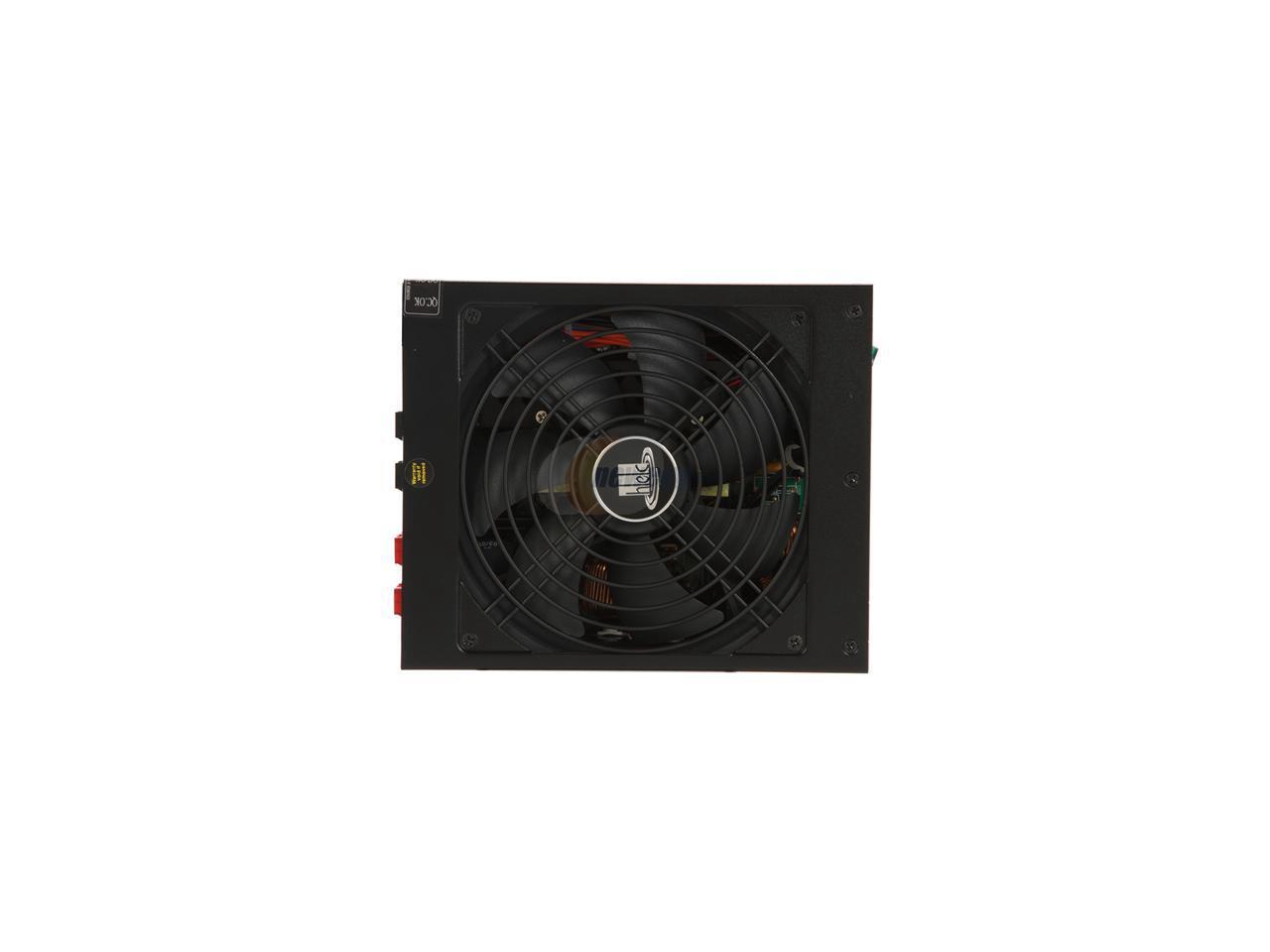

| Fans | 1 x 140mm Ultra Quiet Thermal-Controlled Ball Bearing Fan |
| PFC | Active |
| Main Connector | 20+4Pin |
| +12V Rails | 6 |
| PCI-Express Connector | 3 x 6-Pin, 3 x 8-Pin |
| SATA Power Connector | 8 |
| SLI | SLI Certified |
| CrossFire | CrossFire Certified |

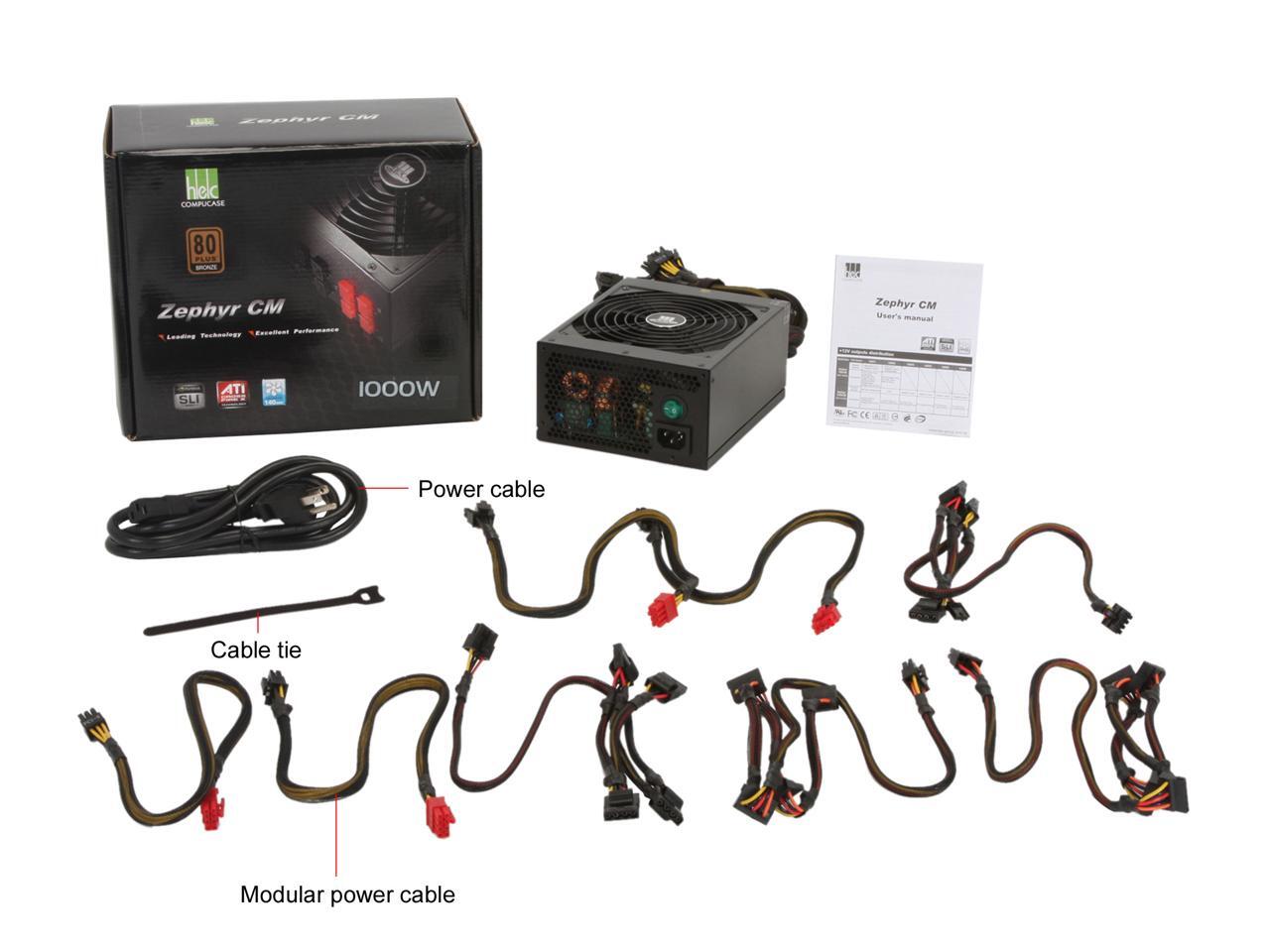

| Modular | Modular |
| Efficiency | Up to 87% |
| Energy-Efficient | 80 PLUS BRONZE Certified |
| Over Voltage Protection | Yes |
| Overload Protection | Yes |
| Input Voltage | 100 - 240 V |
| Input Frequency Range | 50/60 Hz |
| Input Current | 10A |

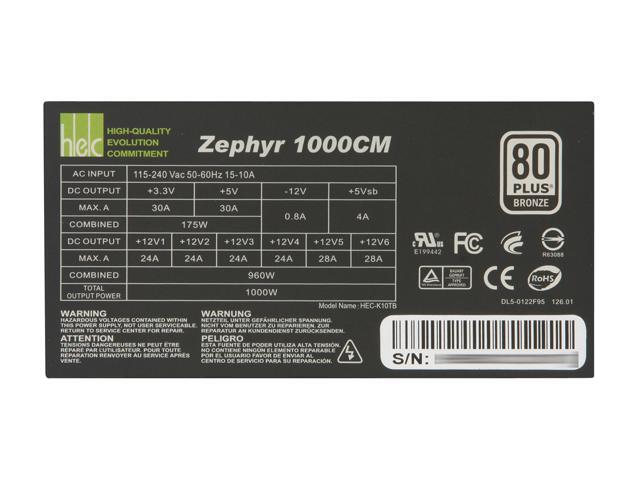

| Output | +3.3V@30A, +5V@30A, +12V1@24A, +12V2@24A, +12V3@24A, +12V4@24A, +12V5@28A, +12V6@28A, -12V@0.8A, +5VSB@4.0A |
| Approvals | FCC, UL (E199442), ROHS |
| Dimensions | 6.5" x 5.9" x 3.4" |

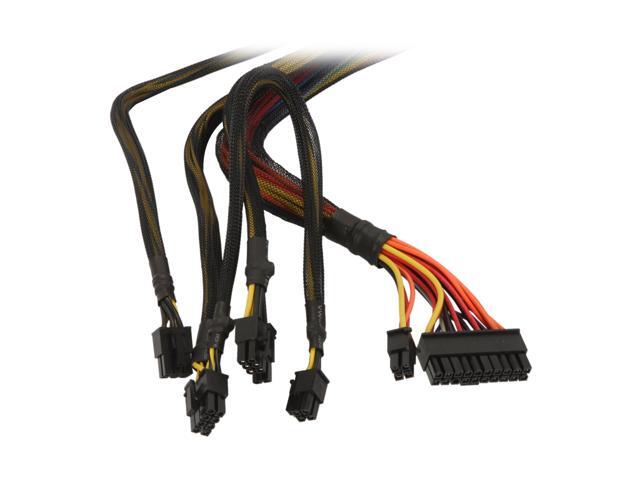

| Connectors | 1 x Main connector (20+4Pin) 1 x 8Pin EPS 12V 1 x 4Pin ATX 12V 7 x peripheral 8 x SATA 1 x Floppy 3 x 6Pin PCI-E 3 x 8Pin PCI-E |
|---|---|
| Features | NVIDIA HYBRID-SLI Certified - 9800 GX2 Six independent and stable +12V rails promote the best performance to gamers Extremely Low Noise Level at < 23dB Ultra Quiet Smart Fan Design Modular cable design allows you to detach connectors freely and use only the cables you need Very high efficiency (> 87%) = better power consumption and less heat Created for usage with current and next-generation multi-core CPU and GPU platforms |
| Date First Available | May 26, 2009 |
|---|
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Limited Warranty period (parts): 1 year
- Limited Warranty period (labor): 1 year
- Read full details
Return Policies
- Return for refund within: 30 days
- Return for replacement within: 30 days
- This item is covered by Newegg.com's Standard Return Policy
Manufacturer Contact Info
- Manufacturer Product Page
- Manufacturer Website
- Support Phone: 1-800-909-6558
- Support Website
- View other products from Compucase
LOADING...























Pros: Attractive, stable, quiet.
Cons: Somewhat expensive for a PSU (though not for units in the 1000W range). 1x6-pin and 1x6+2-pin PCI-E cable are non-modular, as are the 4-/8-pin 12V CPU & main 24-pin connector.
Overall Review: Took a bit of a gamble purchasing this unit, but glad I did. It seems to be of very good build quality and has been highly reliable while powering my Q6600 & dual GTX260s. I was even impressed with the very heavy gage of the included external power cord. It's worth noting that the PCI-E connectors are actually 3x6-pin & 3x6+2-pin. I've attempted to notify NewEgg that their product page is inaccurate (or at least inconsistent with similar listings from other manufacturers), but they don't seem to have any interest in updating the listing. Hopefully people looking to run tri-SLI or Crossfire setups which require 4 or more 6-pin plugs aren't missing out on this PSU due to this oversight. :-/
