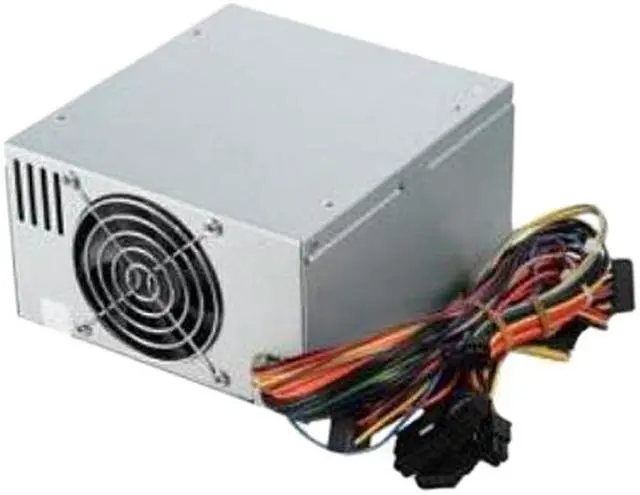

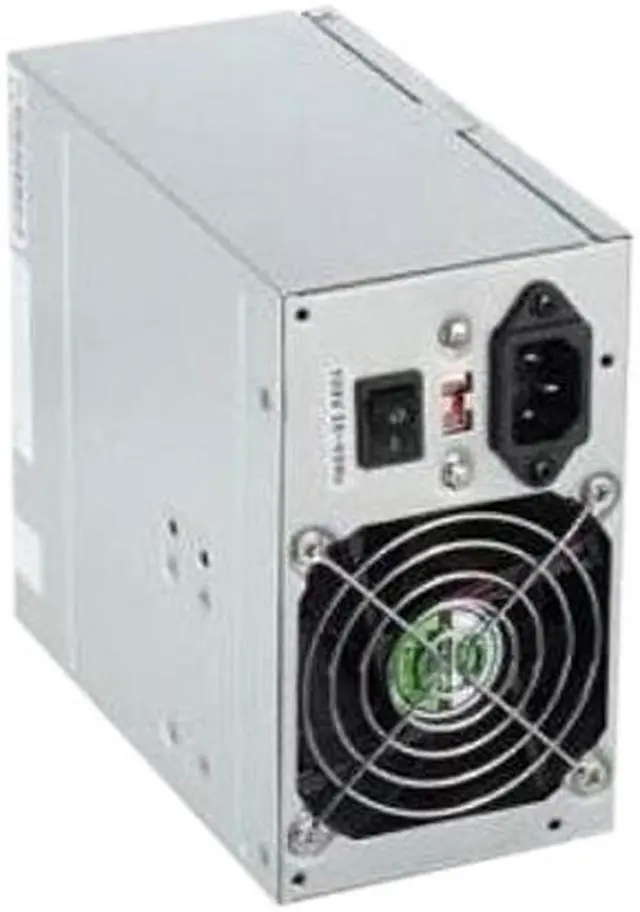

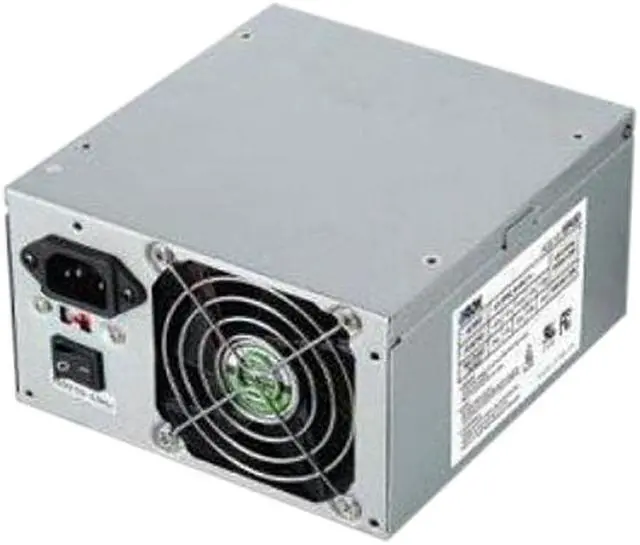

hec HEC400VNBDX 400 W ATX12V Ver1.3 Power Supply - OEM

(4) Write a Review
  • ATX12V Ver1.3
  • 115 / 230 V 50/60 Hz
  • +3.3V@30A, +5V@36A, +12V@18A, -12V@1A, [email protected]
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Specs
Reviews (4)
avatar

Any questions? Our AI mode will help you find out quickly.

Try me now

Learn more about the Compucase HEC400VNBDX

General
Brand hec
Model HEC400VNBDX
Details
Type ATX12V Ver1.3
Maximum Power 400 W
Fans Dual 80mm Ball Bearing Fan
Main Connector 20+4Pin
+12V Rails Single
PCI-Express Connector No
SATA Power Connector 4
SLI No
CrossFire No
Max PSU Length 165 mm
Modular No
Hold-up Time 16.6ms min.
Efficiency 68% minimum, 72% Typical At Full Load
Input Voltage 115 / 230 V
Input Frequency Range 50/60 Hz
Input Current 8A @ 115V, 5A @ 230V
Output +3.3V@30A, +5V@36A, +12V@18A, -12V@1A, [email protected]
MTBF >100,000 Hours
Connectors 1 x Main connector (20+4Pin)
4 x Peripheral
4 x SATA
2 x Floppy
Features
Features Intel ATX 12V Ver. 1.3 compliance supports the latest processors and platforms including BTX form factor
High Efficiency (68% minimum, 72% Typical At Full Load)
TC Function (Thermal Control)
OPP / OVP / SCP / UVP
Meet EN60950 Requirement
Complies With FCC Part 15J Class B 115Vac Operation
Meet UL 1950, CISPR22.2 Level 3 Requirement
100% Hi-Port & Function Tested
100% Burn-In Under High Ambient Temperature (50°C)
Dimension & Weight
Dimensions 3.39" x 5.91" x 6.50"
Additional Information
First Listed on Newegg January 28, 2008
