Heltec V4 ESP32 LoRa Dev Board 2 Pack Meshtastic Kit | 2pcs 3000mAh Battery, Case, Antenna, ESP32-S3 SX1262 27dBm, Meshtastic WiFi IoT, Wireless Communication

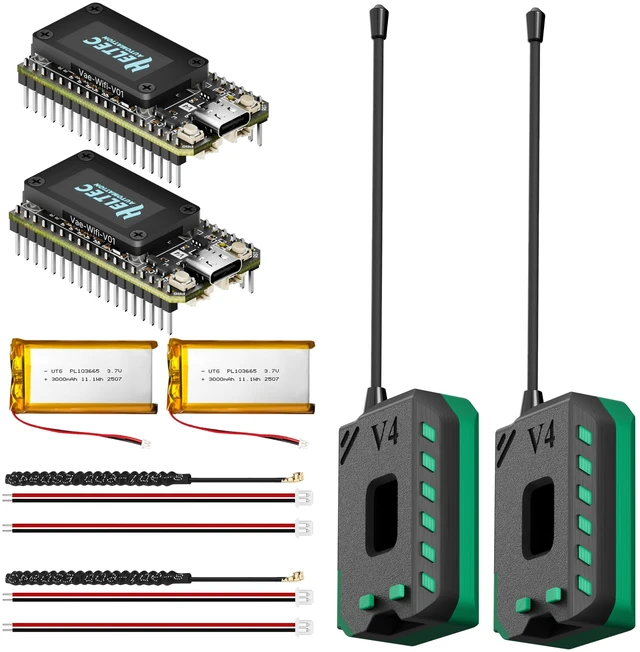

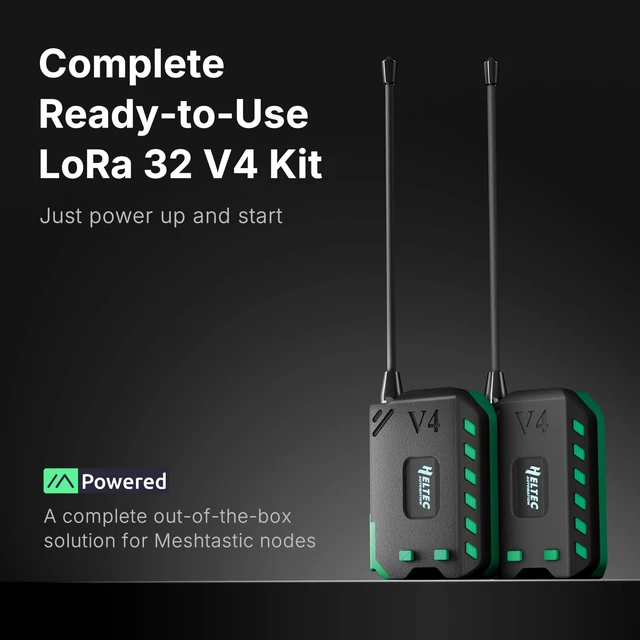

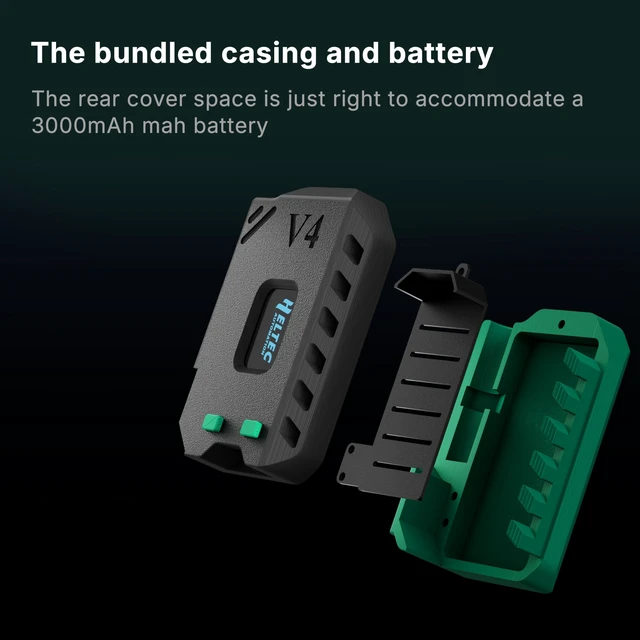

- Simple Assembly Required & Protective Case: This hardware bundle includes the two Heltec V4 board, two 3000mAh battery, two GT-800 antenna, and two dedicated protective case. Please note: This is a DIY kit (not pre-assembled). It offers a structured way to build your own Meshtastic node with professional enclosure protection. Please note that this kit does not include a GPS module, and the protective case is not designed to accommodate one.

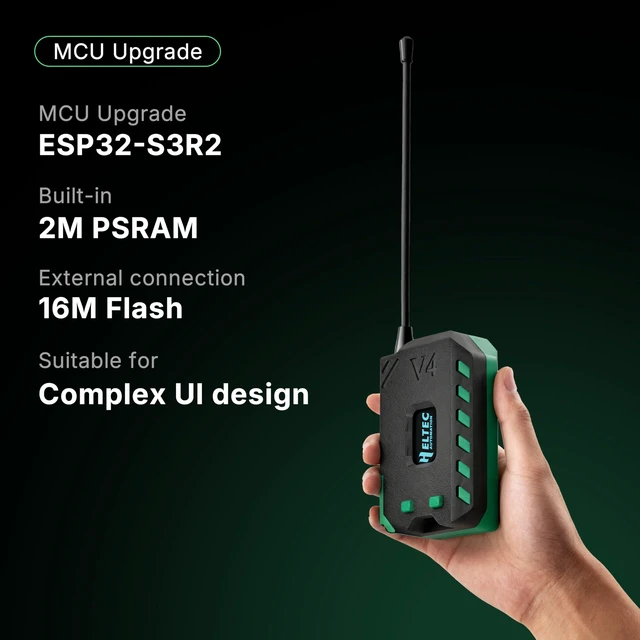

- V4 Upgraded ESP32-S3 & LoRa SX1262 Chipset for Enhanced Power Management: This ESP32 LoRa Development Board Kit features the latest ESP32 LoRa module with the powerful SX1262. Optimized for the included battery and case, it supports solar charging and ultra-low power modes, making it ideal for long-term Meshtastic applications, Meshtastic solar nodes, and IoT sensors as a reliable MeshCore device.

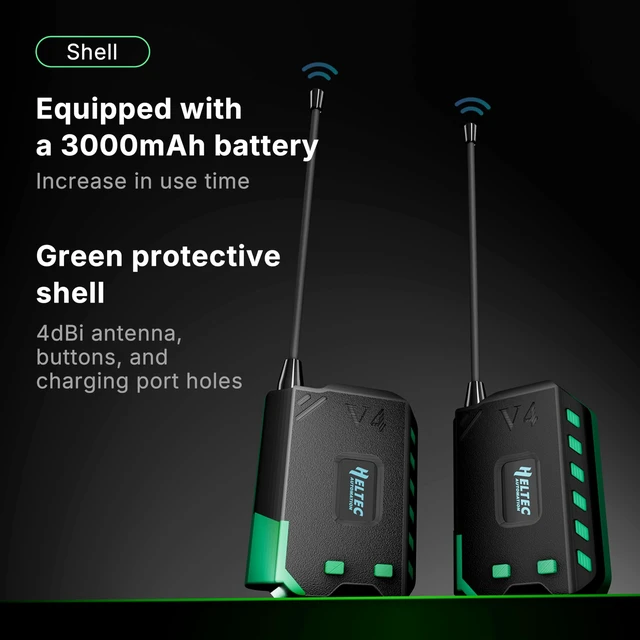

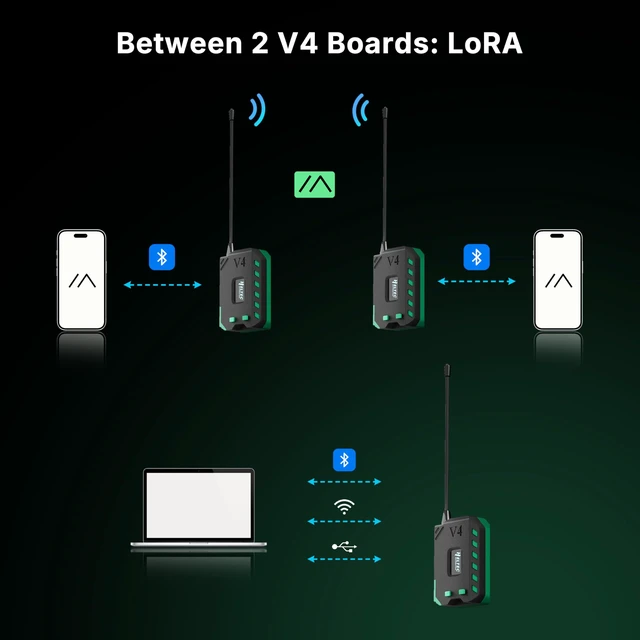

- High-Power 27dBm LoRa Radio with External Antenna & Case Integration: The heltec V4 Kit experience extended range with a powerful LoRa radio (27dBm). The Heltec V4 case features dedicated ports for antenna and charging. This setup is optimized for robust LoRa Meshtastic communication in wireless networks and Meshtastic-enabled smart systems.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Specifications Master Chip: ESP32-S3R2 LoRa Chip: SX-1262 Frequency: 863~928 MHZ Max. TX Power: 21±1dBm, 27±1 dBm Max. Receiving Sensitivity: -137 dBm Wi-Fi: 802.11 b/g/n, up to 150Mbps Bluetooth: Bluetooth LE, Bluetooth 5, Bluetooth mesh OLED: SSD1315 (0.96Inch, 128*64 resolution) Power Supply: 5V@USB, 3.3-4.2V@Battery Hardware Resource: 7*ADC1 + 2*ADC2, 7*Touch, 3*UART, 2*I2C, 2*I2S 4*SPI, etc. Memory: 384KB ROM; 512KB SRAM; 16KB RTC SRAM; 16MB Flash, 2MB PSRAM Interface: USB Type-C; SH1.25-2P lithium battery interface; SH1.25-2P solar panel interface; 2*IPEX1.0 ANT(LoRa&2.4G); 2*18*2.54 Header Pins, 2*2*2.54 Header Pins Operating: Temperature-40~85(OLED operating temperature:-40~ 70°C) Dimensions: 51.7 * 25.4* 10.7mm
