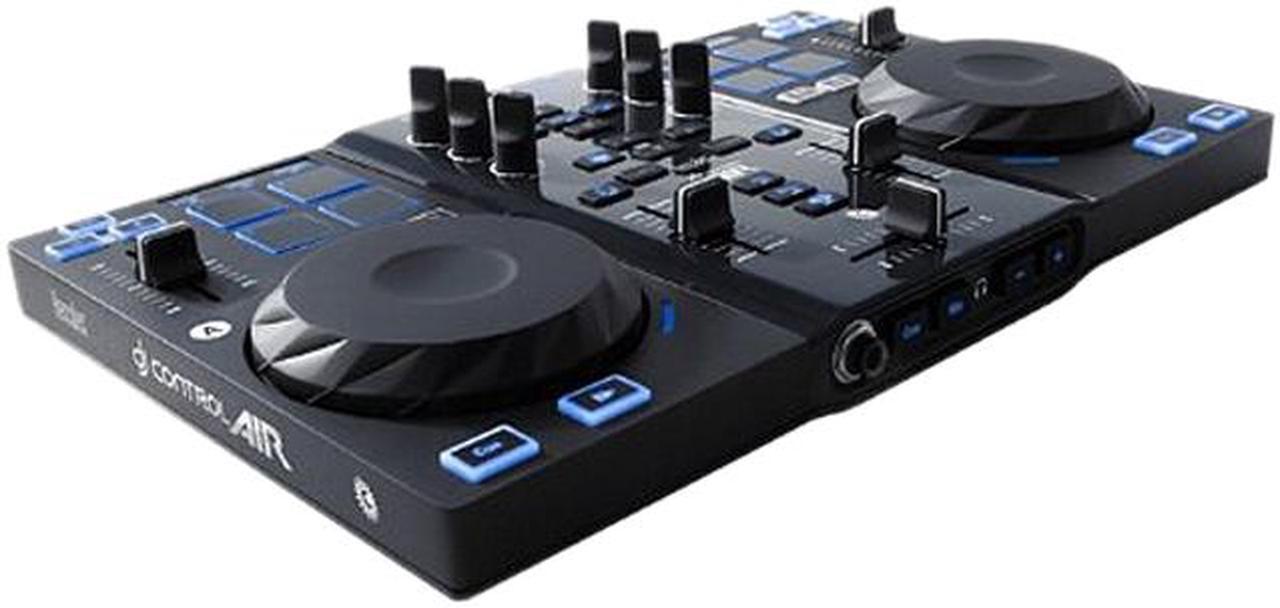

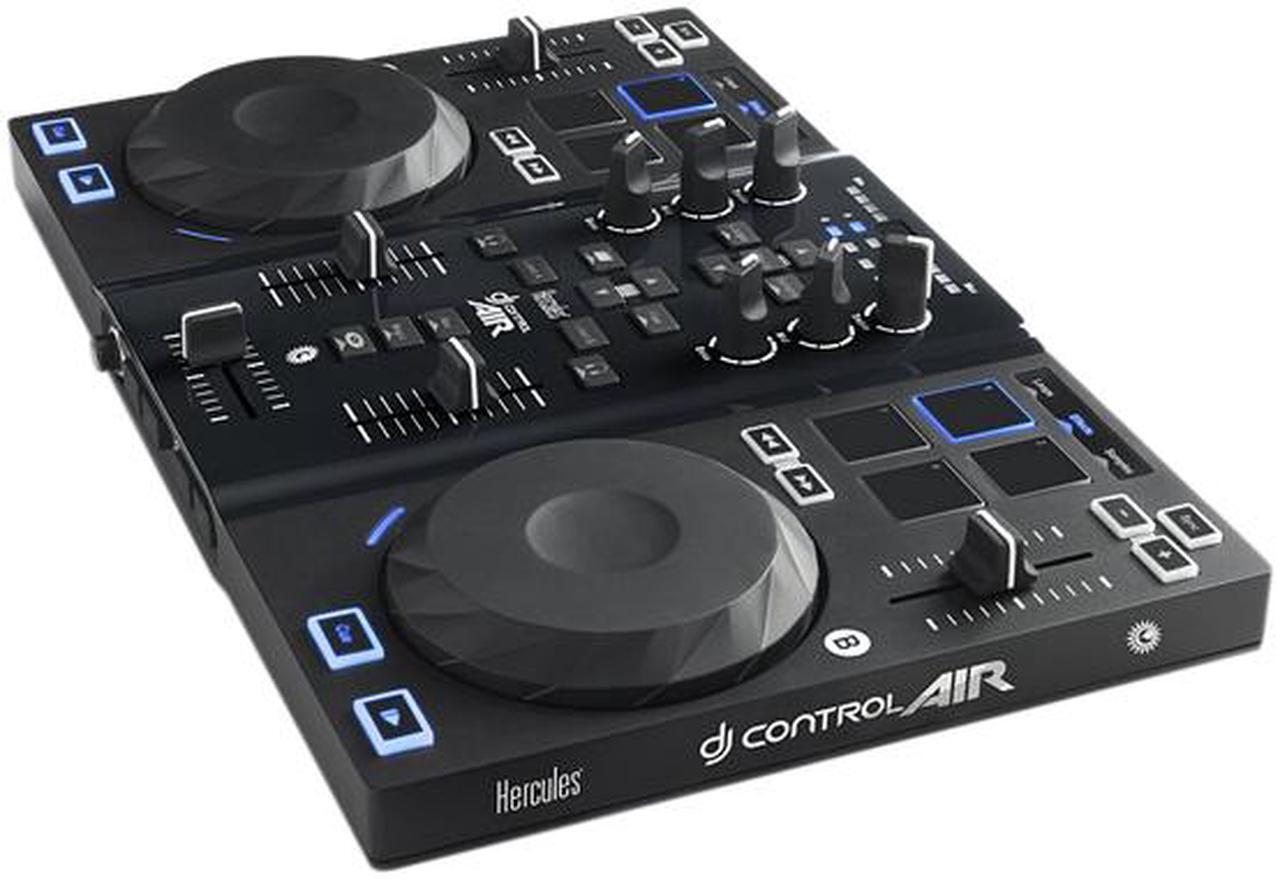

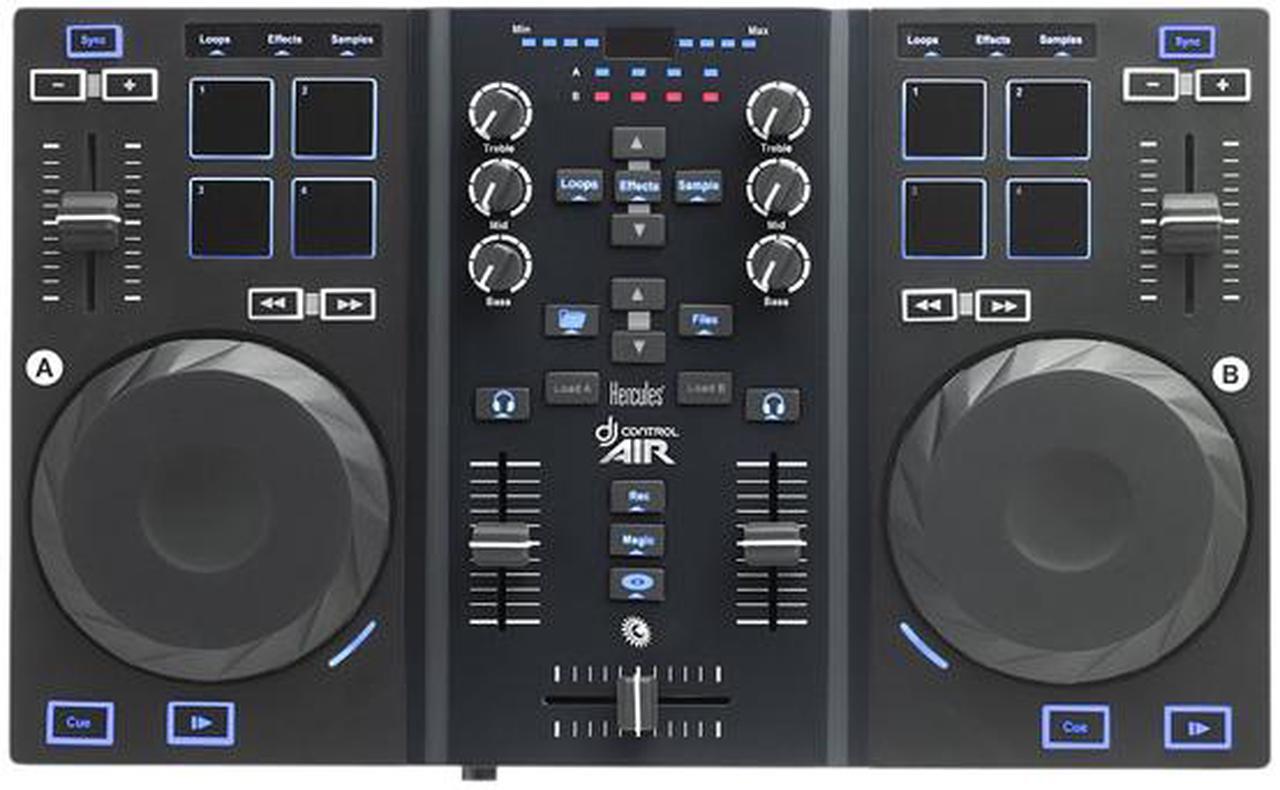

Hercules DJControl Air USB DJ Controller

(1) Write a Review
  • 2-deck DJ Controller
  • Air control: a contactless sensor lets you control the mix from above
  • Pressure-detecting jog wheels
  • 8 pads with velocity detection
  • DJUCED DJ Software included
Overview
Specs
Reviews (1)

DJControl AIR

DJ Controller with Touch and Air Controls for "Hands-On" DJ Mixing!
  • Two-Deck Control
  • Air Control
  • Pressure-Detecting Jog Wheels

Features


DJControl AIR
  • Two-Deck DJ Controller
  • 2 Jog wheels with pressure detection
  • Velocity sensitive pads
  • Air control: 1 contactless control

  • Pressure-Detecting Jog Wheels
  • Scratch by pressing on the jog wheels, as naturally as with a vinyl record
  • Jog wheels also control pitch bend and browsing within tracks

  • Eight Pads with Velocity Detection
  • The pads control the sampler, loops and effects
  • The inner backlight shows the pads' activation
  • Pads can be set as binary On/Off controls, or gradual controls

  • Air Control: A Contactless Sensor Lets You Control the Mix from Above, Without Even Touching the Device
  • DJ Control Air converts the distance to your hand into a MIDI command
  • No need to touch the controller: one command of the mix without any physical contact
  • Compatible with all light conditions

  • Built-In Audio Outputs for Mixing and Previewing Tracks
  • 1/8" (3.5mm) Stereo mini-jack output for the mix
  • 1/4" (6.35mm) Stereo jack output for previewing tracks

Technical Specifications

Air Control
Why is the Controller called DJ Control Air?
    Air Stands for "Adjustment by InfraRed": It is a Contactless Control
  • The DJ places his or her hand flat over the infrared beam.
  • The controller calculates the distance between the sensor and the hand, and converts it into a gradual MIDI command.
  • This MIDI command modulates a setting in the DJ software.
Does Air Control Require Specific Light Conditions?
    No, Air Control Functions Under Any Light Conditions
  • The infrared light beam projected towards the hand is invisible.
  • The sensor captures the infrared reflection on the hand, and uses the reflection to calculate the hand's distance.
  • The reflection is the same in both daylight and low light conditions, allowing Air control to be used during the day, at night or in places with weak lighting.
  • Air control functions with all flesh tones. The only incompatibility is the use of black gloves (as the infrared sensor would not be able to detect the reflection).
Eight Pads
    Two Sets of Four Pads Control Loops, Sampler and Effects Commands
  • The DJ taps on the pads with his or her fingertips to send commands such as looping, sampler or effects.
  • The pads light up when touched.
  • In addition to a binary On/Off command, each pad can transfer velocity information to modulate the command.
  • For example: in sampler mode, the velocity can control the volume of a sample's playback. The playback volume depends on how soft or how hard the DJ taps on the pad.
Pressure-Detecting Jog Wheels
    The Jog Wheels Detect the Pressure from the User's Hand
  • With scratch mode enabled, the jog wheels scratch when the hand's weight is detected, and stop scratching when the hand's weight is no longer detected. This allows the DJ to:
    • Stop playback by pressing on the jog wheel.
    • Restart playback by lifting up his or her hand.
    • Scratch by turning the jog wheel while pressing down, and stop scratching by lifting up his or her hand.
    • Bend the pitch (if playback is on) / browse within tracks (if playback is off) by turning the jog wheels using their outer ring, to avoid applying downward pressure.
  • With scratch mode disabled, the jog wheels bend the pitch or browse within tracks when the jog wheels are turned, regardless of the pressure applied.

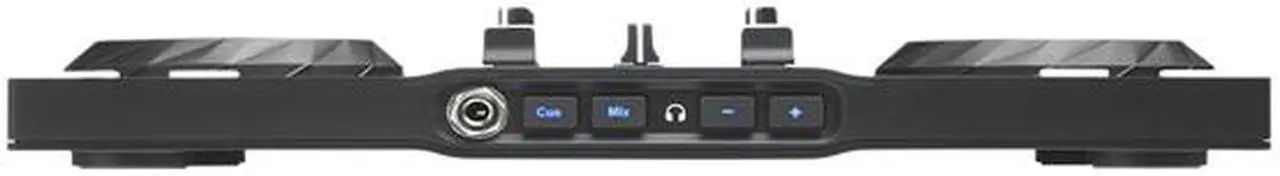

Built-In Audio
  • 1/8" (3.5mm) Stereo output for the mix
  • 1/4" (6.35mm) Stereo output for headphone previewing
DJUCED DJ Software
  • Intuitive, powerful software
  • Mix two audio tracks on the fly
  • Save your mix as an audio file
Mechanical Specifications
  • Casing: 13.78 x 8.66 x 1.18" (35 x 22 x 3cm)
  • Jog wheels: 3.94" (10cm) diameter
  • Weight: 3.1lbs (1.4kg)
  • USB cable: Attached

Information

    Minimum Configuration
  • Computer with 1.5GHz CPU or faster
  • 1GB RAM or more
  • Powered USB port
  • 100MB available hard disk space
  • CD/DVD-ROM drive
  • Internet access
  • Amplified stereo speakers and headphones
  • Operating system: Microsoft Windows® XP, Vista /7 or 8 or Mac OS 10.5, 10.6 or 10.7 on Core Duo Mac

    Box Contents
  • Hercules DJ Control Air
  • Installation CD-ROM (PC/Mac) with PC/Mac DJ software
  • Printed installation guide + online manual

Gallery

DJControl AIR DJControl AIR DJControl AIR DJControl AIR

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 2 years
  • Limited Warranty period (labor): 2 years
  • Read full details
