This is a universal power supply fits almost all DC input sockets. Wide Applications for GPS, CCTV camera system, HDMI Converter, LED strip light , DVD Player, DVR, Bluetooth Speaker, mobile, Kindle, camera, router, tablet, radios, electronic gizmos, replacing charger cords, rowing machine, games consoles and many other household electronics.
Parameter
Input: AC 100V~240V 50/60Hz

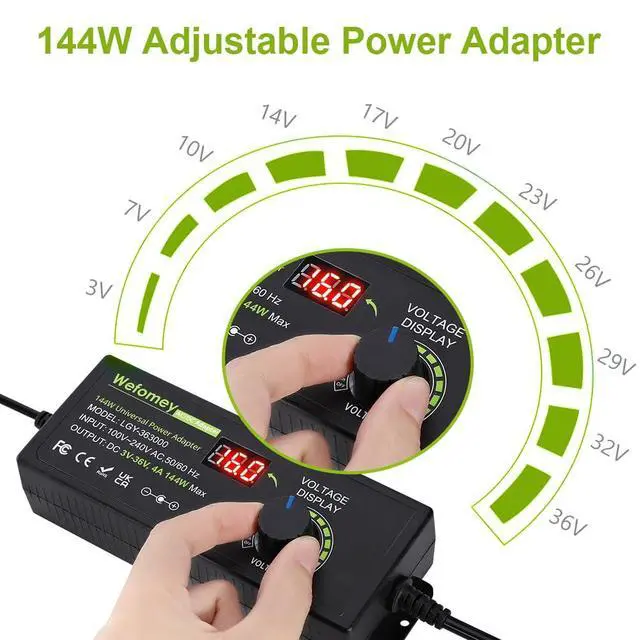

Output Voltage: DC 3V~36V Adjustable
Output Current: Max 4A
Output Wattage: Max 144W

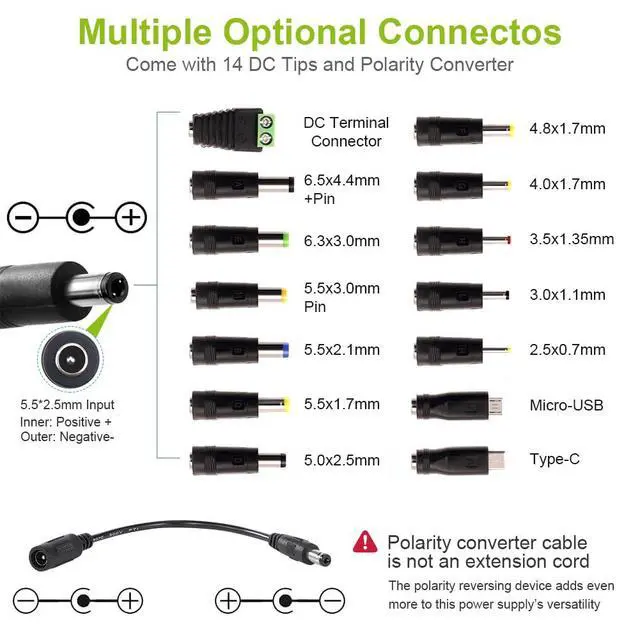

Output DC connector: 5.5mm x 2.5mm (inside"+", outside"-") 14 Tips Size: 6.5x4.4mm+Pin, 5.5x2.1mm, 5.5x3.0mm+Pin, 5.0x2.5mm, 6.3x3.0mm, 5.5x1.7mm, 4.8x1.7mm, 4.0x1.7mm, 3.5x1.35mm, 3.0x1.1mm, 2.5x0.7mm, Micro-USB, Type-C and DC terminal connector.
Reverse polarity converter: 5.5mm x 2.1mm
Power cable length: 6.56ft / 200cm
Safety Compliance: FCC / CE/ RoHS
Working Temperature: -20~50?
Package included

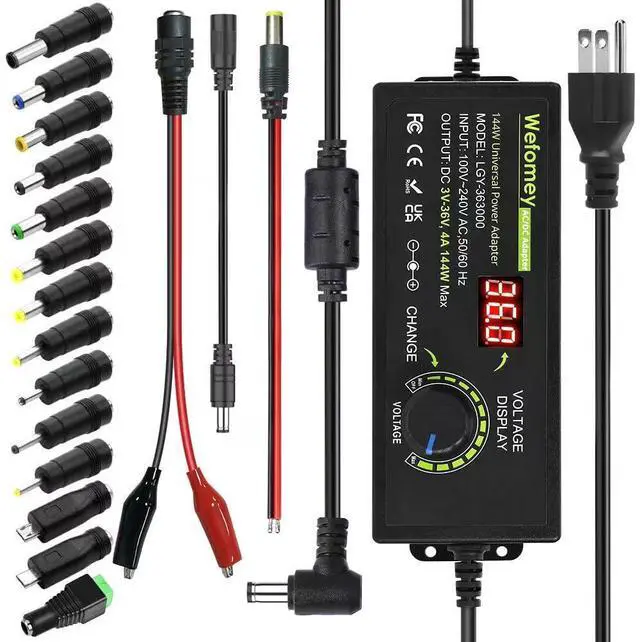

1x144W Universal Power Supply Adapter; 14x DC Tips; 1x Reverse Polarity Converter Cable, 1x Alligator Clip Test Lead, 1x Male DC Power Pigtail Cable
-Alligator clip test lead is perfect for electrical testing such as electronic experiments, bread boarding, circuit testing, battery test, electric appliance test, digital product power connection test, prototyping, and troubleshooting.
-DC Power Pigtail Cable are widely used in various DC connections, low-voltage cables, CCTV systems, DVRs, car rear-view monitoring system video, and are ideal for home life and work.
-The 17cm short black power cord is a reverse polarity converter, not extension wire. It is used to reverse the original polarity of the power supply output port ( reverse the internal positive pole to negative , and the external negative pole to positive). Please confirm the polarity of your devices’ power port before use. If the positive and negative poles are reversed, it will cause short circuit and damage your device.
Instructions on how to choose a suitable adapter:
1. Check Voltage Please find the spec label of your device and check the working voltage. It should be among 3V~36V DC, not lower than 3V or higher than 36V DC. Otherwise, your device will not work or be damaged.
2. Check Current Check the max current your device will draw. It should be equal to or less than 4A, such as 500mA,1A, 1.5A, 2A, 2.5A, 3A, 3.5A, 4A. Otherwise, your device won’t work well and the PS will be damaged very soon.
3. Check Plugs Check the power input port of your device. The PS is equipped with 14 pcs frequently-used DC tips. Please confirm wether it fits for your device before buy. If you can 't confirm, please measure it with a ruler.
4. Check Original PS If you have a original power supply for reference, their output voltage, plug size, polarity should be the same . If our PS’s current is equal to or higher than original one’s, then our PS will work with your device.
