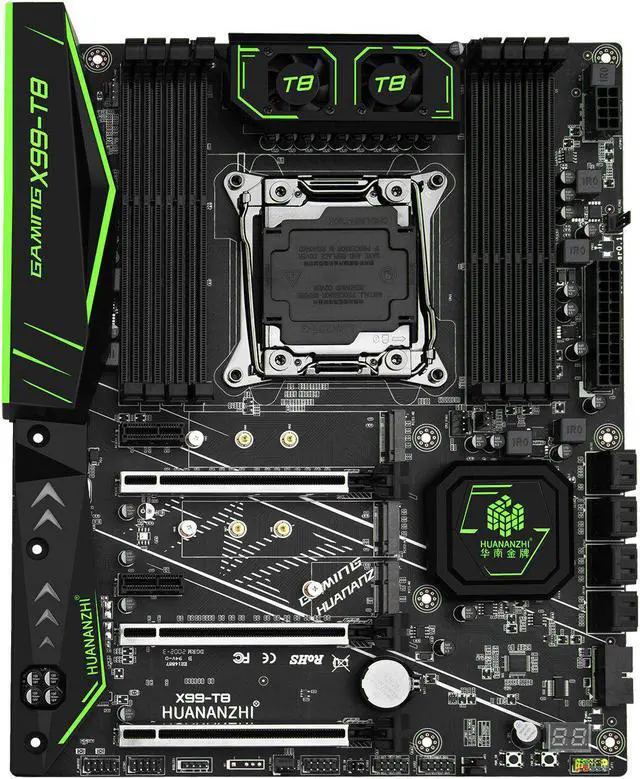

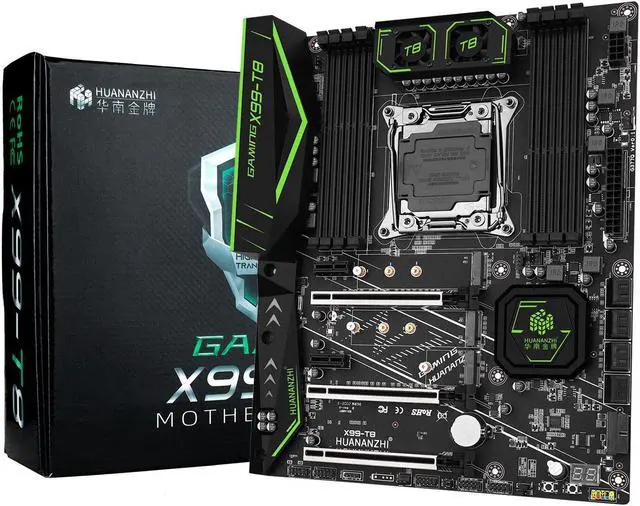

X99-T8 Desktop Motherboard Support2011-3Xeon E5 2678V3/2676V3/2673V3/2629V3/2649V3/2669V3/2696V3

Specification:

Series

series

Model

X99-T8 Motherboard

CPU Socket

Support

LGA2011-3 Xeon, Support E52678V3/2676V3/2673V3/2629V3/2649V3/2669V3/2696V3

Memory

Socket

8*DDR3 Memory Socket

Memory

Standard

Support Four Channels DDR3 1866/1600/1333MHz Maximum Memory Capacity 8*32G

SATA

8*SATA3.0 Interface

Extended

interface

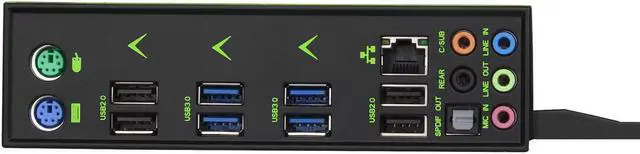

IO: 1*PS/2 Mouse/keyboard interface4* USB3.04*USB2.01*Gigabit Ethernet Card5*3.5MMAudio interface;

Expansion pin 2*9pin USB2.0 1*19pin USB3.0 1*Front audio output pin

Expansion

Slots

2*PCI Express3.0X16 , 2*PCI ExpressX1 , 1*PCI ExpressX4 , 2*M.2 NVME, 1*M.2 WIFI

Soud Track

ALC892 7.1 Sound Track

Network

Interface

RTL8111H Gigabit Ethernet Card

Power

interface

24pin+8pin

Fan

interface

4

PCB

layer

10 layer, 6Phases

Dimension

300*244MM ATX

Packing list

1*User_s manual 1*l/ baffle 2*SATA line 1*drive CD

Features:

1. Support 2011-3Xeon; E5 2678V3/2676V3/2673V3/2629V3/2649V3/2669V3/2696V3.

2. 8xDDR3 Memory Slot, DDR3 1066/1333/1600/1866 MHz.

3. NON-ECC/REG ECC/ECC memory.

5. One-piece I/O Panel

6. Silent cooling fan, Power /Restart button, Digital audio nterfac

7. 3 x PCIe 3.0/2.0 x16 (x16 mode) , 1 x PCIe 3.0/2.0 x4 (x4 mode), 2 x PCIe 3.0/2.0 x1

8. RJ45 Gigabit Ethernet Card

Package Included:

1* X99-T8 Desktop Motherboard

1*  User Manual

2* SATA cable
