NUC Dual Gigabit LAN Mini PC Intel i5 8250U i7 7500U DDR4 Pfsense Router 2 COM AES-NI DP Linux Network Server

Product Option:Color:4GB Ram 64GB SSD,Bundle:Core i7 7500U DDR4.Contact with us if you need other option.

Buy with confidence! 3 Years long warranty for fanless system!

Click below pic  to get the newest 10th gen i7 10510U i5 10210U

How to select Configuration?

For example:

1. You click " No Ram No Storage" from Color and "CPU Core i5 8250U" from Bundle, we will ship the mini pc i5 8250 U with no ram no storage included and No O/S to you.

2. You click " 8GB Ram 128GB SSD" from Color and "CPU Core i5 8250U" from Bundle, we will ship the mini pc i5 8250U with 8GB Ram 128GB SSD and Windows preinstalled to you.

Barebone system no ram no storage, please use DDR4 260 pins 2133 or 2400MHz low voltage Non-ECC laptop Ram. Do not support DDR3 Ram.

Model

CPU

Onboard Intel Core i5-8250U Processor, 6M Cache, up to 3.40GHz(Turbo boost Technology) Quad Cores 8 Threads

Onboard Intel Core i7- 7200U  Processor, 4M Cache, up to 2.7GHz to 3.5GHZ(Turbo boost Technology) Dual Cores Quad Threads

Onboard  Intel Core i3 6100U 2 cores 4 threads 2.3GHz 3MB cache TDP 15W HD Graphics 520.

Onboard Intel Core i5 6200U 2 cores 4 threads 2.3GHz up to 2.8GHz 3MB cache TDP 15W HD Graphics 520.

Chipset

Intel express chipset

Material of case

High quality pure aluminum mini pc case

Memory

support 1*DDR4 2133/2400MHz, support max 16G

Storage

1*SATA3.0, 1*M.2(PCIE 4X signal); (32G/64G/128G/500G/1TB optional)

Network

2*RTL 8111E 10M/100M/1000M Lan

Graphic Card

Integrated HD Graphic Card 520

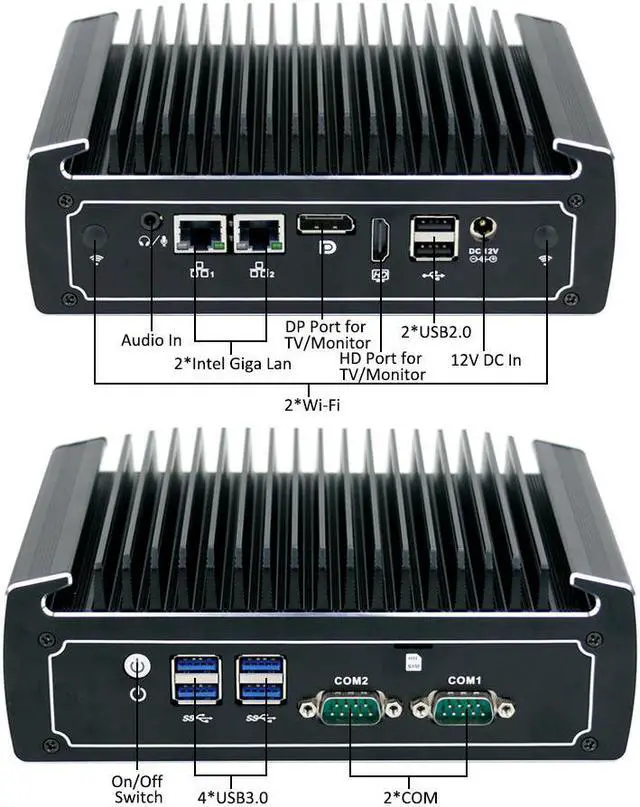

Rear  I/O

2*USB2.0

1*DP

2*RJ45 Lan

1*

1*DC-IN 12V

1*Audio(support MIC and audio)

2*Wifi hole

Front I/O

4*USB3.0

2*COM

1*Power Switch

BIOS

Mainboard
