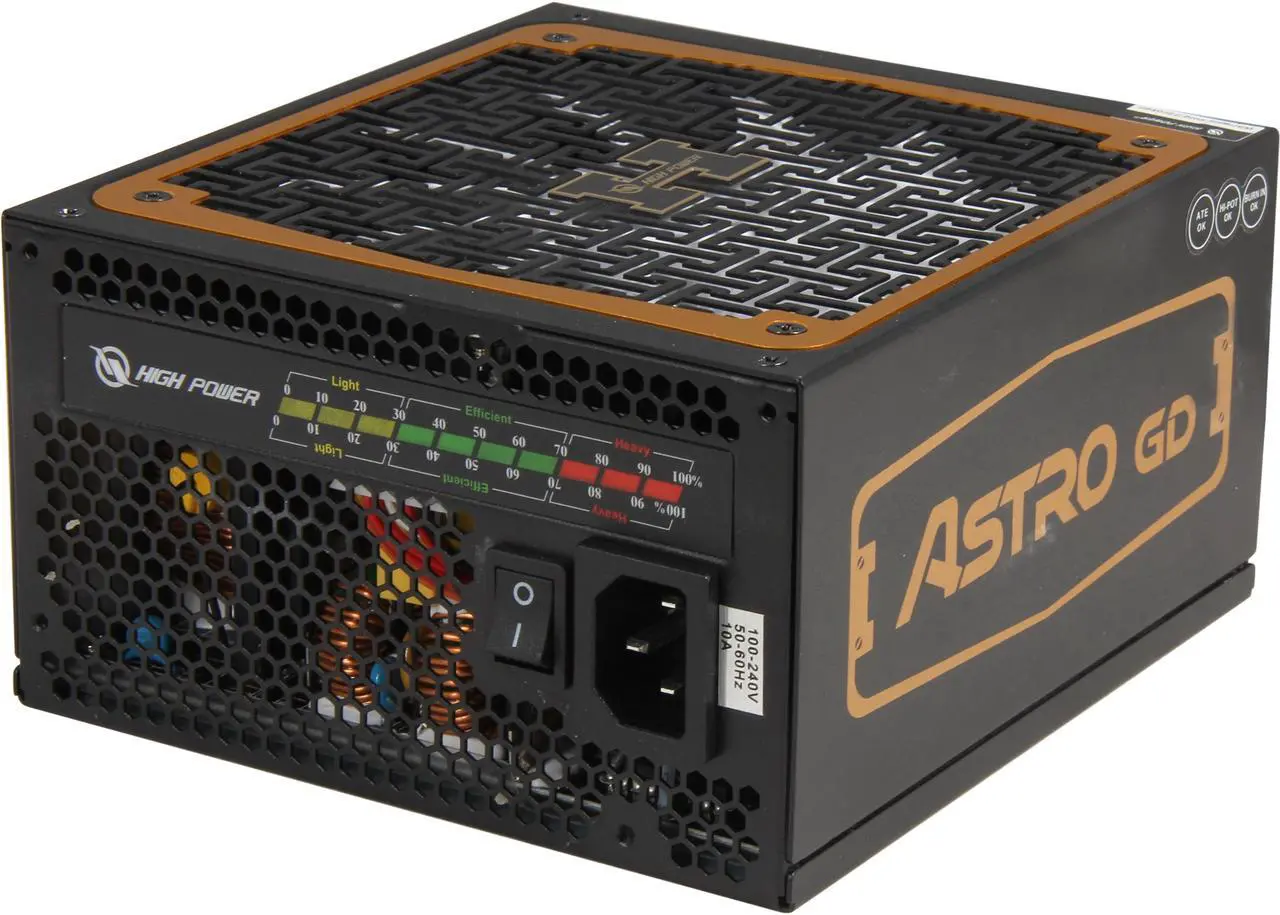

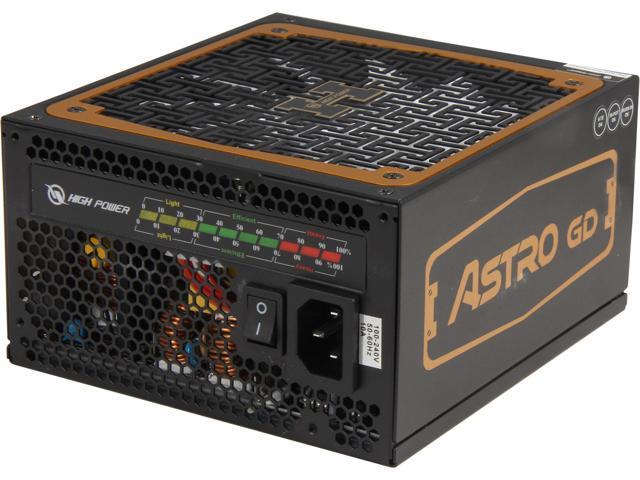

HighPower Astro GD 650W, Digital, 80+ Gold, Single +12 Rails, SLI/Cross Fire ready, Module, Active PFC Power Supply
- Digital ATX 12V v2.31 and EPS v2.92

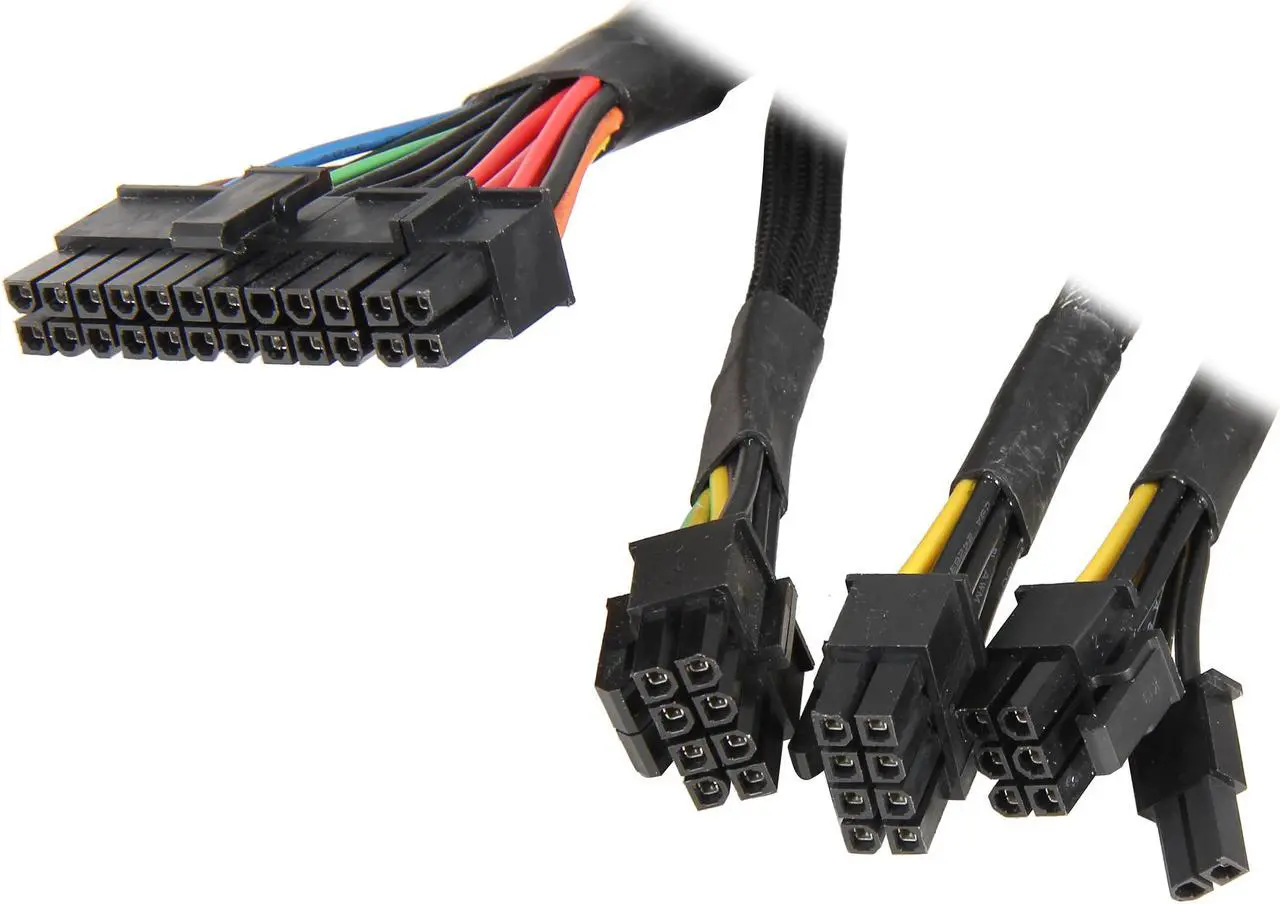

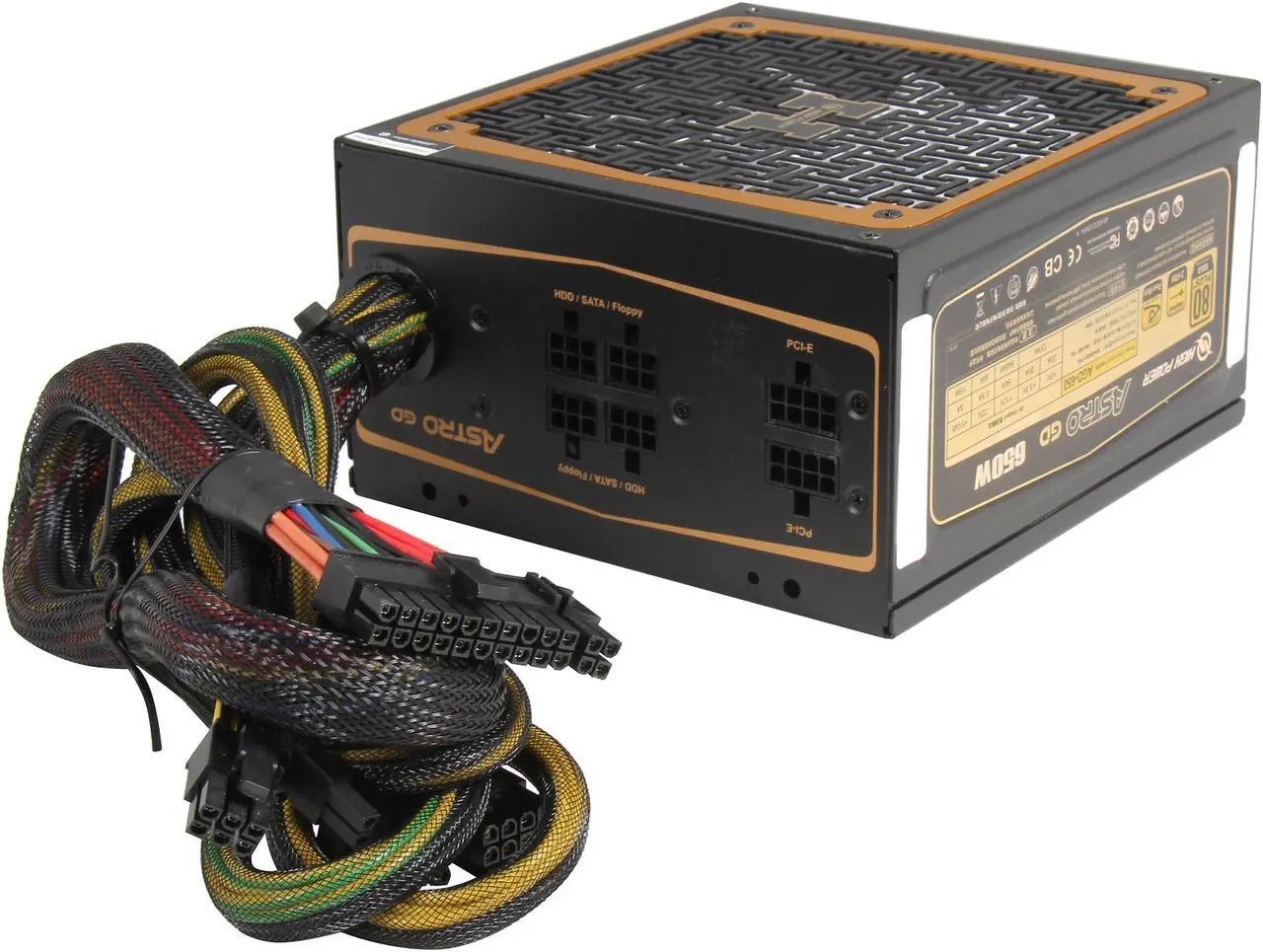

- Modular
- 80 PLUS GOLD Certified
- 100 - 240 V 50/60 Hz

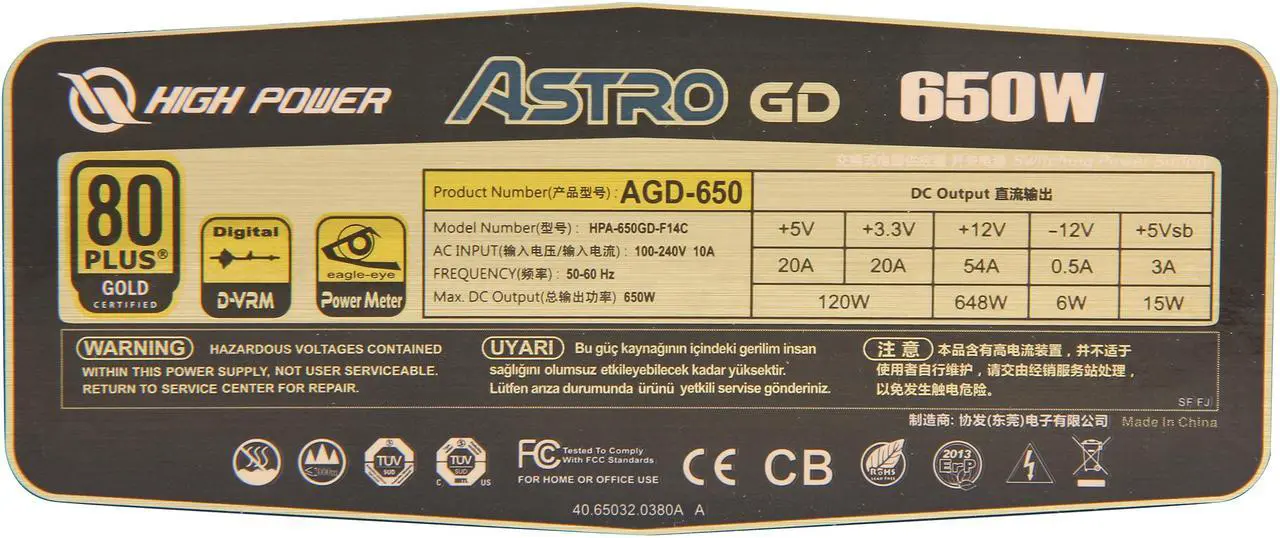

- +5V@20A, +3.3V@20A, +12V@54A, [email protected], +5VSB@3A
Overview
Specs
Reviews (1)
Any questions? Our AI beta will help you find out quickly.
Try me now
Astro Series is designed for PC builders who want the most reliable and efficient power supply and a visually appealing design. Astro's insistence on perfection stands out in this power supply series.

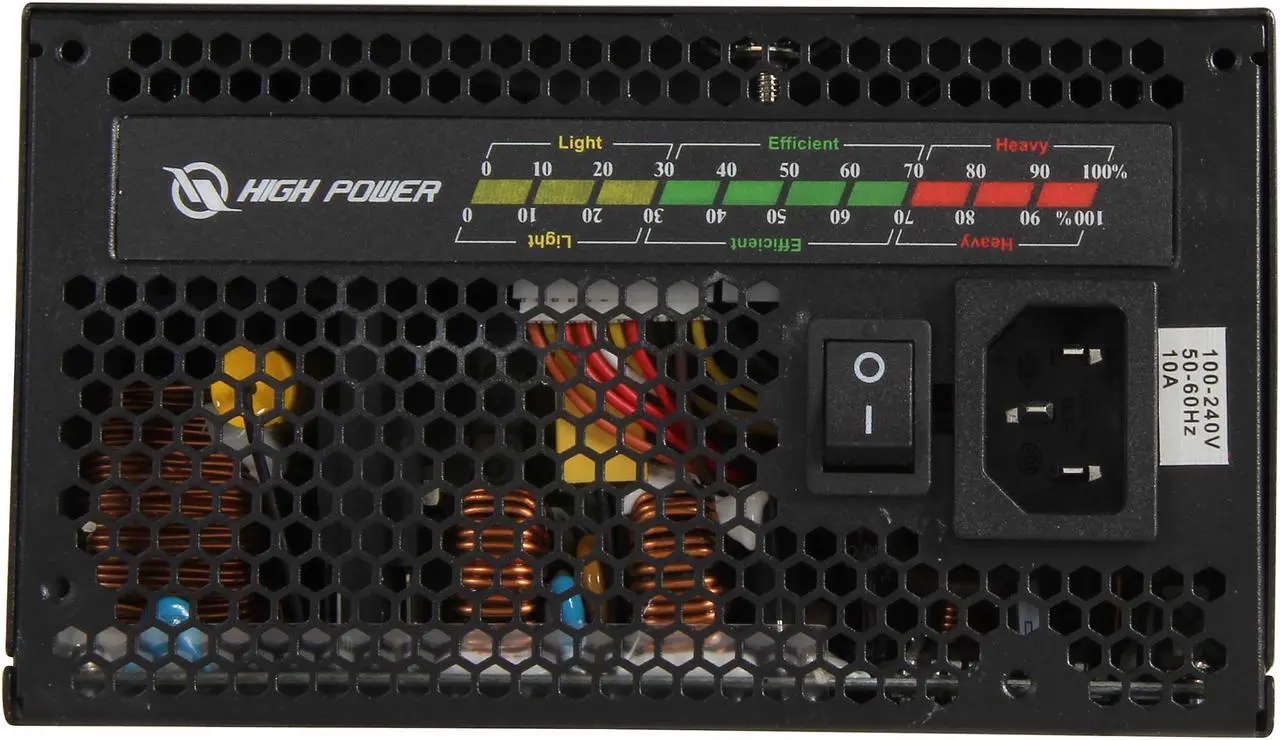

Astro GD series is 80-Plus Gold certified and features the unique D-VRM technology - the best technology for precise voltage regulation, way beyond the limits of analog designs. Check real time power consumption at a glance with the unique Eagle-eye tri-color LED power meter feature. What's more, its H-shaped fan guard provides superior ventilation and looks like a work of art.
80 Plus Gold CertifiedExtremely high power efficiency of 89-91% at 20-100% of load reduces the loss of electricity and saves you money on power bills.
Unique D- VRM technology,Digital Control for a Precision Voltage RegulatorHigh Power's unique digital + VRM (D-VRM) is an innovative and industry-leading technology. D-VRM is made to minimize voltage fluctuation down to 0.5% (over industry standard 3-5%). The technology of digital control for precise voltage regulation goes way beyond the limits of analog designs. D-VRM design features intelligently adjusting voltage with minimal power loss through voltage monitoring. D-VRM design empowers users with superior flexibility and precision to ensure extreme system stability and better power efficiency.
Silent DesignHigh Power Astro PT HPA-700PT-F14C has an embedded 13.5cm dual ball bearing fan with dimpled blade surfaces (like a golf ball). These unique fan blades increase airflow and reduce overall noise level.
Advanced DC to DC ConverterUnparalleled DC to DC converters for 3.3V & 5V outputs to reach high efficiency.
Intelligent FanControl Equipped with "Intelligent Fan Control” design, which offers three Types of operation modes: fanless mode, silent mode, and cooling mode. The Astro adjusts fan operation mode automatically according to the system load as well as the ambient temperature level. When Astro is operating under 25% (+/- 5%) of the max output, the fanless mode is activated for absolute silence.
Off- Delay Fan (Fan Stays On After System Off)PSU fan continues running after system shut-down for few seconds, releasing residual air at the end of the cooling cycle for extending component life.
80 Plus Gold CertifiedExtremely high power efficiency of 89-91% at 20-100% of load reduces the loss of electricity and saves you money on power bills.
Unique D- VRM technology,Digital Control for a Precision Voltage RegulatorHigh Power's unique digital + VRM (D-VRM) is an innovative and industry-leading technology. D-VRM is made to minimize voltage fluctuation down to 0.5% (over industry standard 3-5%). The technology of digital control for precise voltage regulation goes way beyond the limits of analog designs. D-VRM design features intelligently adjusting voltage with minimal power loss through voltage monitoring. D-VRM design empowers users with superior flexibility and precision to ensure extreme system stability and better power efficiency.
Silent DesignHigh Power Astro PT HPA-700PT-F14C has an embedded 13.5cm dual ball bearing fan with dimpled blade surfaces (like a golf ball). These unique fan blades increase airflow and reduce overall noise level.
Advanced DC to DC ConverterUnparalleled DC to DC converters for 3.3V & 5V outputs to reach high efficiency.
Intelligent FanControl Equipped with "Intelligent Fan Control” design, which offers three Types of operation modes: fanless mode, silent mode, and cooling mode. The Astro adjusts fan operation mode automatically according to the system load as well as the ambient temperature level. When Astro is operating under 25% (+/- 5%) of the max output, the fanless mode is activated for absolute silence.
Off- Delay Fan (Fan Stays On After System Off)PSU fan continues running after system shut-down for few seconds, releasing residual air at the end of the cooling cycle for extending component life.Warranty & Returns
