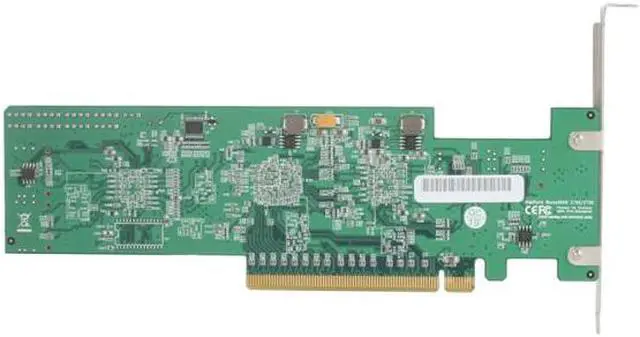

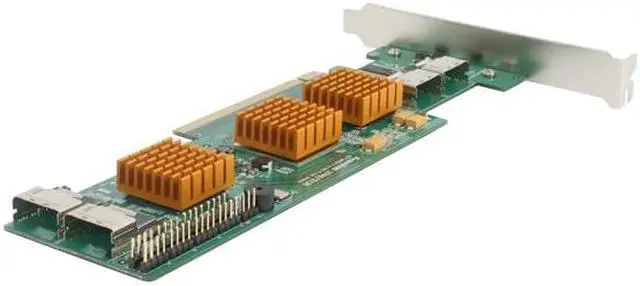

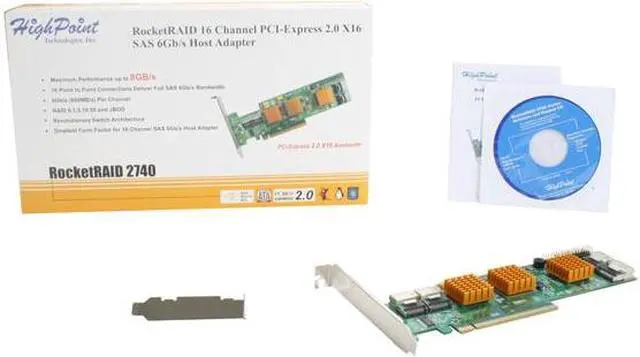

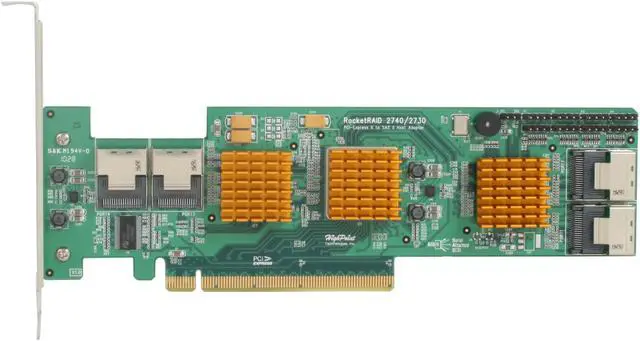

The HighPoint RocketRAID 2740 is an SAS/SATA 6Gb/s RAID host adapter. Utilizing a point-to-point connectivity architecture in addition to PCI-Express 2.0 x16 lane speed maximizes performance support up to 8000MB/s. Doubling the performance eliminates the bottleneck from previous PCI-E generations to support today’s fastest storage devices such as SAS and SSD.
SAS 6Gb/s CompliantThe HighPoint RocketRAID 2740 supports up to 16 SAS or SATA devices for enhanced flexibility and speed. The compliance with next generation SATA/SAS port enables lightning data transfer speed of up to 6Gbps.
RAID SupportThe HighPoint RocketRAID 2740 supports multi-level RAID configuration including RAID 0, 1, 5, 10, 50 and JBOD for better performance, enhanced data security and flexible capacity upgrades.
PCI Express 2.0 x16 InterfaceThe HighPoint RocketRAID 2740 features PCI Express 2.0 x16 interface which provides sufficient throughput and full-duplex operation for enhanced performance.
Learn more about the HighPoint Technologies, Inc. RocketRAID 2740
SATA / SAS
4 x SFF-8087 mini-SAS
PCI-Express 2.0 x16
Up to 6Gb/s
RAID 0/1/5/10/50 JBOD
8.66"L x 2.68"H
RAID Array Roaming Unplug/Remove RAID array Hot key (ctrl-h) boot-up RAID manager via BIOS Firmware update while running the Operating System Verify RAID Array for Bad Sectors and Parity Check Task Scheduler Automatic RAID rebuild Automatic drive (insert / removal) detection Hot Spare Disk Staggered Drive Spinup Rebuild Priority (Low - Highest) Spin Down Idle Mode Hot Swap and Hot plug Bad sector repair and remapping to reduce dropped drives Multiple RAID array Multiple Logical Drive 64bit LBA support greater than 2TB per volume
