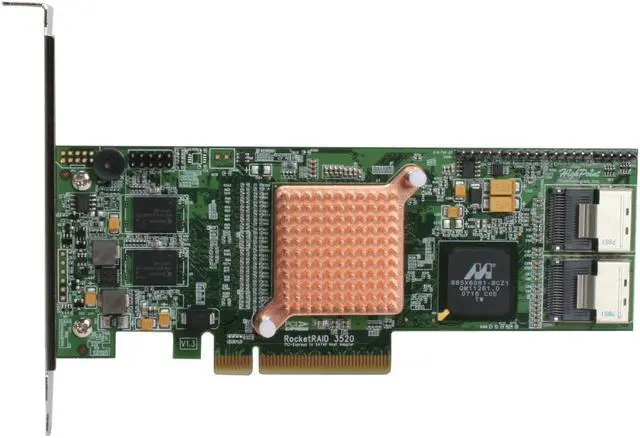

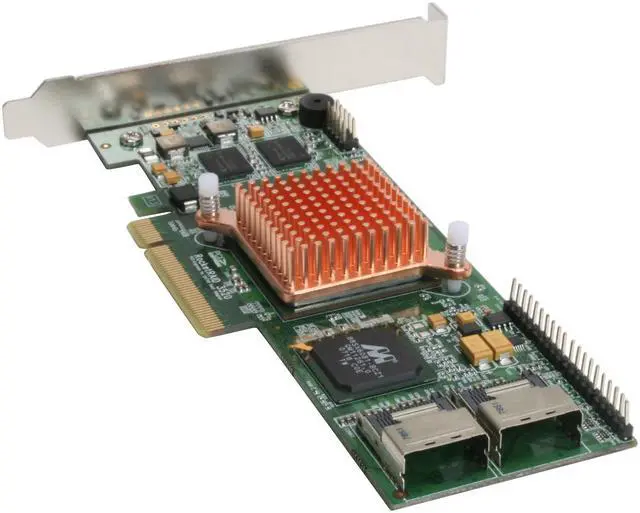

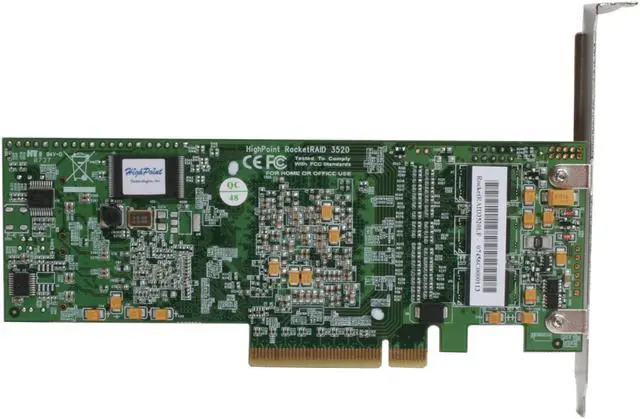

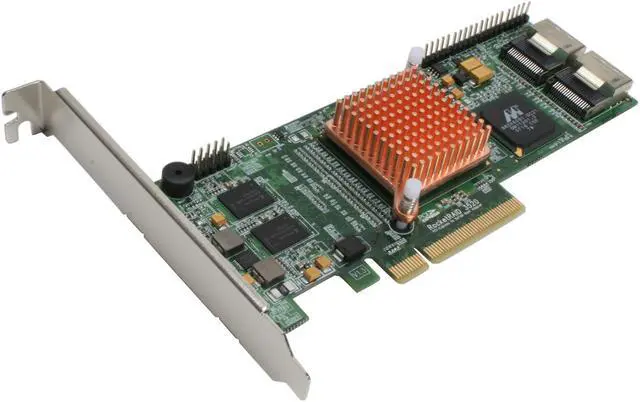

HighPoint RocketRAID 3520 SATA II RAID Controller with Intel 2nd Generation PCI-Express I/O Processor
- RAID 0/1/5/6/10/50 JBOD
- 2 x SAS Internal Connectors
Specs
Reviews (15)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the HighPoint Technologies, Inc. RocketRAID 3520
| Brand | HighPoint |
|---|---|
| Model | RocketRAID 3520 |
| Type | SATA II (3.0Gb/s) |
|---|---|
| Internal Connectors | 2 x internal mini-SAS |
| Interface | PCI -Express x8 (x16 slot compatible) |
| Cache Memory | 256 MB DDR2 533 |
| RAID | RAID 0/1/5/6/10/50 JBOD |
| Operating Systems Supported | Microsoft Windows 2003/XP/2000, Redhat Enterprise Linux /CentOS , Fedora Core, SuSE Linux, FreeBSD, Linux kernel 2.6 |
| Dimensions | 6.45" x 2.59" |
| Features | TerabyteStream for blazing performance Intel IOP 81341 (800MHz) PCI -Express x8 (x16 slot compatible) 256 MB of DDR II memory with ECC protection 8 SATA II Channels at 3Gb/s per port Multi -adapter support up to 4 adapters BIOS booting support BIOS PnP and BBS (BIOS boot specification)support Intel RAID 6 Engine for large capacity RAID arrays Option Battery Backup Unit (BBU-03) RoHS compliant Support RAID 0, 1, 5, 6, 10 and JBOD Multiple RAID support Multiple Logical Drive Support Online array roaming Online capacity expansion (OCE) and Online RAID level migration (ORLM) Quick and Background initialization for instant RAID configuration Automatic drive insertion / removal detection and rebuild 64bit LBA support greater than 2TB per volume S.M.A.R.T monitoring hard drive status for reliability Staggered Spinup with user selection in BIOS (MAID) spin down drives in array is idle (VSS) Variable Sector Size for over 2TB support in 32bit LBA OS Active/Failed LED SMTP for email notification Alarm/ Buzzer alerts for array activity TerabyteSaver and TerabyteGuard? for Data Protection and Reliability Firmware update in the Operating System Hot key (ctrl-h) boot-up RAID manager via BIOS API library for customizing AP Command Line Interface (CLI) Web browser-base RAID management software Disk scrubbing to prevent degraded RAID arrays Bad sector repair and remapping to reduce dropped drives ATA pass-through mode support |
|---|
| First Listed on Newegg | November 26, 2007 |
|---|
