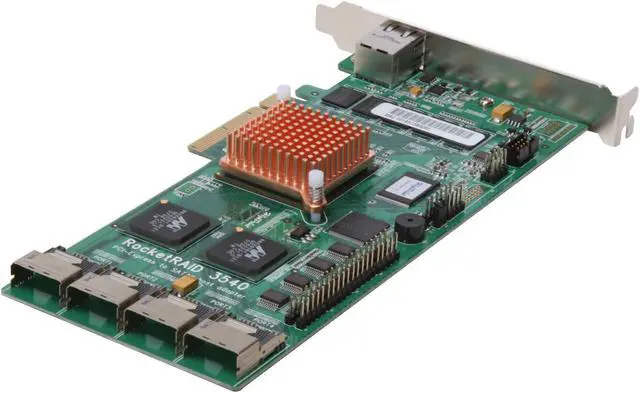

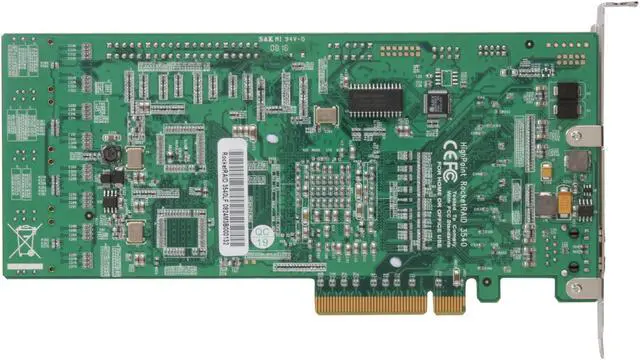

HighPoint RocketRAID 3540 PCI-Express x8 SATA Controller Card
- RAID 0/1/3/5/6/10/50 and JBOD

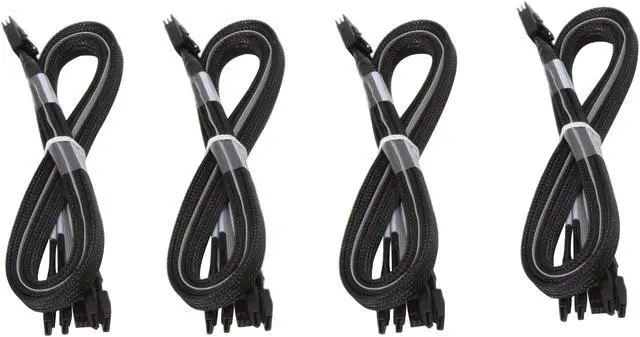

- 4x SFF-8087 mini-SAS Internal Connectors
Overview
Specs
Reviews (4)
Any questions? Our AI beta will help you find out quickly.
Try me now
HighPoint’s industry-leading professional RAID storage host bus adapters for Enterprise Level Server and Workstation applications, provide unparalleled levels of performance and 24/7 reliability. The RocketRAID 3000 series are true hardware RAID controllers; integrating state of the art I/O processors, onboard cache and powered by HighPoint’s powerful Terabyte RAID technology.
Intel IOP341 (800MHz) - RAID I/O ProcessorThe Intel IOP341(800MHz) is one of the industry’s highest performing RAID I/O processor engines for multi-channel SATA hardware RAID 5/6 controllers. The RocketRAID 35xx series of PCI-Express hardware RAID controllers leverage the ADMA architecture in the Intel IOP341(800MHz) to deliver the industry’s leading RAID 6 performance with sustained transfer rates over 780MB/s Read and over 685MB/s Write.
Intelli-VRM (Virtualize RAID Management)RocketRAID Intelli-VRM (Intelligent Virtualized RAID Management) is a virtualized RAID management solution. It combines an early warning system for detection of problems with alerts, information and warnings. Intelli-VRM helps reduce support related travel costs by having virtual presence at the customers site to help troubleshoot. The customer will benefit since resellers do not need to pass the cost of training support engineers as troubleshooting and support is shifted to (SMB) Small to Medium Sized Business.
RAID 6 and Terabyte (Stream, Saver and Guard)The ADMA architecture in the Intel IOP341(800MHz) with hardware RAID 6 provides the protection and prevents the chances of losing data when rebuilding occurs significantly improving fault tolerance. TerabyteStream leverages the power of the Intel IOP341(800MHz) to deliver unprecedented RAID 5 and 6 performance with an intelligent algrothim to manage multiple data streams of data concurrently and utilize adaptive readahead by anticipating if data blocks that will be requested in the future and read into controller cache. TerabyteGuard prevents data lose and increase data realibility with advanced hard drive inspection features utilizing bad sector repair and remapping. TerabyteSaver optimizes data protection with a battery backup and with write journaling prevent data loss.
Vertical Application TuningVertical applications like NAS storage, clusterservers, supercomputing, backup and archival, security systems and pro audio and video applications often require I/O tuning to meet the sustained Read/Write performance and protection mode needs. Advance features in the RocketRAID 3500 series of controllers allow users the flexibility to tune the RAID I/O settings to optimal mode for the best sustained Read/Write performance or protection mode for applications that require the highest level of data protection and realibility.
Intel IOP341 (800MHz) - RAID I/O ProcessorThe Intel IOP341(800MHz) is one of the industry’s highest performing RAID I/O processor engines for multi-channel SATA hardware RAID 5/6 controllers. The RocketRAID 35xx series of PCI-Express hardware RAID controllers leverage the ADMA architecture in the Intel IOP341(800MHz) to deliver the industry’s leading RAID 6 performance with sustained transfer rates over 780MB/s Read and over 685MB/s Write.
Intelli-VRM (Virtualize RAID Management)RocketRAID Intelli-VRM (Intelligent Virtualized RAID Management) is a virtualized RAID management solution. It combines an early warning system for detection of problems with alerts, information and warnings. Intelli-VRM helps reduce support related travel costs by having virtual presence at the customers site to help troubleshoot. The customer will benefit since resellers do not need to pass the cost of training support engineers as troubleshooting and support is shifted to (SMB) Small to Medium Sized Business.
RAID 6 and Terabyte (Stream, Saver and Guard)The ADMA architecture in the Intel IOP341(800MHz) with hardware RAID 6 provides the protection and prevents the chances of losing data when rebuilding occurs significantly improving fault tolerance. TerabyteStream leverages the power of the Intel IOP341(800MHz) to deliver unprecedented RAID 5 and 6 performance with an intelligent algrothim to manage multiple data streams of data concurrently and utilize adaptive readahead by anticipating if data blocks that will be requested in the future and read into controller cache. TerabyteGuard prevents data lose and increase data realibility with advanced hard drive inspection features utilizing bad sector repair and remapping. TerabyteSaver optimizes data protection with a battery backup and with write journaling prevent data loss.
Vertical Application TuningVertical applications like NAS storage, clusterservers, supercomputing, backup and archival, security systems and pro audio and video applications often require I/O tuning to meet the sustained Read/Write performance and protection mode needs. Advance features in the RocketRAID 3500 series of controllers allow users the flexibility to tune the RAID I/O settings to optimal mode for the best sustained Read/Write performance or protection mode for applications that require the highest level of data protection and realibility.Warranty & Returns
