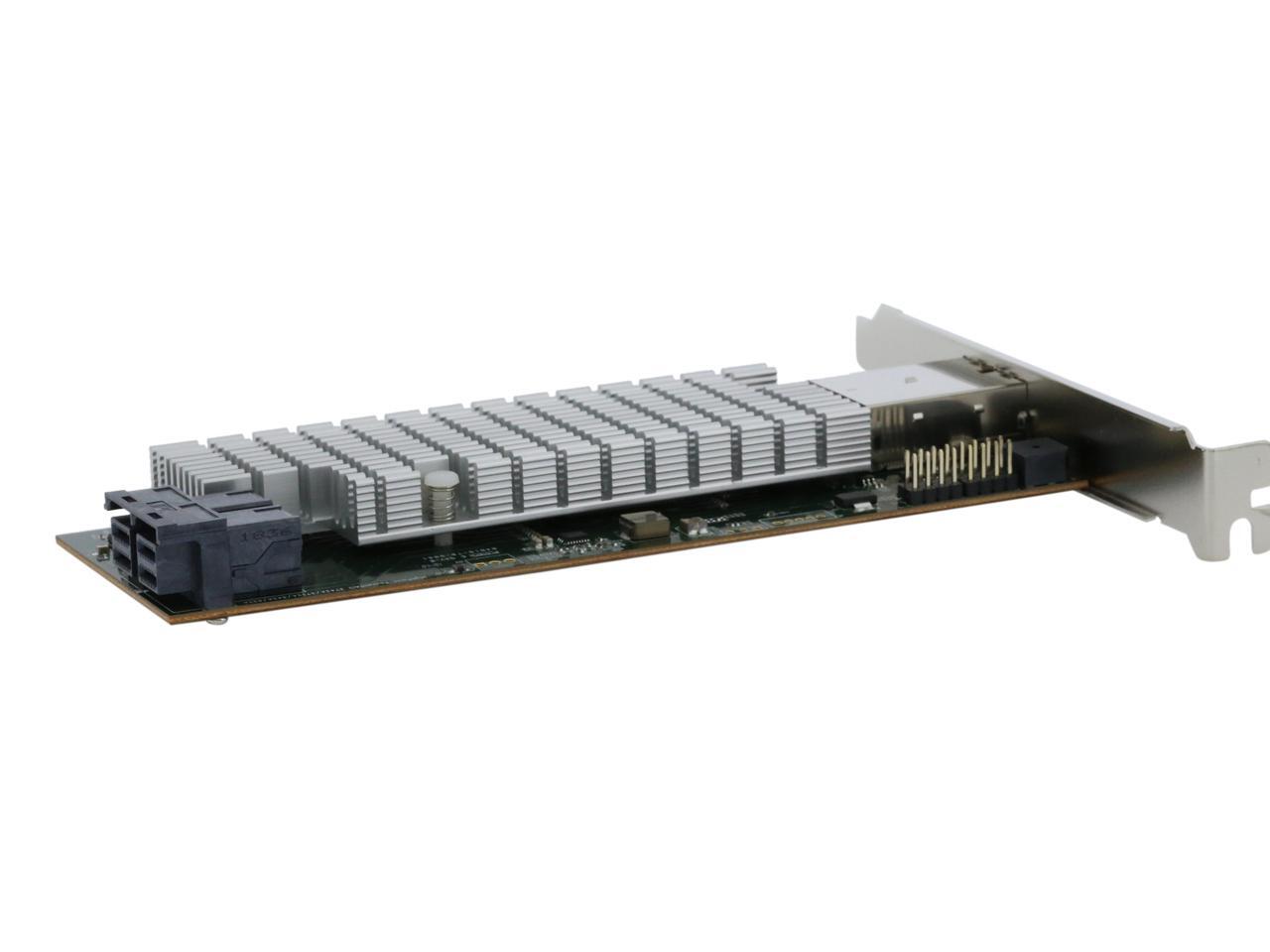

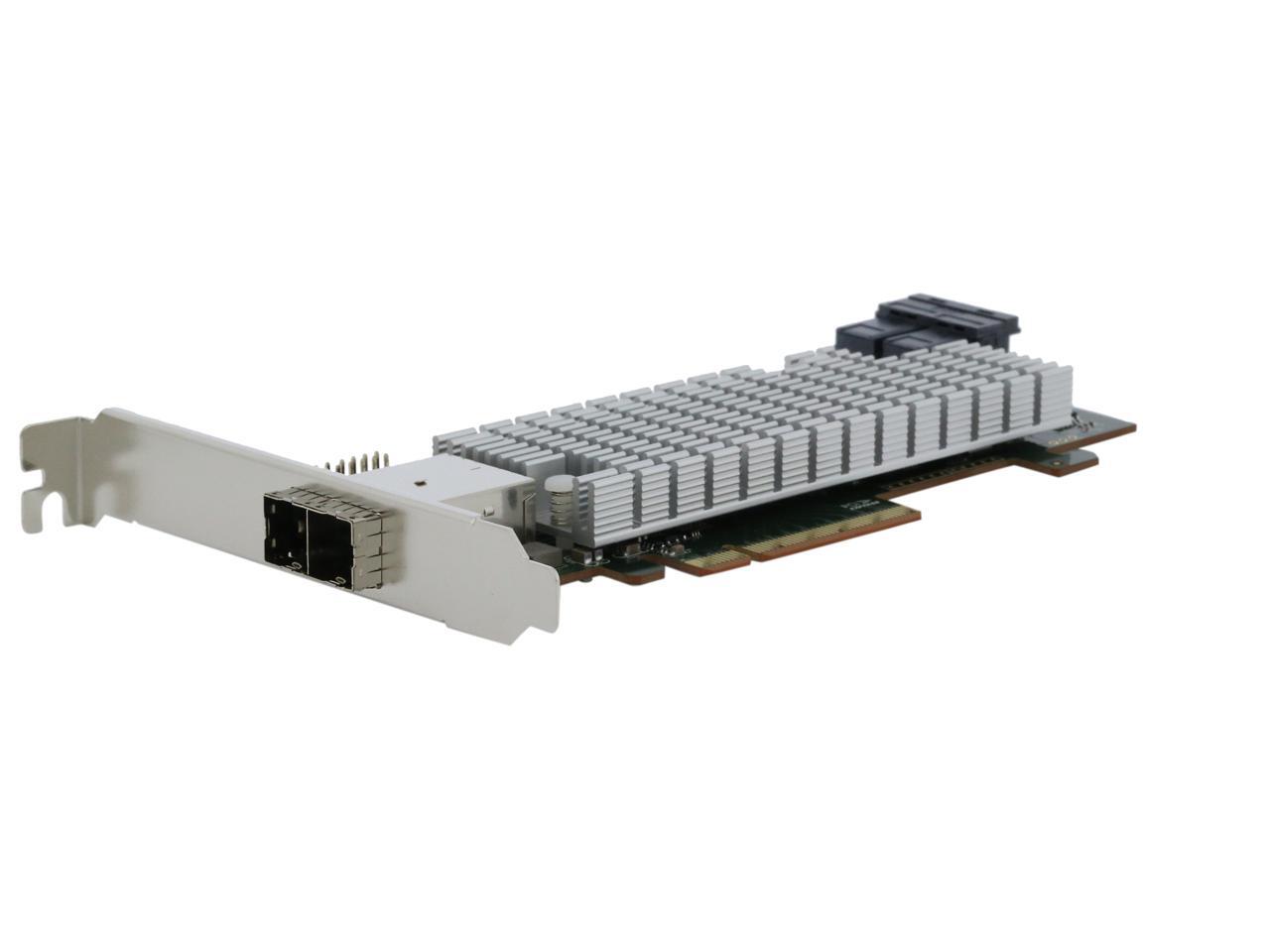

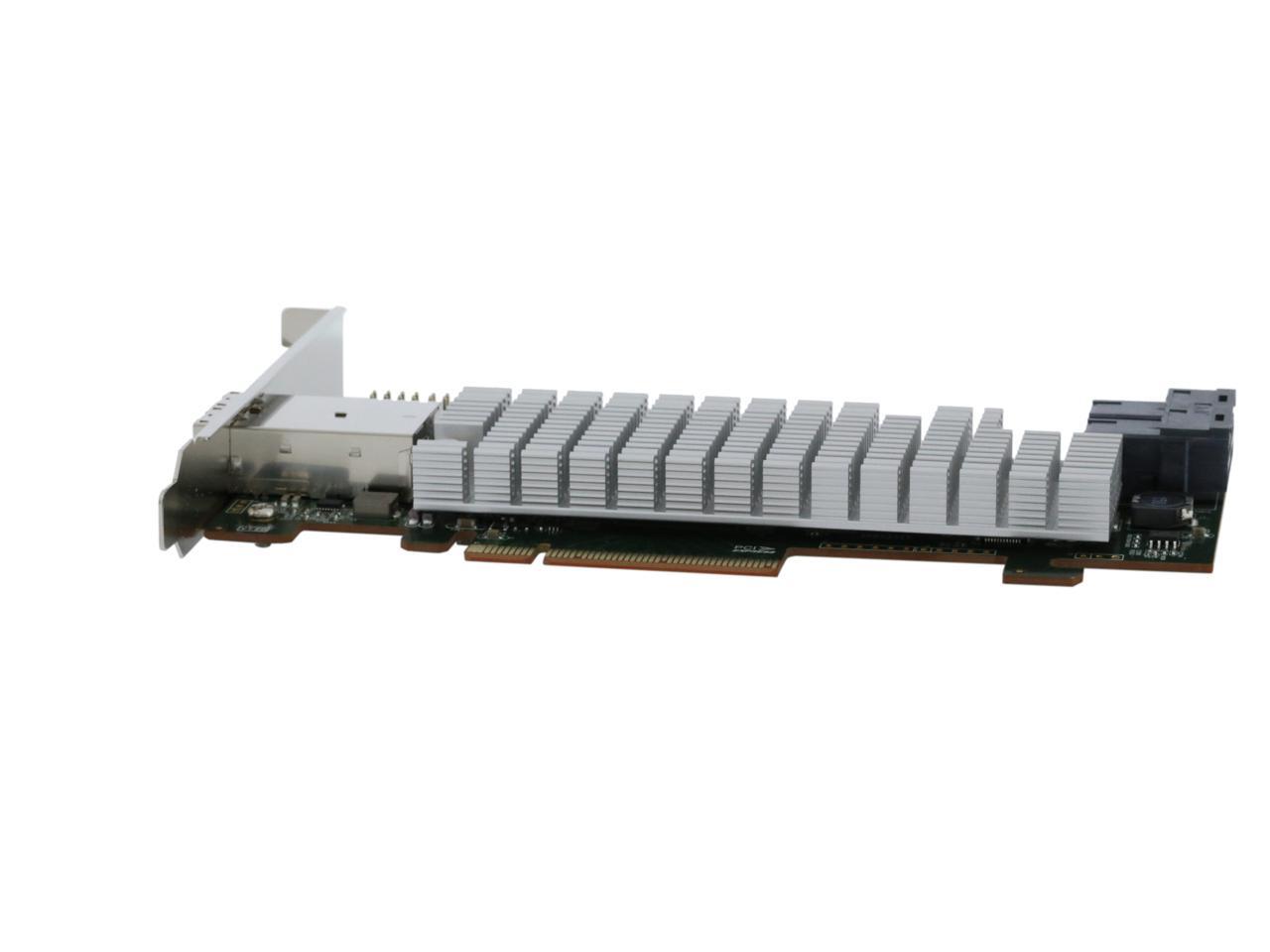

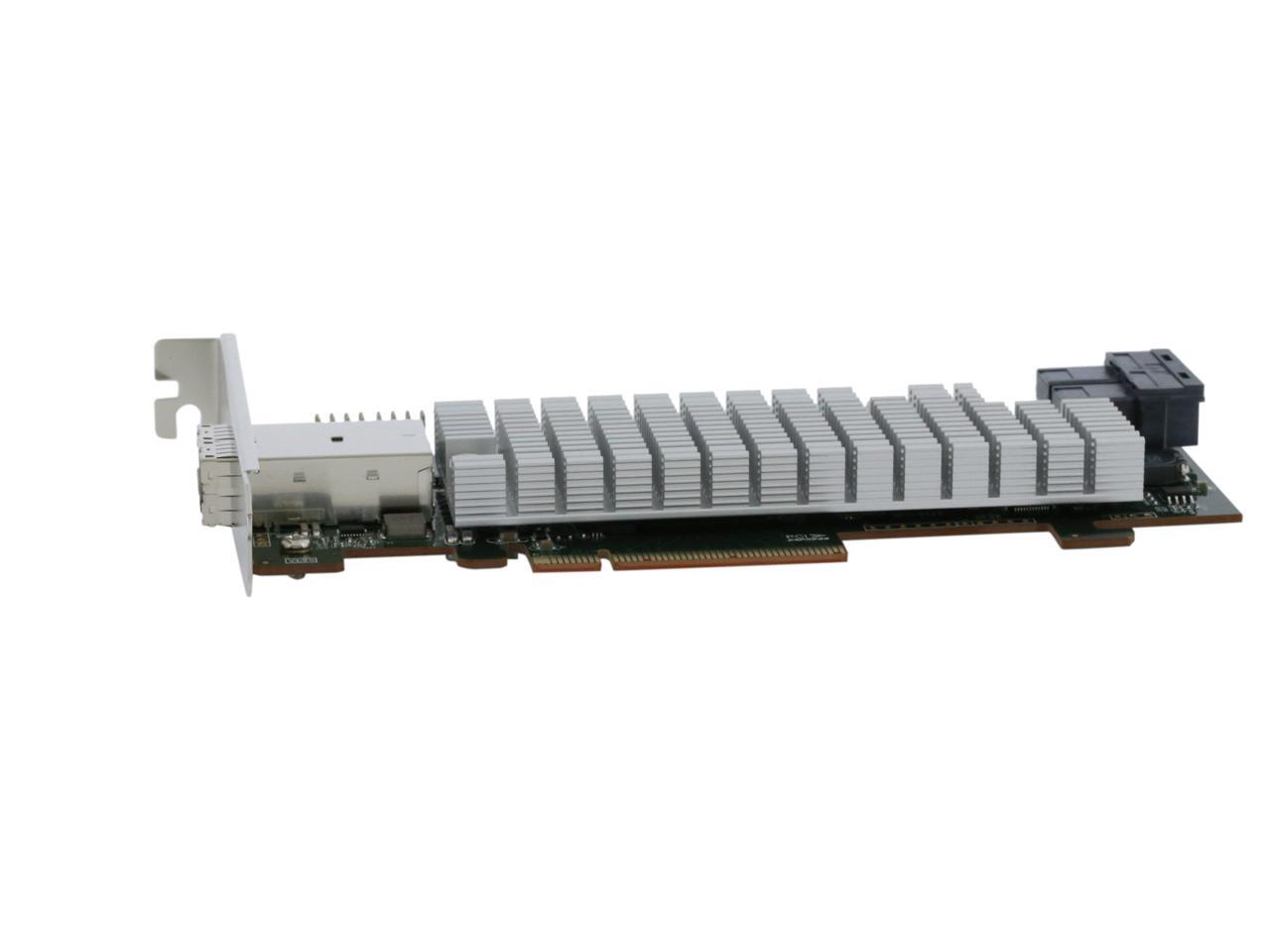

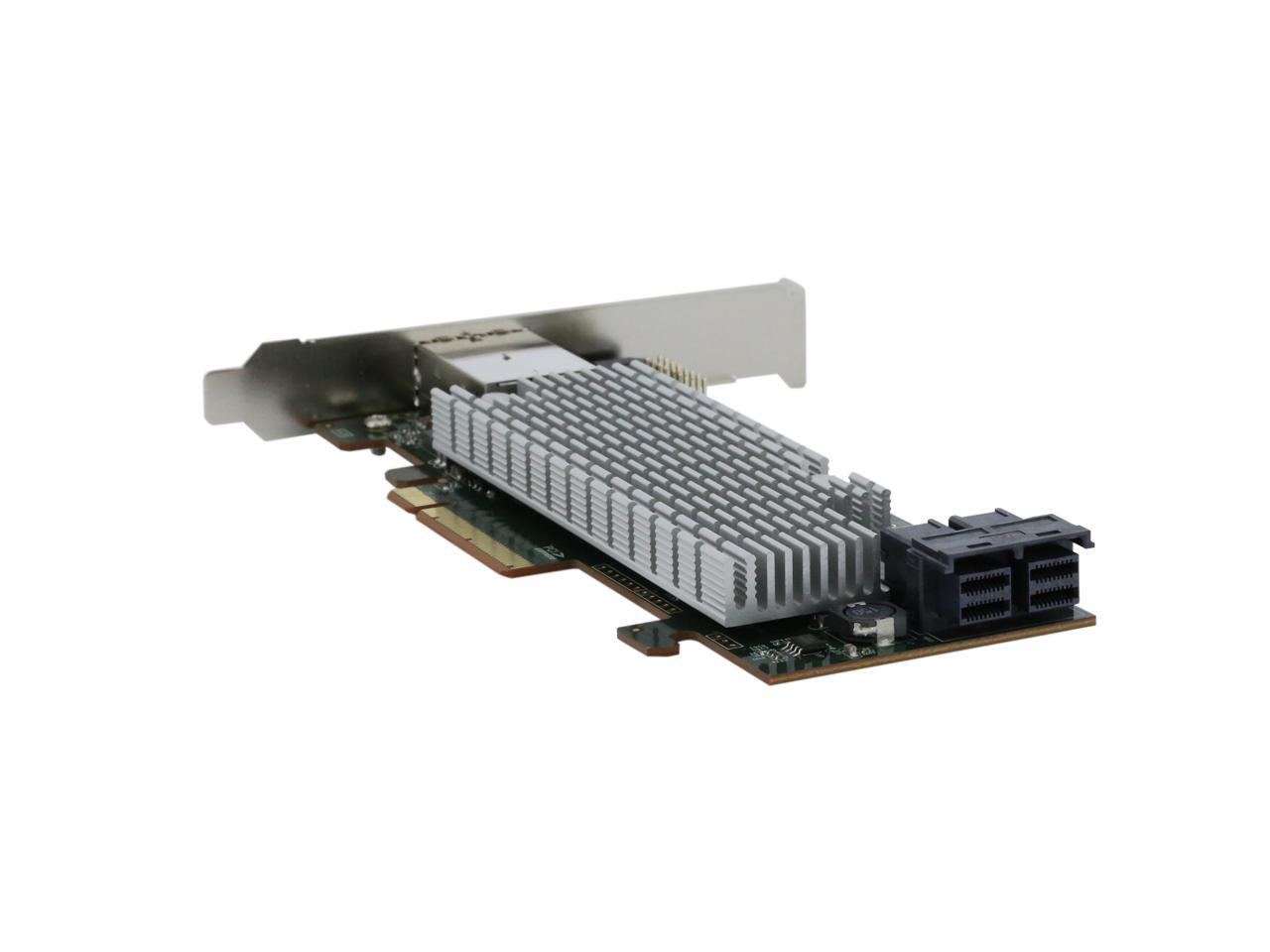

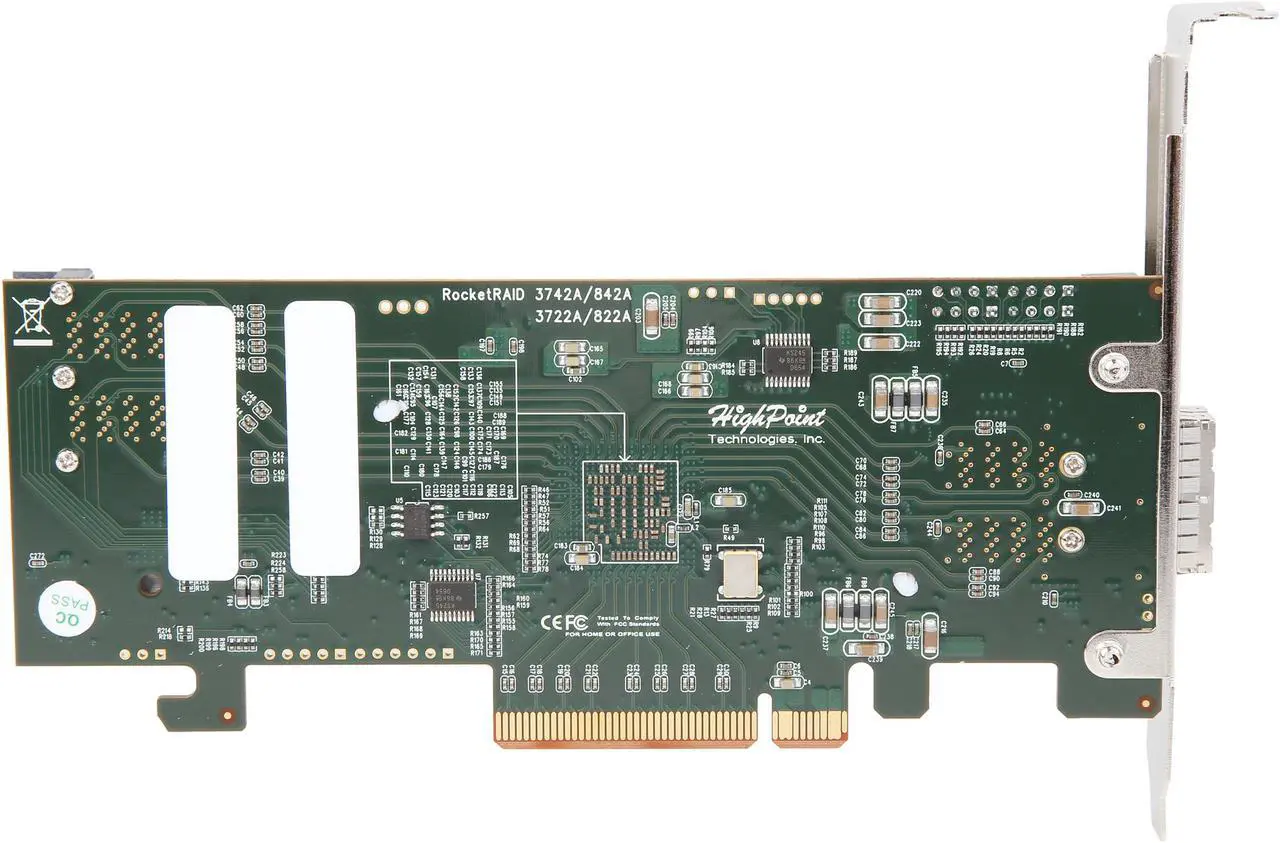

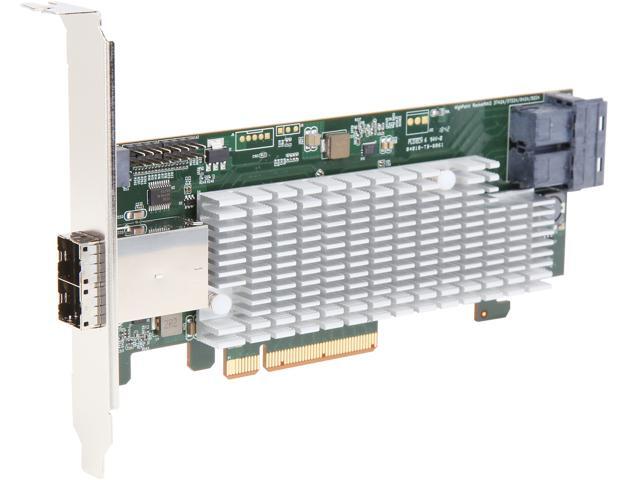

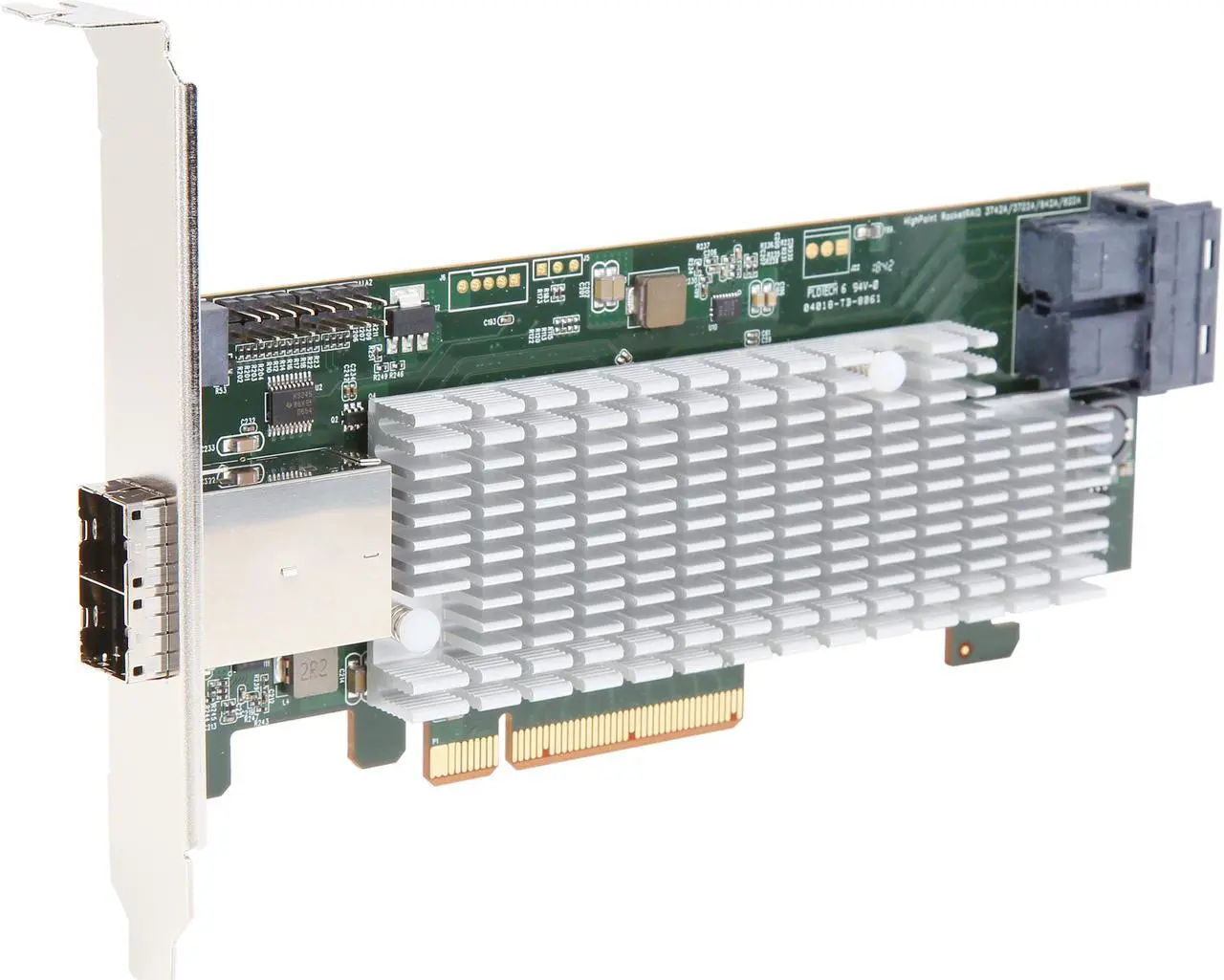

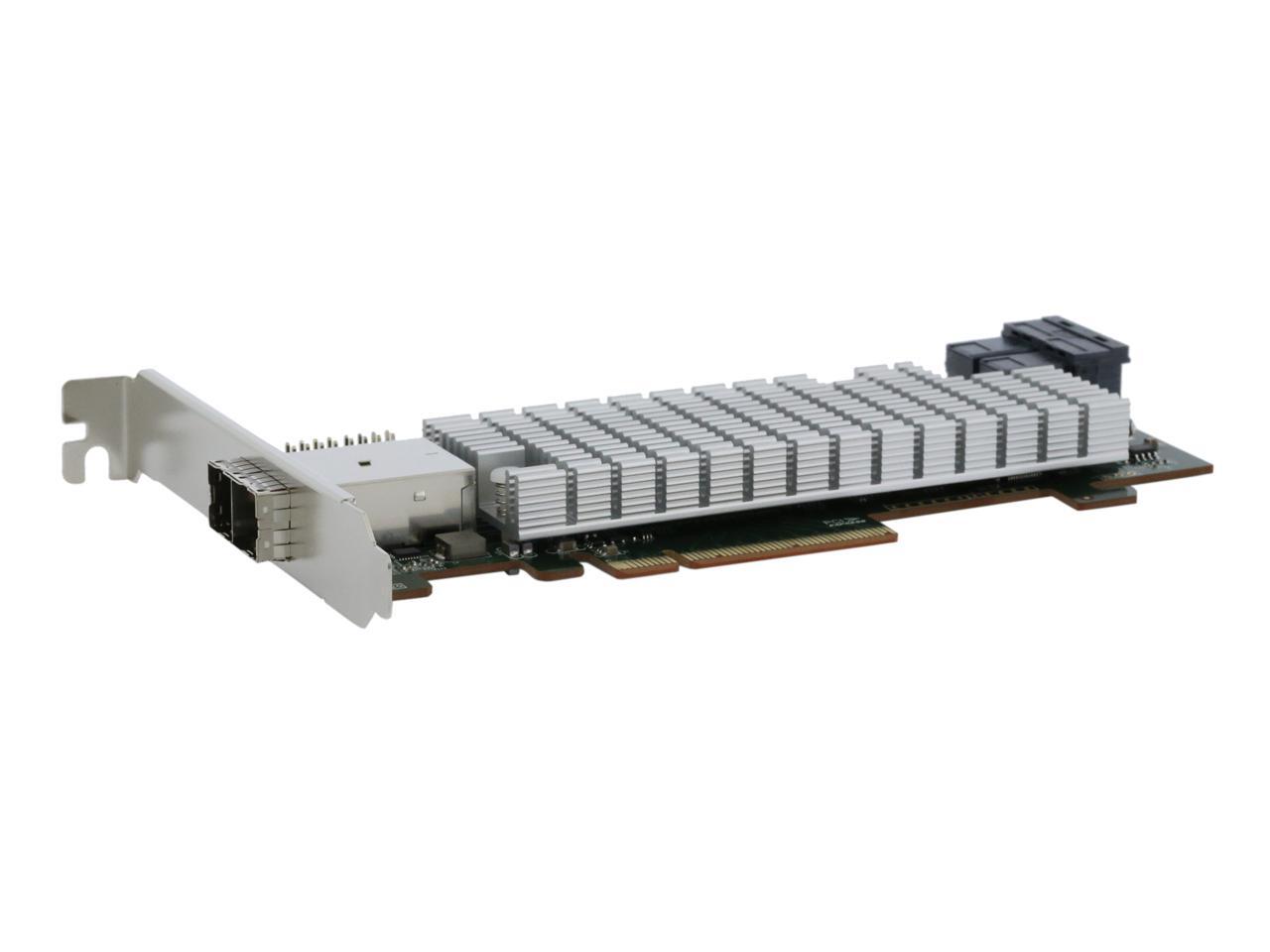

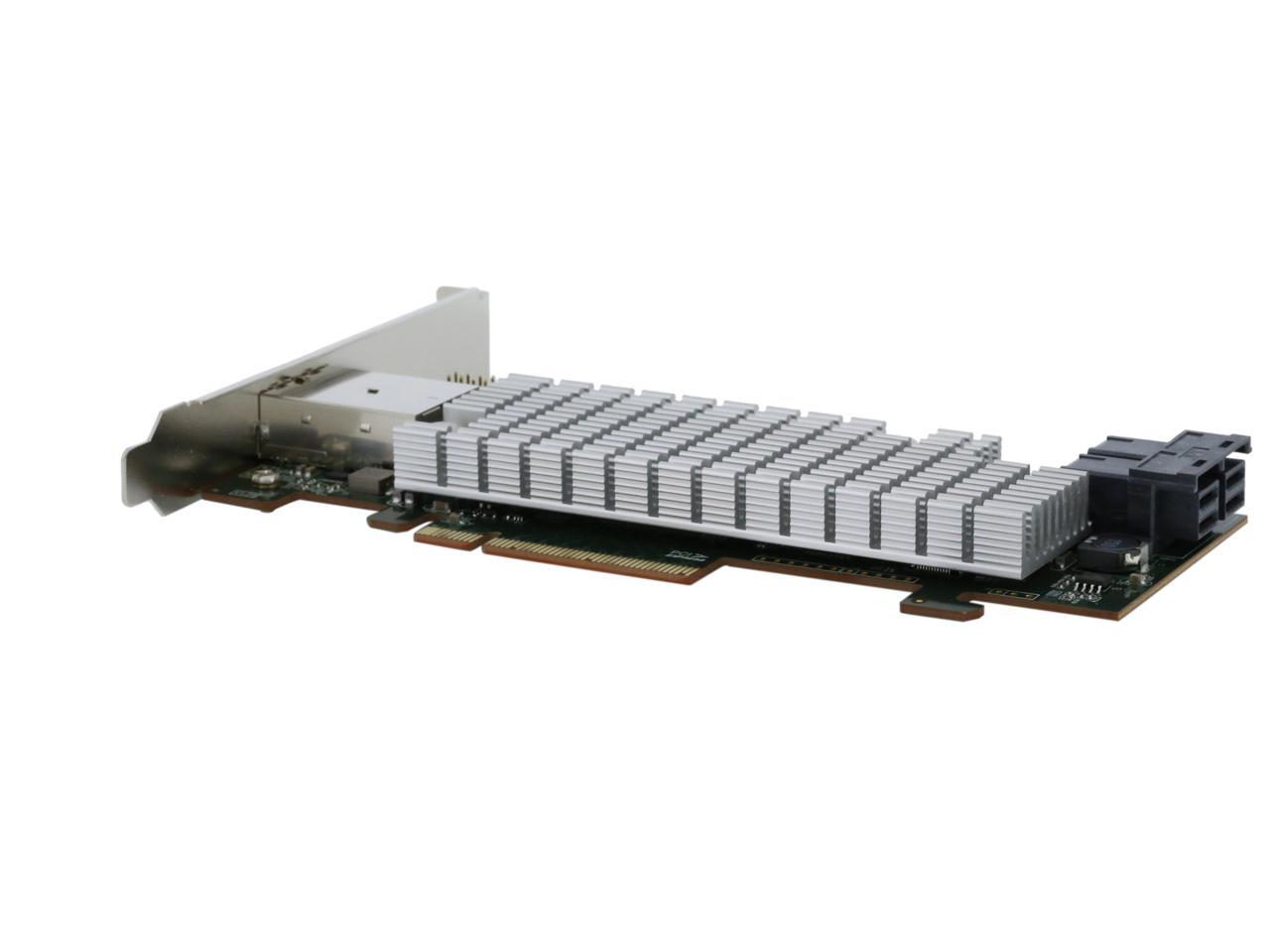

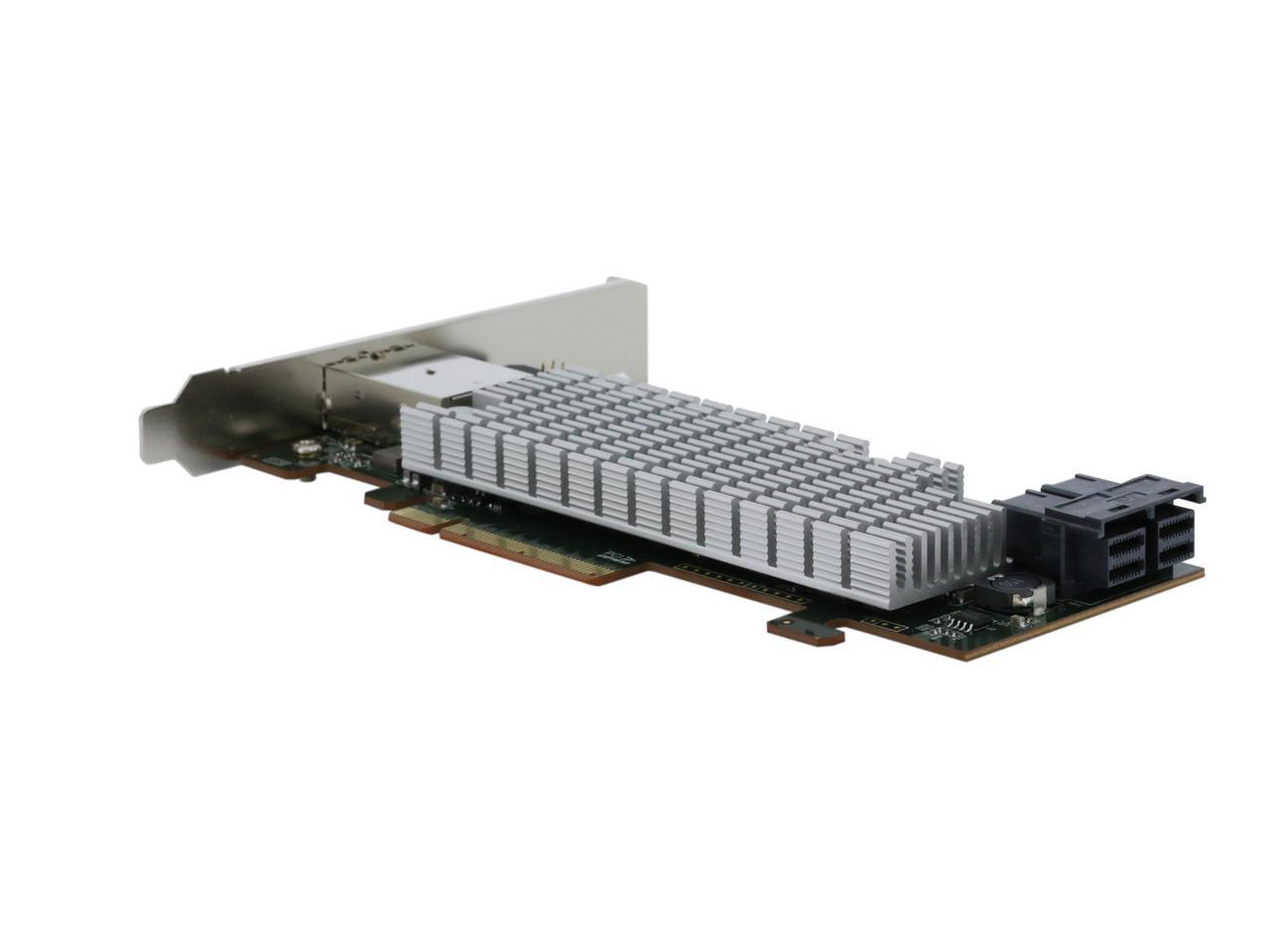

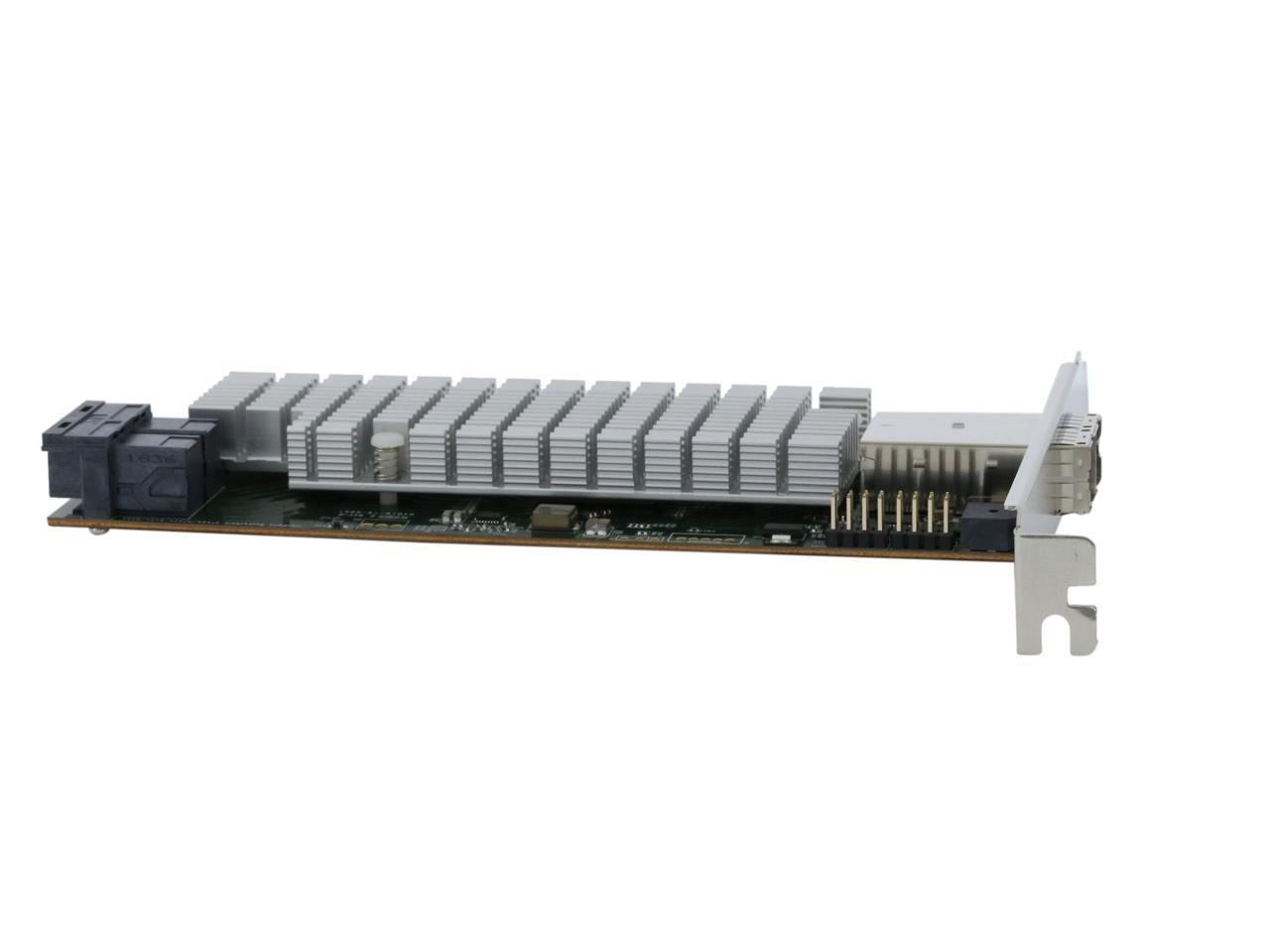

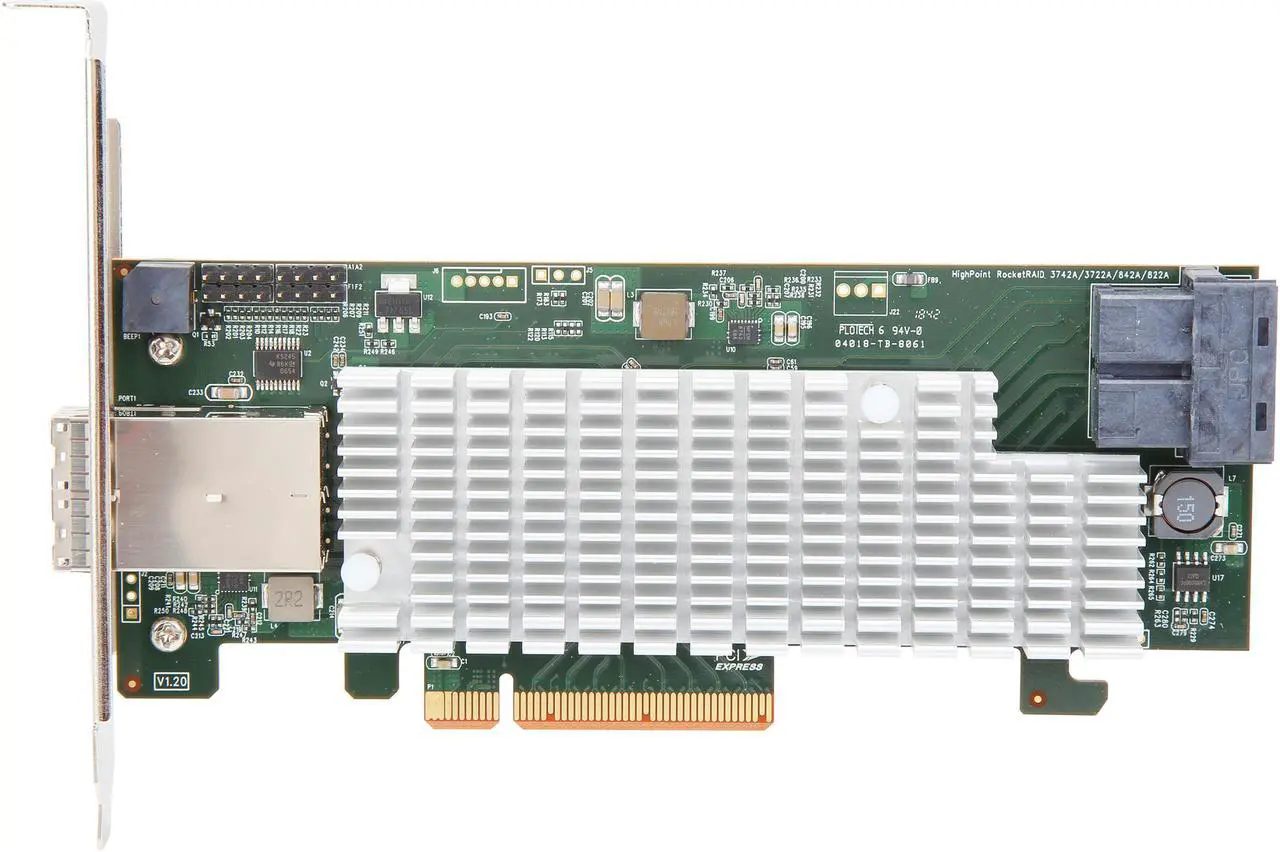

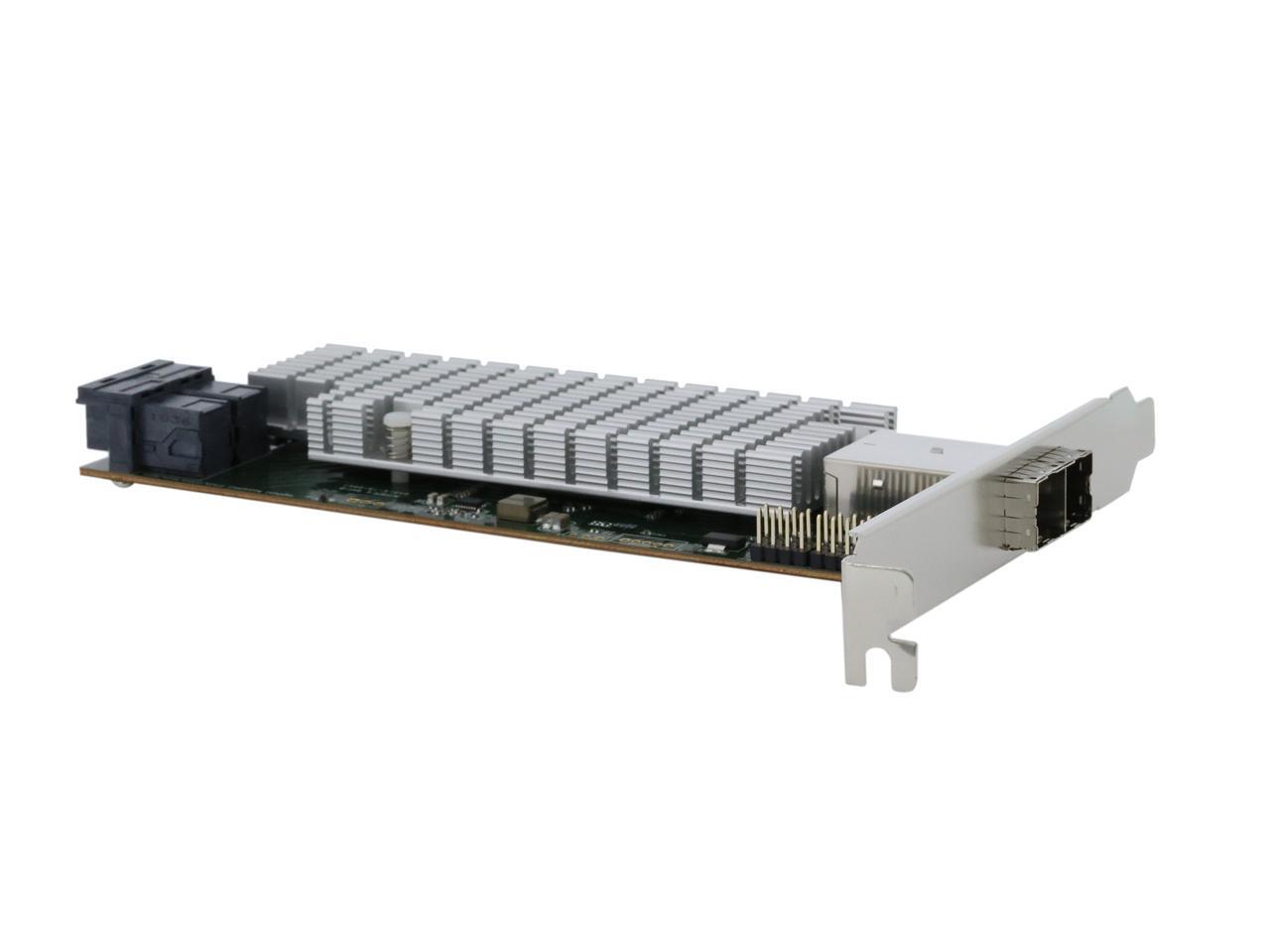

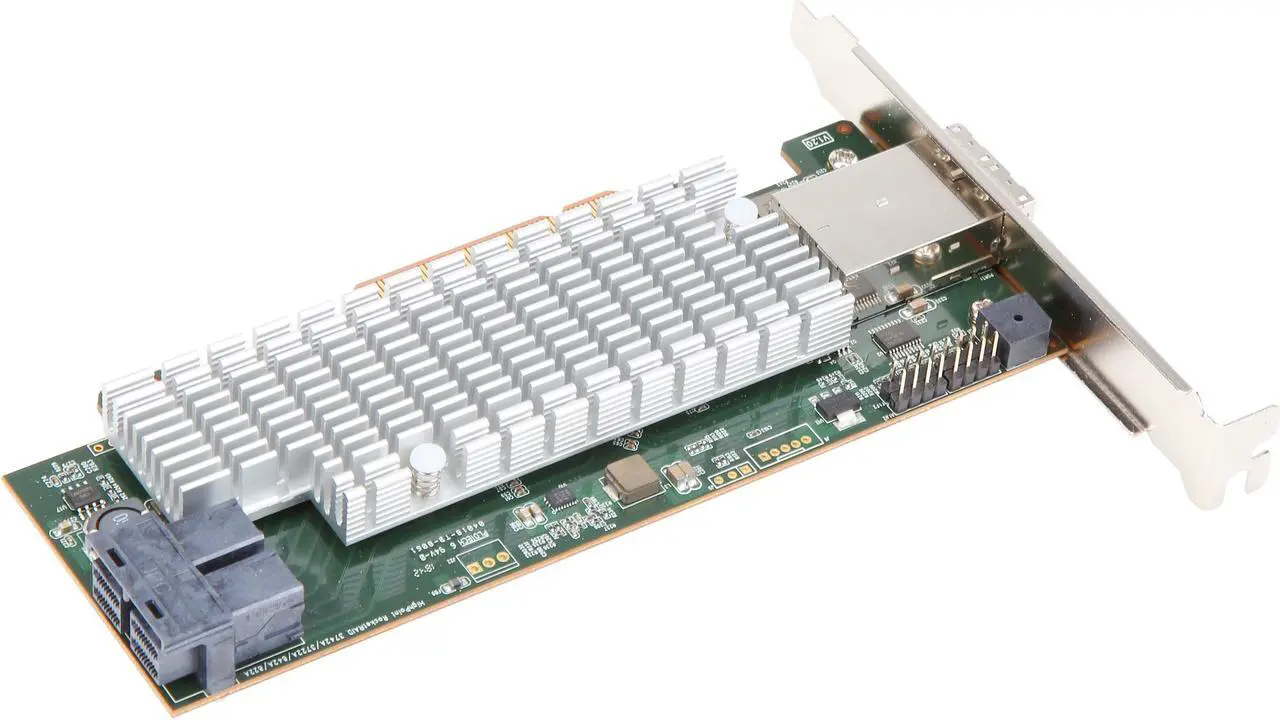

Learn more about the HighPoint Technologies, Inc. RocketRAID 3742A
Model
Brand
HighPoint
Model
RocketRAID 3742A
Part
RR3742A
Form Factor
Low Profile
Details
Type
SATA / SAS
Interface
8-lane, 8 GT/s PCI Express 3.0 Compliant
Transfer Rate
Up to 12Gb/s
Operating Systems Supported
Window Server 2008 and later / Windows 7 and later Linux macOS
Dimensions
0.06" x 5.97" x 2.68"
Features
Features
PCIe 3.0 x8 Interface
8 x Internal & 8x External SAS 12Gb/s / SATA 6Gb/s Ports
RAID 0, 1, 5, 6, 10, 50, and JBOD

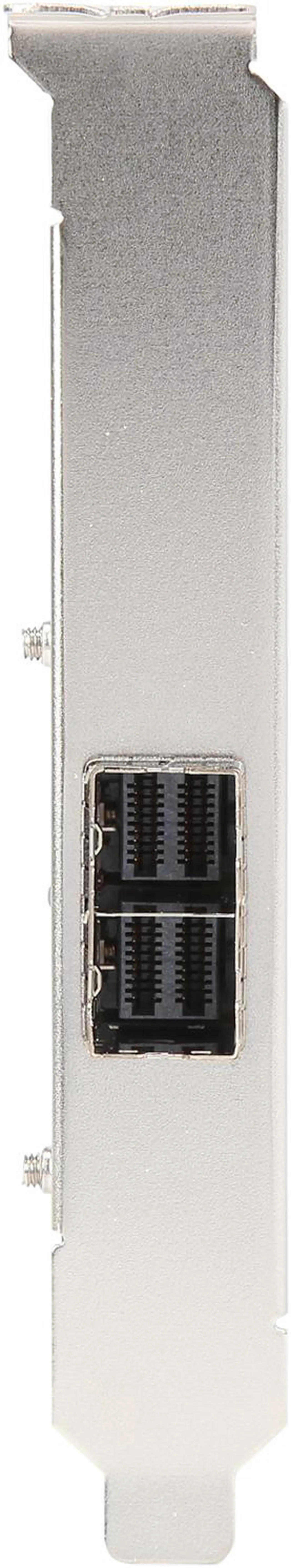

2 x SFF-8643 & 2 x SFF-8644 Mini-SAS Ports
Low-Profile Form Factor
Supports up to 16 Drives
Mac, Windows, & Linux Compatible
RAID Level Support: 0, 1, 5, 6, 1/0, 5/0, and JBOD / Non-RAID Mode RAID 6 is not supported on macOS Bootable RAID 6 arrays are not supported. RAID 1/0 is the equivalent of RAID 10. RAID 5/0 is the equivalent of RAID 50.
Advanced RAID Features: Flash ROM for Upgradeable BIOS Storage Health Inspector Redundant RAID Configurations BIOS PnP (plug and play) and BBS (BIOS boot specification) support Bootable RAID Array EFI for Mac Platform Multiple RAID Partitions supported Storage Configurations: Direct Attached Multiple RAID Adapters supported: Up to 2 RAID controllers per system Online Array Roaming Online RAID Level Migration (ORLM) Online Capacity Expansion (OCE) RAID Quick Initialization for fast array setup Drive hot-plug support Global Hot Spare Disk support Automatic and configurable RAID Rebuilding Priority Auto resume incomplete rebuilding after power on or reboot system Disk Format compatible:512, 512e, 4Kn Larger than 2TB Drive and RAID Array support Spin down Massive Arrays of Idle Disks support Native Command Queuing SAS TCQ Disk media scan and repair Device Error Recovery support Automatic remap and fix drive bad block for RAID array: Redundant RAID Levels (RAID 1, 5, 6, 10, 50) Staggered Drive Spin Up Write Back and Write Through
RAID Monitoring and Management Suites: BIOS / UEFI / Firmware configuration tool Browser-Based management tool CLI(Command Line Interface- scriptable configuration tool) API package
Package Contents
Package Contents
1 x Controller card 1 x Low Profile Bracket 1 x Quick Installation Guide
Additional Information
Date First Available
June 10, 2019
